Archilight LED Strip Pro Pure Flow IP67

320LEDs/m10W/m24VIP67CRI>90cuttable length 25mm

SKU PF2216-10W2467GLE-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

PF2216-10W2467GLE-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Overview

Features

Dot-free linear and homogeneous lighting performance.
Very flexible top-bend in ultra-thin appearance.
Onsite simple cutting and assembly operation, easy mounting way by adhesive tape.
Quite a short increment with high density LED array.
More reliable and mature SMD solution assures 50,000h lifespan and 5 years warranty, by using 2216 Pro LED with LM80&TM-21 certified.
Higher price-performance ratio with more flexible customization.
More advanced parameters on color, CCT, CRI, brightness, power, etc.
More perfect of brightness and color consistency for the entire run length.
Much wider luminous surface, no dark area at the edge.
Better structural and mechanical properties against quality issues during usage and manufacturing.
Higher production efficiency and quality yield by adopting silicone extrusion processing technology.
Longer packing length up to 50M[164ft.] per spool.
Higher waterproof grade in IP67 for indoor and outdoor application.

Specifications

Archilight LED Strip Pro Pure Flow IP67Specifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Brightness
PF2216-10W2467GLE-CW	Cool White 6500K	1,100 lm
PF2216-10W2467GLE-NW	Natural White 4000K	1,100 lm
PF2216-10W2467GLE-WW	Warm White 3000K	1,045 lm

General Specification

Dimension: W10*H5mm [W0.39*H0.2in.]
Max. Length (La): 10M[32.8ft.] power feed on both side
Increment (L1): 25mm [0.98in.]
LED Type: SMD 2216
LED QTY: 320LED/M [97LED/ft.]
IP Rating: IP67 [Wet]
Operating Ambient: Ta(working): -20~45°C [-4~113°F] & Tstg (storage): -20~60°C [-4~140°F]
Lifespan: 50,000h (L70@ Tc≤65°C, Tc is the temp. of LED pin)
Warranty: 5 years

Photoelectric Specification

Power ±10%: 10W/M [3.1W/ft.]
Operating Voltage: 24VDC
CRI90, 4000K Light Efficiency: 110lm/W
Beam Angle: 150° (perpendicular to the LED strip) & 110° (parallel to the LED strip)

Certifications & ratings

Certification marks: CB, TÜV, UL, CE, RoHS

Test conditions and notes8

(1) The lumen flux value above comes from integrated sphere report, it might be higher in IES report.
(2) The lumen flux value above is base on 1M[3.28ft.] length, it need to be measured and considered separately for other longer lengths.
(3) Luminous flux for CCT 3000K is 5% lower, for CCT 6000K is the same, compared with 4000K.
(4) Energy efficiency class of regulation (EU)2019/2020 is F(CRI90) in IP67, it waries depending on CCT, CRI and IP rating.
(5) Applying with extra heat sink, is not necessary with self-cooling capacity .
(6) 3M 300LSE adhesive tape attached on backside, is standard configuration of plus series.
(7) 300mm length of double insulated PVC cable in one end, white reel and silvery ESD bag, are standard configuration of plus series.
(8) Installation accessories such as clip, screw, connector etc. are all optional base on specific demand.

Technical drawings

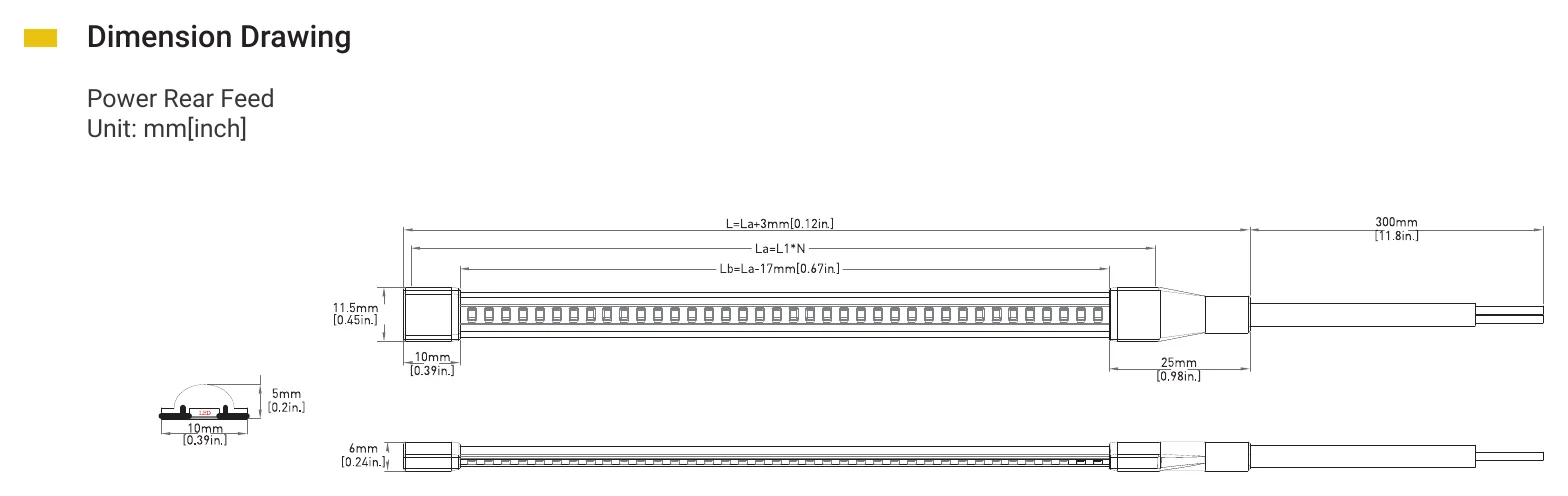

Archilight LED Strip Pro Pure Flow IP67 Dimension Drawing — Dimension Drawing

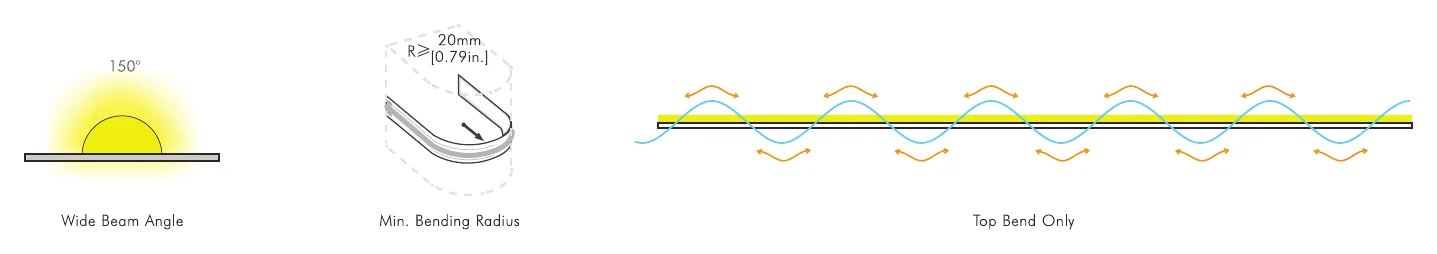

Archilight LED Strip Pro Pure Flow IP67 Illustration (page 3) — Illustration (page 3)

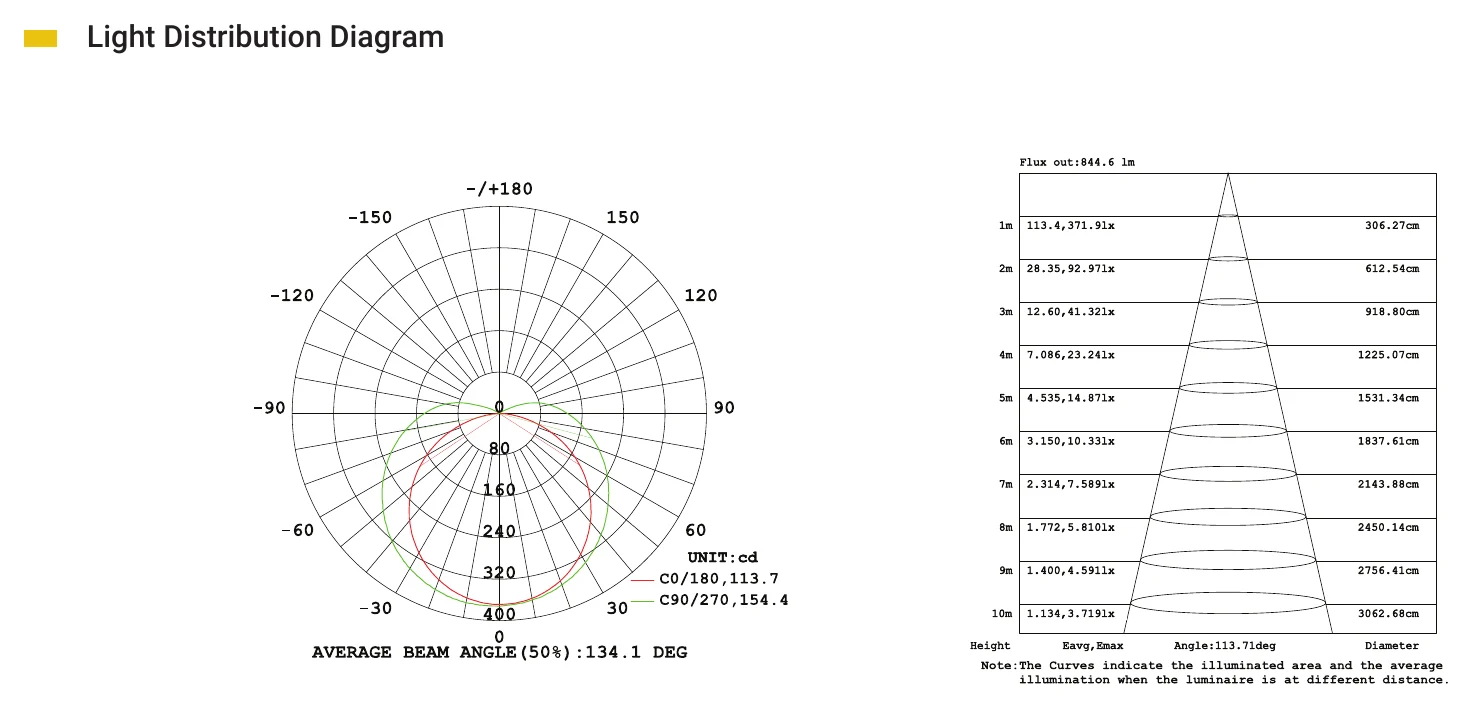

Archilight LED Strip Pro Pure Flow IP67 Light Distribution Diagram — Light Distribution Diagram

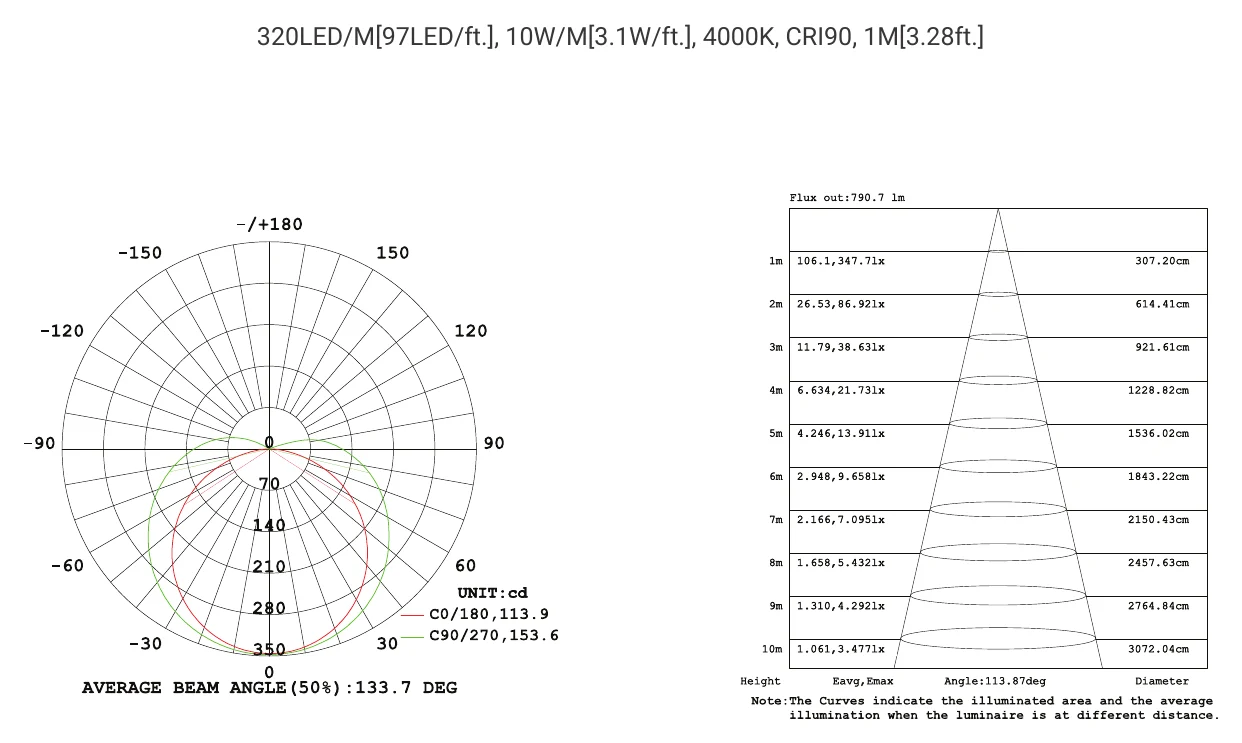

Archilight LED Strip Pro Pure Flow IP67 320LED/M[97LED/ft.], 10W/M[3.1W/ft.], 4000K, CRI90,… — 320LED/M[97LED/ft.], 10W/M[3.1W/ft.], 4000K, CRI90,…

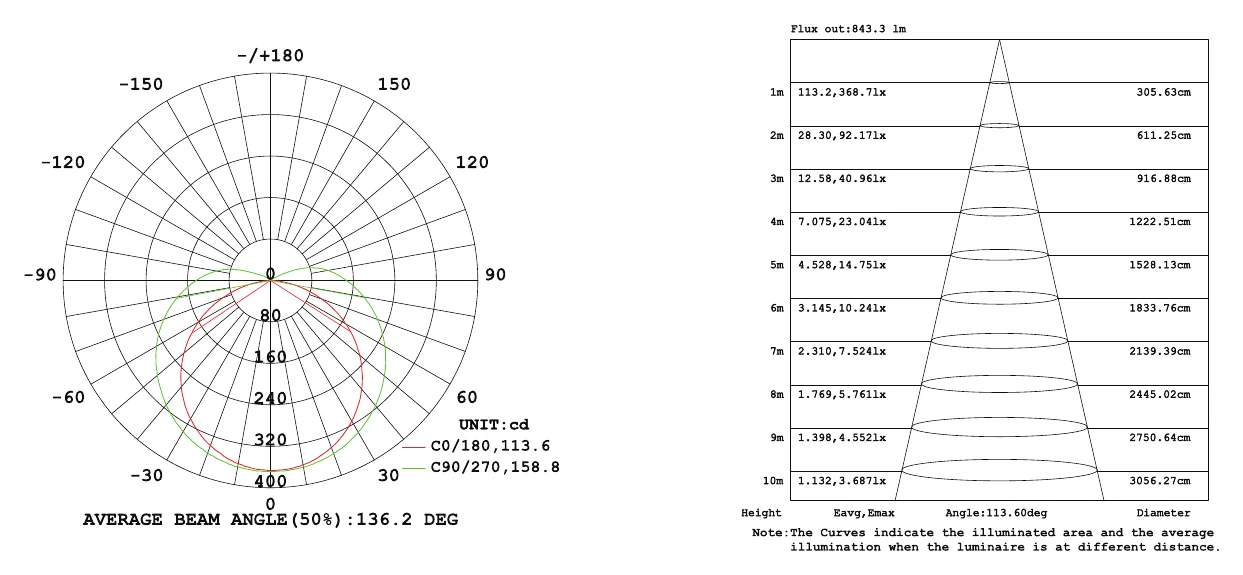

Archilight LED Strip Pro Pure Flow IP67 Illustration (page 4) — Illustration (page 4)

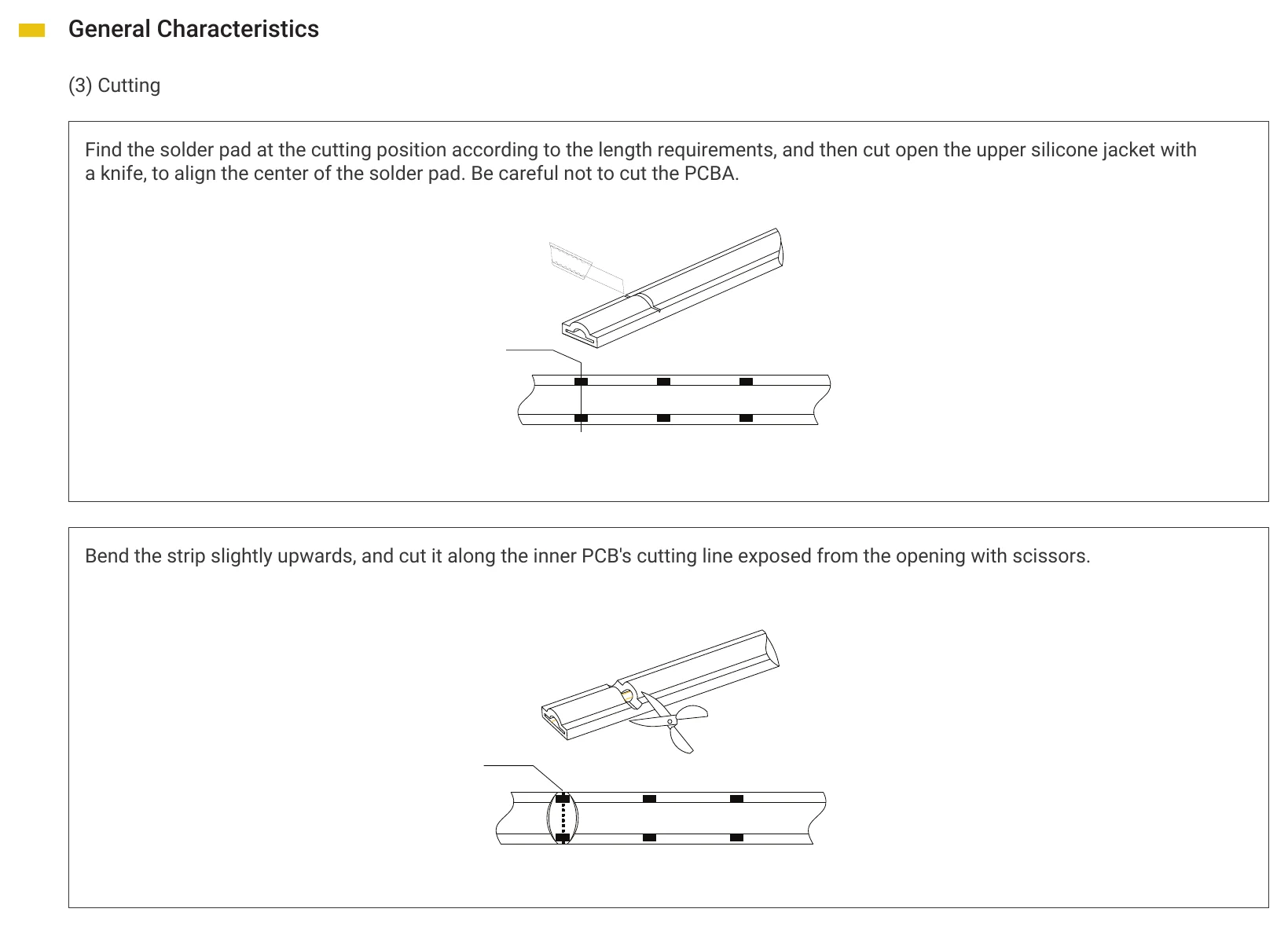

Archilight LED Strip Pro Pure Flow IP67 General Characteristics — General Characteristics

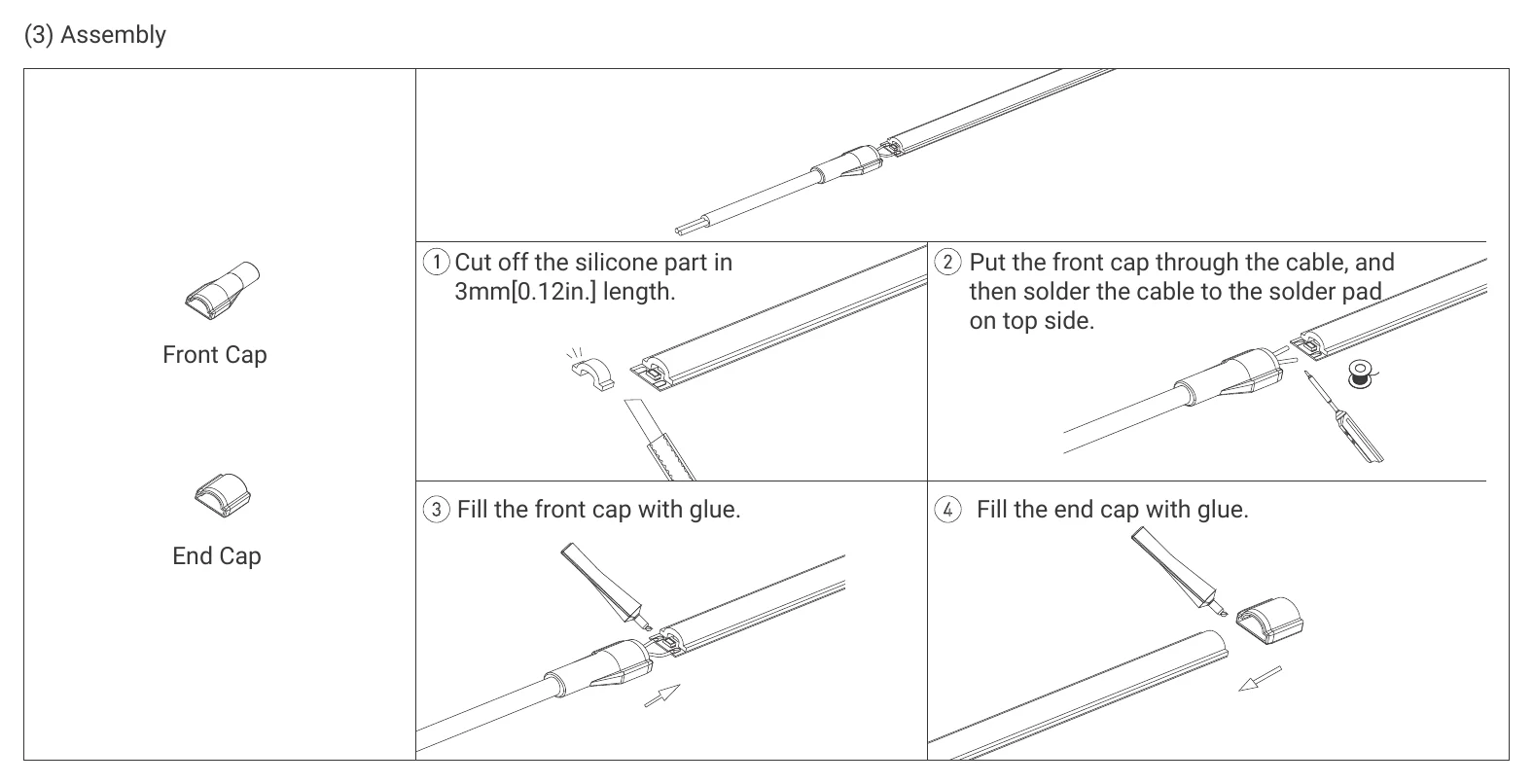

Archilight LED Strip Pro Pure Flow IP67 (3) Assembly — (3) Assembly

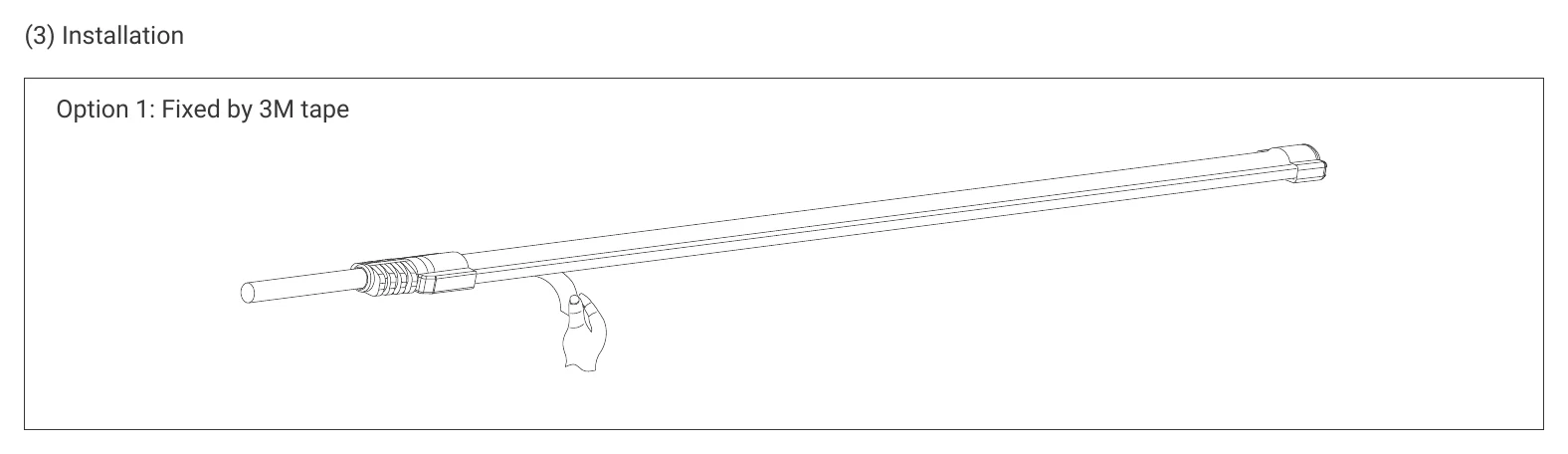

Archilight LED Strip Pro Pure Flow IP67 (3) Installation — (3) Installation

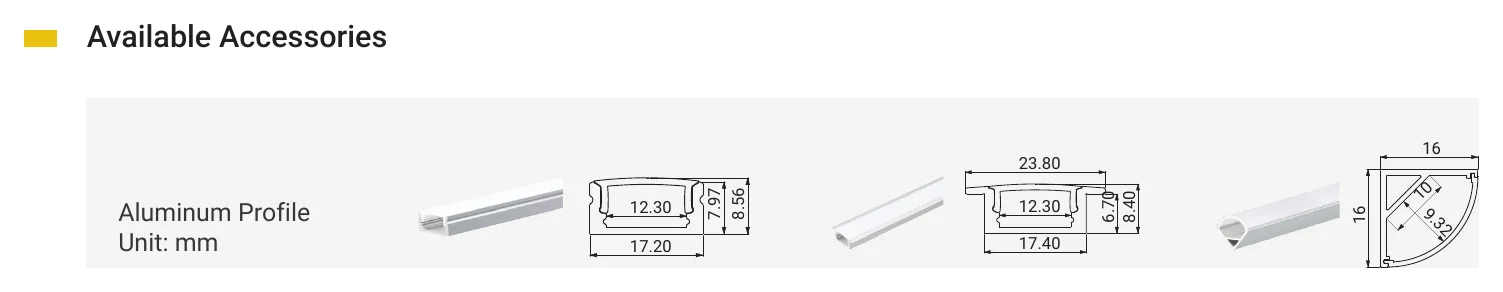

Archilight LED Strip Pro Pure Flow IP67 Available Accessories — Available Accessories

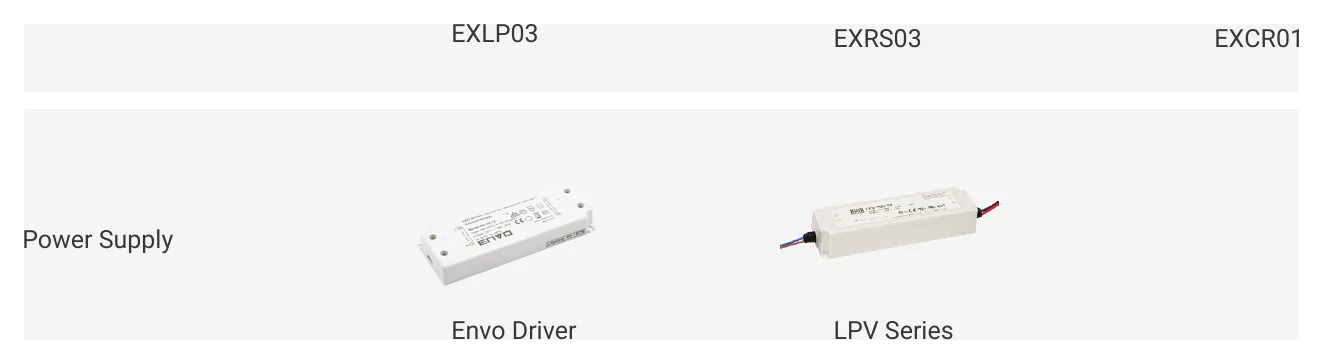

Archilight LED Strip Pro Pure Flow IP67 Available Accessories (2) — Available Accessories (2)

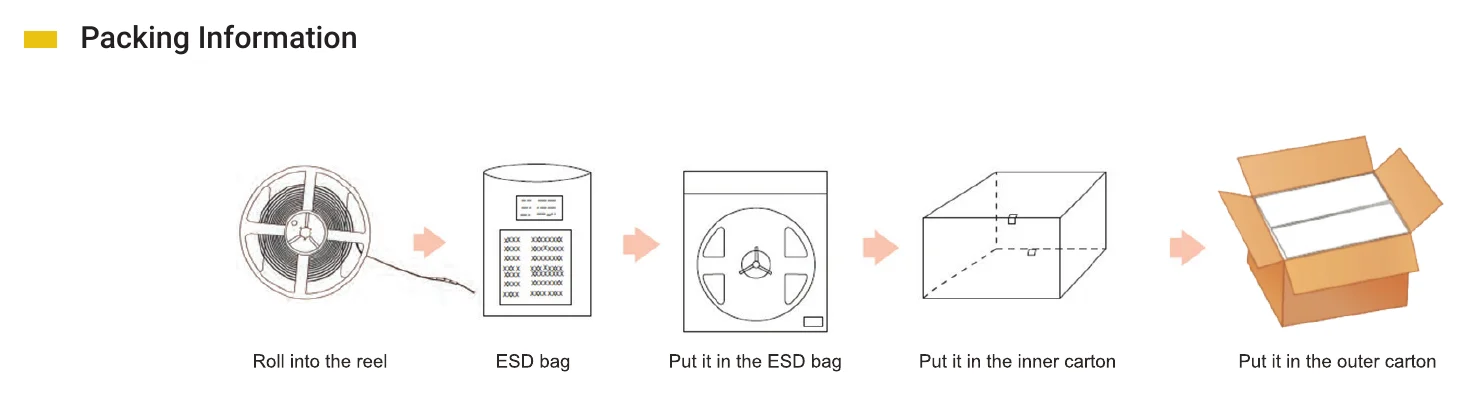

Archilight LED Strip Pro Pure Flow IP67 Packing Information — Packing Information

Typical applications

Ideal for high-end linear lighting application in residential, retail, hospitality and landscape.

Downloads

Datasheet1

Archilight LED Strip Pro Pure Flow IP67 datasheetPF2216_10W2467GLE_V604.pdf PDF Download

Catalogues1

LED Strip Selection Guide PDF Download

FAQ

What kind of projects is the Archilight LED Strip Pro Pure Flow IP67 suited for?

This strip is positioned for both interior and exterior linear lighting where a slim, clean light line is important. The product description highlights an ultra-thin, dot-free Pure Flow design, which makes it a fit for commercial and residential applications that need a refined visual finish. Its IP67 rating also makes it relevant for projects that need more environmental protection than standard indoor strip lighting.

What are the main specifications of this LED strip family?

The parent model runs on 24V input and is rated at 10W. The listed dimensions are 1000 mm long, 10 mm wide, and 5 mm high, with a 5-year warranty. A driver is not included, and dimming is available only with an optional compatible dimming setup.

What varies across the Pure Flow IP67 variants in this family?

The child variants mainly differ by color temperature and light output. The 3000K warm white option is listed at 1045 lm, while the 4000K neutral white option is listed at 1100 lm; one additional variant is present with 1100 lm but without a populated color temperature value in the provided data. Core family specs such as 10W power, optional dimming, no included driver, and 5-year warranty remain consistent across the variants shown.

Is this LED strip appropriate for outdoor or damp-location use?

This family carries an IP67 rating, which indicates a higher level of protection against dust and water exposure than typical indoor-only strip lighting. That makes it relevant for outdoor linear lighting and other environments where moisture resistance matters. Final suitability should still be checked against the specific project conditions and the rest of the system specification.

Does the Archilight LED Strip Pro Pure Flow IP67 include a driver or dimming control?

No driver is included with this product family, so it is not a complete powered package by itself. The strip is marked as dimmable optional, which means dimming capability depends on the driver and control components selected for the overall system. For procurement, that usually means confirming power and control compatibility before ordering the full bill of materials.

Why would a buyer choose this Pure Flow series over a standard LED strip?

The product description emphasizes an ultra-thin, dot-free light effect, which is a meaningful differentiator for projects where visible LED hotspots would be undesirable. That makes the family more suitable for specification-driven architectural or display applications where the appearance of the lit line matters, not just raw output. The IP67 protection level also broadens where the strip can be used compared with indoor-only alternatives.
