Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

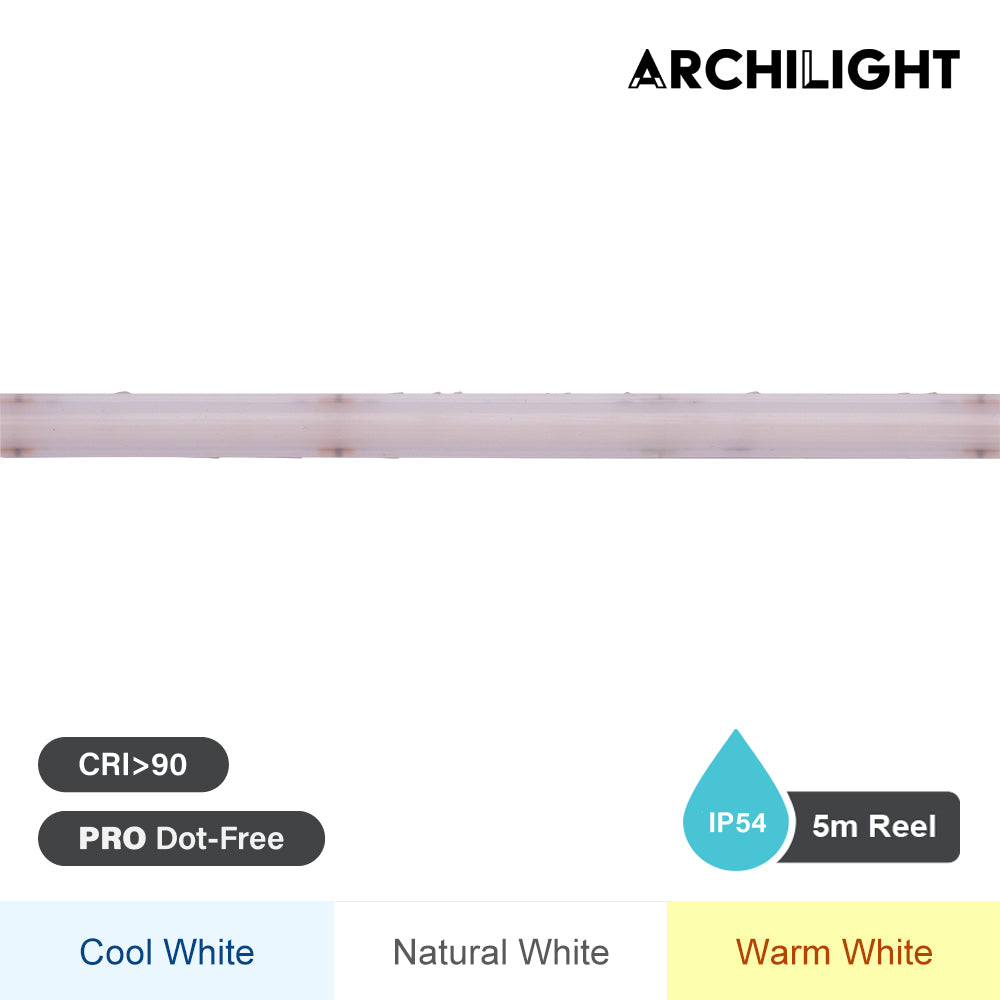

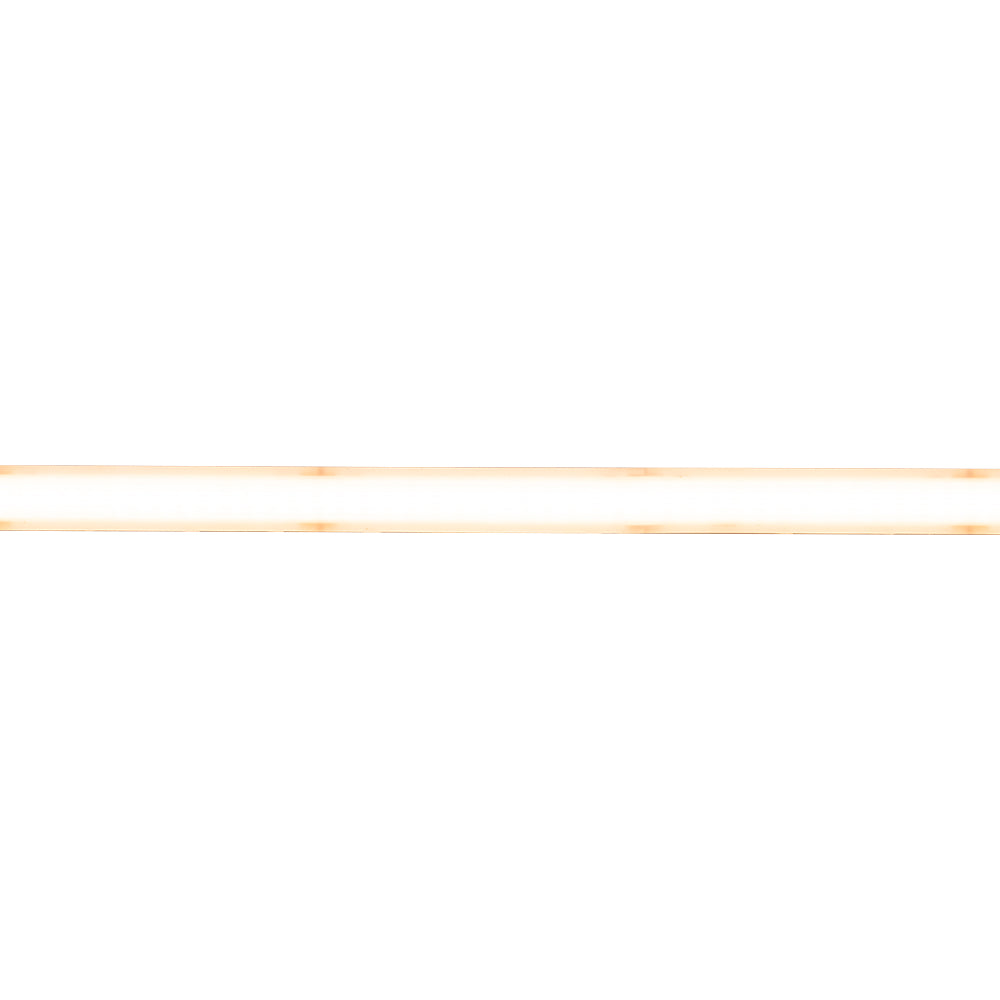

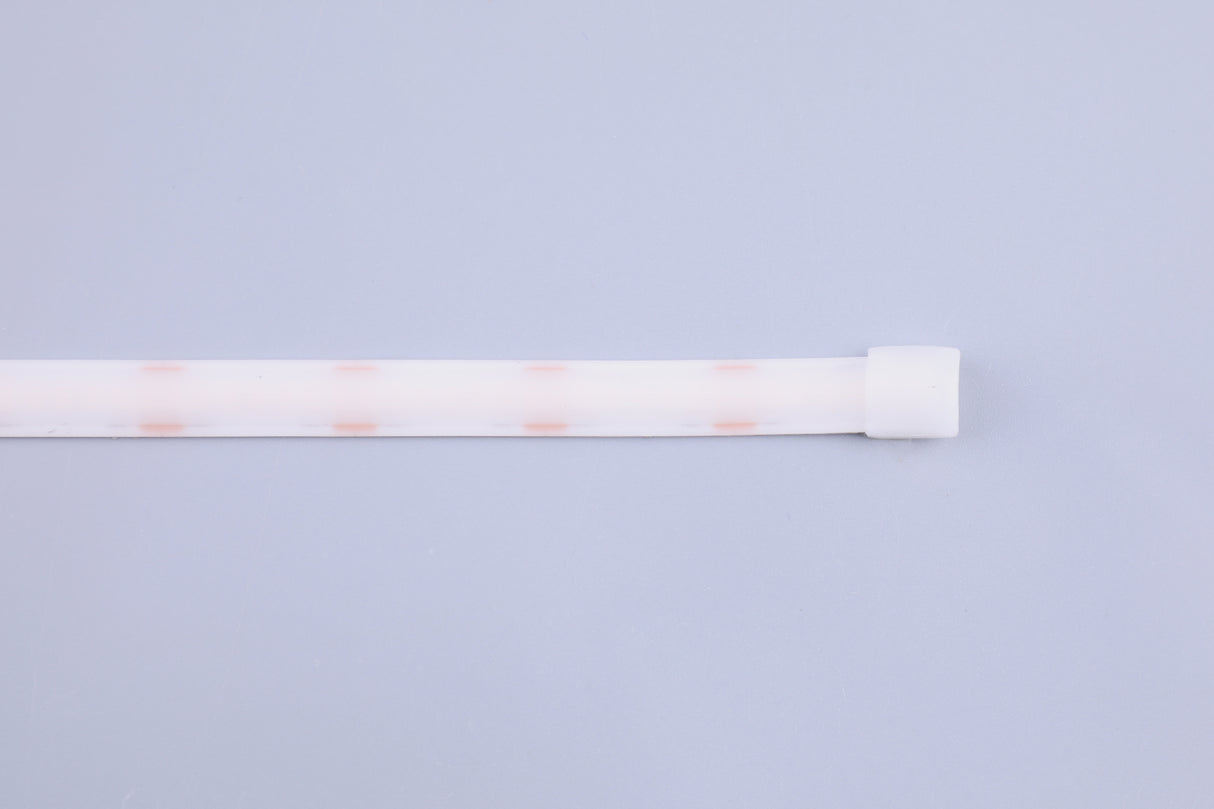

Archilight LED Strip Pro Pure Flow

336LEDs/m, 12W/m, 24V, IP54, CRI>90, cuttable length 41.7mm

SKU:

PF2216-12W2454GLE-WW

Length

100 Centimeter

LED Colour

Warm White 3000K Natural White 4000K Cool White 6500K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Introducing the IP54 Pure Flow Series Ultra-Thin Dot-Free 2216 LED Strip Light, a pinnacle of innovation in lighting technology designed for diverse applications. This series offers a blend of high performance, flexibility, and aesthetic appeal, making it an ideal choice for both residential and commercial lighting needs.

Key Features:

Dot-Free Lighting: Enjoy a seamless and uniform lighting experience with this dot-free design, which eliminates visible light points for a smooth and continuous light output.
Ultra-Thin and Flexible: The strip's ultra-thin profile and top-bend flexibility allow for easy installation in tight spaces and around curves, making it perfect for creative lighting designs.
High-Performance and Longevity: Built with a high-density LED array, this strip provides superior light output and color consistency. It boasts a lifespan of 50,000 hours and comes with a 5-year warranty, ensuring long-term reliability.
Enhanced Durability: Constructed using cutting-edge silicone extrusion technology, the strip offers excellent mechanical properties and a high IP54 rating for protection against dust and water, making it ideal for indoor applications.
Easy Installation and Use: Designed for simplicity, the strip features 3M adhesive backing for easy mounting and allows for in-field cutting and assembly, providing flexibility in installation.
Technical Specifications:
- Available in 24VDC.
- LED density of 336 LEDs/m to provide a dot-free experience
- Beam angle of 120° for wide coverage.
- CRI > 90 for true colour rendering

The IP54 Pure Flow Series LED Strip Light is an excellent solution for anyone seeking a high-quality, customizable lighting option that combines superior performance with aesthetic elegance. Whether for accent lighting, under-cabinet installations, or large-scale projects, this strip light delivers exceptional results.

Specifications

Brand

Archilight
Series

Pure Flow Series
Power Rating

12 Watt
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Width

0.8 cm
Height

0.35 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of projects is this LED strip designed for?

This strip is suited to residential and commercial linear lighting where a clean, dot-free light line is important. Its ultra-thin 8 mm width and 3.5 mm height make it a good fit for applications that need a slim lighting profile. The IP54 rating also makes it suitable for environments that need added protection against dust and splashing water.

What are the main specifications of this Pure Flow LED strip?

This parent model is a 24V LED strip rated at 12W, supplied in a 5 m (16.4 ft) package, with pricing shown per metre. It uses a high-density 336 LED format for a dot-free effect and is described as CRI90 for strong color quality. The strip body measures 8 mm wide by 3.5 mm high.

What colour temperature options are available in this product family?

This family is available in 3000K warm white, 4000K neutral white, and 6500K cool white variants. That gives buyers a clear choice between warmer, more ambient light and cooler, more task-oriented light. The parent product page can represent all three options because they share the same core platform and electrical rating.

Does brightness vary between the available variants?

Yes. The 4000K and 6500K variants are listed at 1020 lm, while the 3000K variant is listed at 969 lm. This means the warm white version is slightly lower in output than the neutral and cool white options.

Is the driver included, and can this LED strip be dimmed?

The driver is not included with this product family. Dimming is listed as optional, so the strip supports dimmable use when paired with suitable compatible control gear. This makes it more flexible for projects that need adjustable light levels.

Is this LED strip suitable for exposed or demanding environments?

This strip is rated IP54, which means it has protection against dust ingress and splashing water. That makes it a better choice than a non-rated strip for areas where light environmental protection is needed. It is still important to match the product to the actual site conditions and project requirements.

What warranty is offered for this LED strip family?

The product family is listed with a 5-year warranty period. That warranty applies across the variants shown in this family data. It supports use in professional projects where warranty term is part of product selection.

Model	Power	LED Density	Cuttable	IP Rating
Archilight Pure flow Ultra LED Strip IP67	—	—	—	IP67	View
Archilight LED Strip Pro Pure Flow IP67	10W	320LEDs/m	—	IP67	View
