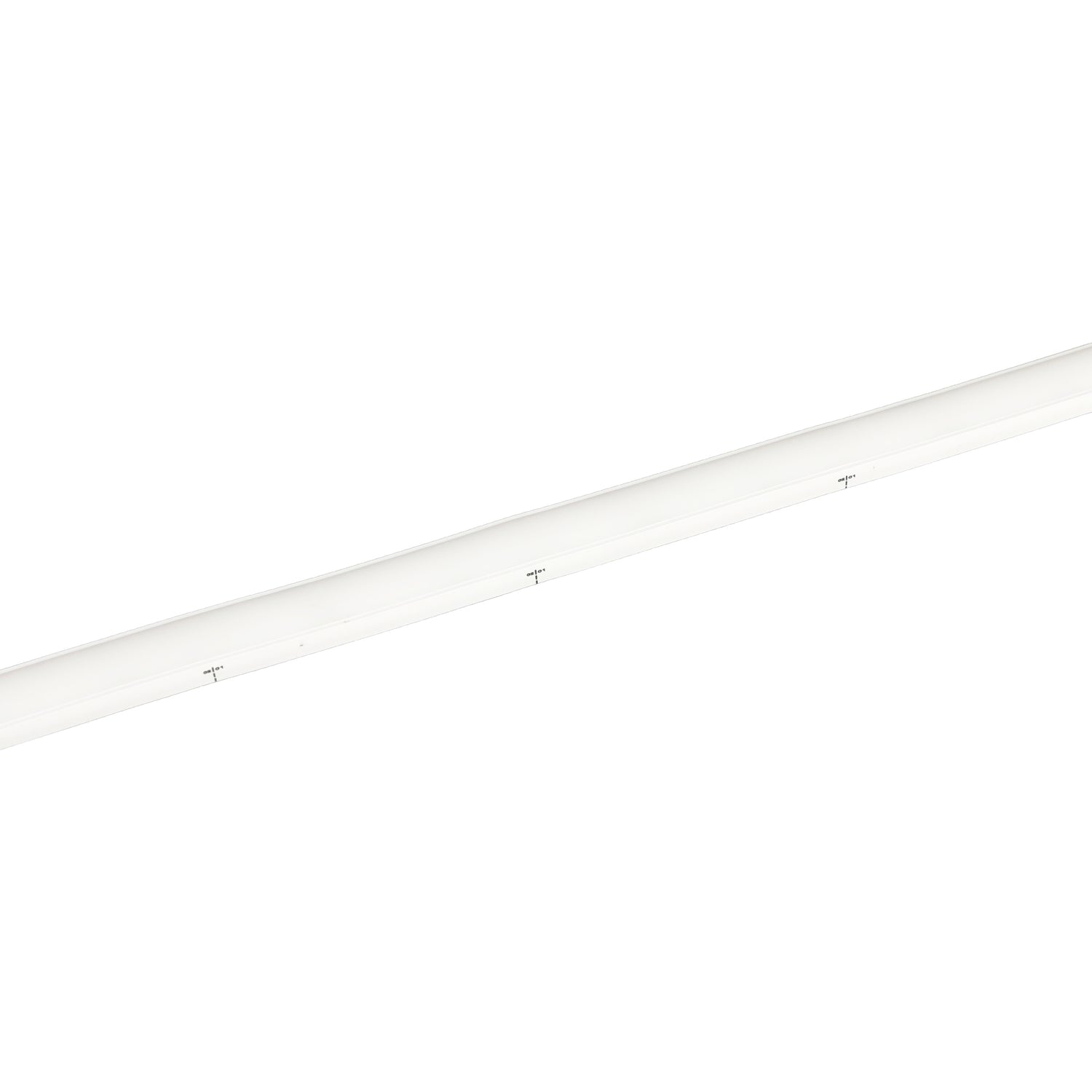

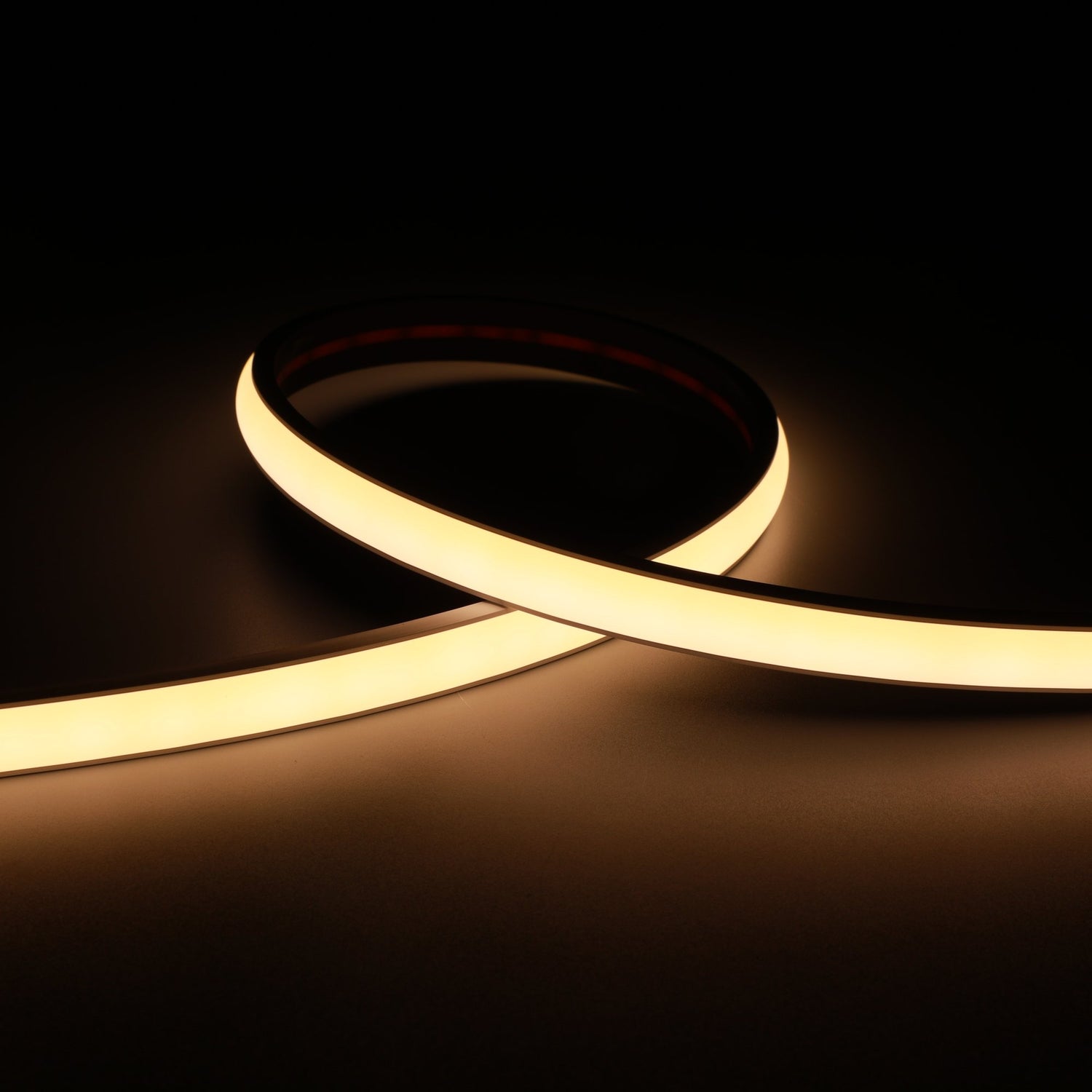

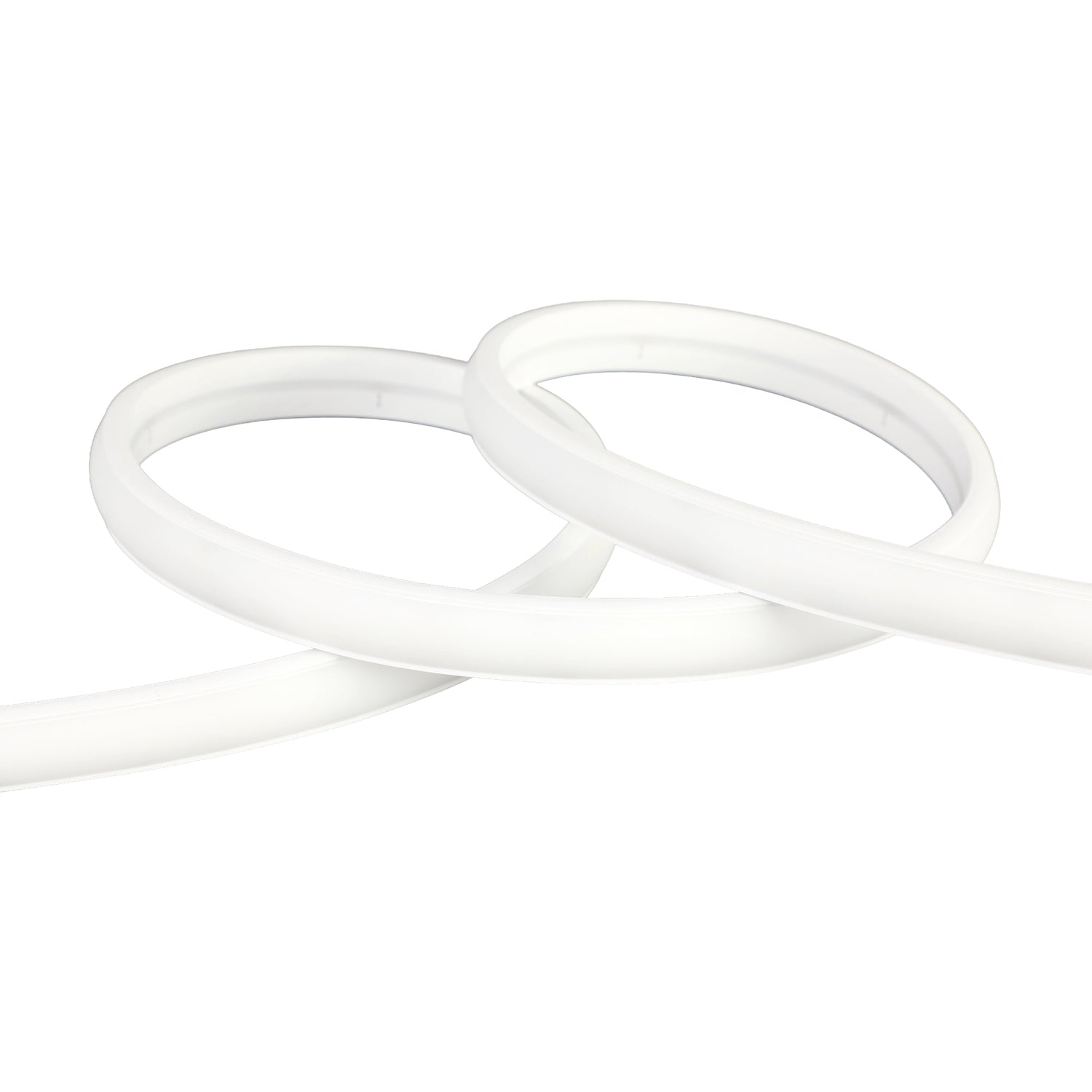

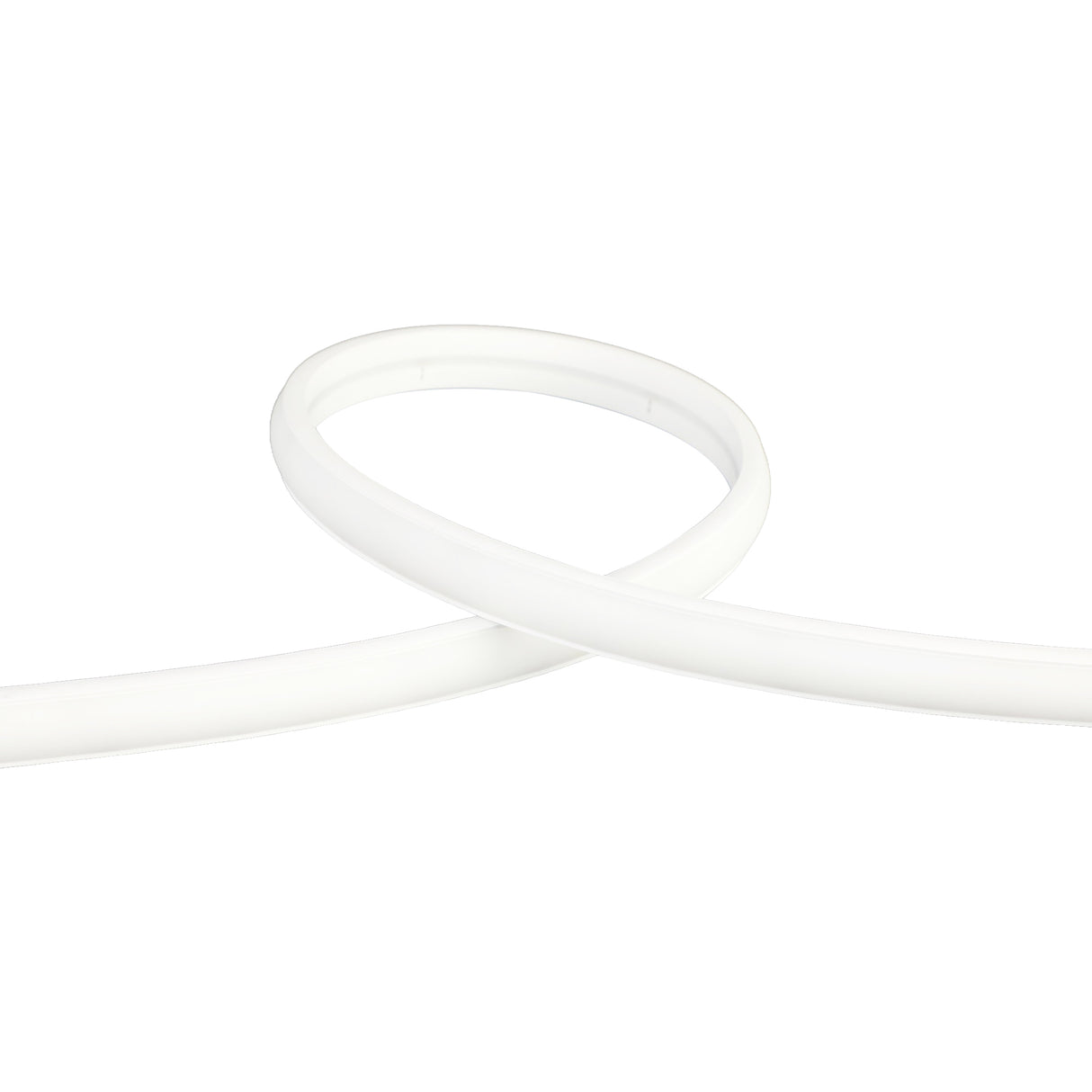

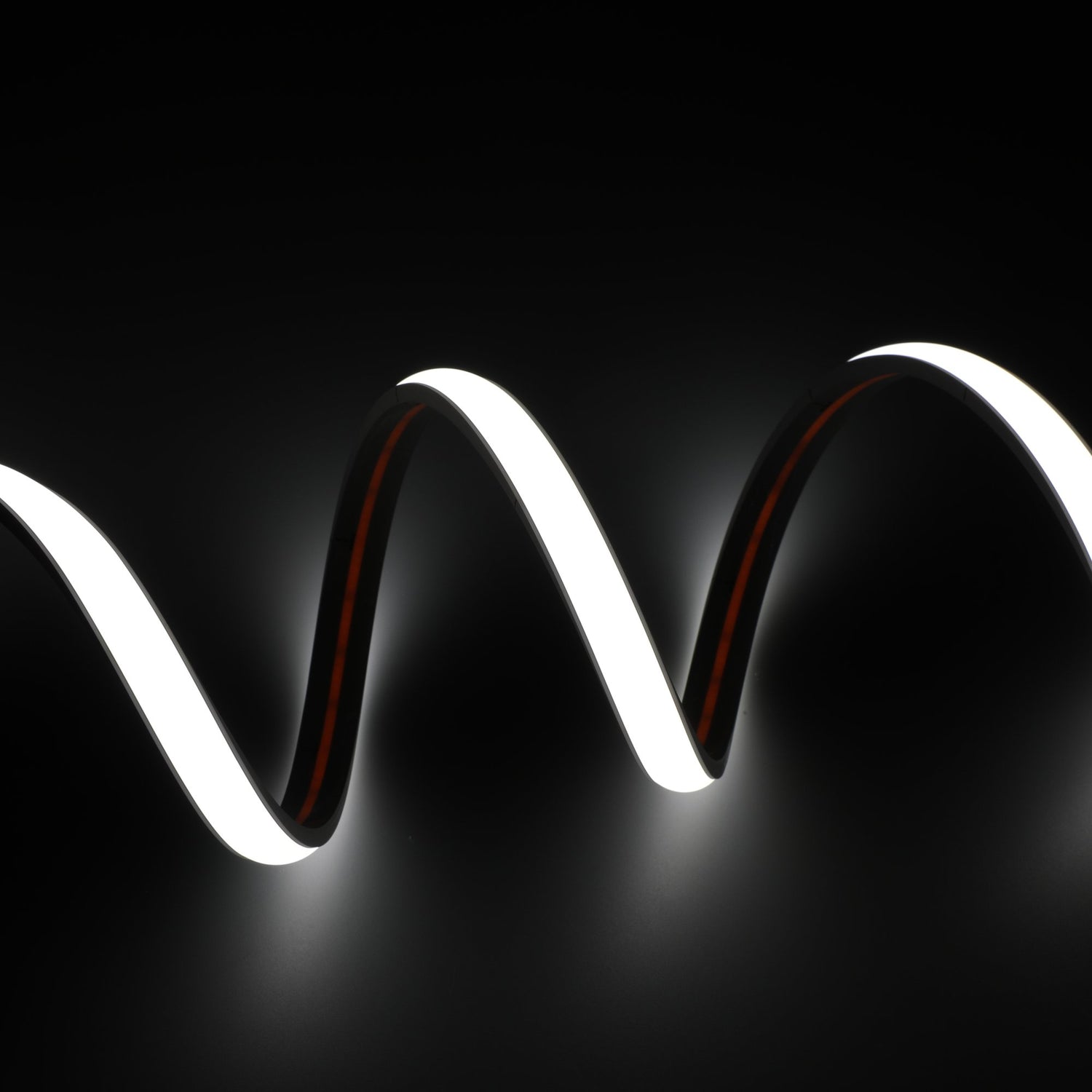

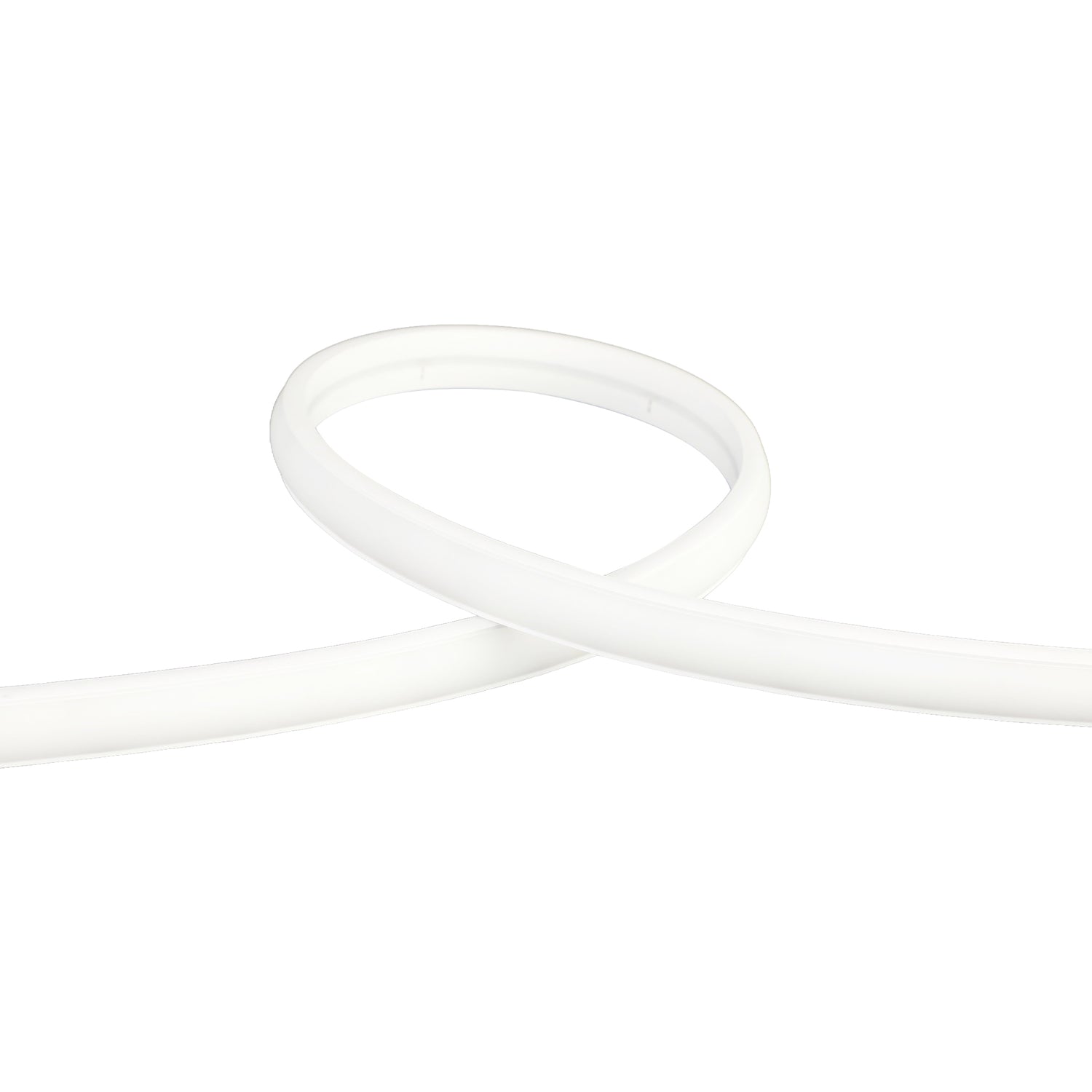

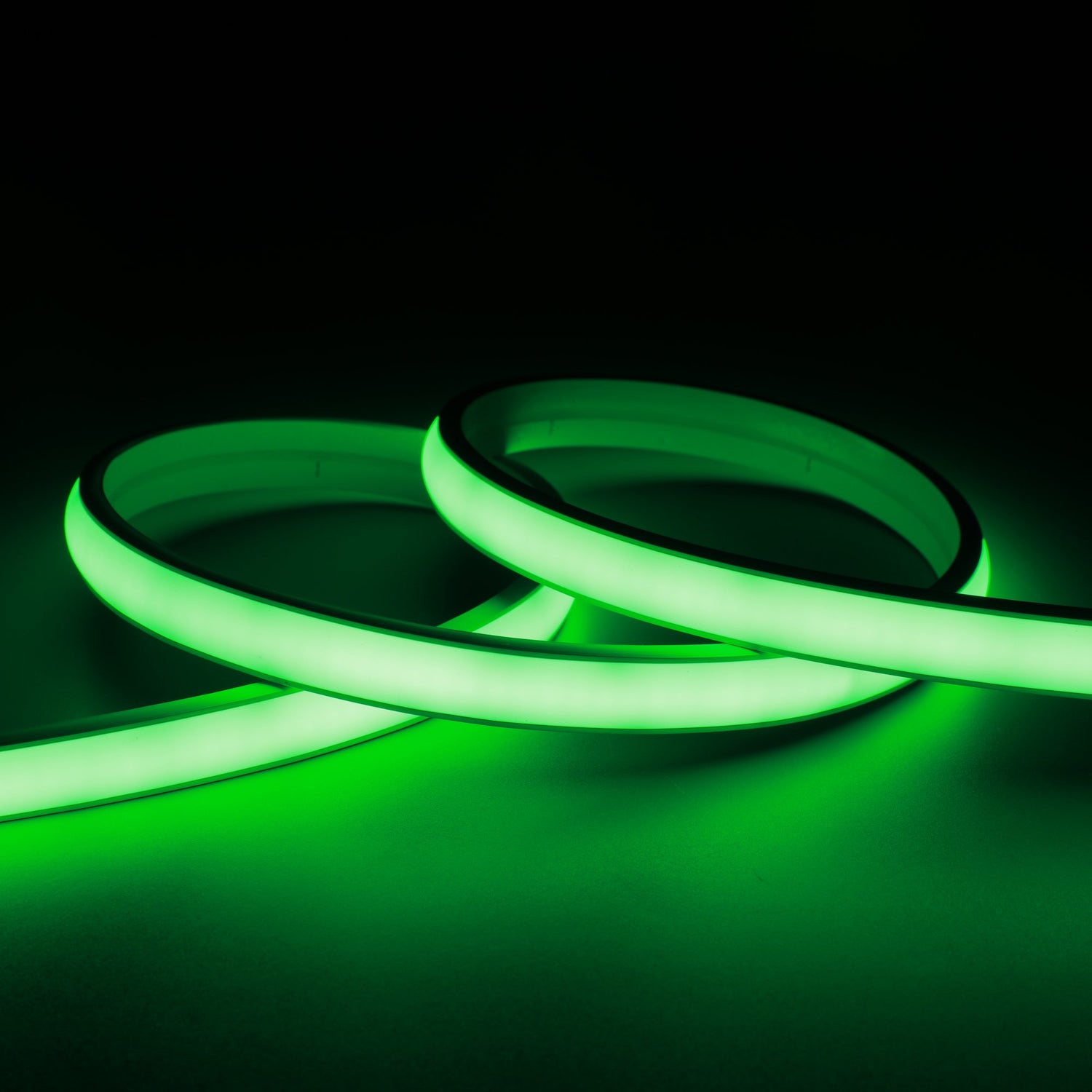

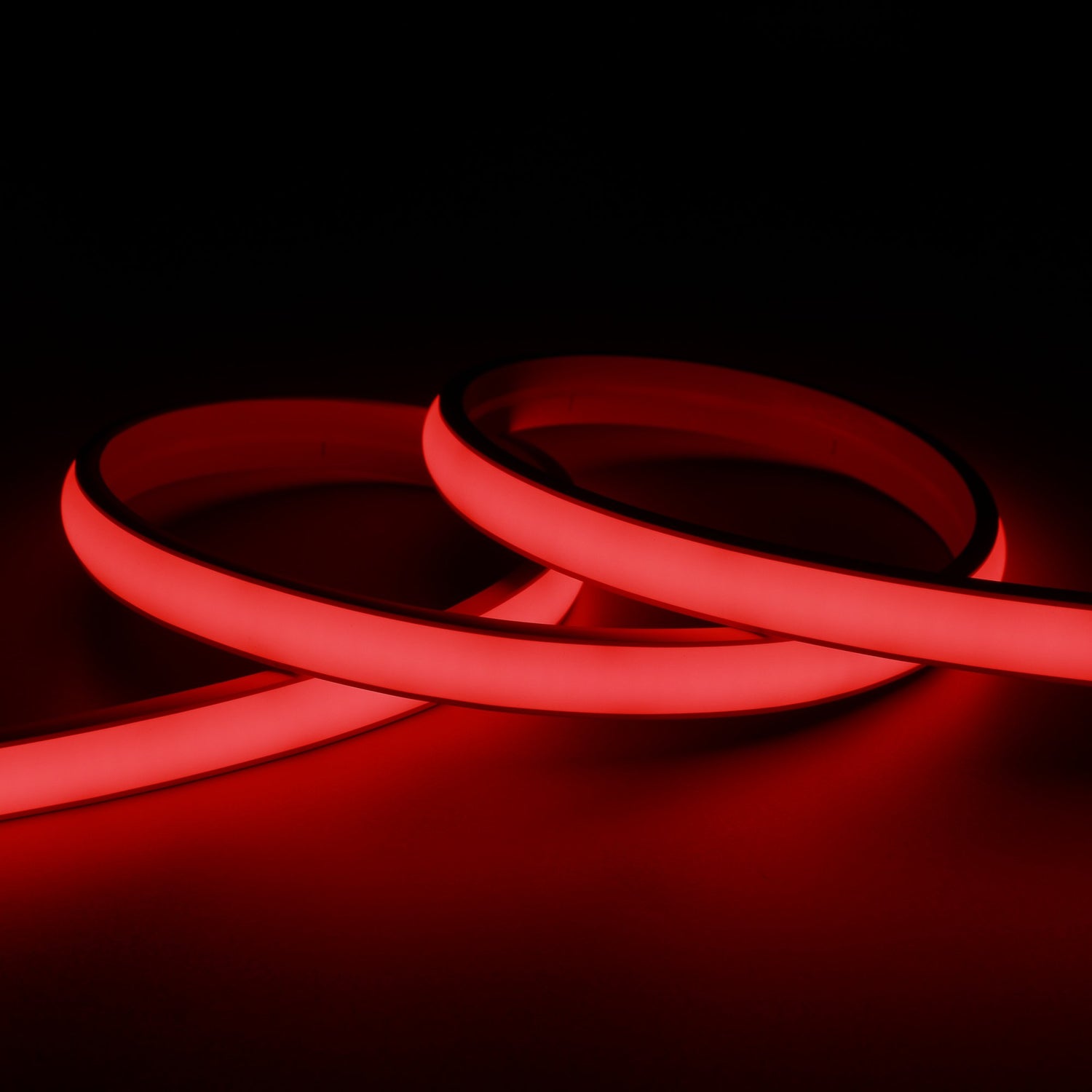

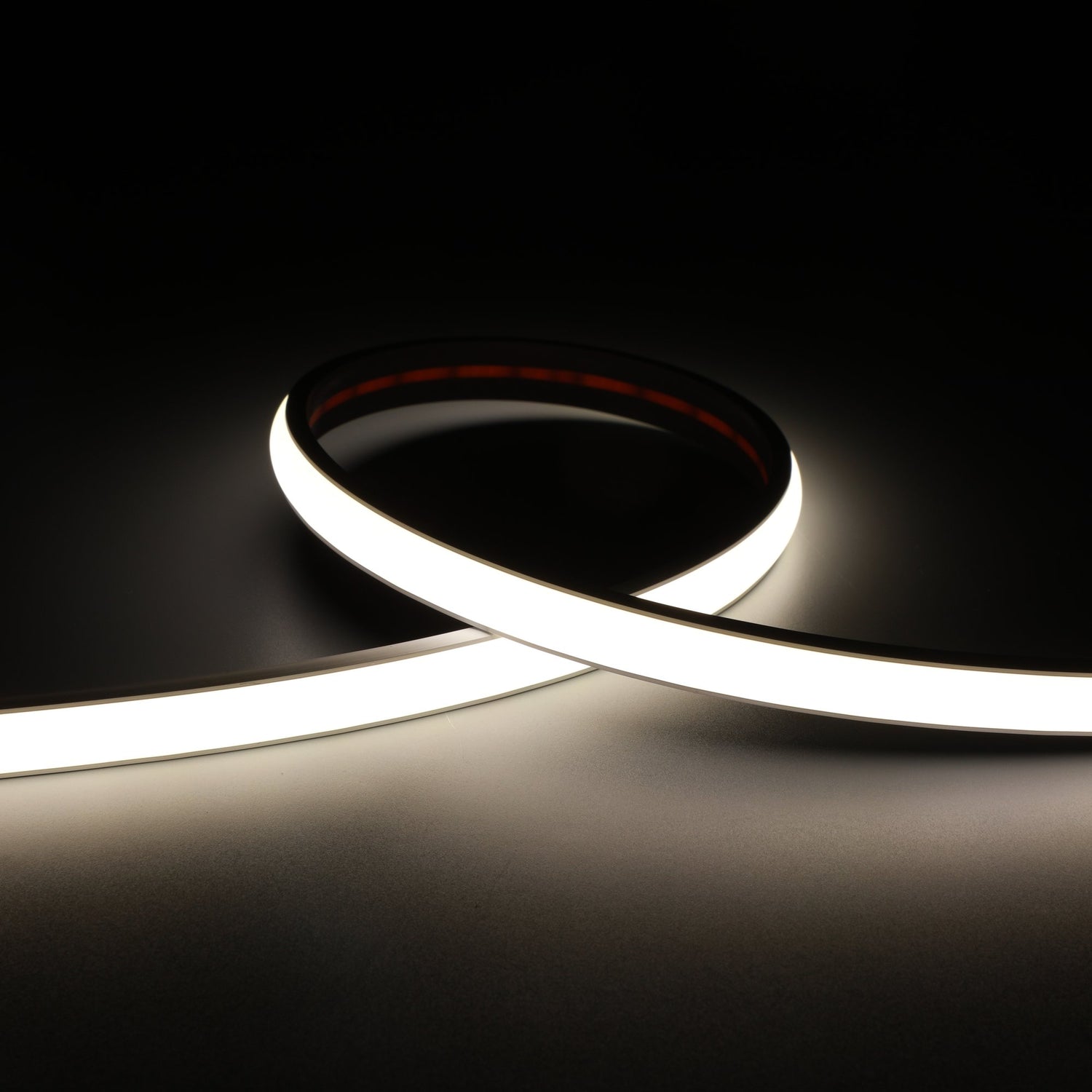

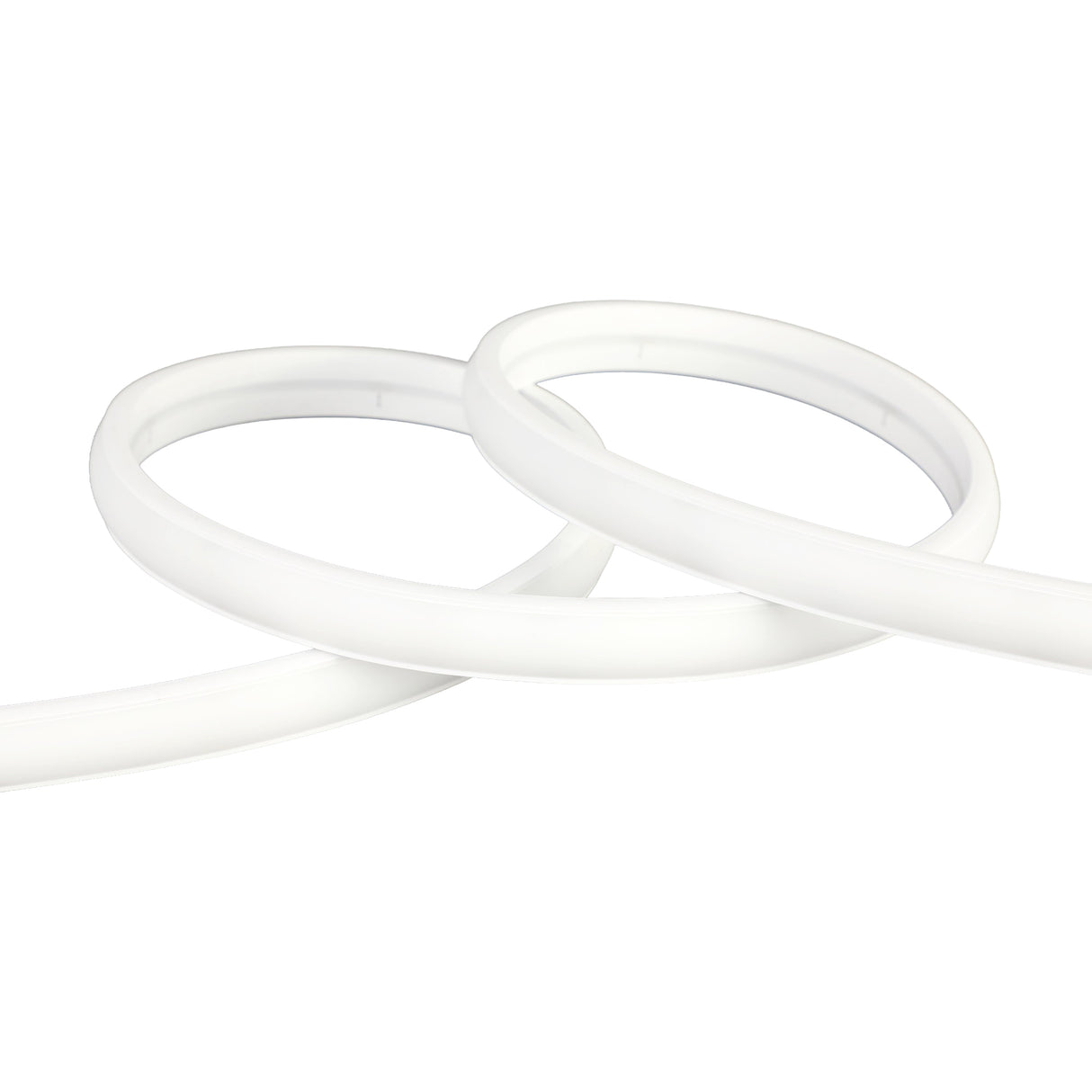

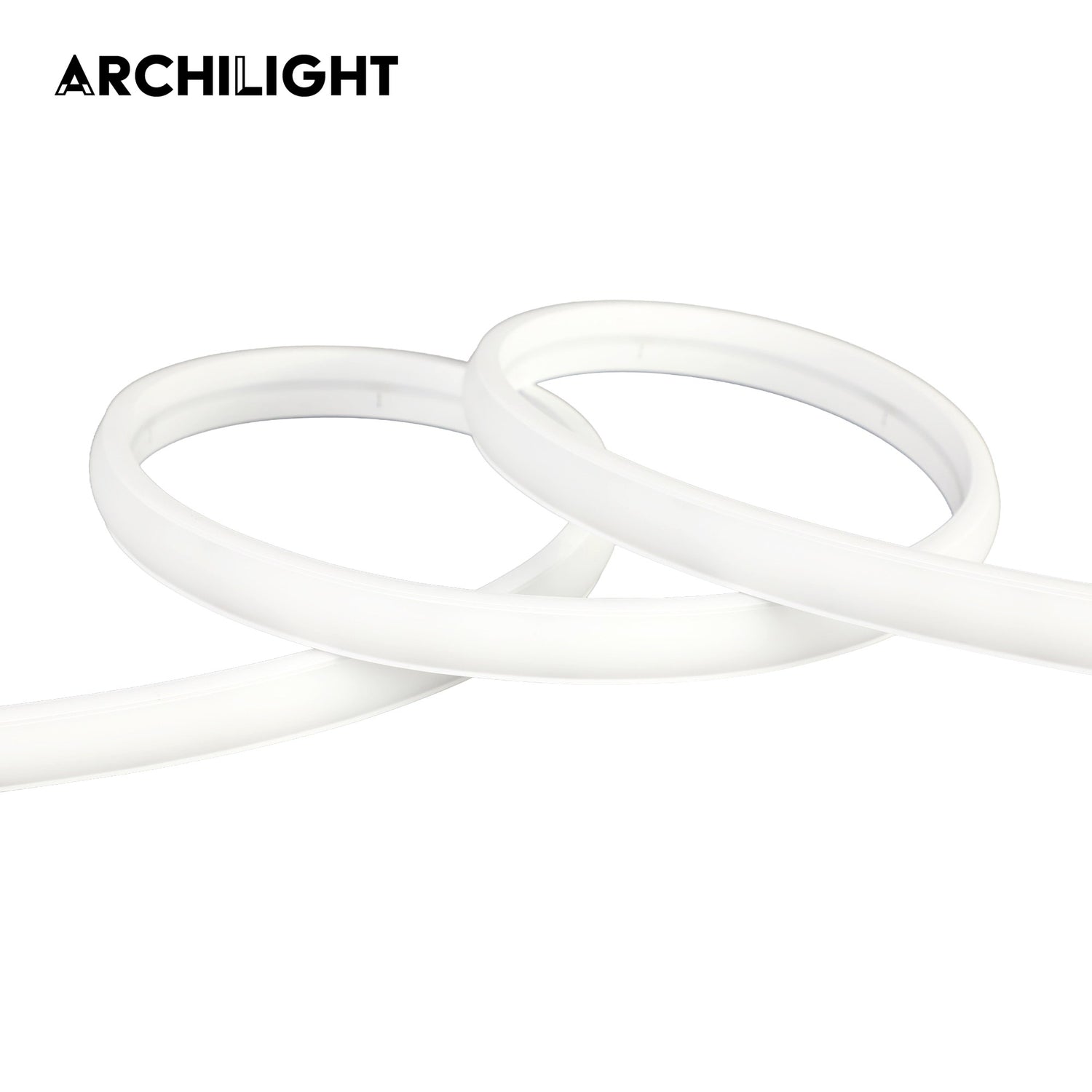

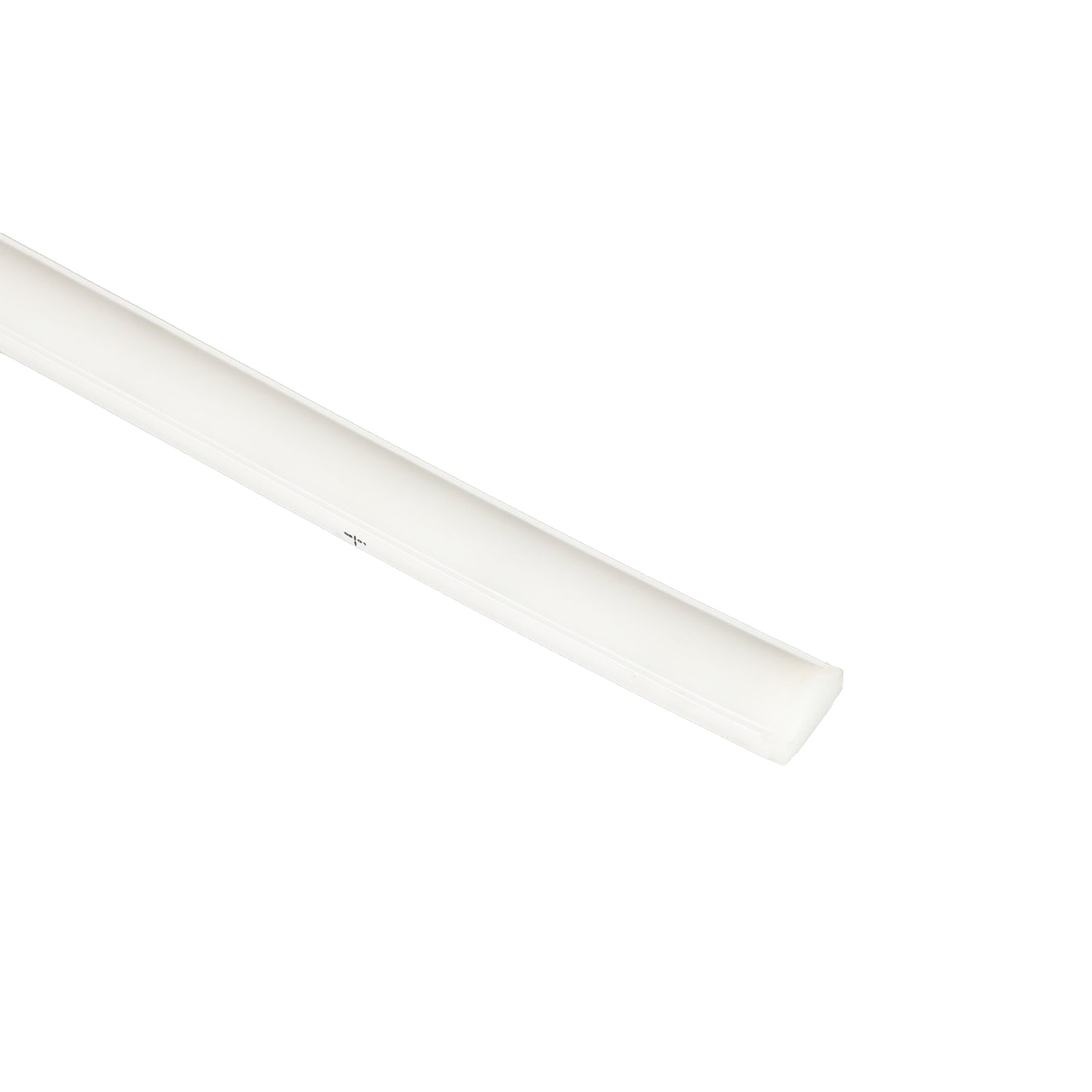

Archilight Pure flow Ultra LED Strip IP67

SKU:

PF2216-12W2467GLE-CW

LED Colour

Cool White 6500K Natural White 4000K RGB Multicolour Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Pureflow Ultra is a premium dot-free COB LED strip engineered for high-end linear lighting applications where visual comfort, uniformity, and durability are essential. Featuring an IP67 silicone encapsulated design, it delivers smooth, continuous light output with no visible hotspots, making it ideal for both indoor and outdoor environments. The strip utilises an upscale milky silicone with matte, self-cleaning surface treatment, combined with advanced COB technology to achieve a wide 150° beam angle and soft, glare-free illumination. Pureflow Ultra operates on 24V DC and is available in Warm White (WW), Neutral White (NW), Cool White (CW), and RGB, offering flexible options for architectural, hospitality, residential, and landscape lighting projects. With excellent mechanical strength, easy installation, and a long service life, Pureflow Ultra is designed for professional-grade performance and reliability.

Key Features

Dot-free COB LED strip with smooth, continuous light output
IP67 rated for indoor and outdoor applications
Available colour options: Warm White (WW), Neutral White (NW), Cool White (CW), and RGB
Operating voltage: 24V DC
Wide beam angle: 150° for uniform illumination
High-quality milky silicone extrusion with matte, self-cleaning finish
Compact dimensions: approx. 12mm width × 6mm height
Flexible design with minimum bending radius of 20mm (top bend only)
High LED density for seamless light appearance
Supplied in 5m reels with defined cutting increments
Self-cooling design, no additional heatsink required
Standard 3M adhesive backing for easy installation
Suitable for architectural, retail, hospitality, residential, and landscape lighting
Rated lifespan: 50,000 hours (L70)
Certified to CE & UL standards
5-year warranty

Specifications

Brand

Archilight
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Length

100 cm
Width

1.2 cm
Height

0.6 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of lighting is the Archilight Pure flow Ultra LED Strip IP67 designed for?

This LED strip is designed for high-end linear lighting applications where visual comfort, uniformity, and durability matter. Its dot-free COB construction produces smooth, continuous illumination with no visible hotspots, making it suitable for premium interior and exterior lighting projects.

Is the Archilight Pure flow Ultra LED Strip IP67 suitable for outdoor use?

Yes. The strip features an IP67 silicone-encapsulated design, which makes it appropriate for both indoor and outdoor environments. Its matte, self-cleaning silicone surface also supports use in settings where durability and a clean visual finish are important.

Does this LED strip require a separate driver?

Yes. The parent product family is supplied without a driver, so a separate driver is required. This applies across the variants in this family.

Is the Archilight Pure flow Ultra LED Strip IP67 dimmable?

Yes, this product family is dimmable. All listed variants are identified as dimmable, which makes the range suitable for projects that require adjustable light output.

What voltage does this LED strip use?

This LED strip uses 24V power input. That makes it part of a 24V strip lighting system and is an important specification to match when selecting compatible control gear.

What are the main variant options in this Pure flow Ultra IP67 family?

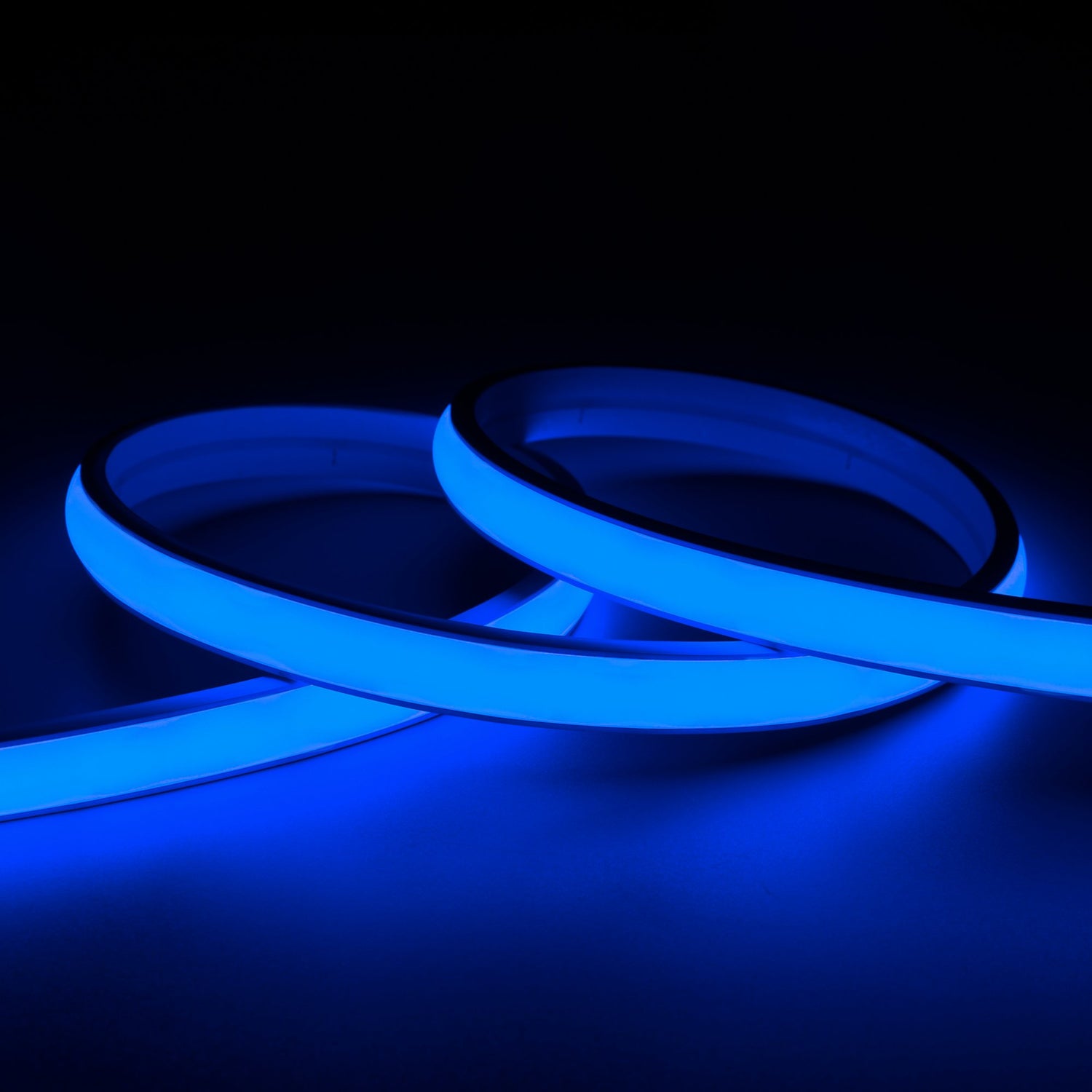

This family includes warm white 3000K, neutral white 4000K, cool white 6500K, and RGB versions. The white variants are rated at 12W, while the RGB variant is rated at 15W, so the main differences are color output and power rating.

How does light output vary across the variants?

The white variants deliver between 867 and 912 lumens depending on color temperature, while the RGB variant is listed at 1625 lumens. Based on the provided child data, the 4000K and 6500K versions are both 912 lumens, and the 3000K version is 867 lumens.

What are the physical dimensions of the parent product model?

The parent model is listed as 12 mm wide, 6 mm high, and 1 m long, with a weight of 0.096 kg. These dimensions make it relevant for specification and profile-planning decisions on linear lighting projects.

What warranty is provided for this LED strip family?

The Archilight Pure flow Ultra LED Strip IP67 family includes a 5-year warranty. The same warranty period is shown across all listed variants in this parent range.
