Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

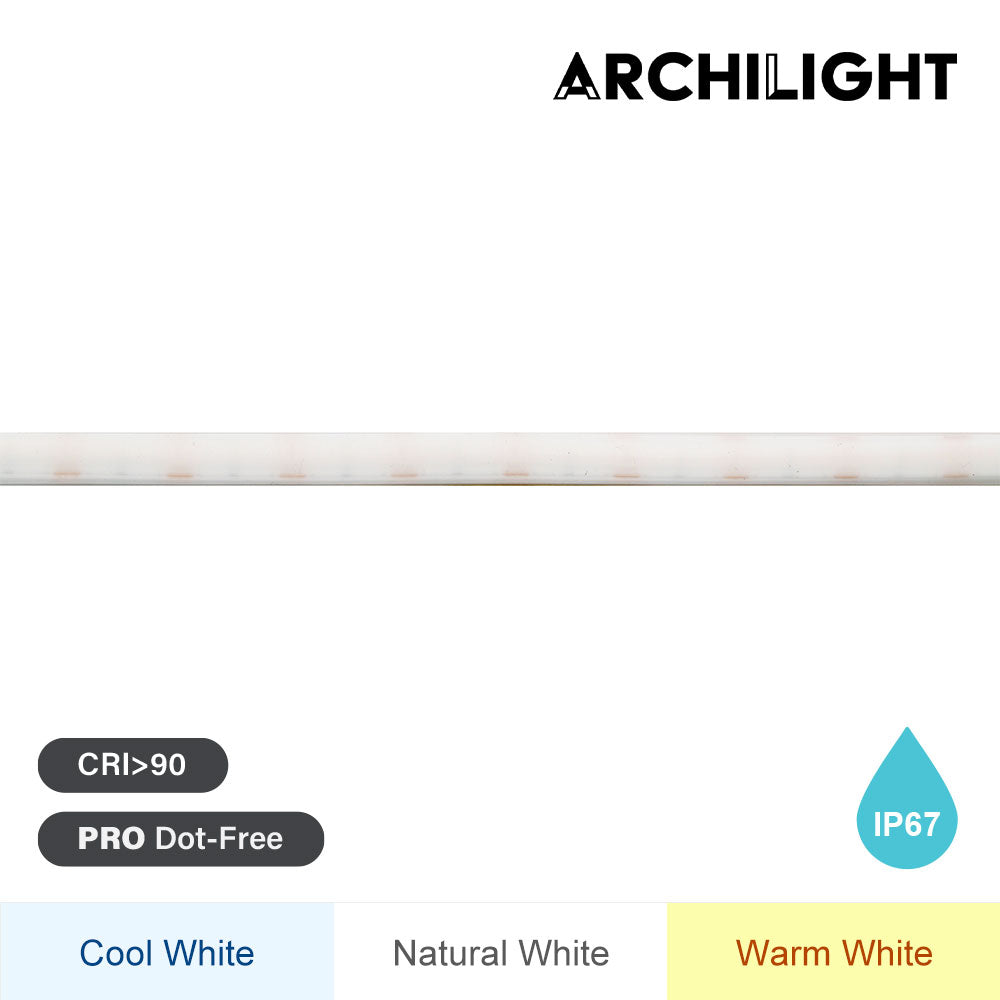

Archilight LED Strip Pro Pure Flow IP67

320LEDs/m, 10W/m, 24V, IP67, CRI>90, cuttable length 25mm

SKU:

PF2216-10W2467GLE-CW

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Introducing the IP67 Pure Flow Series Ultra-Thin Dot-Free 2216 LED Strip Light from Archilight, a pinnacle of innovation in lighting technology designed for diverse applications. This series offers a blend of high performance, flexibility, and aesthetic appeal, making it an ideal choice for both residential and commercial lighting needs.

Key Features:

Dot-Free Lighting: Enjoy a seamless and uniform lighting experience with this dot-free design, which eliminates visible light points for a smooth and continuous light output.
Ultra-Thin and Flexible: The strip's ultra-thin profile and top-bend flexibility allow for easy installation in tight spaces and around curves, making it perfect for creative lighting designs.
High-Performance and Longevity: Built with a high-density LED array, this strip provides superior light output and color consistency. It boasts a lifespan of 50,000 hours and comes with a 5-year warranty, ensuring long-term reliability.
Enhanced Durability: Constructed using cutting-edge silicone extrusion technology, the strip offers excellent mechanical properties and a high IP67 rating for protection against dust and water, making it ideal for indoor applications.

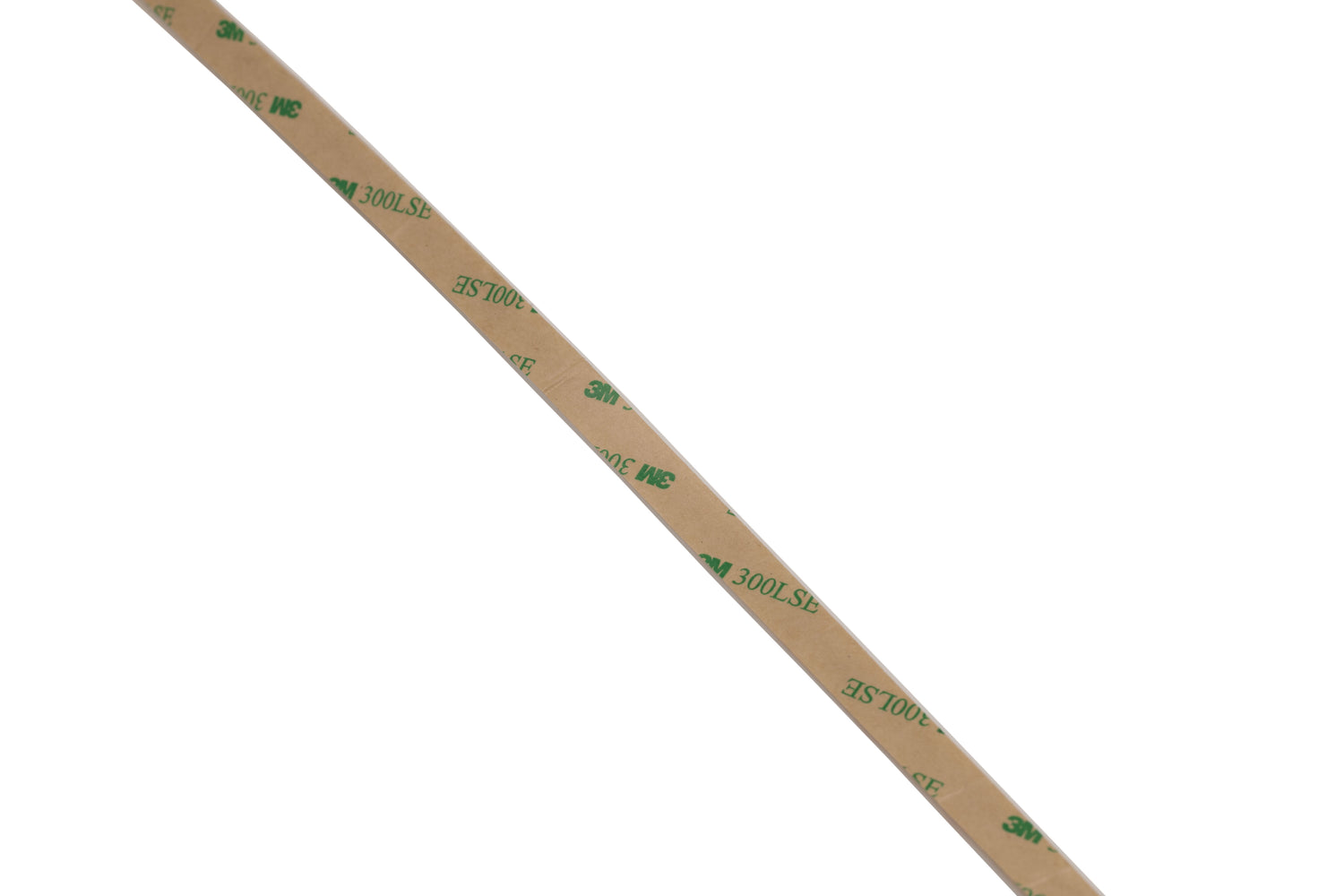

Easy Installation and Use: Designed for simplicity, the strip features 3M adhesive backing for easy mounting and allows for in-field cutting and assembly, providing flexibility in installation.
Technical Specifications:
- Available in 24VDC.
- LED density of 320 LEDs/m to provide a dot-free experience
- Beam angle of 120° for wide coverage.
- CRI > 90 for true colour rendering

The IP67 Pure Flow Series LED Strip Light is an excellent solution for anyone seeking a high-quality, customizable lighting option that combines superior performance with aesthetic elegance. Whether for accent lighting, under-cabinet installations, or large-scale projects, this strip light delivers exceptional results.

Specifications

Brand

Archilight
Series

Pure Flow Series
Power Rating

10 Watt
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

100 cm
Width

1 cm
Height

0.5 cm
Weight

0.5 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of projects is the Archilight LED Strip Pro Pure Flow IP67 suited for?

This strip is positioned for both interior and exterior linear lighting where a slim, clean light line is important. The product description highlights an ultra-thin, dot-free Pure Flow design, which makes it a fit for commercial and residential applications that need a refined visual finish. Its IP67 rating also makes it relevant for projects that need more environmental protection than standard indoor strip lighting.

What are the main specifications of this LED strip family?

The parent model runs on 24V input and is rated at 10W. The listed dimensions are 1000 mm long, 10 mm wide, and 5 mm high, with a 5-year warranty. A driver is not included, and dimming is available only with an optional compatible dimming setup.

What varies across the Pure Flow IP67 variants in this family?

The child variants mainly differ by color temperature and light output. The 3000K warm white option is listed at 1045 lm, while the 4000K neutral white option is listed at 1100 lm; one additional variant is present with 1100 lm but without a populated color temperature value in the provided data. Core family specs such as 10W power, optional dimming, no included driver, and 5-year warranty remain consistent across the variants shown.

Is this LED strip appropriate for outdoor or damp-location use?

This family carries an IP67 rating, which indicates a higher level of protection against dust and water exposure than typical indoor-only strip lighting. That makes it relevant for outdoor linear lighting and other environments where moisture resistance matters. Final suitability should still be checked against the specific project conditions and the rest of the system specification.

Does the Archilight LED Strip Pro Pure Flow IP67 include a driver or dimming control?

No driver is included with this product family, so it is not a complete powered package by itself. The strip is marked as dimmable optional, which means dimming capability depends on the driver and control components selected for the overall system. For procurement, that usually means confirming power and control compatibility before ordering the full bill of materials.

Why would a buyer choose this Pure Flow series over a standard LED strip?

The product description emphasizes an ultra-thin, dot-free light effect, which is a meaningful differentiator for projects where visible LED hotspots would be undesirable. That makes the family more suitable for specification-driven architectural or display applications where the appearance of the lit line matters, not just raw output. The IP67 protection level also broadens where the strip can be used compared with indoor-only alternatives.

Model	Power	LED Density	Cuttable	IP Rating
Archilight LED Strip Pro Pure Flow	12W	336LEDs/m	41.7mm	IP54	View
Archilight Pure flow Ultra LED Strip IP67	—	—	—	IP67	View
