ENVO MiniLux LED Module Backlit - Duo LED

12V0.48WIP67

SKU EV-BLML02LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

EV-BLML02LBY-CW

EV-BLML01LBY-CW Single LED In stock

EV-BLML02LBY-CW Double LED In stock

EV-BLML03LBY-CW Triple LED Backorder

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

In stock

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

Powered by high output 2835 LED.
Constant Voltage.
Diamondback 180*140° optic lens.
40 pcs per string.

Specifications

ENVO MiniLux LED Module Backlit - Duo LEDSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Voltage (V)	Dimension (mm)
EV-BLML02LBY-CW	Cool White 7000K	DC12	2699
EV-BLML02LBY-NW	Natural White 4000K	DC12	2699
EV-BLML02LBY-WW	Warm White 3000K	DC12V	2699mm

Parameters

Beaming Angle (°): 180*140°
CRI (Ra): ≥80
Power (W): 0.48
Driving Method: Constant Voltage
Working Tem. (°C): −25 ~ +60
Storage Tem. (°C): −25 ~ +70
Protection Grade: IP67

Certifications & ratings

Certification marks: cRUus, CE, RoHS, TÜV, CB

Technical drawings

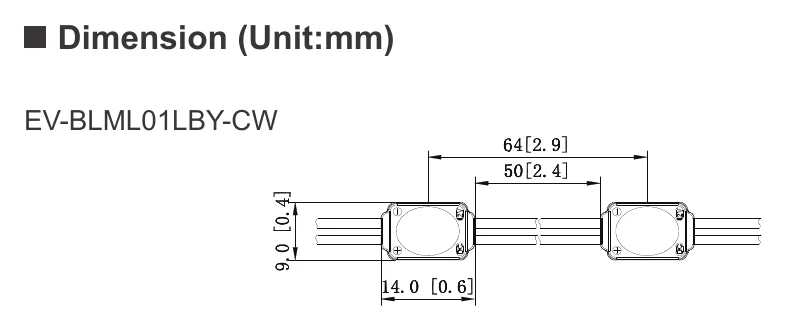

ENVO MiniLux LED Module Backlit - Duo LED Dimension (Unit:mm) — Dimension (Unit:mm)

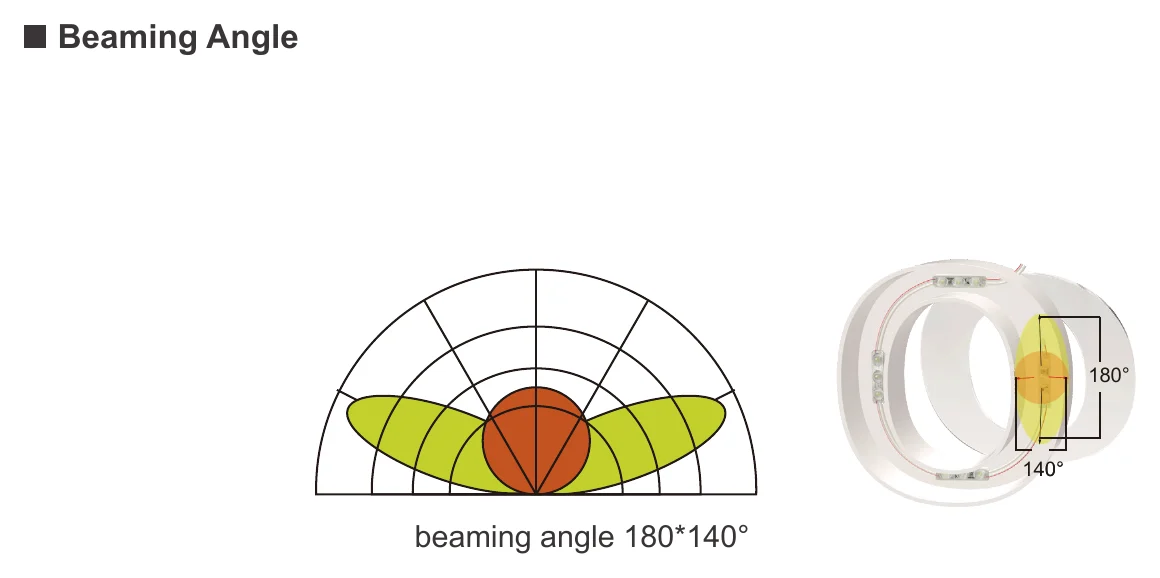

ENVO MiniLux LED Module Backlit - Duo LED Beaming Angle — Beaming Angle

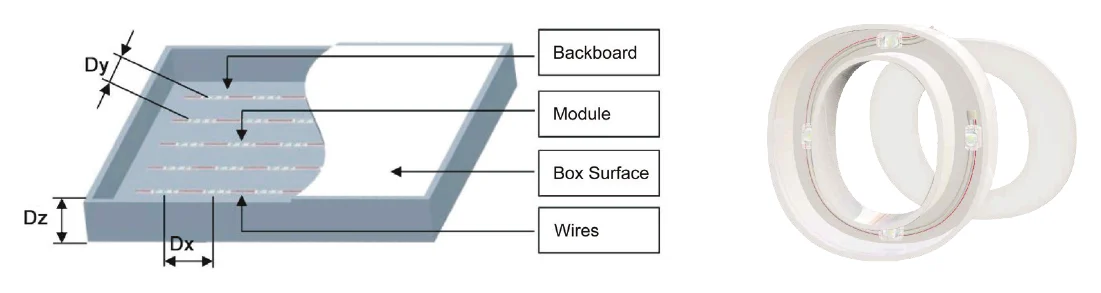

ENVO MiniLux LED Module Backlit - Duo LED Remark — Remark

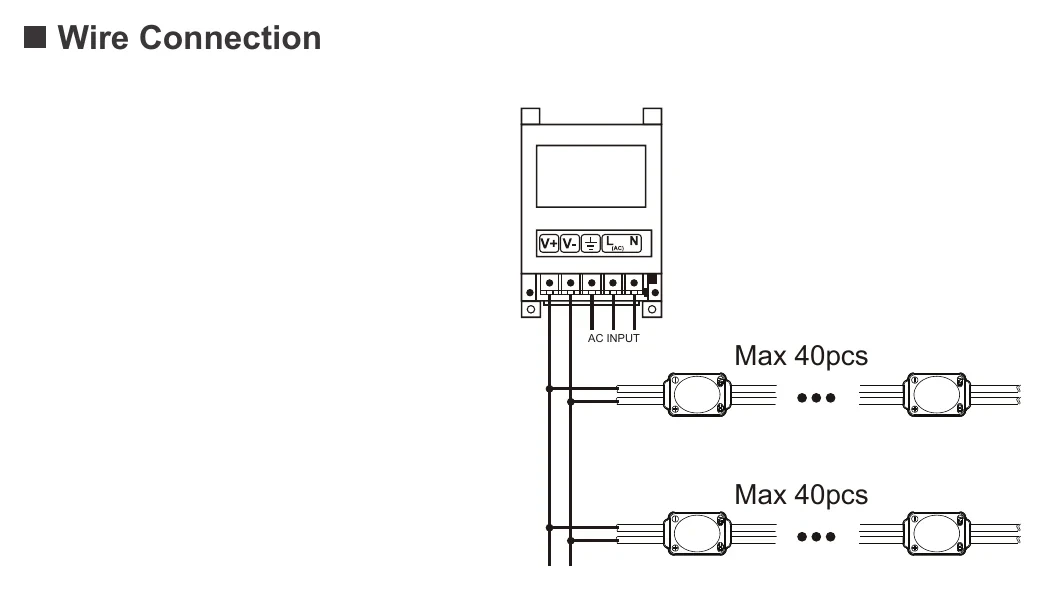

ENVO MiniLux LED Module Backlit - Duo LED Wire Connection — Wire Connection

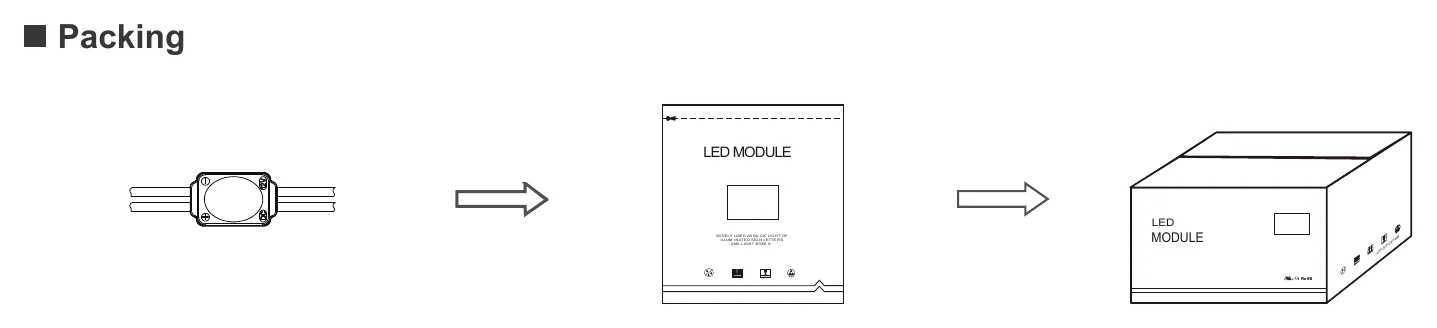

ENVO MiniLux LED Module Backlit - Duo LED Packing — Packing

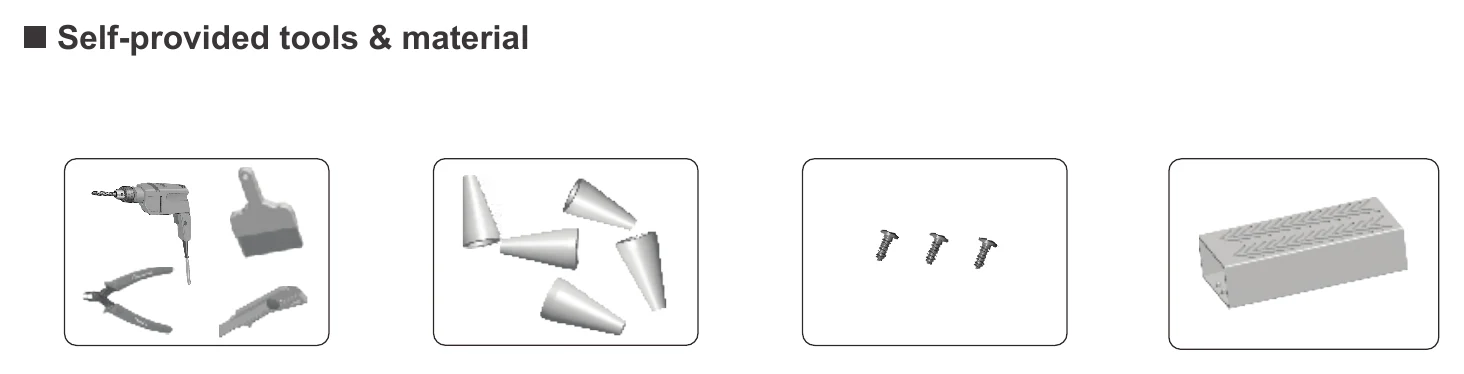

ENVO MiniLux LED Module Backlit - Duo LED Self-provided tools & material — Self-provided tools & material

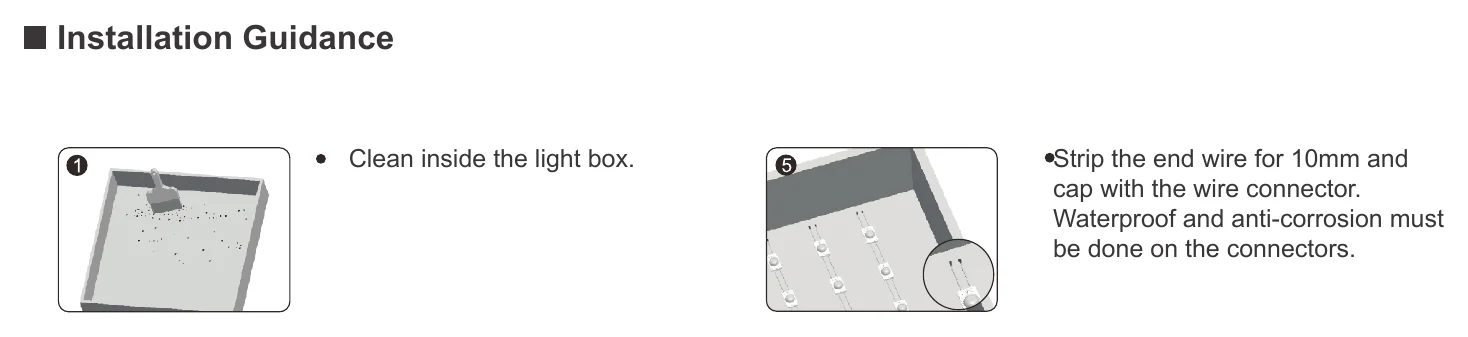

ENVO MiniLux LED Module Backlit - Duo LED Installation Guidance — Installation Guidance

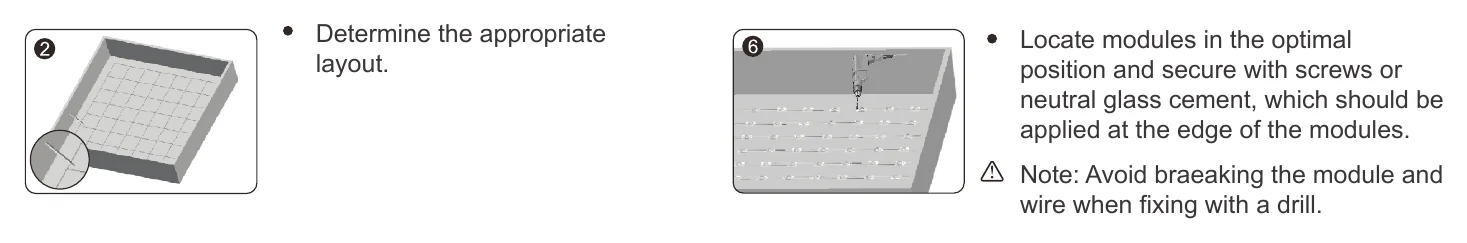

ENVO MiniLux LED Module Backlit - Duo LED Installation Guidance (2) — Installation Guidance (2)

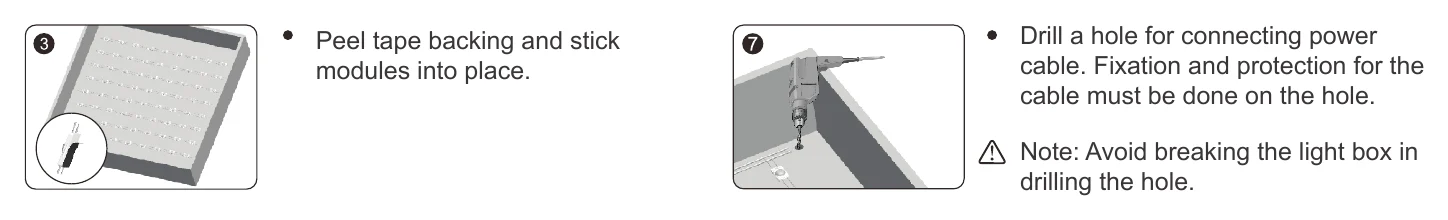

ENVO MiniLux LED Module Backlit - Duo LED Installation Guidance (3) — Installation Guidance (3)

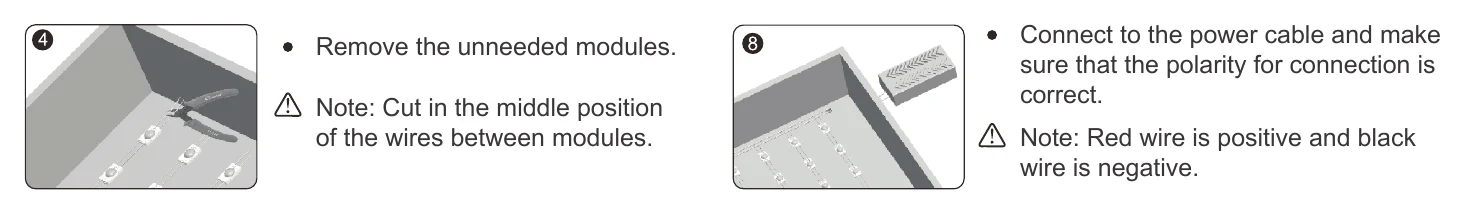

ENVO MiniLux LED Module Backlit - Duo LED Installation Guidance (4) — Installation Guidance (4)

Typical applications

Apply to 3-8 cm depth illuminated letters or light boxes.

Downloads

Datasheet1

ENVO MiniLux LED Module Backlit - Duo LED datasheetEV_BLML02LBY.pdf PDF Download

FAQ

What applications is the ENVO MiniLux LED Module Backlit - Duo LED designed for?

This LED module family is designed for shallow-depth illuminated letters and light boxes. It is intended for signage applications where space is limited but bright, even backlighting is still needed. The stated application depth range is 3-8 cm.

What are the main differences between the variants in this product family?

The main difference across the family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 7000K cool white. Core performance specifications such as 55 lm output, 0.48 W power rating, CRI 80, beam angle, dimmability, lifetime, and warranty remain the same across the listed variants.

How bright is each module in the ENVO MiniLux Duo LED family?

Each listed variant delivers 55 lumens per module. This output is paired with a 0.48 W power rating, making the family suitable for efficient backlit signage in compact spaces. The product description also notes the use of high output 2835 LEDs.

What beam spread does this LED module use?

This product family uses a 180° x 140° beam angle. According to the product description, the optic lens is designed to provide wide and uniform light distribution. That broad spread helps improve coverage in shallow sign cavities.

Is the ENVO MiniLux LED Module Backlit - Duo LED dimmable?

Yes, this product family is listed as dimmable. That makes it suitable for projects where adjustable light levels are required, provided the rest of the system is matched appropriately. The dimming capability is consistent across the listed child variants.

What are the expected service life and warranty for this product family?

The MiniLux Duo LED family is rated for a 50,000-hour lifetime and comes with a 5-year warranty. Those values are consistent across the listed variants. This makes the family a practical choice for long-term commercial signage use.
