Vimar VM-19507 Frame for RF Device Grey
Log in to see priceOverview
VM-19507 is Vimar ARKÉ 19507, frame for RF device grey.
Frame for surface mounting of EnOcean, Bluetooth, ZigBee radiofrequency devices, to complete with Arké 2-central-module or 2-module cover plates, grey
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- No
- Suitable for mounting in round junction box 60 mm
- Yes
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352457959
- Packed size (cm)
- 11.8 × 7.3 × 0.8
- Packed weight
- 22.6 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU)

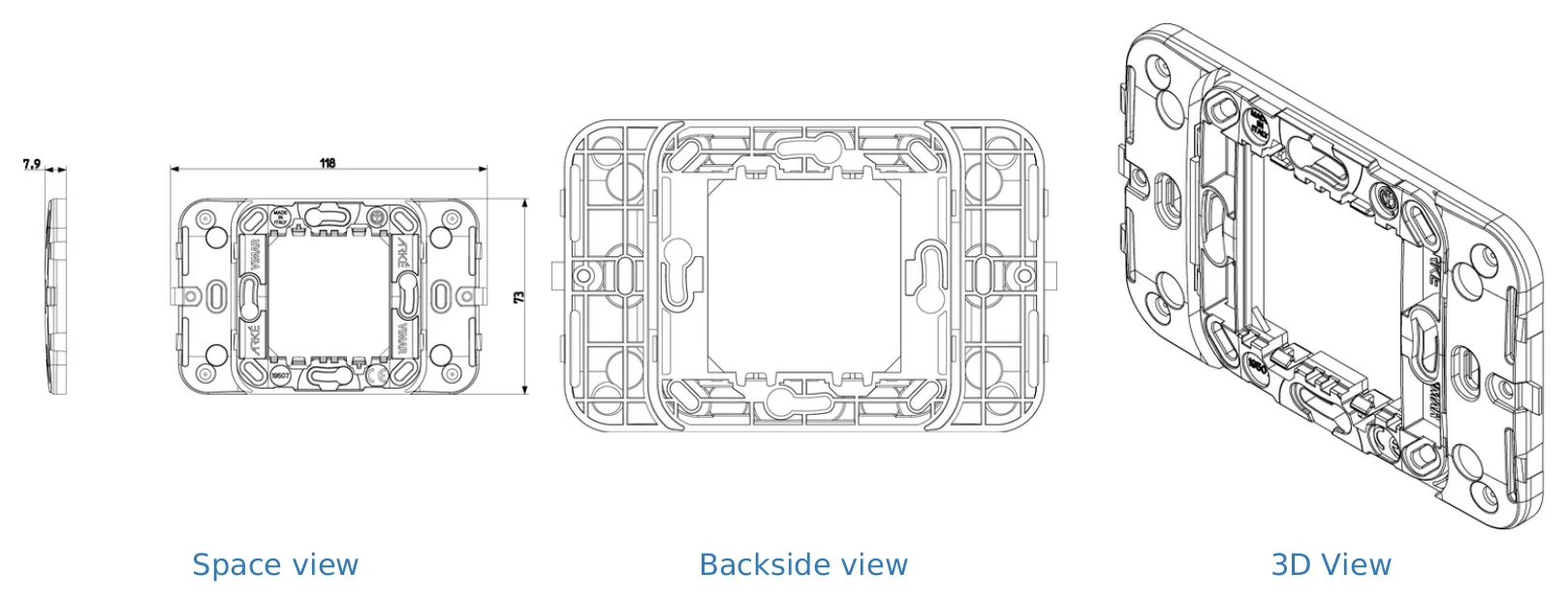

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-19507 used for?
The Vimar VM-19507 is a grey frame for surface mounting radiofrequency devices. It is intended for EnOcean, Bluetooth, and ZigBee devices and is completed with compatible Arké cover plates.
Which cover plates does the VM-19507 work with?
This frame is designed to be completed with Arké 2-central-module or 2-module cover plates. Buyers should match it with the appropriate Arké cover plate format for the device layout.
Is this frame suitable for EnOcean, Bluetooth, and ZigBee devices?
Yes. The product description specifies that the VM-19507 is for surface mounting EnOcean, Bluetooth, and ZigBee radiofrequency devices. It is a frame component rather than the radiofrequency device itself.
What colour is the Vimar VM-19507 frame?
The VM-19507 has a grey finish. This makes it suitable when a grey Arké-compatible surface-mounting frame is required.
How much does the VM-19507 weigh?
The listed weight for the Vimar VM-19507 is 0.0226 kg. This is a lightweight frame component for surface mounting compatible radiofrequency devices.
What warranty period is listed for this product?
The VM-19507 has a listed warranty period of 3 years. Warranty handling may depend on the seller's terms and the applicable purchase channel.
