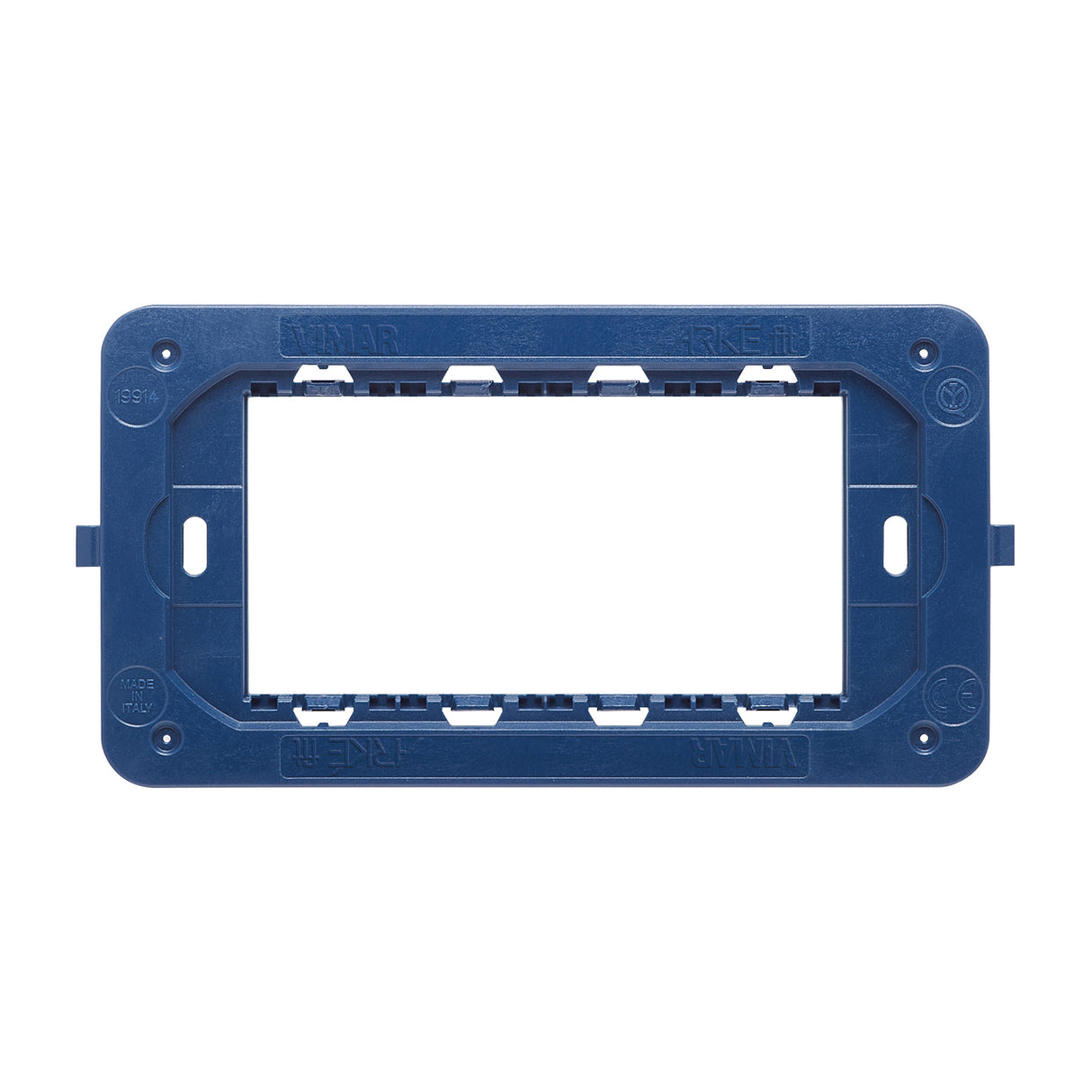

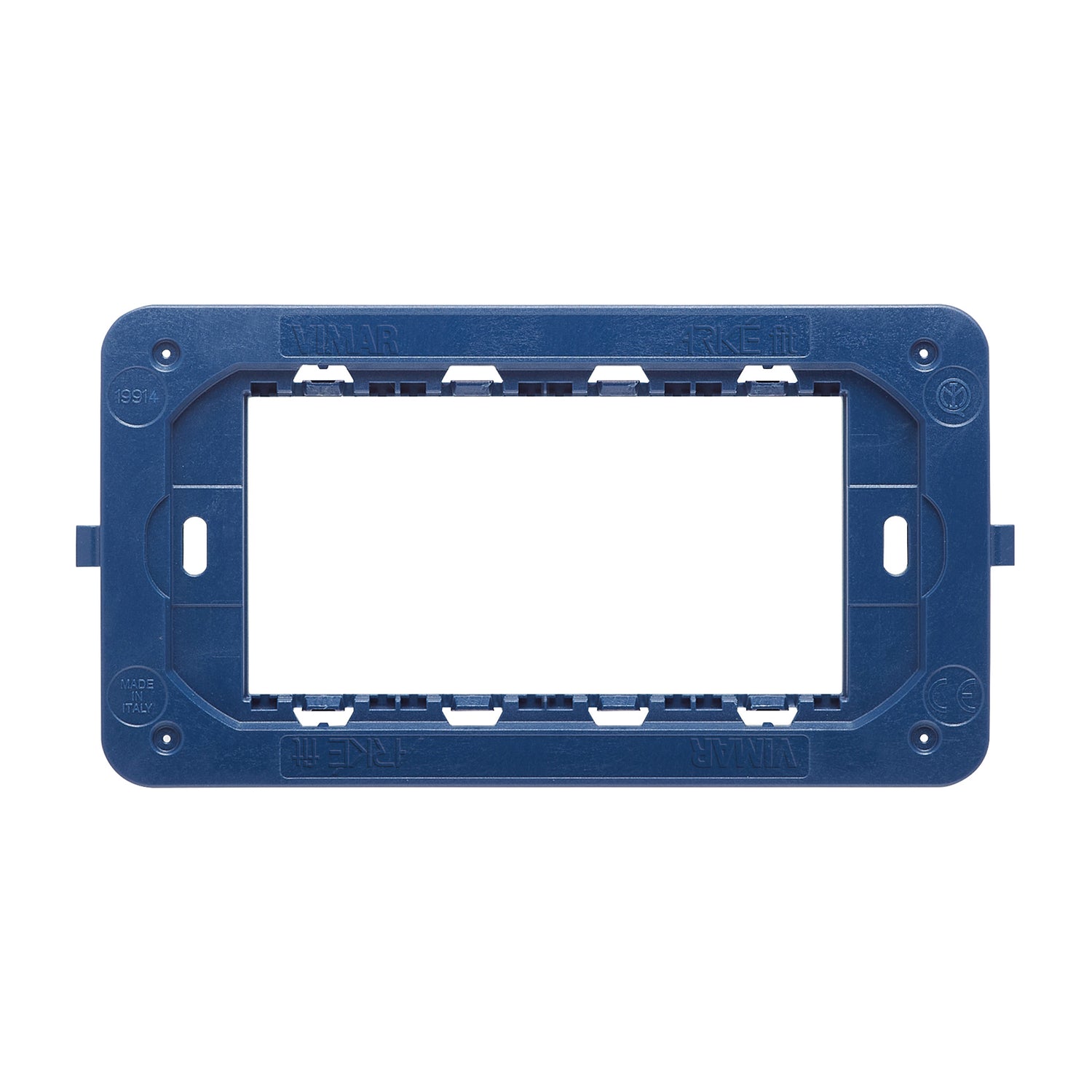

Vimar VM-19914 Frame 4M Arké fit with Screws Blue
Log in to see priceOverview
VM-19914 is Vimar ARKÉ 19914, arké fit 4M support + screws.
Arké fit 4-module support, with screws, for 4-module boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352645462
- Packed size (cm)
- 13 × 7.3 × 1.9
- Packed weight
- 23.5 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)
Technical drawings
Downloads
Datasheet1
Certificates6
FAQ
What is the Vimar VM-19914 designed to fit?
The Vimar VM-19914 is an Arké fit 4-module mounting frame. It is intended for use with 4-module mounting boxes in the Arké fit range.
What color is the Vimar VM-19914 frame?
The VM-19914 frame has a blue finish. This makes it suitable when a blue Arké fit frame is required for a matching product configuration.
How many modules does the VM-19914 support?
The Vimar VM-19914 is a 4M frame, meaning it is for 4-module configurations. It is listed as a 4-module mounting frame for 4-module mounting boxes.
What type of product is the Vimar VM-19914?
The VM-19914 is a switch frame component in the Vimar Arké fit series. It is used as part of a 4-module switch or control assembly where this frame style and color are specified.
What is included with the Vimar VM-19914?
The product description identifies the VM-19914 as an Arké fit 4-module mounting frame with screws. No other accessories or components are specified in the provided product data.
What are the warranty period and weight for the VM-19914?
The Vimar VM-19914 has a listed warranty period of 3 years. Its listed weight is 0.0270 kg.
