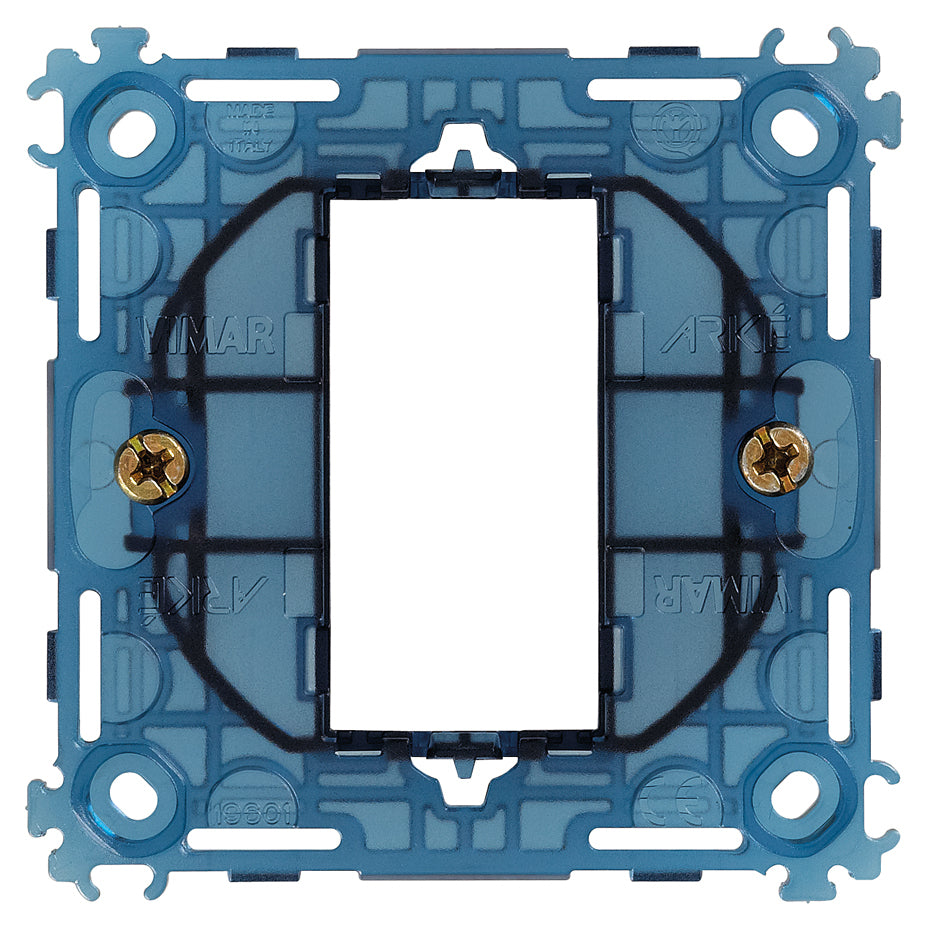

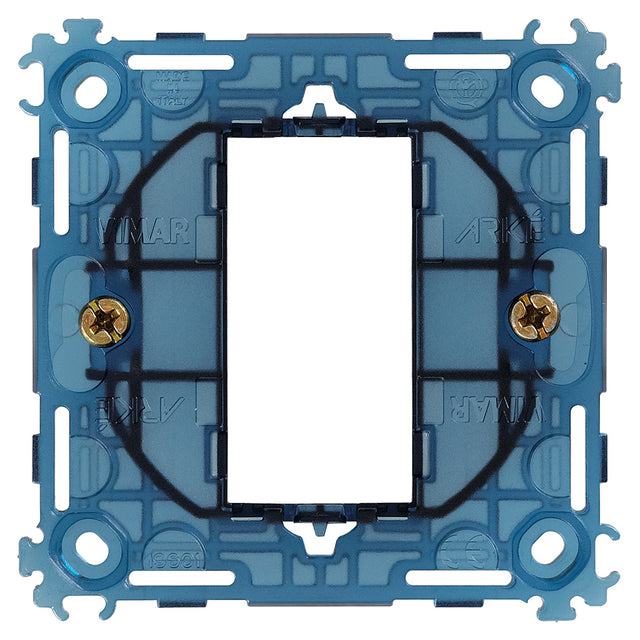

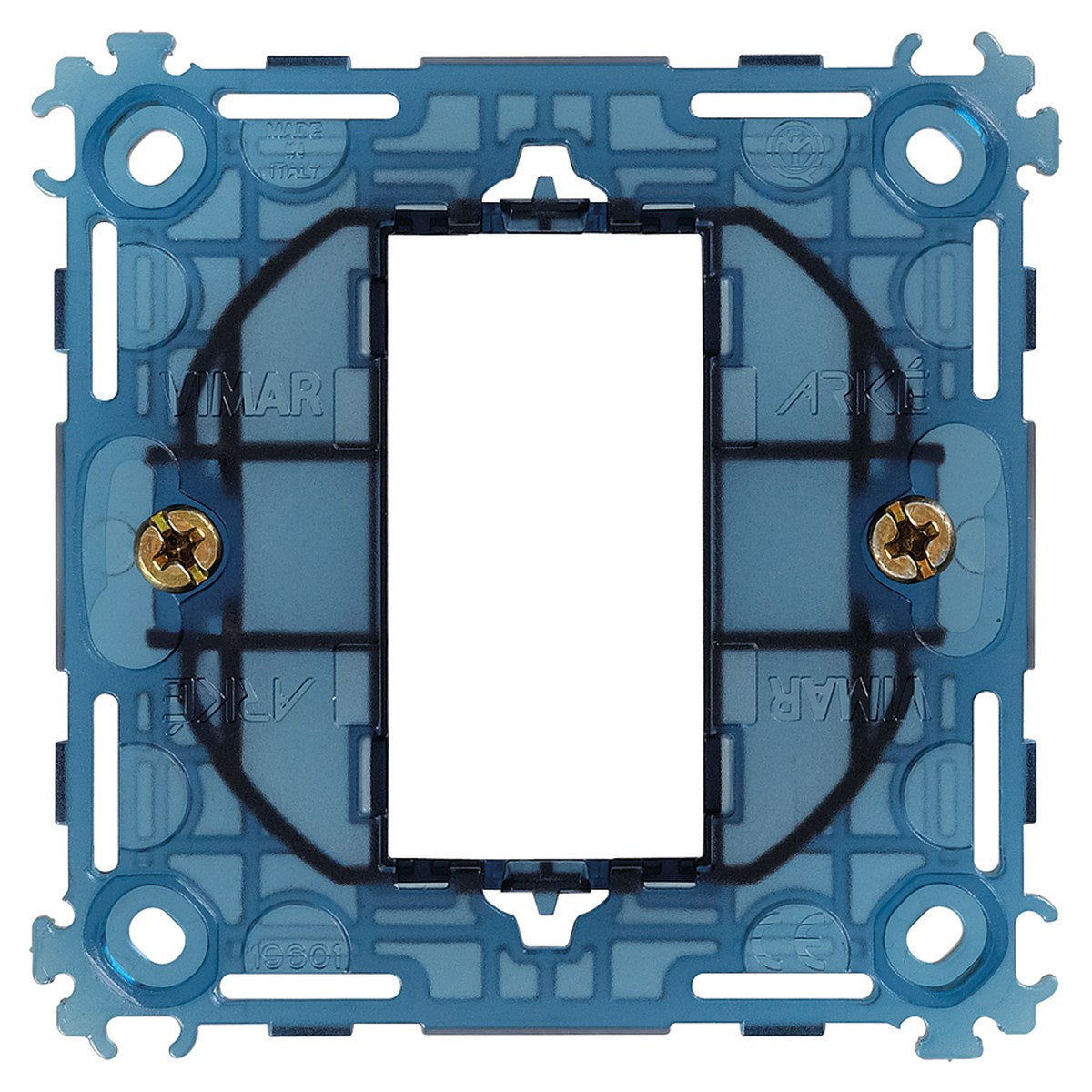

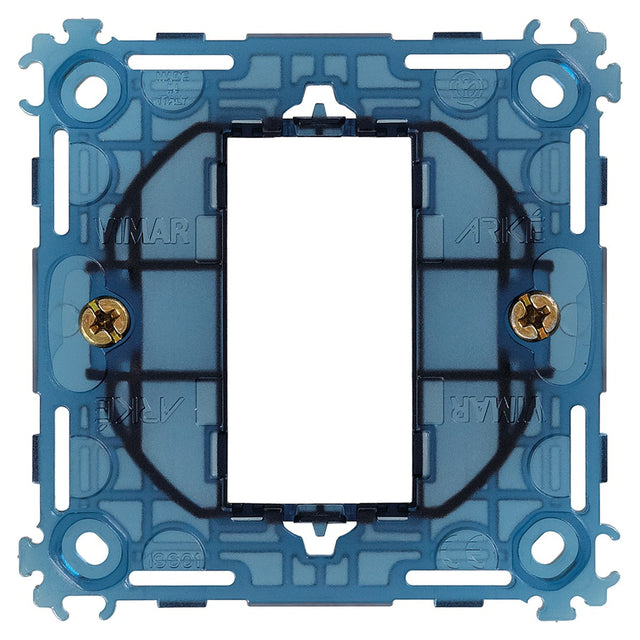

Vimar VM-19601 Frame 1M with Claws Blue
Log in to see priceOverview
VM-19601 is Vimar ARKÉ 19601, frame 1M +claws.
1-module mounting frame, with claws, for ø 60 mm mounting boxes
Features
- The transparency helps the installation and the wiring of devices
- The honeycomb structure gives structural strength
- The slots in the corners enable fixing to the panel
- The hooking teeth encourage fixing in series for the installation of multiple modules
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 1
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- No
- Suitable for mounting in round junction box 60 mm
- Yes
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352433441
- Packed size (cm)
- 7.4 × 7.4 × 2.5
- Packed weight
- 24.4 g
- Pieces per box
- 20
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)
Technical drawings
Downloads
Datasheet1
Certificates6
FAQ
What is the Vimar VM-19601 used for?
The Vimar VM-19601 is a 1-module mounting frame with claws. It is designed for use with 60 mm mounting boxes and is part of Vimar's Arke switch frame range.
Is the VM-19601 compatible with 60 mm mounting boxes?
Yes. The product description specifies that the VM-19601 is for 60 mm mounting boxes.
What color is the Vimar VM-19601 frame?
The Vimar VM-19601 has a blue finish. This makes it suitable when a blue frame color is required for matching or identifying a specific switch assembly.
How many modules does the VM-19601 support?
The VM-19601 is a 1M frame, meaning it is intended for a 1-module configuration. Buyers should choose this model when they need the 1-module version rather than a larger frame size.
What is the warranty period for the Vimar VM-19601?
The listed warranty period for the Vimar VM-19601 is 3 years. This warranty information applies specifically to SKU VM-19601 as provided.
How much does the Vimar VM-19601 weigh?
The Vimar VM-19601 weighs 0.0240 kg. Its low weight is typical for a small switch mounting frame component.
