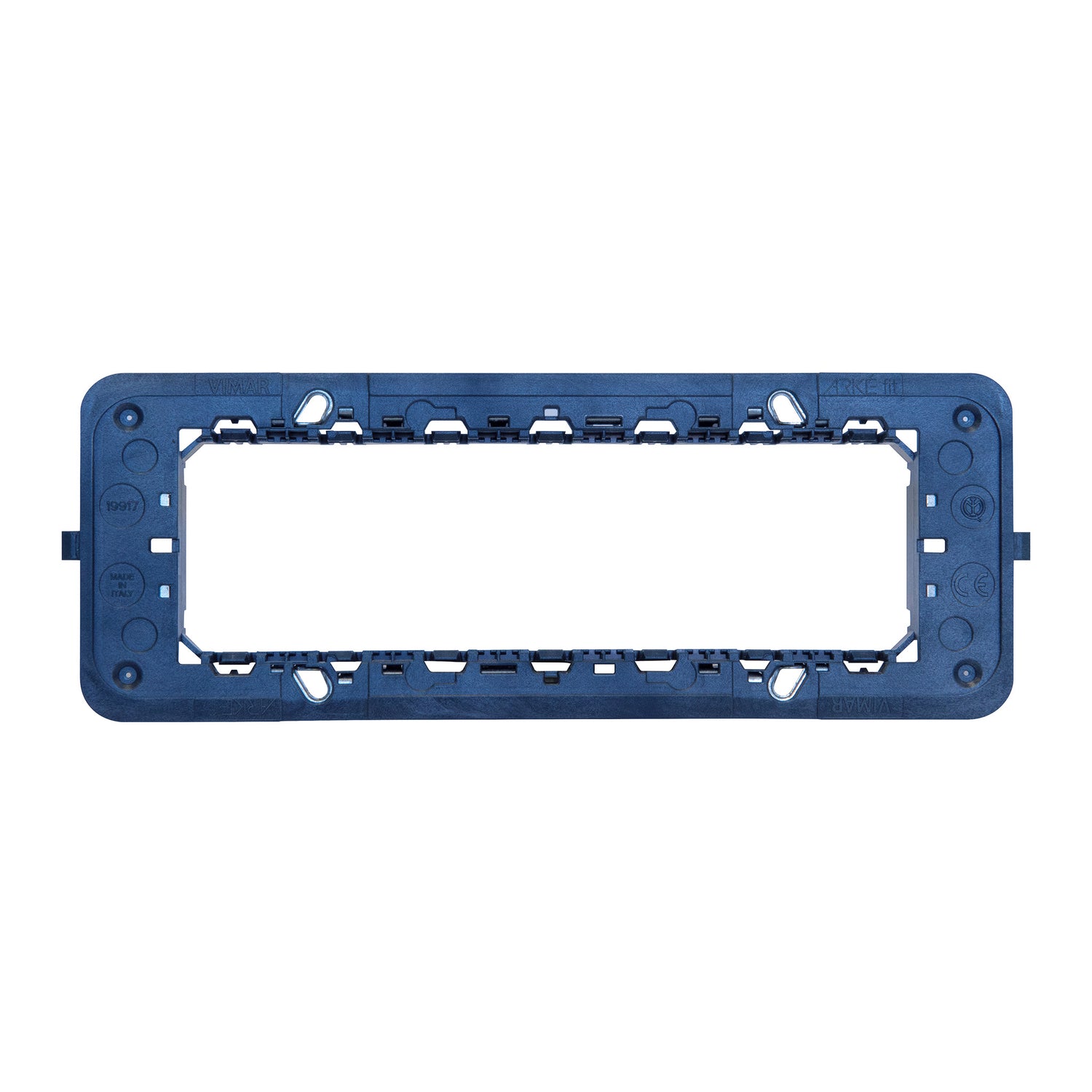

Vimar VM-19917 Frame 7M Arké fit with Screws Blue
Log in to see priceOverview
VM-19917 is Vimar ARKÉ 19917, arké fit 7M support + screws.
Arké fit 7-module support, with screws, for 7-module boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 7
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352644601
- Packed size (cm)
- 19.7 × 7.3 × 1.9
- Packed weight
- 59.8 g
- Pieces per box
- 30
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)
Technical drawings
Downloads
Datasheet1
Certificates6
FAQ
What is the Vimar VM-19917 used for?
The Vimar VM-19917 is a 7-module Arké fit mounting frame for use with 7-module mounting boxes. It is supplied with screws and is intended for Arké fit switch frame applications.
Which Vimar series is this frame designed for?
This model is part of the Vimar Arké fit range. It is described as an Arké fit 7-module mounting frame for 7-module mounting boxes.
What color is the Vimar VM-19917 frame?
The Vimar VM-19917 has a blue finish. This makes it suitable when a blue Arké fit frame is required for the product configuration.
Does the Vimar VM-19917 include screws?
Yes, the product description states that this Arké fit 7-module mounting frame is supplied with screws. The included screws are part of this specific VM-19917 product listing.
What warranty period applies to the Vimar VM-19917?
The listed warranty period for the Vimar VM-19917 is 3 years. This warranty information is specific to the product data provided for this SKU.
How much does the Vimar VM-19917 weigh?
The Vimar VM-19917 has a listed weight of 0.0598 kg. This lightweight frame is specified for 7-module Arké fit mounting box applications.
