Vimar

Vimar VM-19602 Frame 2M with Claws 71mm Blue

2-module mounting framewith claws
SKU VM-19602
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

VM-19602 is Vimar ARKÉ 19602, frame 2M +claws 71mm.

2-module mounting frame, with claws, for ø 60 mm mounting boxes, 71 mm distance between centres

Features

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules

Specifications

VM-19602Specifications from the official datasheet

Technical data

Product type
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

Packaging

EAN
8007352433465
Packed size (cm)
7.4 × 7.4 × 2.5
Packed weight
17.8 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), Product Environm. Profile, IMQ (Italy)

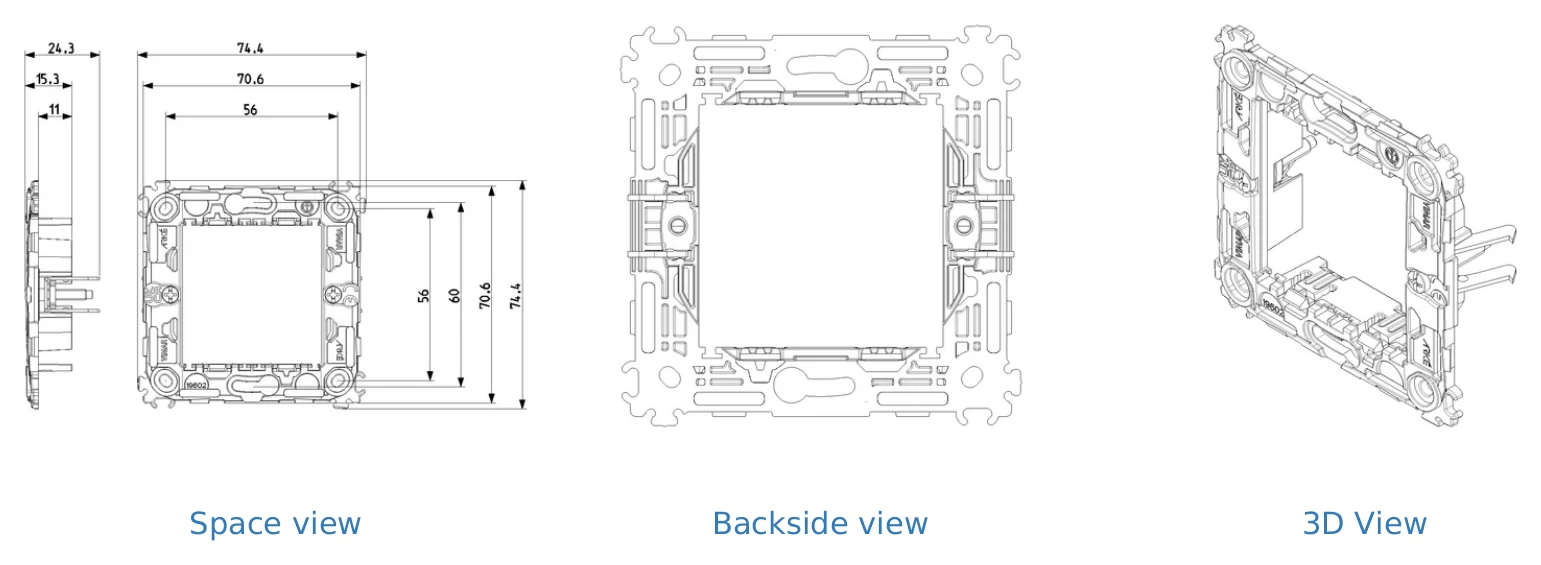

Technical drawings

VM-19602 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-19602?

The Vimar VM-19602 is a 2-module mounting frame with claws. It is designed for 60 mm mounting boxes and has a 71 mm distance between centres.

Which mounting boxes is the VM-19602 made for?

This frame is specified for ø 60 mm mounting boxes. The listed centre-to-centre distance is 71 mm, so buyers should confirm that dimension matches the required box layout.

What type of switch project is this frame used for?

The VM-19602 is used as a 2-module mounting frame in Vimar switch frame applications. Its claws and 71 mm centre distance make it suitable where this specific frame format is required.

What color is the VM-19602 frame?

The VM-19602 has a blue finish colour. This is the finish listed for this specific SKU.

How much does the Vimar VM-19602 weigh?

The listed weight for the Vimar VM-19602 is 0.0178 kg. This makes it a lightweight frame component for compatible switch frame assemblies.

What warranty period is listed for the VM-19602?

The Vimar VM-19602 has a listed warranty period of 3 years. Warranty coverage should be checked against the seller's current terms for the order.
