Vimar VM-19620 Frame 14M with Screws Blue
Log in to see priceOverview
VM-19620 is Vimar ARKÉ 19620, frame 14M +screws.
14 (7+7)-module mounting frame, with screws, for V71320, V71620 and V71720 flush or 09920 surface mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 7
- Number of modules vertical (module system)
- 2
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352433533
- Packed size (cm)
- 20.6 × 14.6 × 2.5
- Packed weight
- 66.4 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

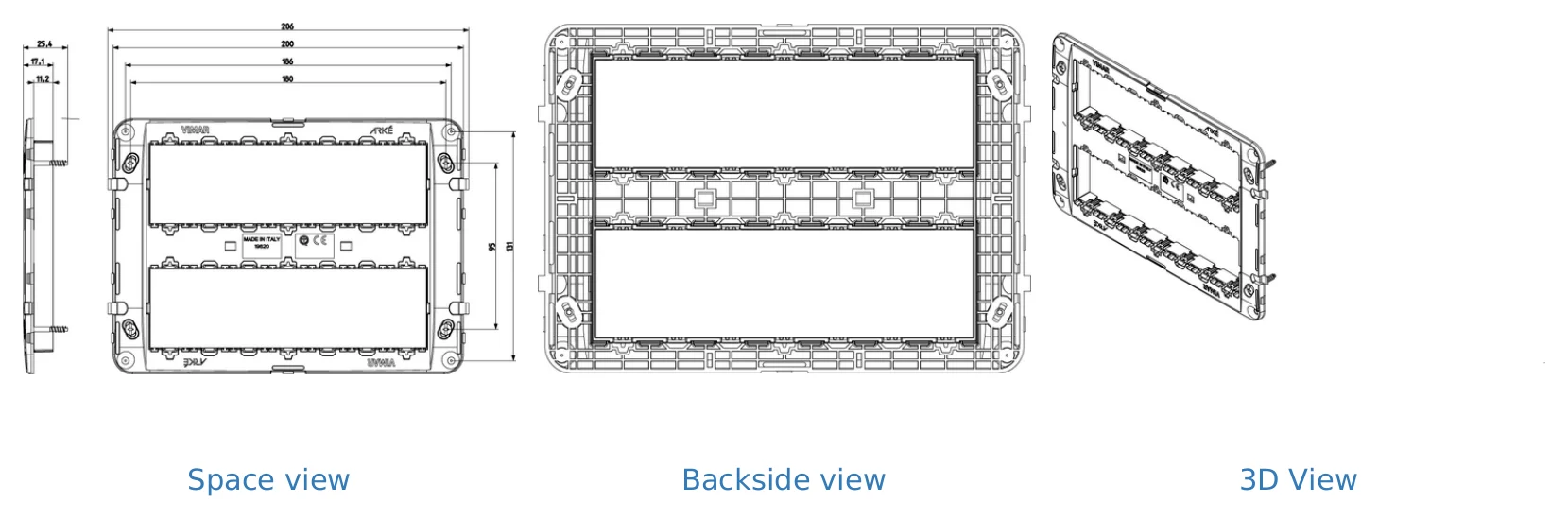

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-19620?
The Vimar VM-19620 is a 14-module mounting frame supplied with screws. It is described as a 14M frame for 14 modules arranged as 7+7.
Which mounting boxes is the VM-19620 designed for?
The VM-19620 is specified for use with V71320, V71620, and V71720 flush mounting boxes. It is also specified for the 09920 surface mounting box.
What type of project is this frame typically used for?
This frame is used where a 14-module Vimar switch frame is required in a compatible flush or surface box. It is suited to B2B switch and Arke-series product applications where the listed box compatibility matches the project requirements.
What color is the VM-19620 frame?
The VM-19620 frame has a blue finish. This color should be checked against the rest of the project’s Vimar switch components before ordering.
What are the warranty period and weight of this product?
The VM-19620 has a listed warranty period of 3 years. Its listed weight is 0.0664 kg.
