Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar VM-19627 Frame 2M for Panel Mounting with Screws Blue

2-module mounting framewith screws

SKU VM-19627

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-19627 is Vimar ARKÉ 19627, frame 2M for panel mounting.

2-module mounting frame, with screws, for panel mounting

Specifications

VM-19627Specifications from the official datasheet

Technical data

Product type: Holder for modular domestic switching devices
Model: Flush-mounted
Mounting method of the module inserts: Front side
Mounting direction: Horizontal and vertical
Number of modules horizontal (module system): 1
Number of modules vertical (module system): 2
With built-in installation box: No
With screws: Yes
Suitable for mounting in round junction box 60 mm: No
Flush-mounted installation: Yes
Suitable for subfloor installation duct box: No
Suitable for wall duct: No
Suitable for mounting on DIN-rail 35 mm: No
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated

Packaging

EAN: 8007352450738
Packed size (cm): 3.3 × 13.4 × 1.5
Packed weight: 15.2 g
Pieces per box: 10

Certifications

Certifications: CE marking (EU), IMQ (Italy)

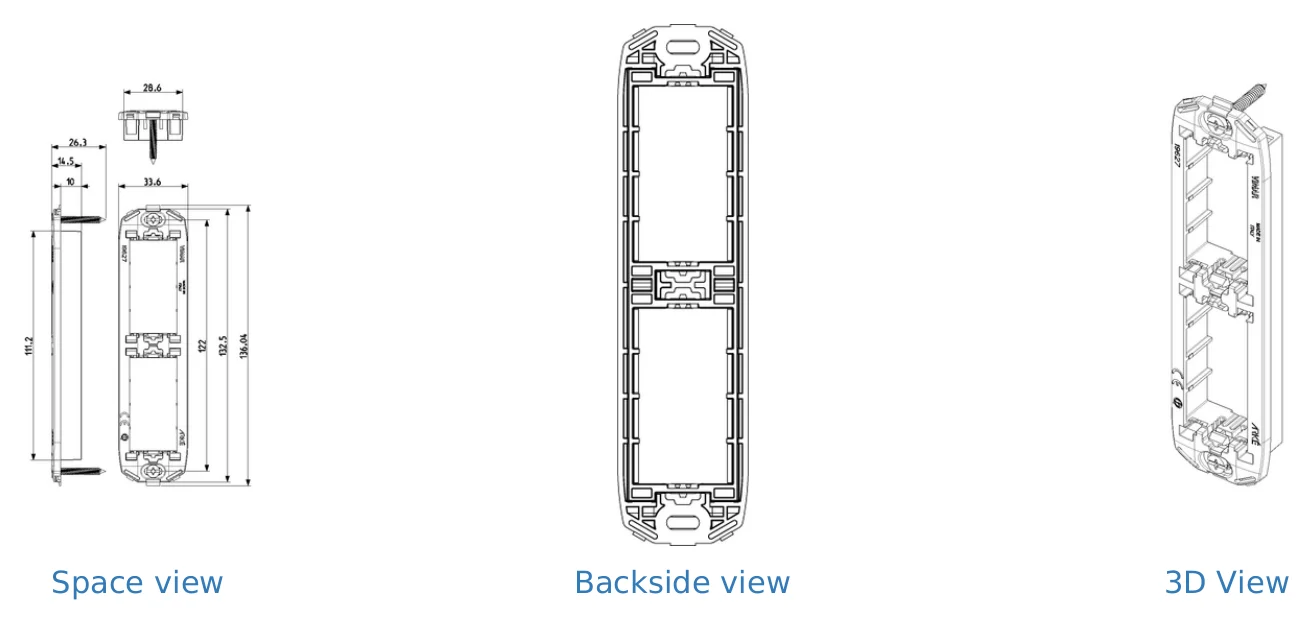

Technical drawings

Downloads

Certificates6

Certificates for Vimar Mounting Frame PDF Download

Catalogues2

Vimar ARKÉ Brochure PDF Download

Vimar Arke Catalogue PDF Download
