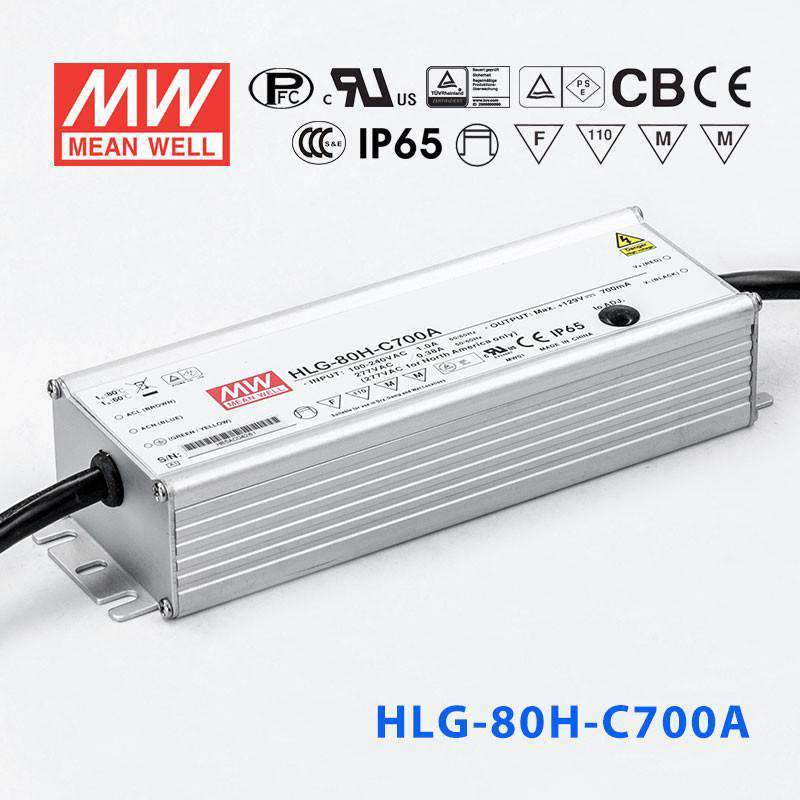

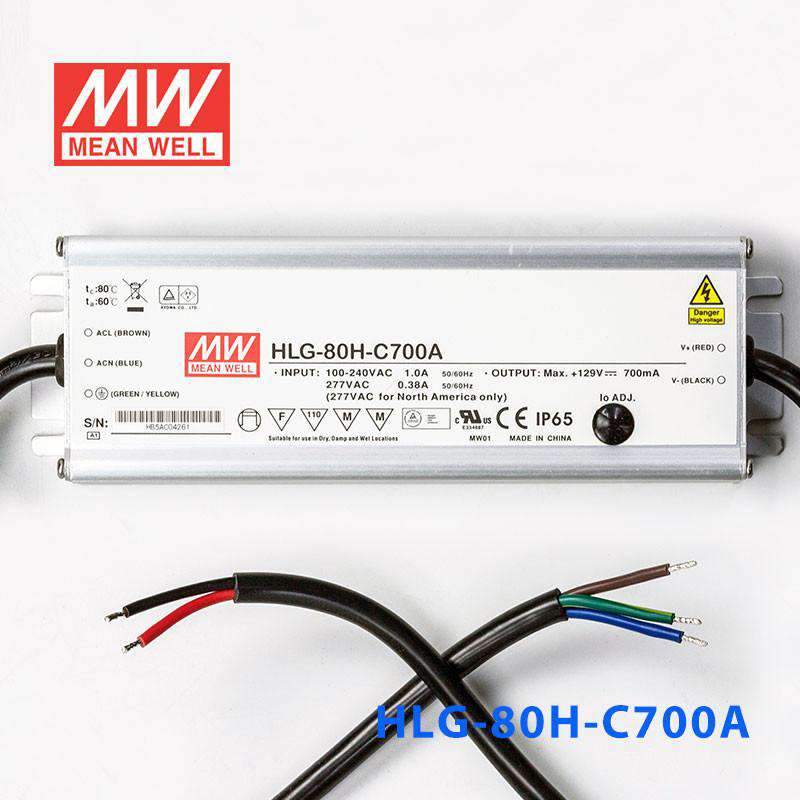

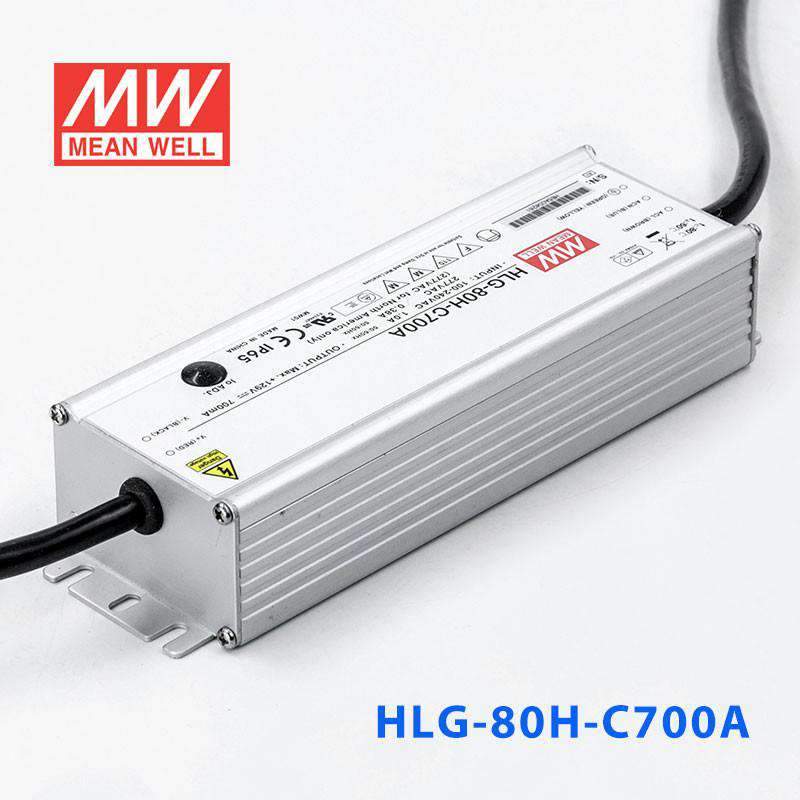

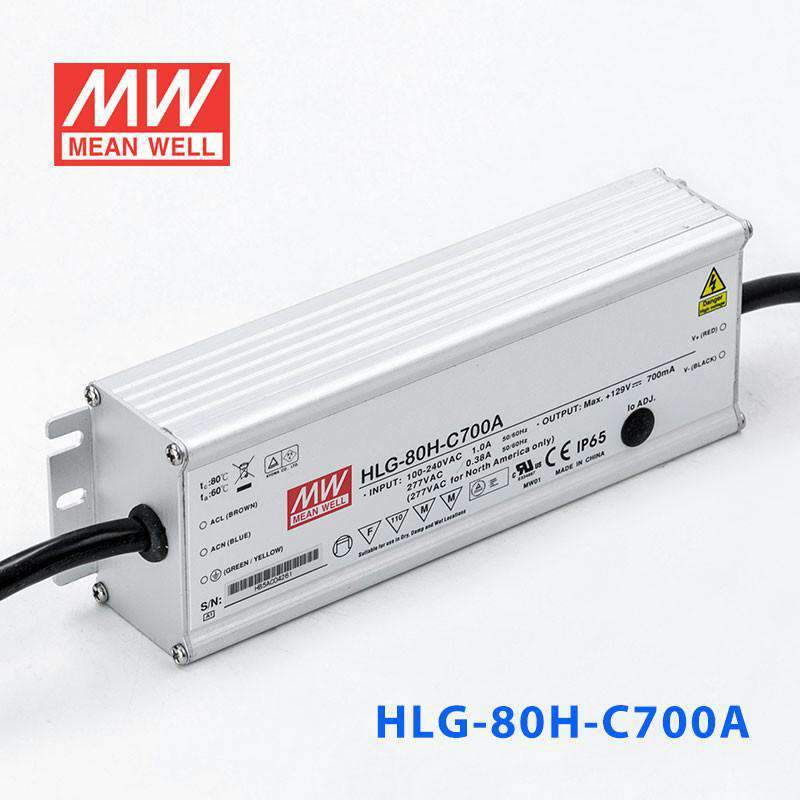

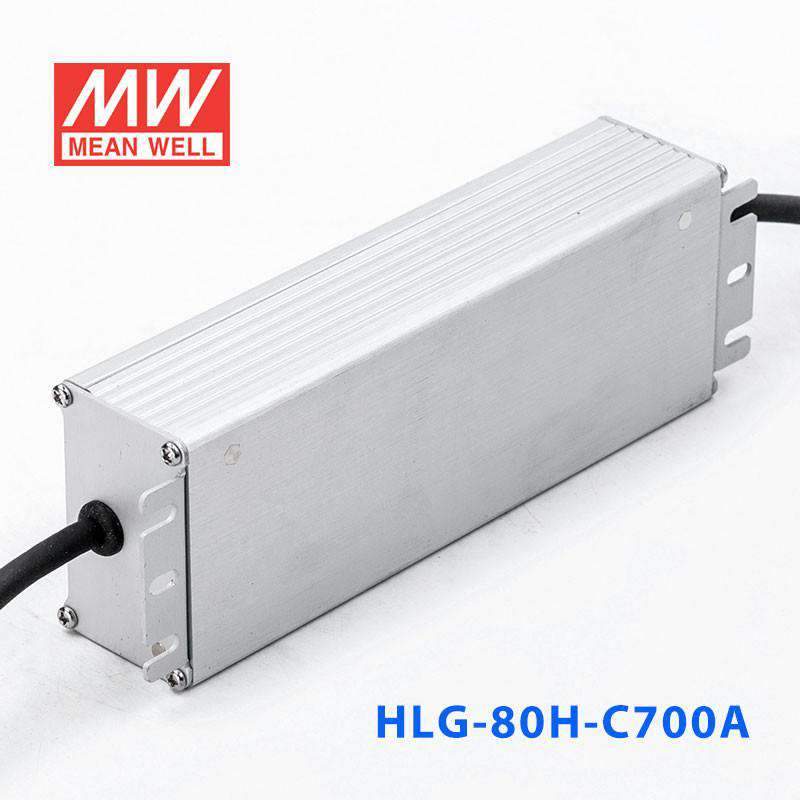

Mean Well HLG-80H-C700A Power Supply 90.3W 700mA - Adjustable

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC
SKU HLG-80H-C700A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 19 in this family

HLG-80H-C700A
Available to order
|

Overview

HLG-80H-C700A is the model of this series: rated current 700mA, rated power 90.3W, typical efficiency 91.5%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-80H-C series is a 90W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-80H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 700mA. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Metal housing with ClassⅠdesign
  • Built-in active PFC function
  • IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • Typical lifetime>62000 hours
  • 7 years warranty

Specifications

HLG-80H-C700ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT
700mA
RATED POWER
90.3W
CONSTANT CURRENT REGIONNote.2
64V ~ 129V
CURRENT ADJ. RANGE
420 ~ 700mA
CURRENT RIPPLE
8.0% max. @rated current
CURRENT TOLERANCE
±5%
SET UP TIMENote.4
500ms/115VAC, 230VAC

INPUT

VOLTAGE RANGENote.3
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.)
91.5%
AC CURRENT (Typ.)
0.88A / 115VAC 0.45A / 230VAC 0.38A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 60A(twidth=410μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
150 ~ 170V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+80℃
WORKING HUMIDITY
10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.6
UL8750, CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent,GB/T19510.1, GB/T19510.213,EAC TP TC 004,IP65 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.6
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF
3098.6K hrs min. Telcordia SR-332 (Bellcore) ; 309.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
195.6*61.5*38.8 mm (L*W*H)
PACKING
0.84Kg; 16pcs/14.4Kg/0.54CUFT

MODEL ENCODING

A (this model)
Io adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB
Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  7. 7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  8. 8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  9. 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  10. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-80H-C700A BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-80H-C700A Illustration (page 5)
Illustration (page 5)
HLG-80H-C700A OUTPUT LOAD vs TEMPERATURE(Note.8)
OUTPUT LOAD vs TEMPERATURE(Note.8)
HLG-80H-C700A STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HLG-80H-C700A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

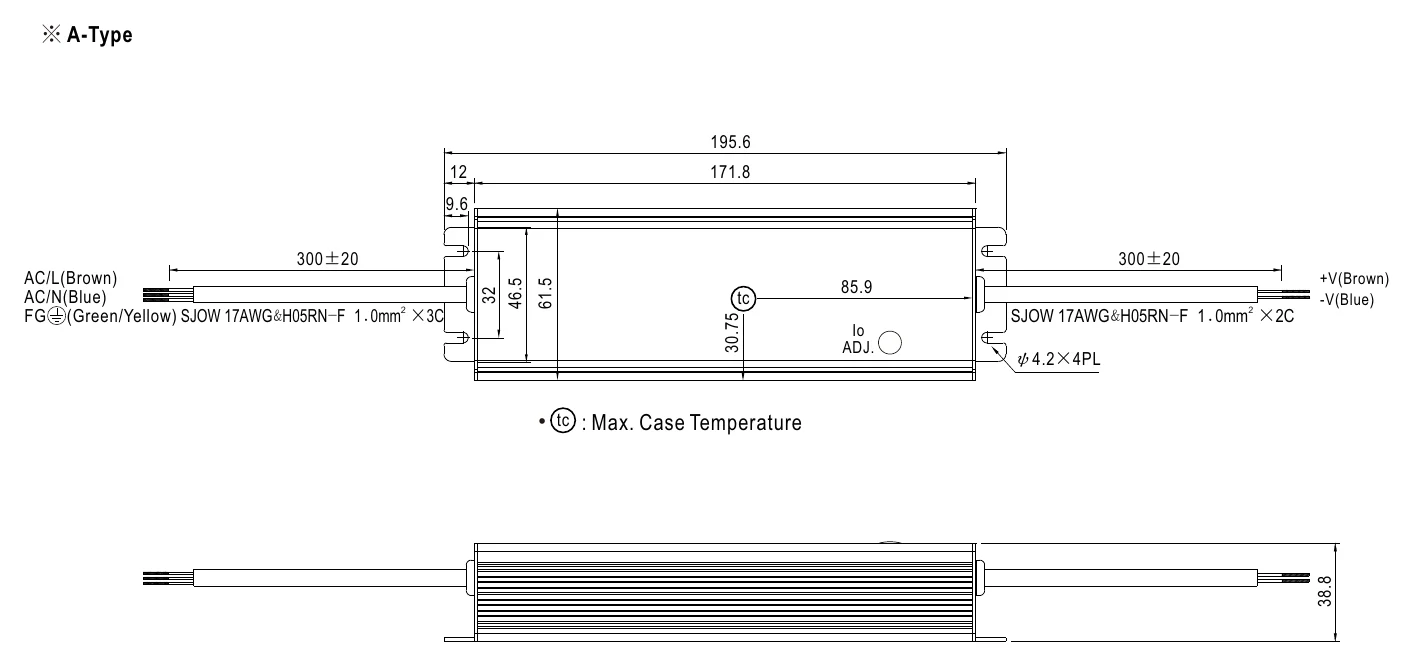

HLG-80H-C700A MECHANICAL SPECIFICATION ※ A-Type
MECHANICAL SPECIFICATION ※ A-Type
HLG-80H-C700A Dimensions (mm)
Dimensions (mm)
HLG-80H-C700A ‧tc : Max. Case Temperature
‧tc : Max. Case Temperature
HLG-80H-C700A WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED fishing lamp
  • LED harbor lighting
  • LED building architectural lighting
  • LED greenhouse lighting
  • LED bay lighting

Downloads

FAQ

Can I use the HLG-80H-C700A to power LED downlights?

Yes. The HLG-80H-C700A delivers 700mA constant current at up to 90.3W with a CC voltage range of 64-129V. It can drive one or more LED downlight modules wired in series as long as their combined forward voltage stays within that range. The adjustable output lets you fine-tune the current to match your exact LED module specifications.

Is the HLG-80H-C700A suitable for powering LED signage modules?

Yes, it is a solid choice for LED signage modules that operate at 700mA constant current. The CC voltage range of 64-129V accommodates moderate-length series LED strings used in channel letters and sign cabinets. The IP65/IP67-approved design and wide input range of 90-305VAC make it practical for commercial installations.

Can the HLG-80H-C700A drive an LED array for industrial or workshop lighting?

Yes. At 90.3W and 700mA constant current, this driver can power mid-size LED arrays for task lighting or workshop fixtures. The LED array's total forward voltage must be between 64V and 129V. The IP65/IP67-approved design and heavy industry level surge immunity suit industrial environments with dust and occasional moisture.

How many LEDs can I connect to the HLG-80H-C700A in series?

The count depends on each LED's forward voltage. The HLG-80H-C700A operates at 700mA constant current with a CC voltage range of 64-129V and a maximum output of 90.3W. Sum the forward voltages of all LEDs in your series string and verify the total falls within the 64-129V window.

Can the HLG-80H-C700A be installed in a cold environment like a walk-in freezer?

Yes. It is rated for a case temperature (Tcase) down to -40°C (up to +80°C), which covers freezer and cold-storage environments. The series is IP65/IP67 approved; note that the working humidity rating is 10-95% RH non-condensing.
