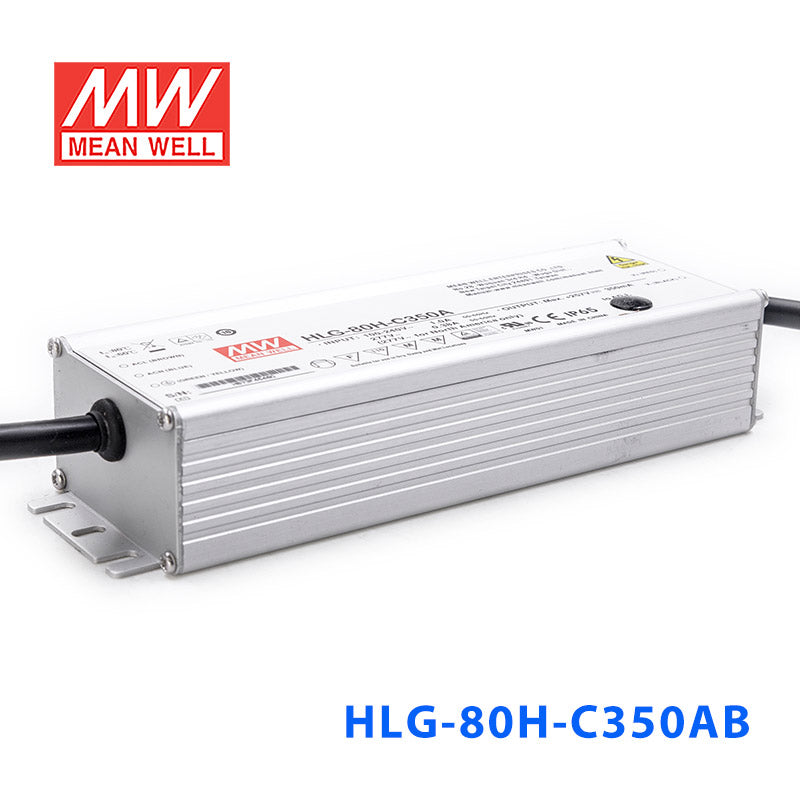

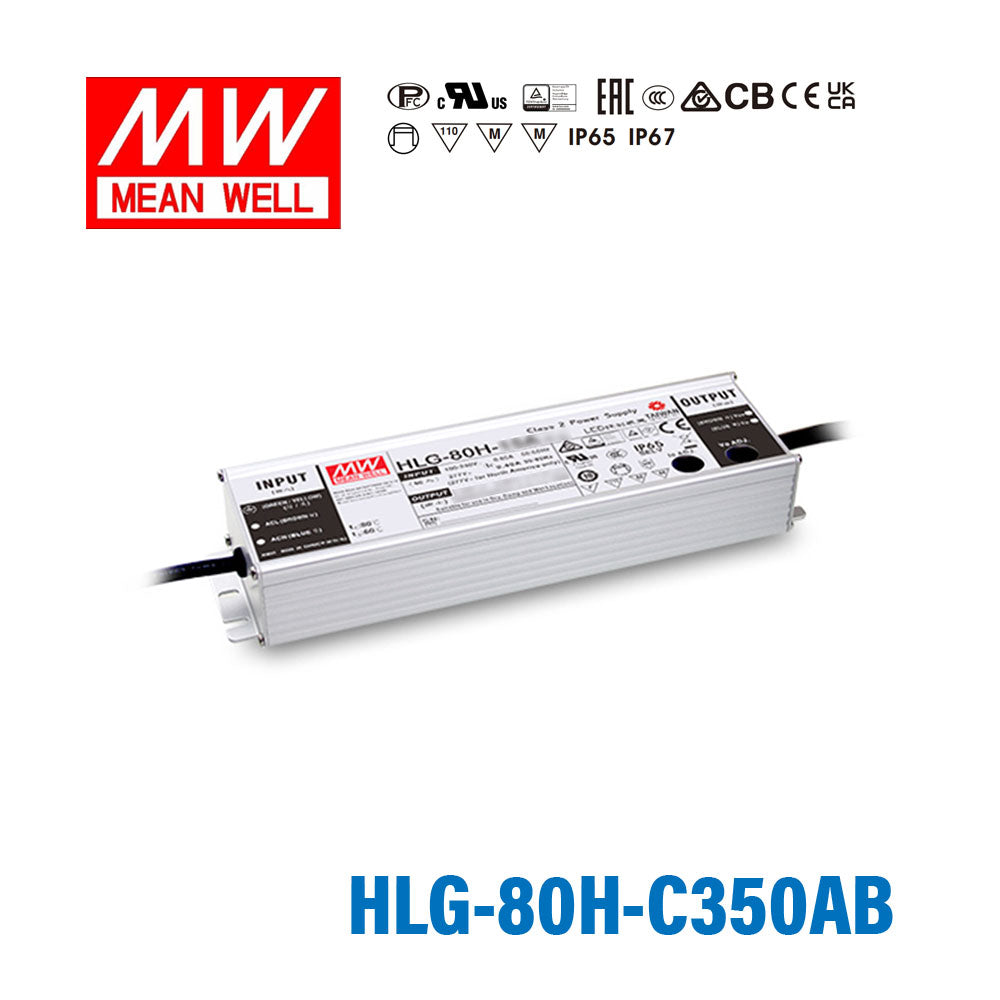

Mean Well HLG-80H-C350AB Power Supply 89.95W 350mA - Adjustable and Dimmable

Yes. The HLG-80H-C350AB provides 350mA constant current across a CC voltage range of 128-257V, which supports long series strings of LEDs for channel letters and commercial signs. The AB variant includes both output adjustment and 1-10V/PWM dimming, allowing you to control brightness remotely or on a schedule.

Yes. With 350mA constant current and a CC range of 128-257V at up to 89.95W, it can drive lengthy series LED strings used in cove and accent lighting. The built-in dimming input supports scene-setting and daylight harvesting when paired with a compatible 1-10V or PWM controller.

Yes. This driver delivers 350mA constant current at up to 89.95W across 128-257V, making it compatible with high-voltage COB downlight modules. The potentiometer lets you set the baseline current, while the dimming input allows dynamic brightness control via 1-10V, PWM, or resistance signals.

The HLG-80H-C350AB supports 3-in-1 dimming through 1-10V analog, PWM signal, or resistance. It also has a built-in potentiometer for adjusting the output current. This combination gives you both fixed output trimming and dynamic dimming from an external controller.

That depends on each LED's forward voltage. The driver operates at 350mA constant current with a CC voltage range of 128-257V and delivers up to 89.95W. Sum the forward voltages of your LEDs in series and ensure the total is between 128V and 257V.

Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered outdoor areas like parking garages, canopies, and building soffits. The -40°C to +80°C operating range covers seasonal temperature extremes in most climates.
