Mean Well

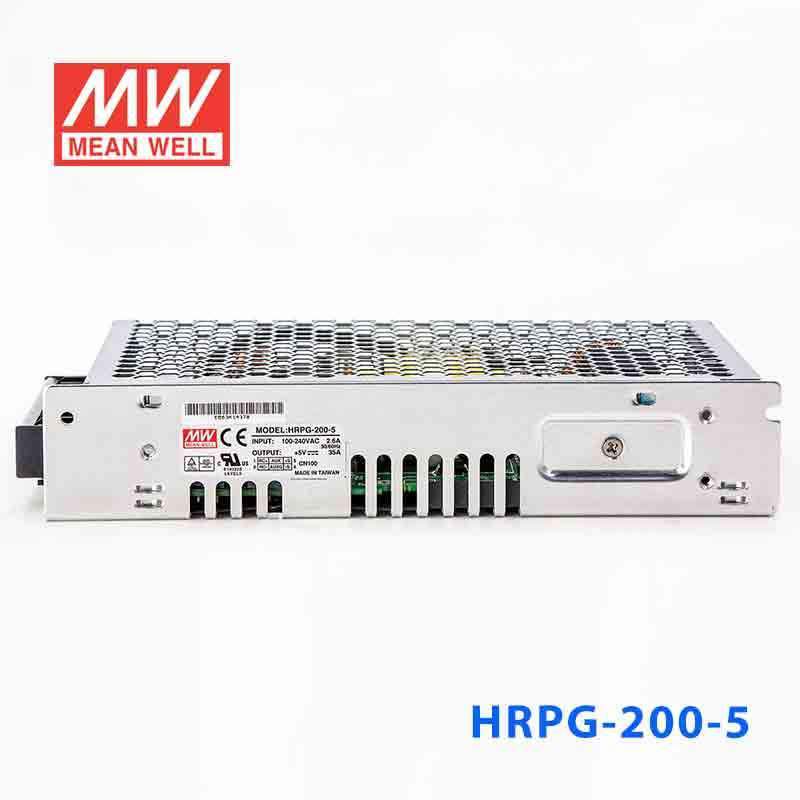

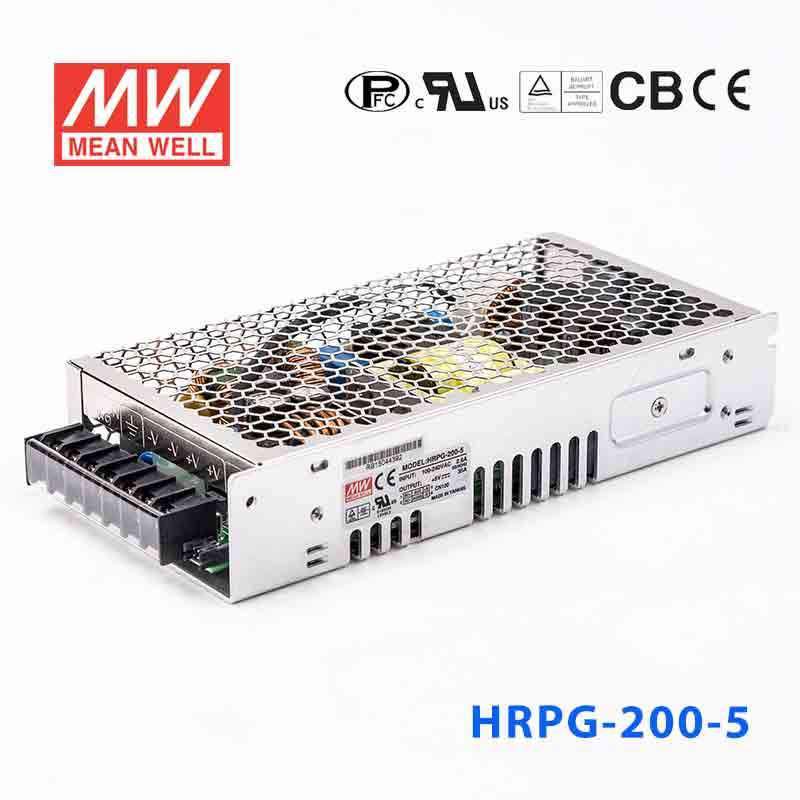

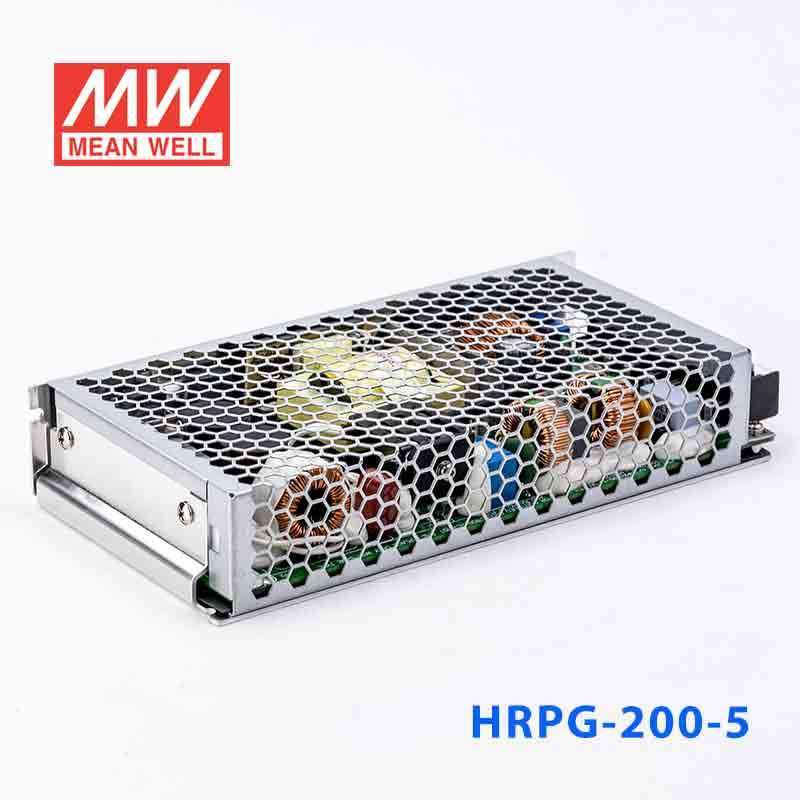

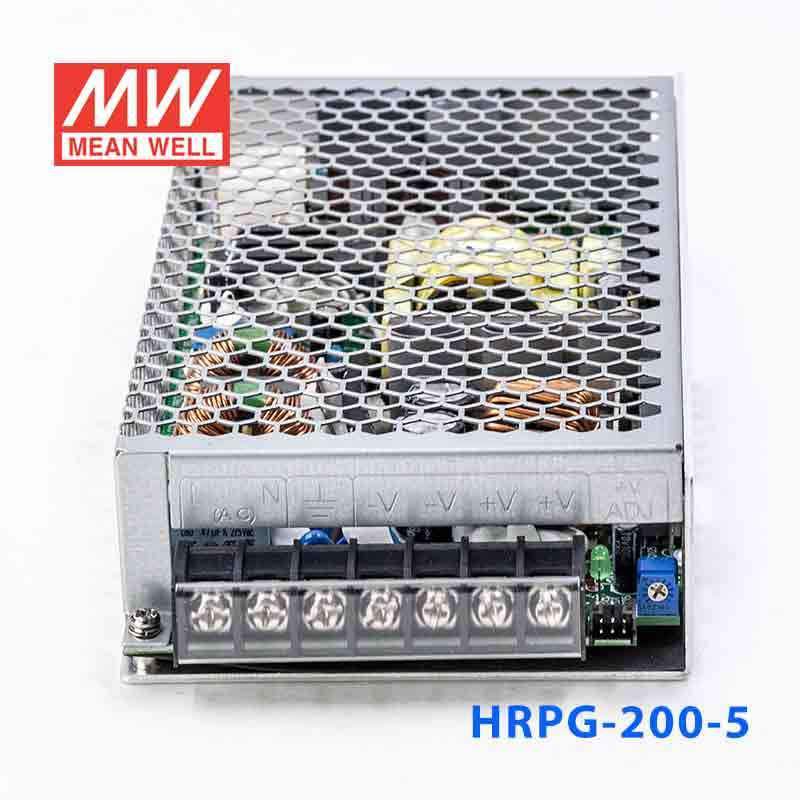

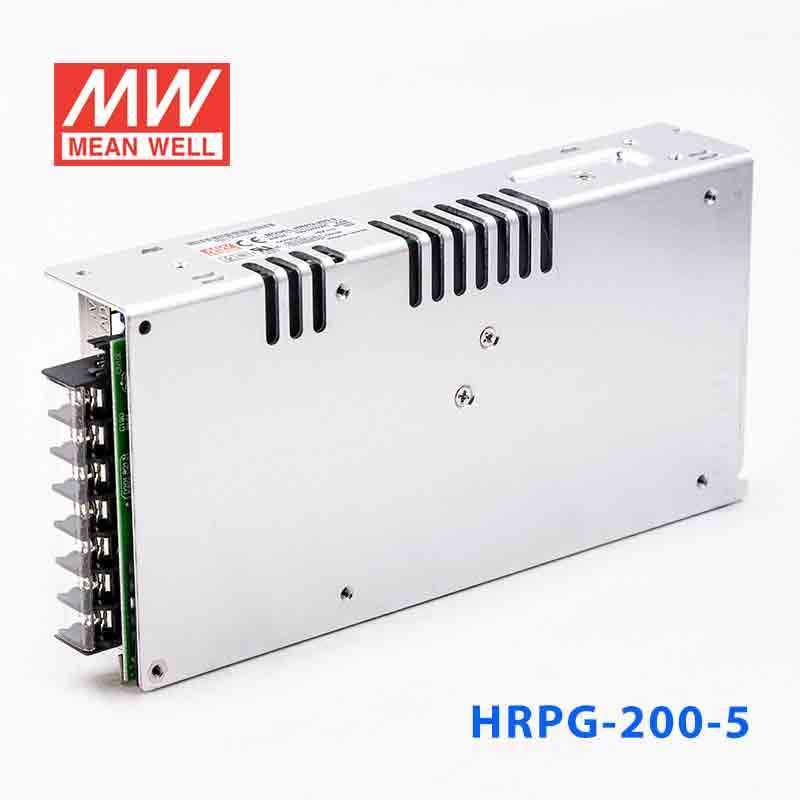

Mean Well HRPG-200-5 Power Supply 175W 5V 35A

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption <0.5W~0.75W1U low profile
SKU HRPG-200-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

HRPG-200-5 is the 5V output model of this series: rated current 35A, rated power 175W, typical efficiency 84%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.5W (Note.6)
  • 5 years warranty

Specifications

HRPG-200-5Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
35A
CURRENT RANGE
0 ~ 35A
RATED POWER
175W
RIPPLE & NOISE (max.)Note.2
90mVp-p
VOLTAGE ADJ. RANGE
4.3 ~ 5.8V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
84%
AC CURRENT (Typ.)
2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
6 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY
5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL
RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1612.1K hrs min. Telcordia SR-332 (Bellcore) ; 189.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.77Kg; 18pcs/14.9Kg/0.87CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. No load power consumption<0.5W when RC+ & RC- (CN100 pin1,2) 0 ~ 0.8V or short.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

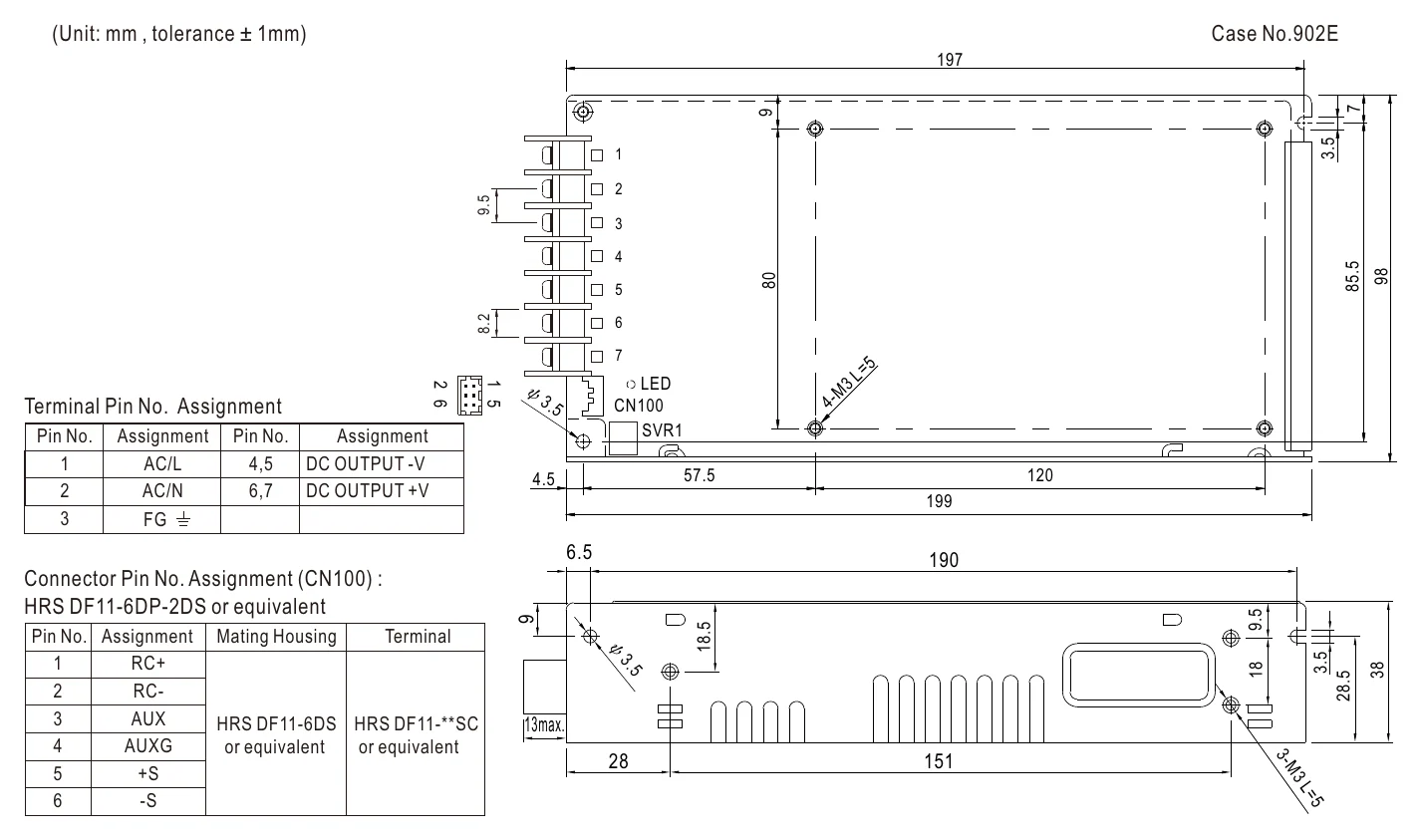

HRPG-200-5 Mechanical Specification
Mechanical Specification
HRPG-200-5 Block Diagram
Block Diagram

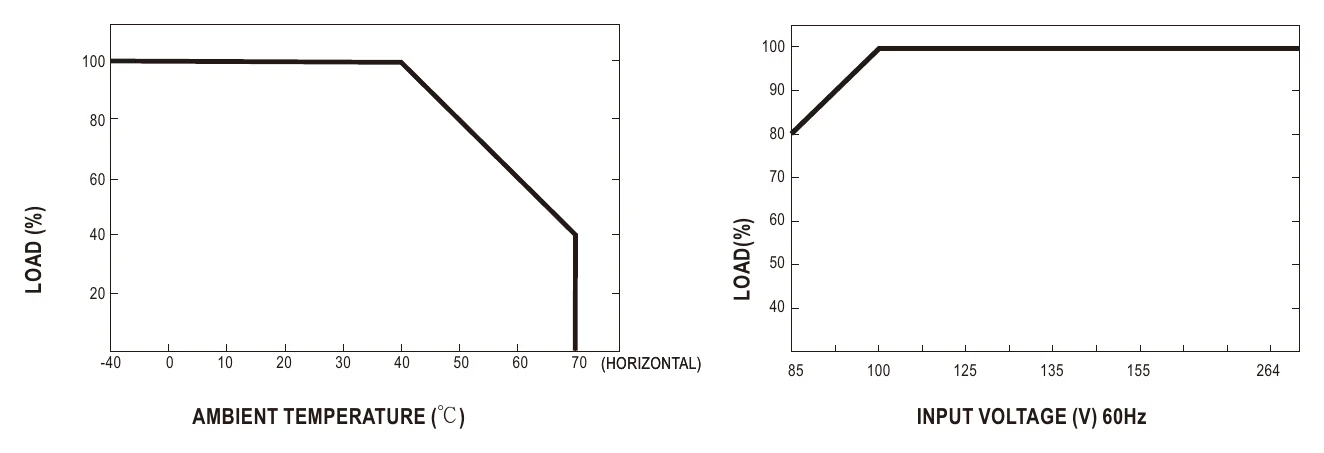

HRPG-200-5 Derating Curve
Derating Curve

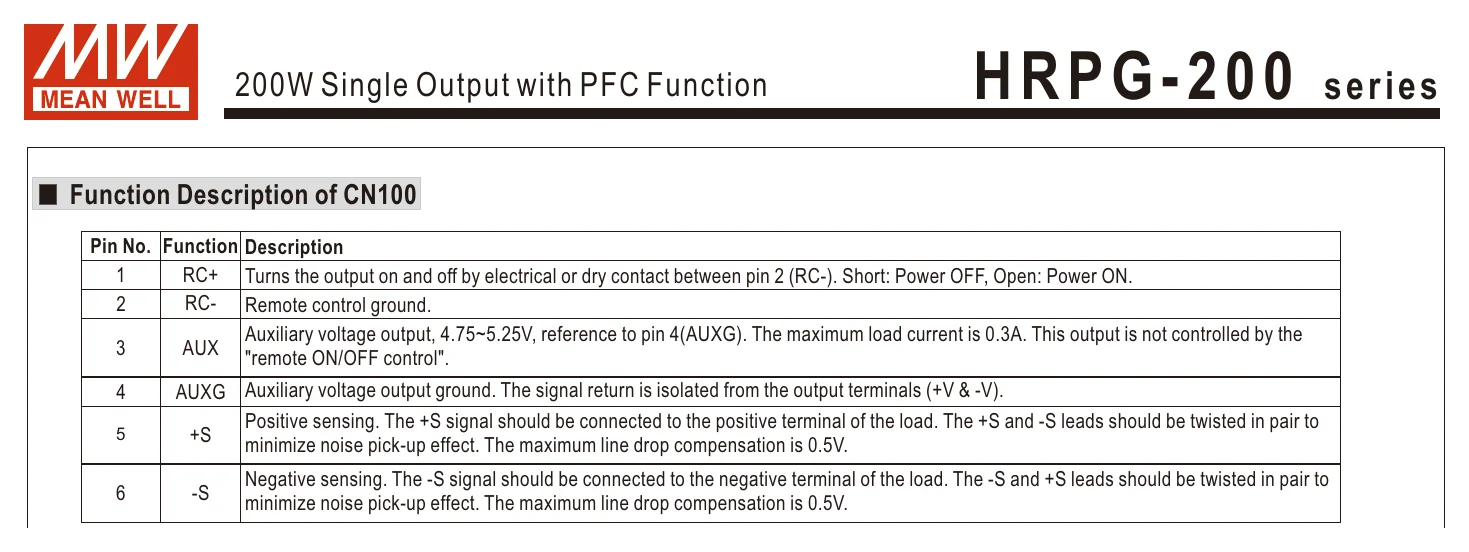

HRPG-200-5 H R P G - 2 0 0 series
H R P G - 2 0 0 series

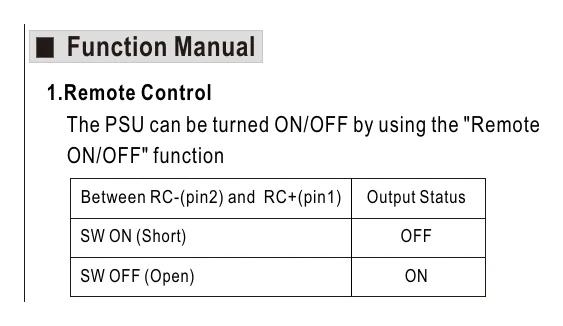

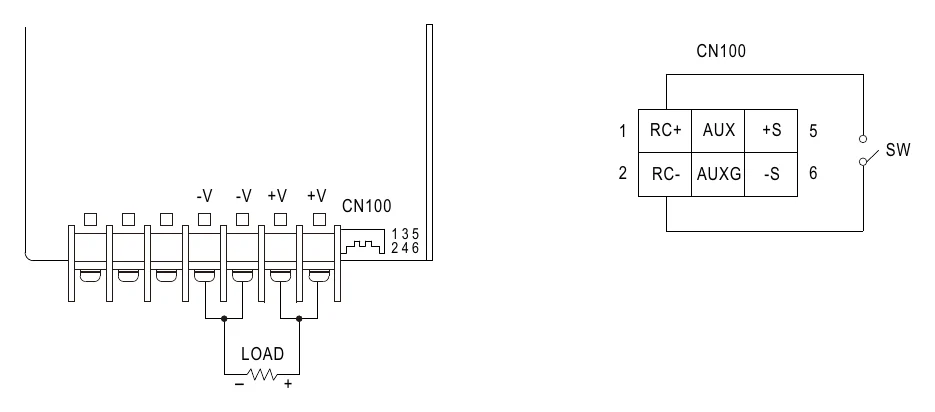

HRPG-200-5 Function Manual
Function Manual
HRPG-200-5 Function Manual (2)
Function Manual (2)

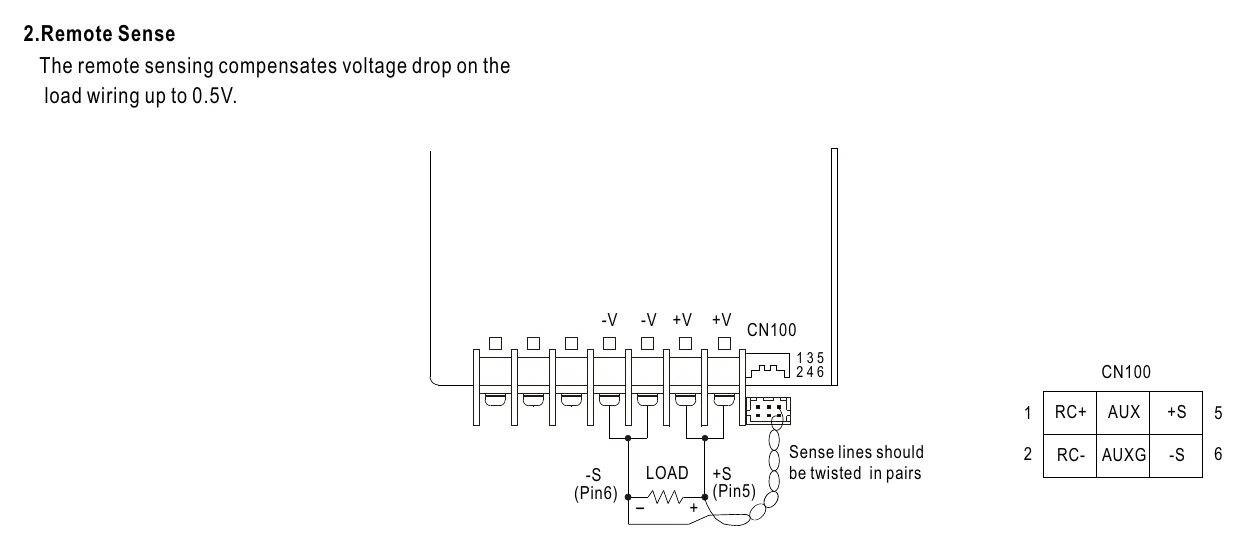

HRPG-200-5 2.Remote Sense
2.Remote Sense

Downloads

FAQ

Can I use the HRPG-200-5 for a 5V industrial controller or logic-heavy system?

Yes, this model supplies a constant 5V output with up to 35A available. Its total output is 175W, so it fits 5V DC industrial or embedded loads within that current and power range.

Is the HRPG-200-5 suitable for powering multiple 5V embedded boards from one supply?

It can be a good fit when the combined 5V load stays at or below 35A and 175W. That makes it suitable for centralized 5V DC distribution inside embedded or automation equipment.

Can this 5V power supply run high-current digital electronics in an equipment cabinet?

It is designed for constant voltage 5V output and provides substantially more current than low-power 5V supplies, at 35A. For cabinet-based digital or control electronics, the key requirement is keeping total demand within 175W.

Is the HRPG-200-5 appropriate for compact 1U chassis designs?

The sheet does not specify a 1U rating; the unit measures 199 x 98 x 38 mm (L x W x H). Check that the 38 mm height fits your chassis when a high-current 5V, 175W rail is required.

Can the HRPG-200-5 be used outdoors or in low and high ambient temperatures?

Its operating temperature range is -40C to +70C, with output derating at higher ambient temperatures per the derating curve. An IP rating is not listed in the provided data, so outdoor suitability is not verified by these specs alone.
