Mean Well

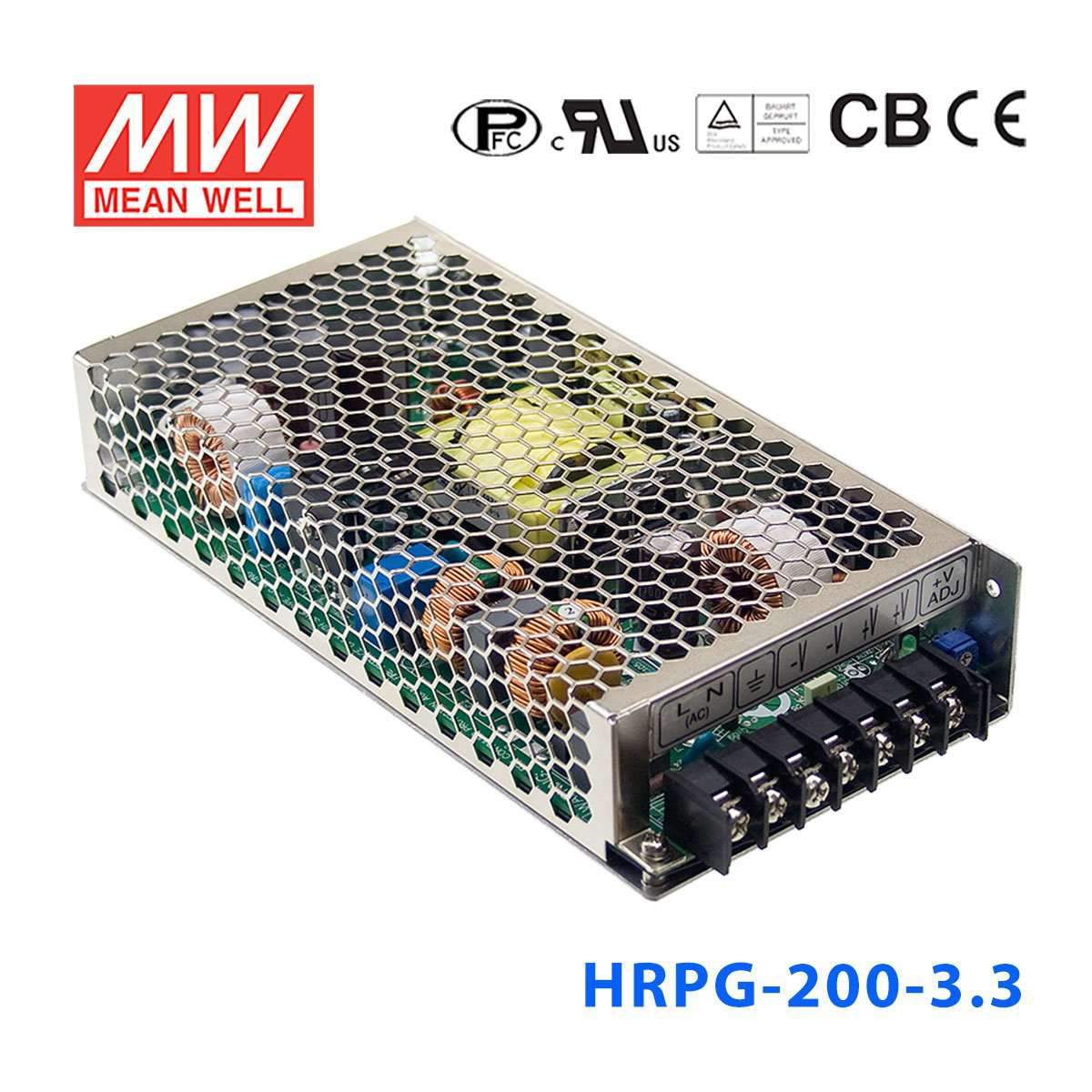

Mean Well HRPG-200-3.3 Power Supply 132W 3.3V 40A

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption <0.5W~0.75W1U low profile
SKU HRPG-200-3.3
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

HRPG-200-3.3 is the 3.3V output model of this series: rated current 40A, rated power 132W, typical efficiency 80%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.5W (Note.6)
  • 5 years warranty

Specifications

HRPG-200-3.3Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
3.3V
RATED CURRENT
40A
CURRENT RANGE
0 ~ 40A
RATED POWER
132W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
2.8 ~ 3.8V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
80%
AC CURRENT (Typ.)
2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
3.96 ~ 4.62V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY
5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL
RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1612.1K hrs min. Telcordia SR-332 (Bellcore) ; 189.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.77Kg; 18pcs/14.9Kg/0.87CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. No load power consumption<0.5W when RC+ & RC- (CN100 pin1,2) 0 ~ 0.8V or short.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRPG-200-3.3 Mechanical Specification
Mechanical Specification
HRPG-200-3.3 Block Diagram
Block Diagram
HRPG-200-3.3 Derating Curve
Derating Curve
HRPG-200-3.3 H R P G - 2 0 0 series
H R P G - 2 0 0 series
HRPG-200-3.3 Function Manual
Function Manual
HRPG-200-3.3 Function Manual (2)
Function Manual (2)
HRPG-200-3.3 2.Remote Sense
2.Remote Sense

Downloads

FAQ

Can I use the HRPG-200-3.3 for 3.3V embedded boards or digital logic systems?

Yes, it is a constant voltage 3.3V power supply rated for up to 40A and 132W. That makes it suitable for 3.3V embedded electronics, digital logic platforms, or industrial controller boards that need a high-current 3.3V rail.

Is the HRPG-200-3.3 suitable for FPGA, processor, or communications hardware that runs on 3.3V?

It can be a fit when the equipment specifically requires a regulated 3.3V DC input and the total load stays within 40A and 132W. The constant voltage output is intended for electronics that expect a fixed 3.3V supply rather than a higher-voltage bus.

Can this 3.3V model support high-current industrial electronics in a compact enclosure?

Yes, its 40A output capacity is useful for higher-current 3.3V systems, and the housing measures 199 x 98 x 38 mm (L x W x H). That combination fits compact industrial or embedded assemblies that still need substantial current at 3.3V.

Is the HRPG-200-3.3 suitable for outdoor use or wide-temperature industrial environments?

Its operating temperature range is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve. No IP rating is listed in the provided specifications, so direct outdoor exposure should not be assumed without additional protection.
