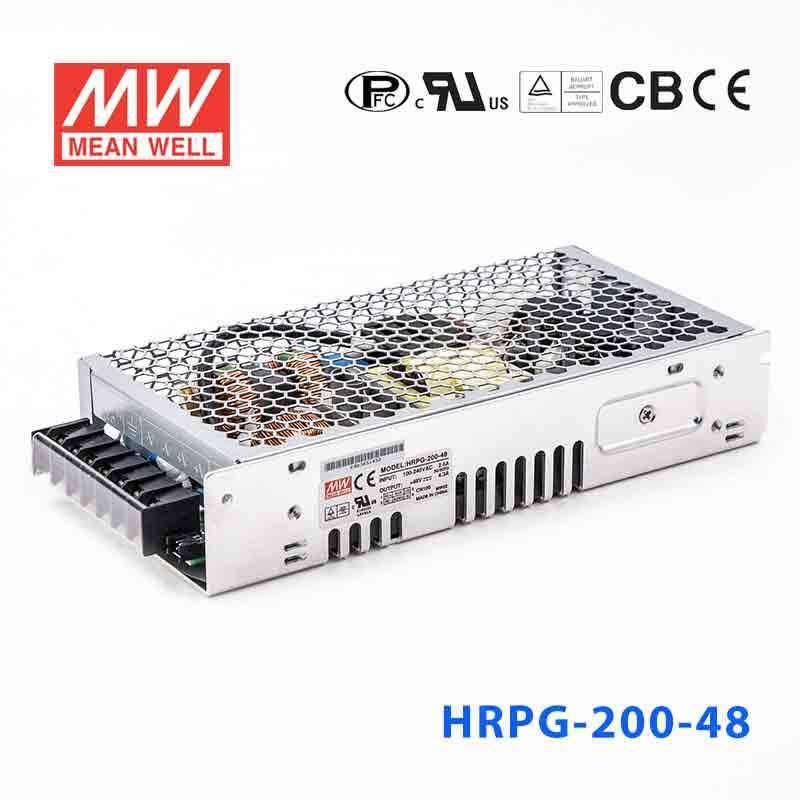

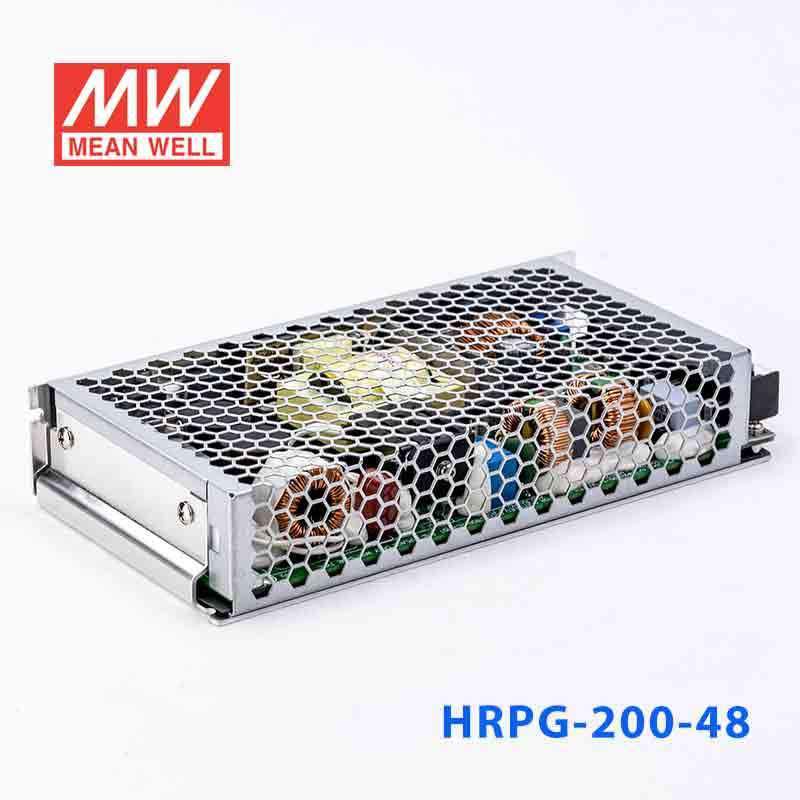

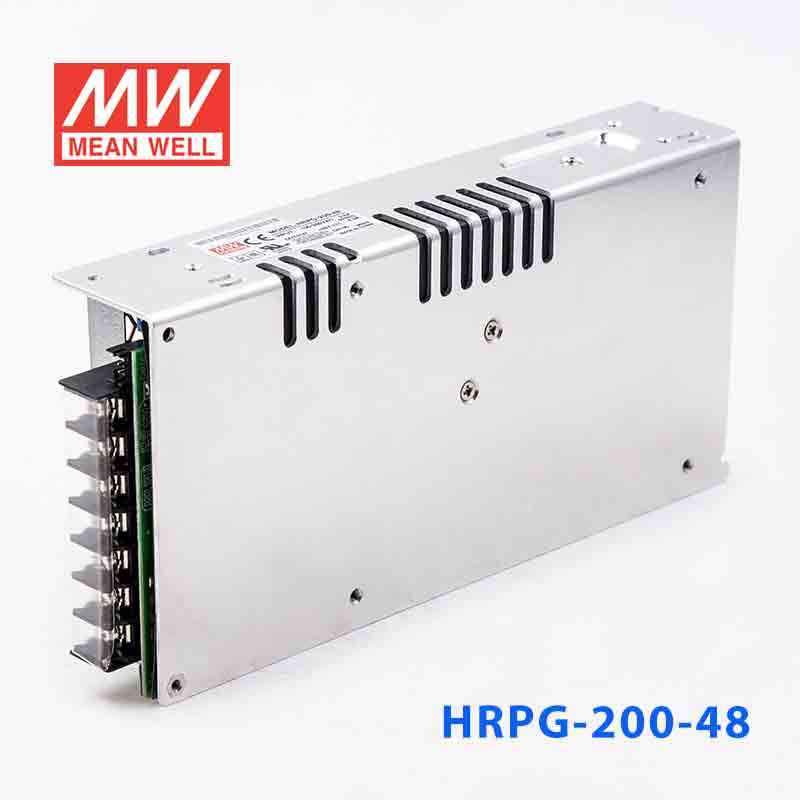

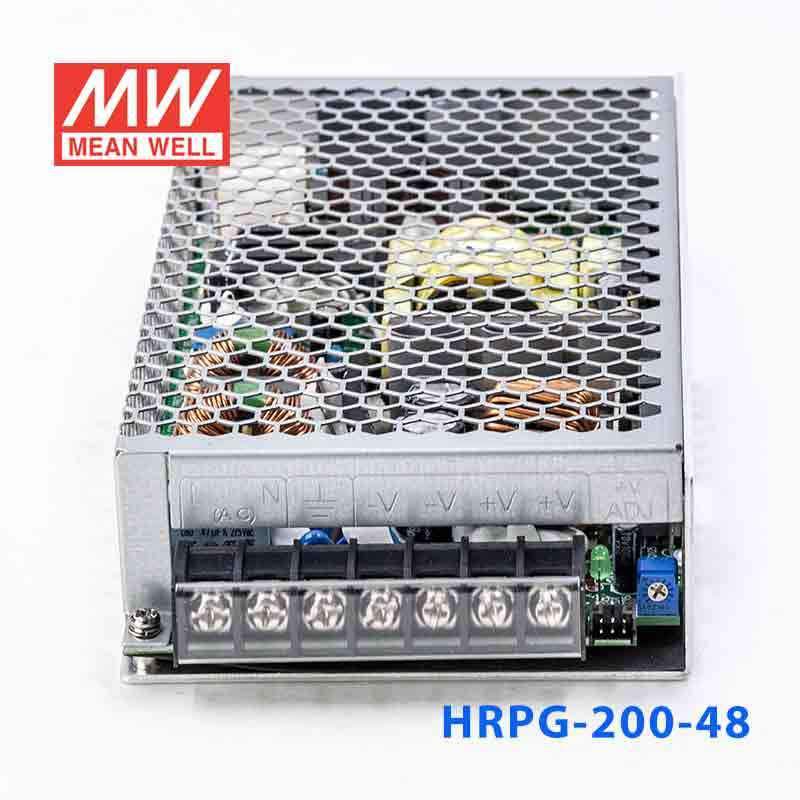

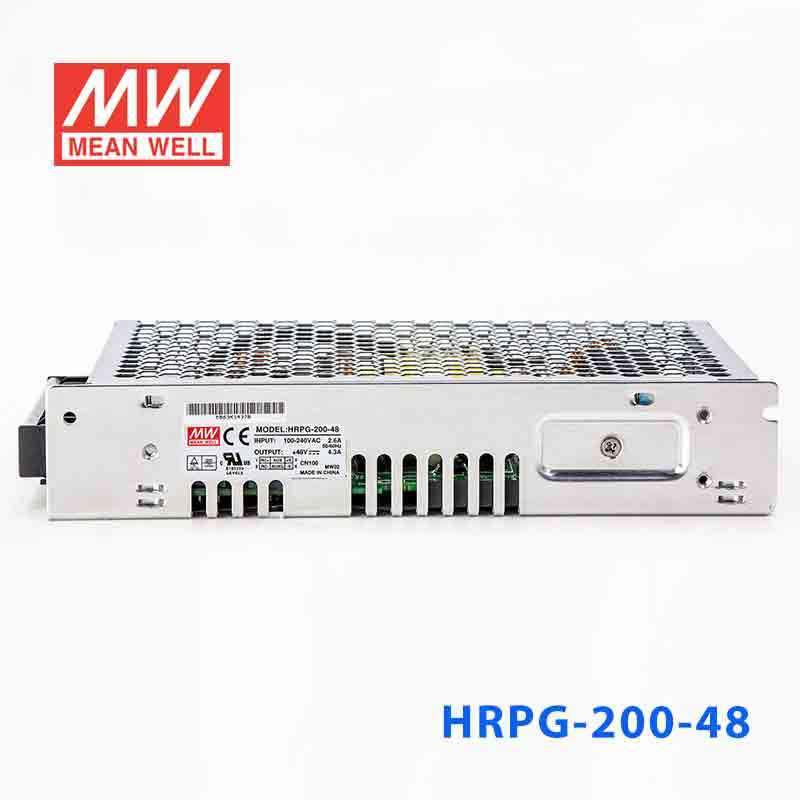

Mean Well HRPG-200-48 Power Supply 206.4W 48V

built-in active PFC, PF > 0.95, high efficiency up to 90%, no load power consumption

SKU:

HRPG-200-48

Please for Pricing

Notify me when it's back in stock

Description

The HRPG-200 is a 200W Mean Well power converter (input range: 120~370VDC).

Key Features

✓ Input voltage range: 120~370VDC
✓ Cooling by free air convection
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Remote ON/OFF control
✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

HRPG Series
Power Rating

206.4 Watt
Output Voltage

48 Volt
Rated Current

4.3 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

19.9 cm
Width

9.8 cm
Height

3.8 cm
Weight

0.77 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HRPG-200-48 for a 48V industrial controller or automation node?

Yes, it provides a constant voltage 48V output rated for 4.3A and 206.4W. It fits 48V DC industrial or automation equipment that stays within those limits.

Is this power supply appropriate for embedded systems built around 48V DC?

It is suitable for embedded or control hardware that requires a regulated 48V constant voltage source. The supply can deliver up to 4.3A, with total output power of 206.4W.

Can the HRPG-200-48 power a compact 48V telecom or network-related DC load?

It can support 48V DC equipment if the load remains within 4.3A and 206.4W. The wide 85-264VAC input also helps when the AC source varies across different facilities.

Is the HRPG-200-48 suited to low-profile equipment bays?

Yes, it is specified as a 1U low profile unit and measures 199.0 x 98.0 x 38.0 mm. That makes it practical where a 48V supply is needed in a height-constrained enclosure.

Can this model be used in outdoor or temperature-extreme environments?

The operating temperature range is -40C to +70C, which supports use across a wide temperature span. No IP rating is provided in the listed specs, so outdoor exposure resistance is not established here.

What are the differences between the HRPG 48V models in this series?

The listed 48V siblings are HRPG-150-48 at 158.4W and 3.3A, HRPG-200-48 at 206.4W and 4.3A, HRPG-300-48 at 336W and 7A, HRPG-450-48 at 456W and 9.5A, HRPG-600-48 at 624W and 13A, and HRPG-1000-48 at 1008W and 21A. This model is the second step in that 48V power range.

Model	Power	Voltage	Current
Mean Well HRPG-200-7.5 Power Supply 200.3W 7.5V	200.3W	7.5V	26.7A	View
Mean Well HRPG-200-5 Power Supply 175W 5V	175W	5V	35A	View
Mean Well HRPG-200-36 Power Supply 205.2W 36V	205.2W	36V	5.7A	View
Mean Well HRPG-200-3.3 Power Supply 132W 3.3V	132W	3.3V	40A	View
Mean Well HRPG-200-24 Power Supply 201.6W 24V	201.6W	24V	8.4A	View
Mean Well HRPG-200-15 Power Supply 201W 15V	201W	15V	13.4A	View
Mean Well HRPG-200-12 Power Supply 200.4W 12V	200.4W	12V	16.7A	View
