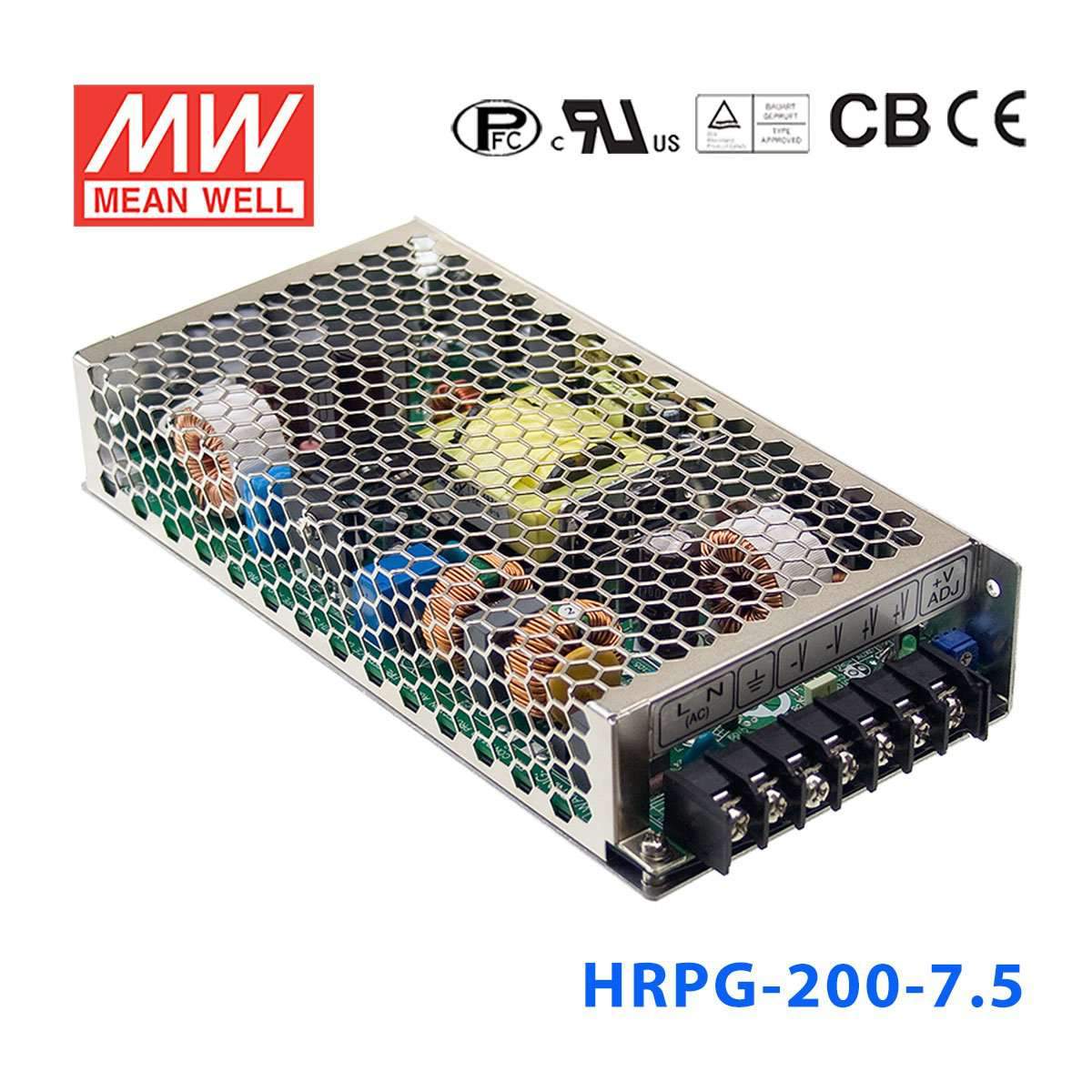

Mean Well HRPG-200-7.5 Power Supply 200.3W 7.5V
Please Login for Pricing
Description
Description
The HRPG-200 is a 200W Mean Well power converter (input range: 120~370VDC).
Key Features
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating200.3 Watt
-
Output Voltage7.5 Volt
-
Rated Current26.7 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length19.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.77 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HRPG-200-7.5 for a 7.5V industrial or embedded DC load?
Yes, it provides a constant voltage 7.5V output rated for 26.7A. Total available power is 200.3W, so the connected 7.5V load must stay within those limits.
Is the HRPG-200-7.5 suitable for control electronics that need more current than a small 7.5V supply can provide?
This model is designed for higher-current 7.5V applications, with up to 26.7A available. It works for centralized 7.5V DC power in industrial or embedded equipment up to 200.3W.
Can this supply support a 7.5V automation subsystem inside a machine cabinet?
It can, provided the subsystem needs a constant 7.5V output and does not exceed 26.7A or 200.3W. The wide 85-264VAC input also supports use across different AC input conditions.
Is the HRPG-200-7.5 a fit for low-profile equipment layouts?
Yes, the supply is specified as 1U low profile and measures 199.0 x 98.0 x 38.0 mm. That helps in equipment where height is restricted but a 7.5V, 200.3W source is needed.
Can I use this 7.5V power supply outdoors or in wide ambient temperature ranges?
The operating temperature rating is -40C to +70C, so it is specified for a broad temperature range. No IP rating is listed in the provided specifications, so outdoor exposure suitability is not confirmed here.
What are the main differences between the HRPG 7.5V models?
The listed 7.5V versions are HRPG-150-7.5 at 150W and 20A, HRPG-200-7.5 at 200.3W and 26.7A, HRPG-300-7.5 at 300W and 40A, HRPG-450-7.5 at 450W and 60A, and HRPG-600-7.5 at 600W and 80A. This model is the mid-lower option in that 7.5V family.
Other HRPG-200 Models
7 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well HRPG-200-5 Power Supply 175W 5V | 175W | 5V | 35A | View |
| Mean Well HRPG-200-48 Power Supply 206.4W 48V | 206.4W | 48V | 4.3A | View |
| Mean Well HRPG-200-36 Power Supply 205.2W 36V | 205.2W | 36V | 5.7A | View |
| Mean Well HRPG-200-3.3 Power Supply 132W 3.3V | 132W | 3.3V | 40A | View |
| Mean Well HRPG-200-24 Power Supply 201.6W 24V | 201.6W | 24V | 8.4A | View |
| Mean Well HRPG-200-15 Power Supply 201W 15V | 201W | 15V | 13.4A | View |
| Mean Well HRPG-200-12 Power Supply 200.4W 12V | 200.4W | 12V | 16.7A | View |
