Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight LED Strip Pro Pure Flow

336LEDs/m12W/m24VIP54CRI>90cuttable length 41.7mm

SKU PF2216-12W2454GLE-WW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

PF2216-12W2454GLE-WW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

Dot-free linear and homogeneous lighting performance.
Very flexible top-bend style in ultra-thin appearance.
Multiple voltages, widths, LED densities and powers.
Infield cutting and assembly, simple mounted by 3M tape.
Quite short cutting unit with high density LED array.
More reliable and mature solution assure 50,000h lifespan and 5 years warranty, using LM80&TM-21 certified and mini. 2216 LED.
More perfect color consistency, uniform lighting area for the entire run length.
Much wider lighting area, no dark angle emitting part on both edges.
More flexible customized of parameters such as color, CCT, CRI, brightness, power etc.
Better structural and mechanical property against quality issues during usage and processing.
Higher production efficiency and quality rate adopting mature silicone extrusion processing technology. with high transmittance in 85-95%.
Ultra-long production and packing length up to 50M[164ft.] per spool.
Higher waterproof rating in IP54 for indoor application.
Higher price-performance ratio.

Specifications

Archilight LED Strip Pro Pure FlowSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU
PF2216-12W2454GLE-NW

General Specification

Dimension: L5000*W8*H3.5 mm [L197*W0.31*H 0.14in]
Max. Length (La): 5M [16.4ft.]
Increment (L1): 41.7mm [1.6in.]
LED Type: SMD 2216
LED QTY: 336LED/M [102LED/ft.]
IP Rating: IP54 [Damp]
Operating Ambient: Ta: -20~45℃
Lifespan: 50,000h (indoor) (L70B50@ Tc≤65℃)
Warranty: 5 years (indoor)

Photoelectric Specification

Power ±10%: 12W/M [3.7W/ft.]
Operating Voltage: 24VDC
Finished Product CCT/ Wavelength: 3000/4000/6500K
CRI90, 4000K Luminous Flux±10%: 1020lm/M [310lm/ft.]
CRI90, 4000K Light Efficiency: 85lm/W
Beam Angle: Vertical 120° / Horizontal 140°

Protection

Minimum bending diameter: 30mm[1.18in.]

Certifications & ratings

Certification marks: CB, SAA, UL, CE, RoHS

Test conditions and notes4

(1) Luminous flux for CCT 3000K is 5% lower, for CCT 6000K is the same, compared with 4000K.
(2) The Max. Length (La) is defined as power fed on one side.
(3) Applying with extra heat sink, it’s not necessary with self-cooling capacity for ≤15W/M[4.57W/ft.], it’s proposed for 15-20W/M[4.57-6.1W/ft.] and it’s mandatory for >20W/M[6.1W/ft.].
(4) 3M 300LSE adhesive tape attached on backside, is standard configuration.

Technical drawings

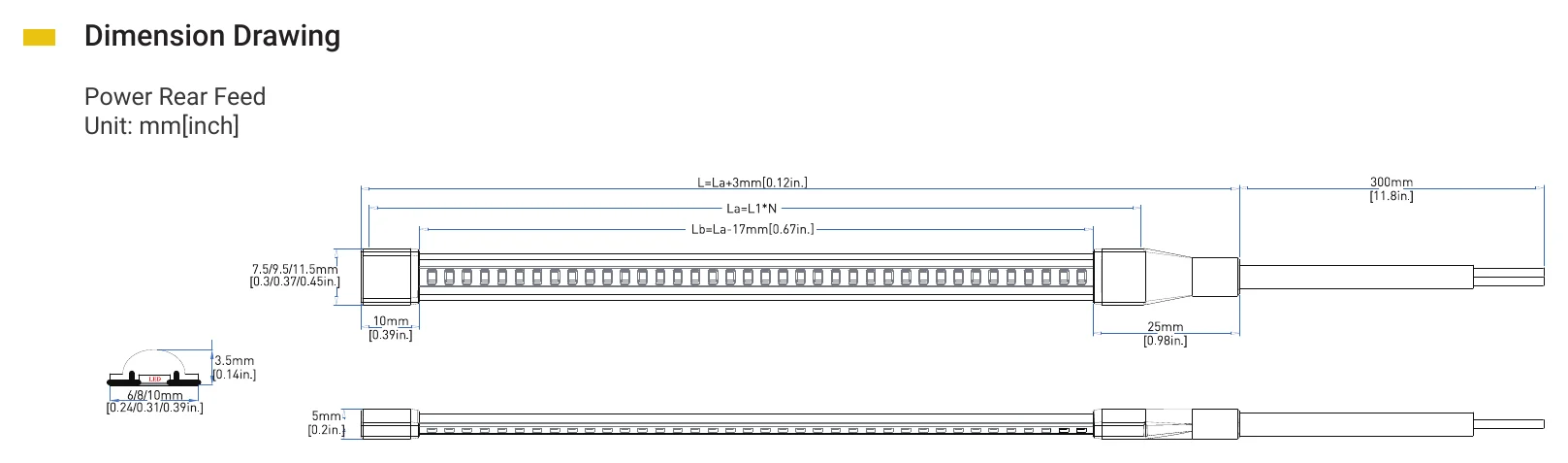

Archilight LED Strip Pro Pure Flow Dimension Drawing — Dimension Drawing

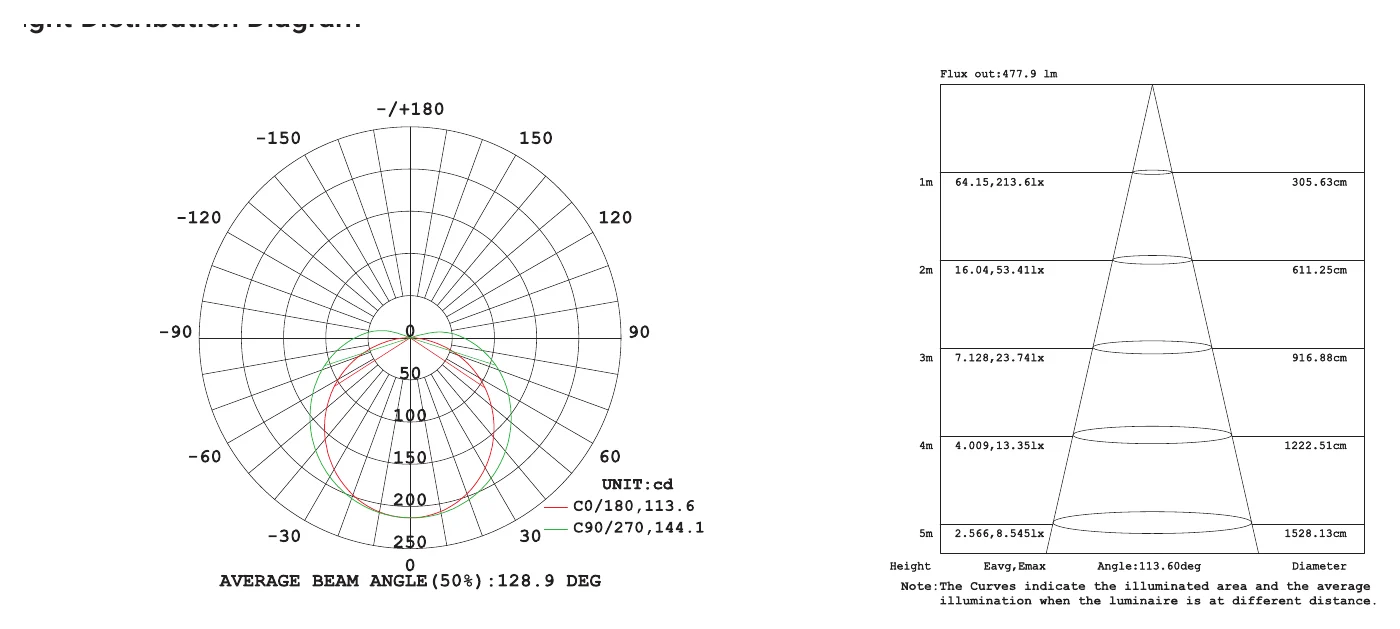

Archilight LED Strip Pro Pure Flow Illustration (page 3) — Illustration (page 3)

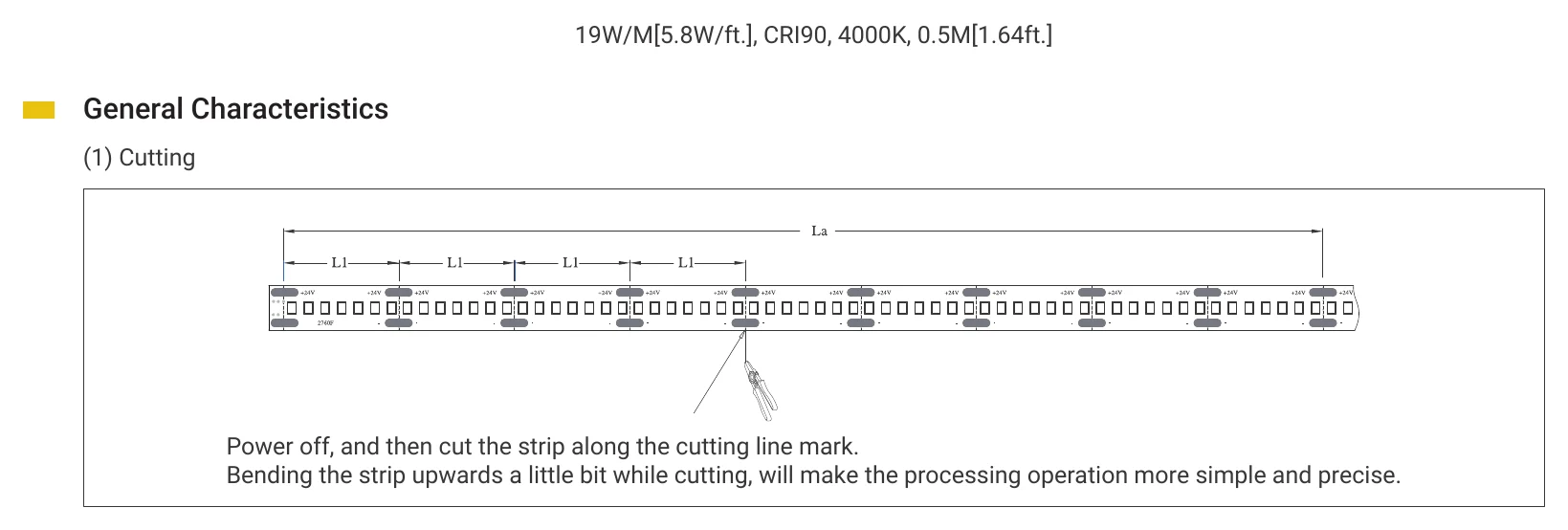

Archilight LED Strip Pro Pure Flow General Characteristics — General Characteristics

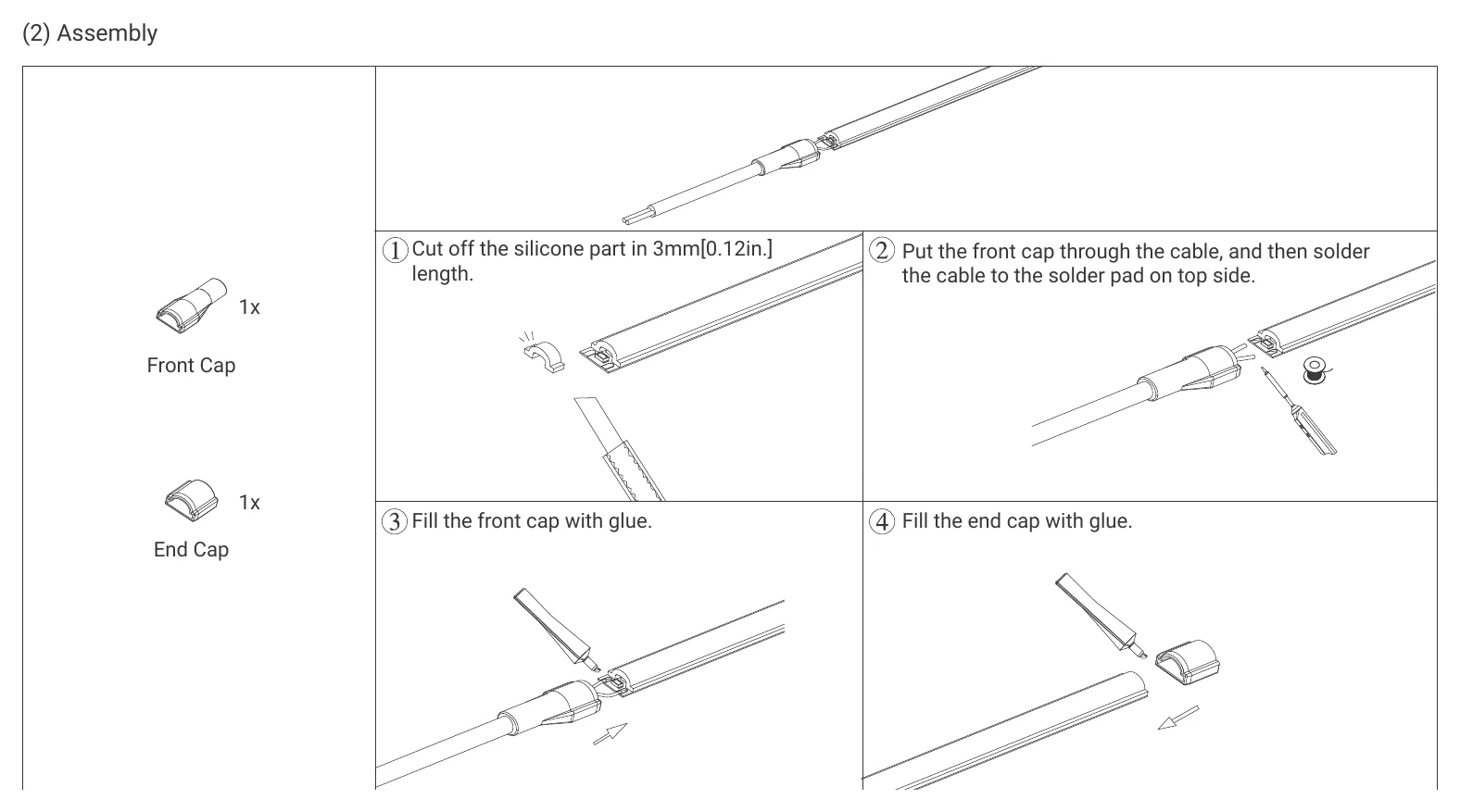

Archilight LED Strip Pro Pure Flow (2) Assembly — (2) Assembly

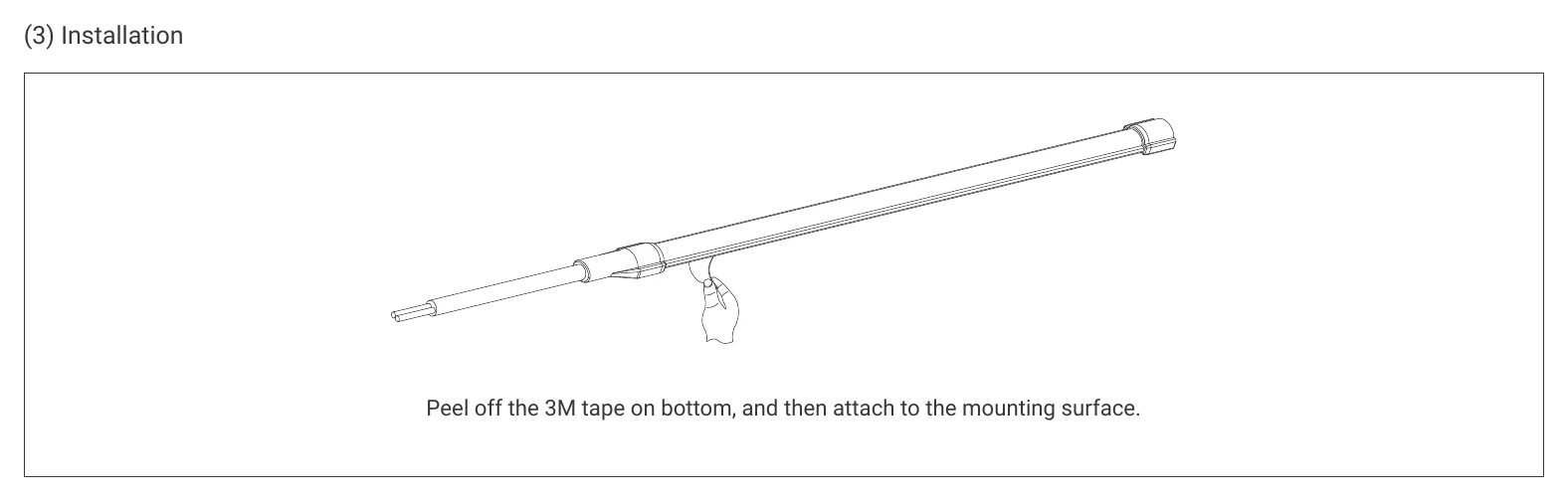

Archilight LED Strip Pro Pure Flow (3) Installation — (3) Installation

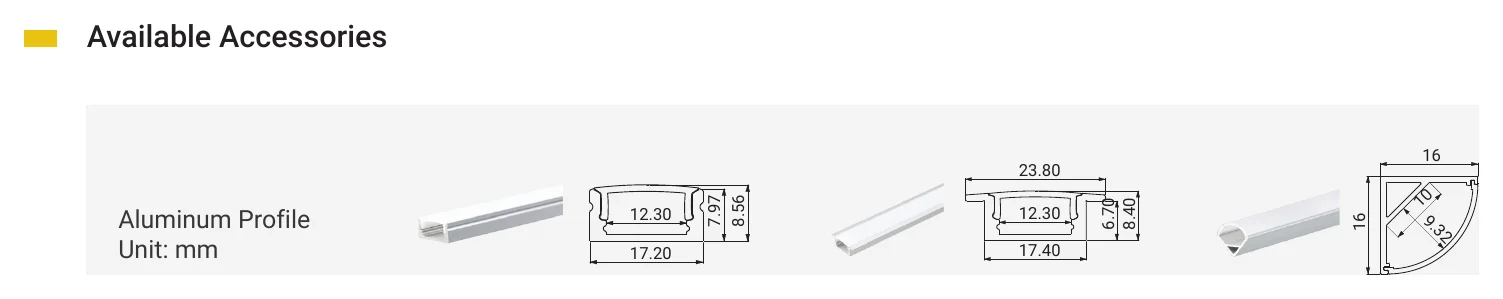

Archilight LED Strip Pro Pure Flow Available Accessories — Available Accessories

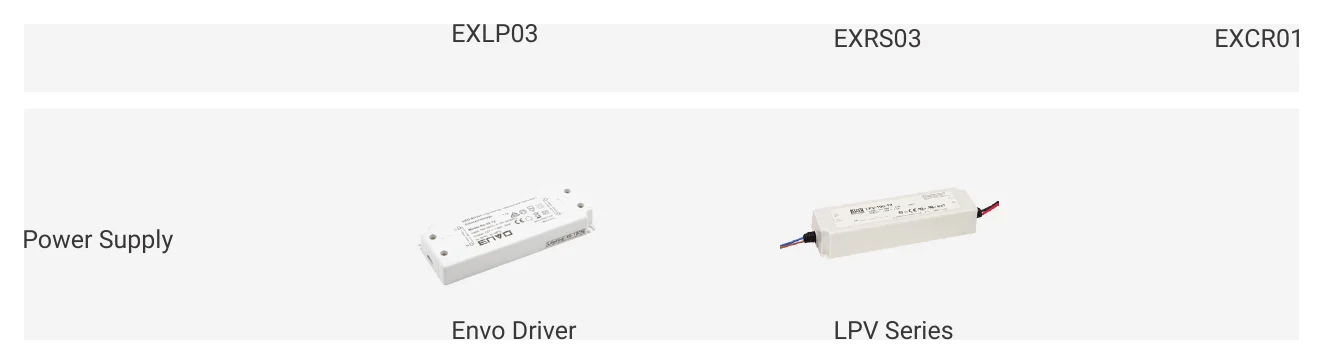

Archilight LED Strip Pro Pure Flow Available Accessories (2) — Available Accessories (2)

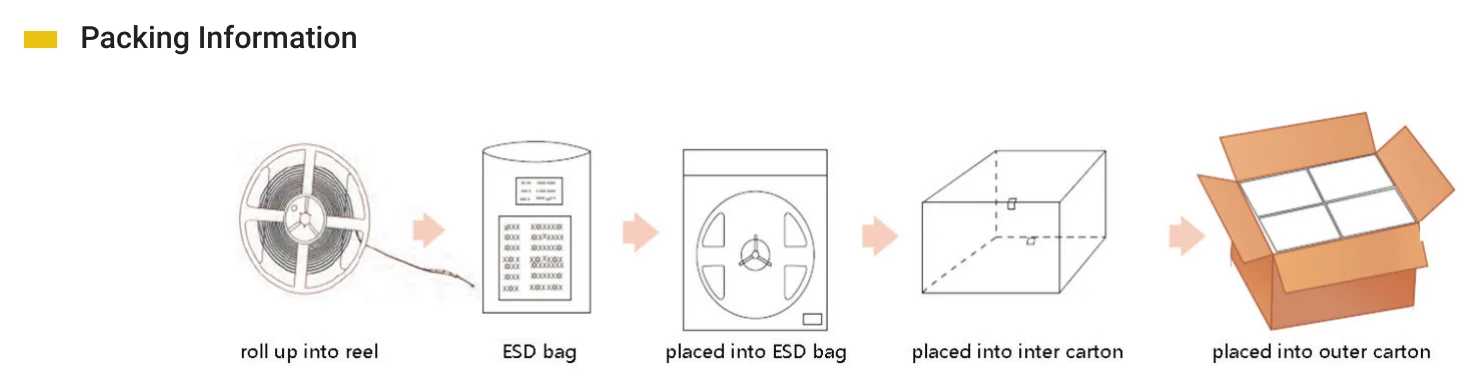

Archilight LED Strip Pro Pure Flow Packing Information — Packing Information

Typical applications

Excellent lighting solution for residential and retail market.

Downloads

Datasheet1

Archilight LED Strip Pro Pure Flow datasheetPF2216_12W2454GLE_V605.pdf PDF Download

Catalogues2

LED Strip Selection Guide PDF Download

Related Files- LED Comprison Form PDF Download

FAQ

What type of projects is this LED strip designed for?

This strip is suited to residential and commercial linear lighting where a clean, dot-free light line is important. Its ultra-thin 8 mm width and 3.5 mm height make it a good fit for applications that need a slim lighting profile. The IP54 rating also makes it suitable for environments that need added protection against dust and splashing water.

What are the main specifications of this Pure Flow LED strip?

This parent model is a 24V LED strip rated at 12W, supplied in a 5 m (16.4 ft) package, with pricing shown per metre. It uses a high-density 336 LED format for a dot-free effect and is described as CRI90 for strong color quality. The strip body measures 8 mm wide by 3.5 mm high.

What colour temperature options are available in this product family?

This family is available in 3000K warm white, 4000K neutral white, and 6500K cool white variants. That gives buyers a clear choice between warmer, more ambient light and cooler, more task-oriented light. The parent product page can represent all three options because they share the same core platform and electrical rating.

Does brightness vary between the available variants?

Yes. The 4000K and 6500K variants are listed at 1020 lm, while the 3000K variant is listed at 969 lm. This means the warm white version is slightly lower in output than the neutral and cool white options.

Is the driver included, and can this LED strip be dimmed?

The driver is not included with this product family. Dimming is listed as optional, so the strip supports dimmable use when paired with suitable compatible control gear. This makes it more flexible for projects that need adjustable light levels.

Is this LED strip suitable for exposed or demanding environments?

This strip is rated IP54, which means it has protection against dust ingress and splashing water. That makes it a better choice than a non-rated strip for areas where light environmental protection is needed. It is still important to match the product to the actual site conditions and project requirements.

What warranty is offered for this LED strip family?

The product family is listed with a 5-year warranty period. That warranty applies across the variants shown in this family data. It supports use in professional projects where warranty term is part of product selection.
