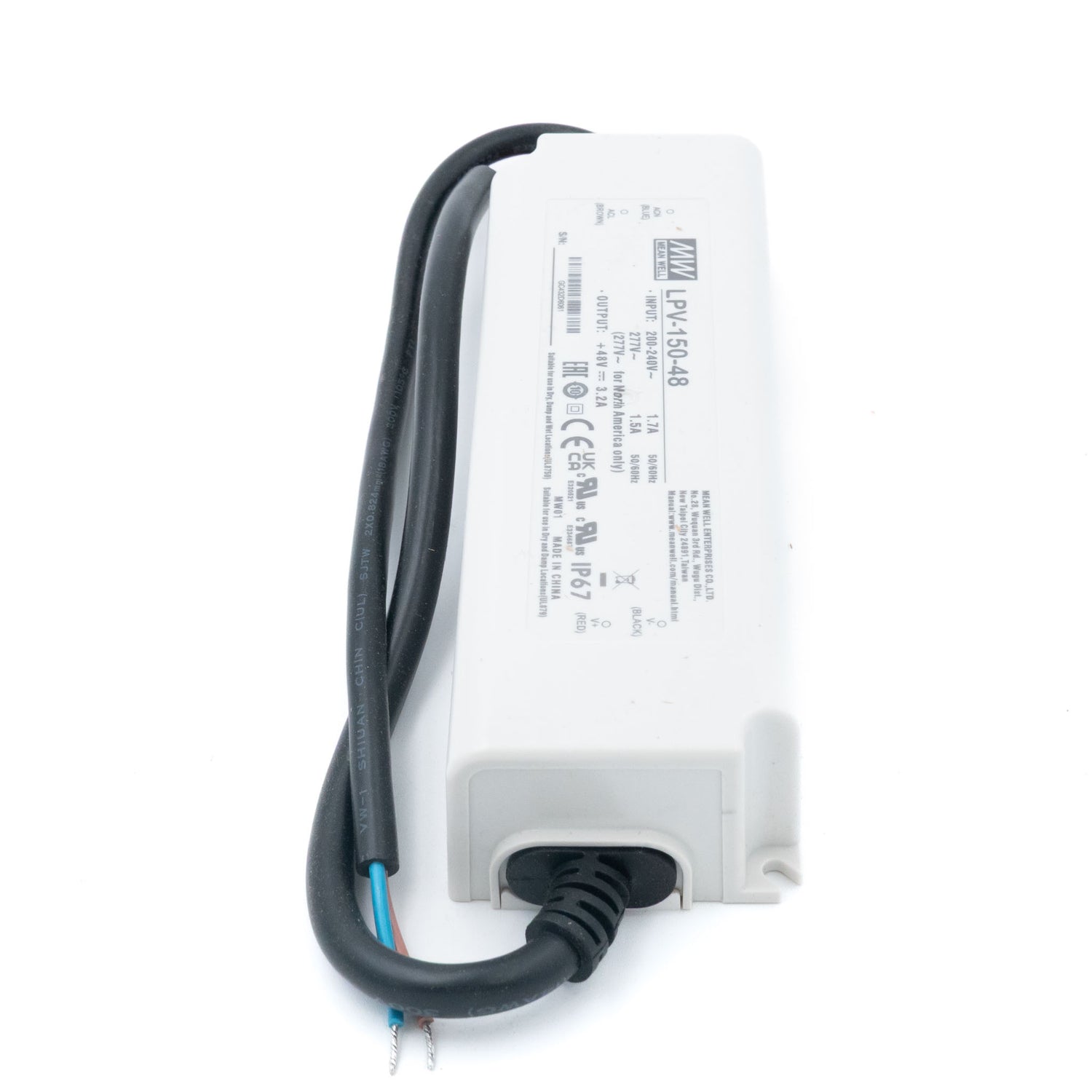

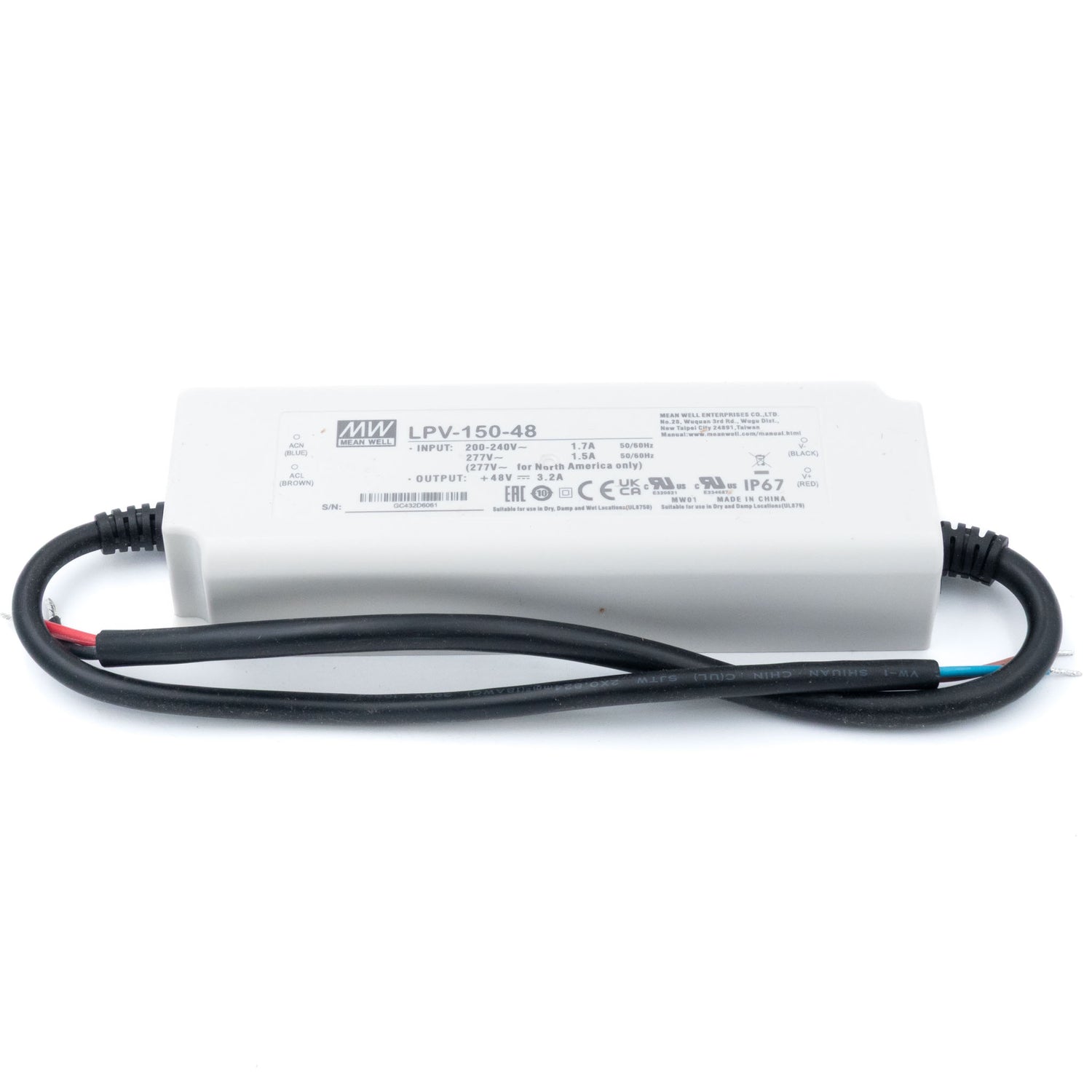

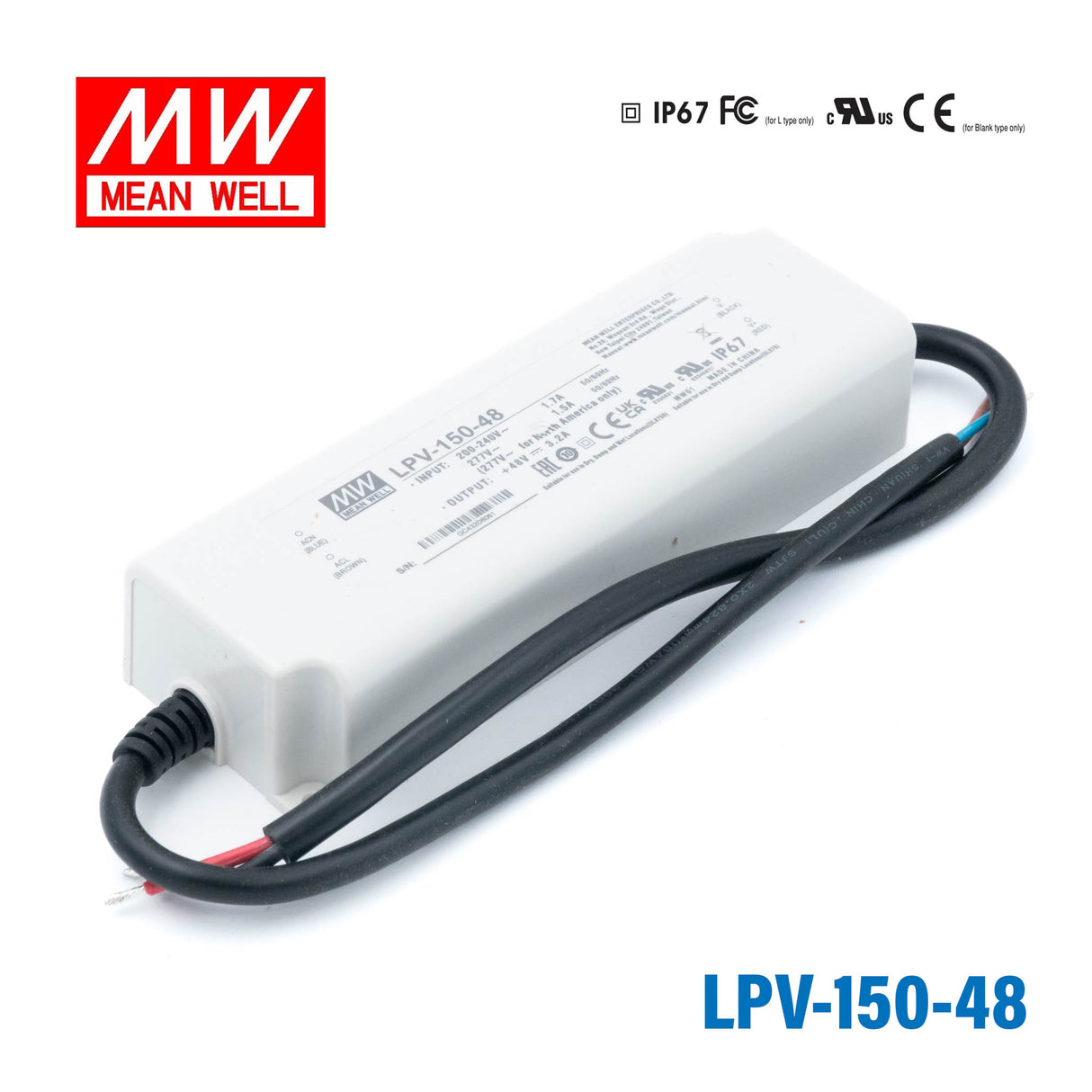

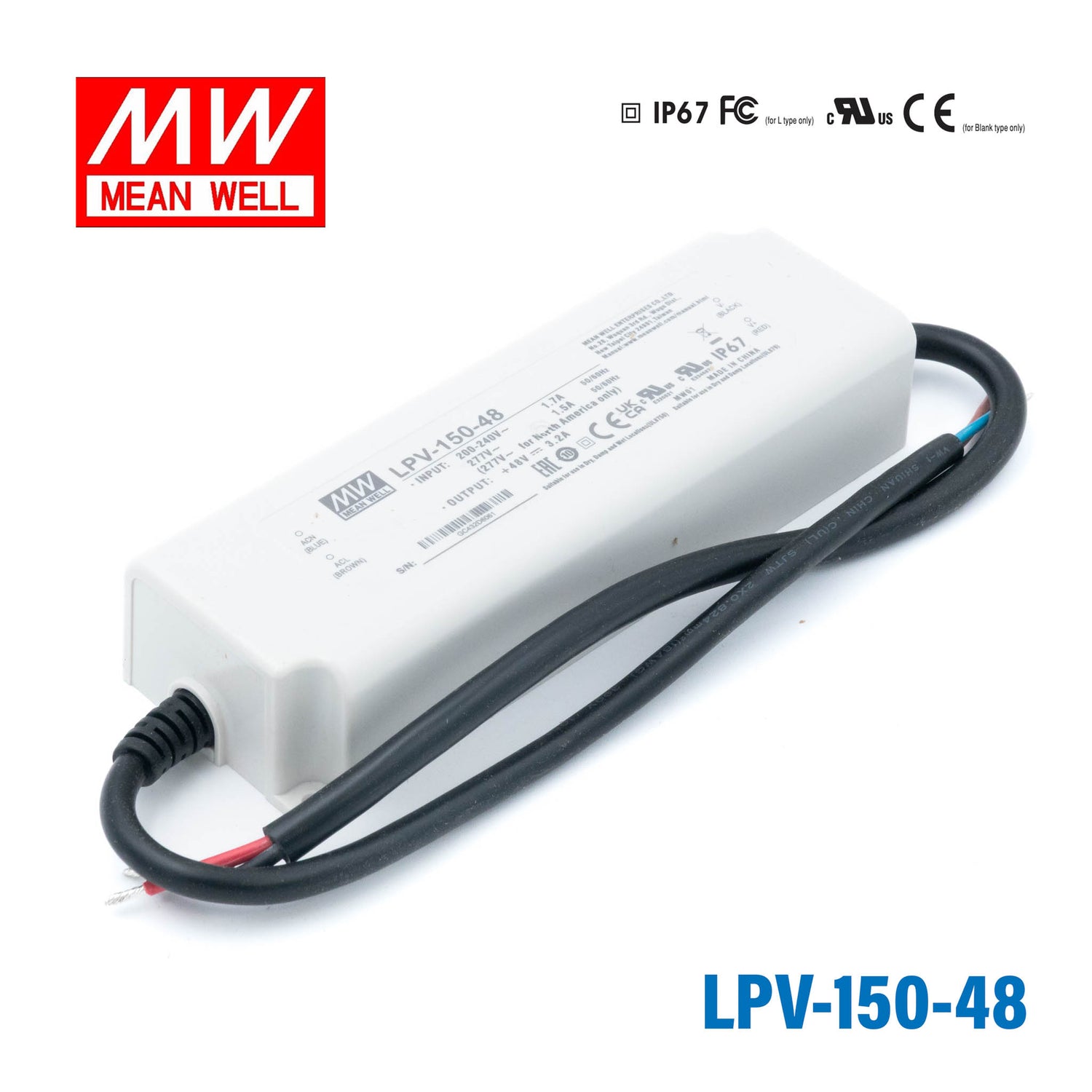

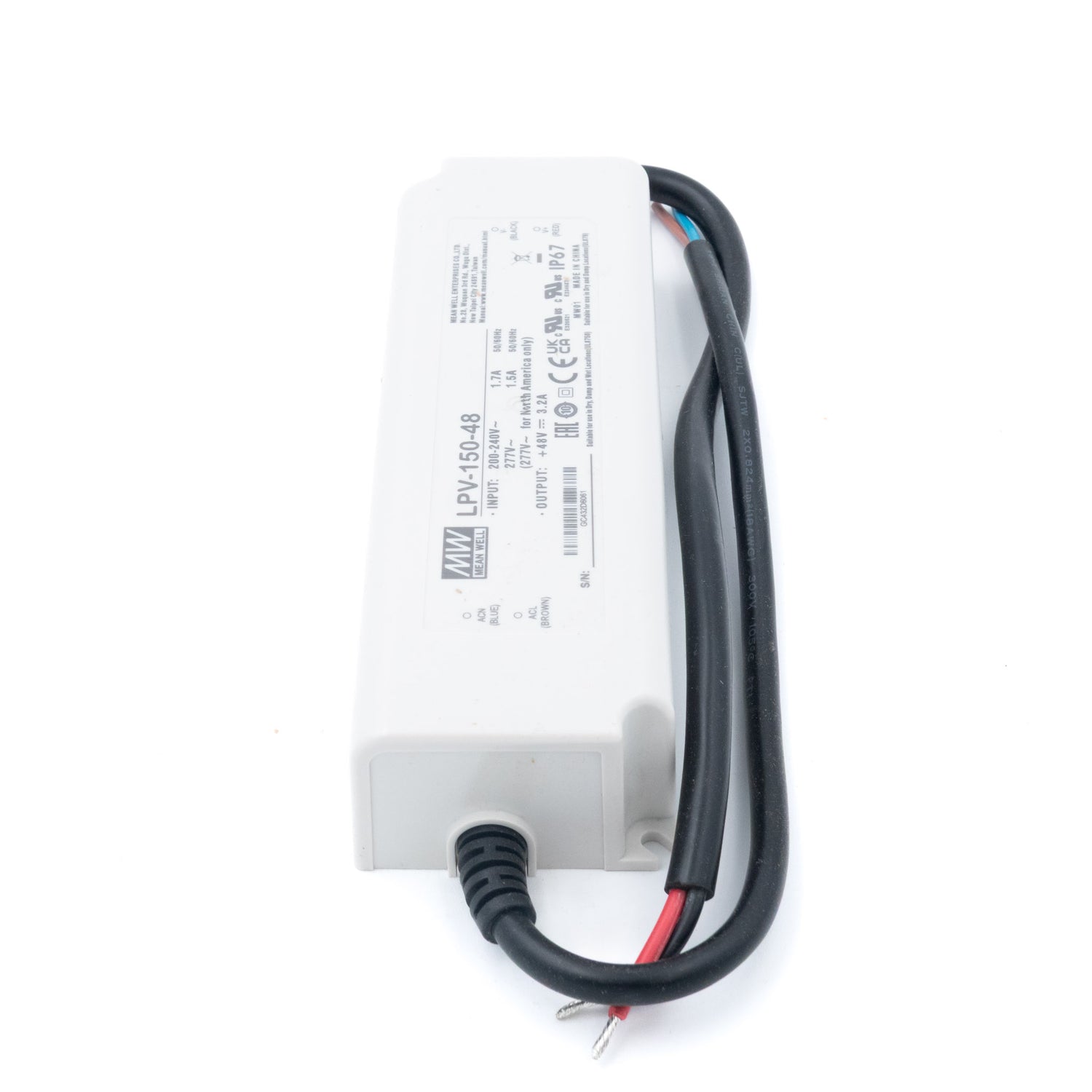

Mean Well LPV-150-48 LED Driver — 153.6W 48V 3.2A IP67 Waterproof

Constant VoltageCE/EAC/FCC/UL Certified180-305VAC Universal Input2-Year Warranty

SKU LPV-150-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

LPV-150-48

LPV-60-48 60W 48V Low stock

LPV-100-48 100W 48V In stock

LPV-150-48 150W 48V Low stock

Product variants

In stock

Overview

LPV-150-48 is the 48V output model of this series: rated current 3.2A, rated power 153.6W, typical efficiency 90%.

LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for LED related fixture or applianc e. As a class II power unit, these two series are housed with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit the use at dry, damp and wet locations. Both series are constant voltage mode design that various models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are provided for LPVL-150.

Features

Constant voltage design
90~132VAC input for LPVL-150 180~305VAC input for LPV-150
Fully encapsulated with IP67 level (Note.7)
ClassⅡpower unit, no FG
Protections: Short circuit/Overload/Over voltage/ Over temperature
Fully isolated plastic case
Fanless design, cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Listed in UL Sign Component Manual (SAM)
Type "HL" for use in class I, Division 2 hazardous (Classified) location luminaires for LPVL-150
2 years warranty

Specifications

LPV-150-48Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 3.2A
CURRENT RANGE: 0 ~ 3.2A
RATED POWER: 153.6W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC
HOLD UP TIME (Typ.): LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT: LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC
INRUSH CURRENT (Typ.) Blank type: COLD START 60A(twidth=900μs measured at 50% Ipeak) at 230VAC
INRUSH CURRENT (Typ.) L type: COLD START 75A(twidth=900μs measured at 50% Ipeak) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER Blank type: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER L type: 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC
LEAKAGE CURRENT: LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 52 ~ 63V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS Blank type: UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved
SAFETY STANDARDS L type: UL8750(type"HL"),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Blank type: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
EMC EMISSION L type: Compliance to FCC part 15
EMC IMMUNITY Blank type: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
EMC IMMUNITY L type: Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level

OTHERS

MTBF: 3361.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: LPV-150: 0.79Kg;20pcs/17Kg/0.98CUFT; LPVL-150: 0.79Kg;20pcs/17Kg/0.98CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC(115VAC for LPVL) input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Suitable for indoor use or outdoor use without direct sunlight exposure.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

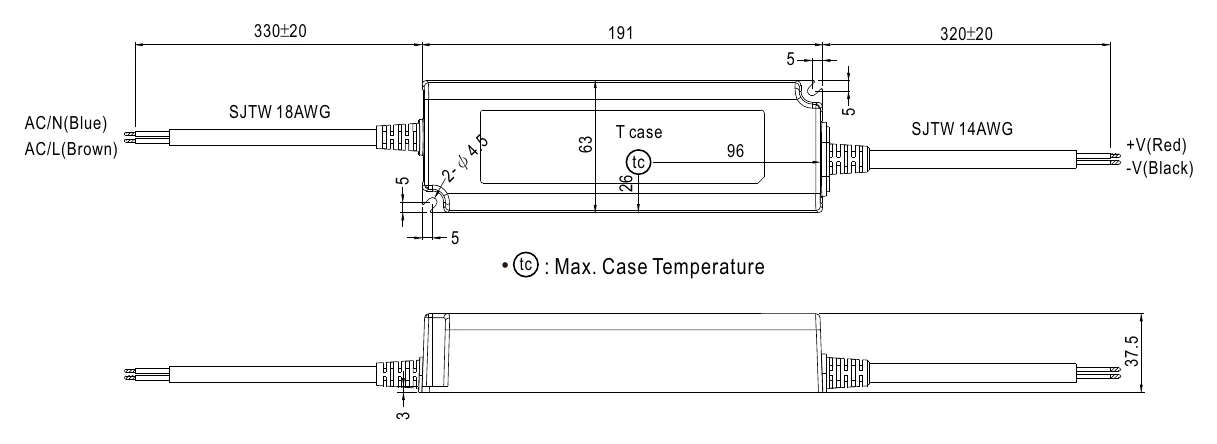

LPV-150-48 Mechanical Specification — Mechanical Specification

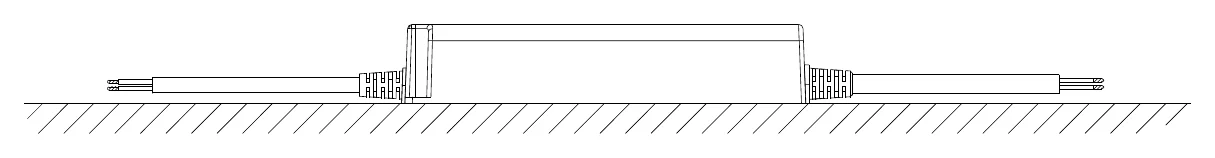

LPV-150-48 Recommend Mounting Direction — Recommend Mounting Direction

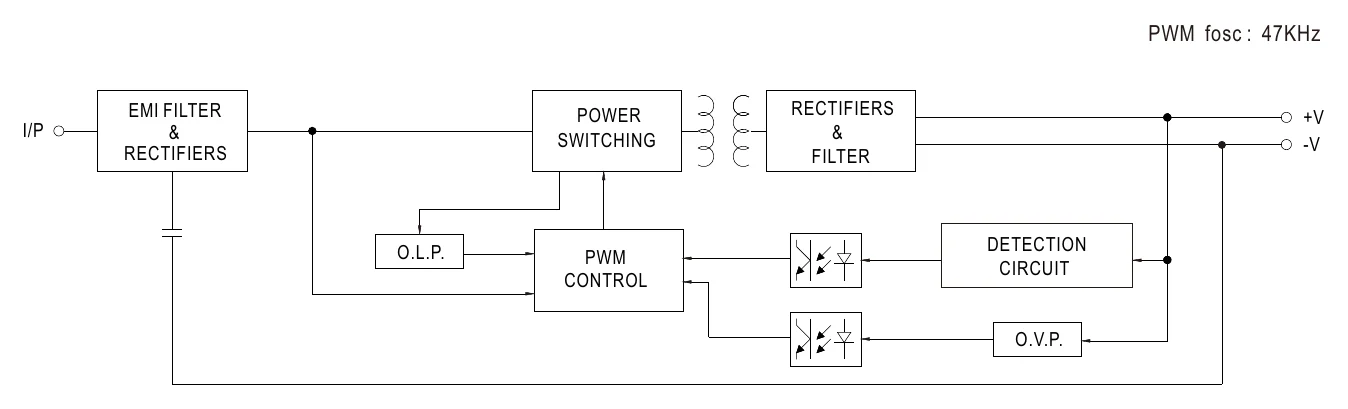

LPV-150-48 Block Diagram — Block Diagram

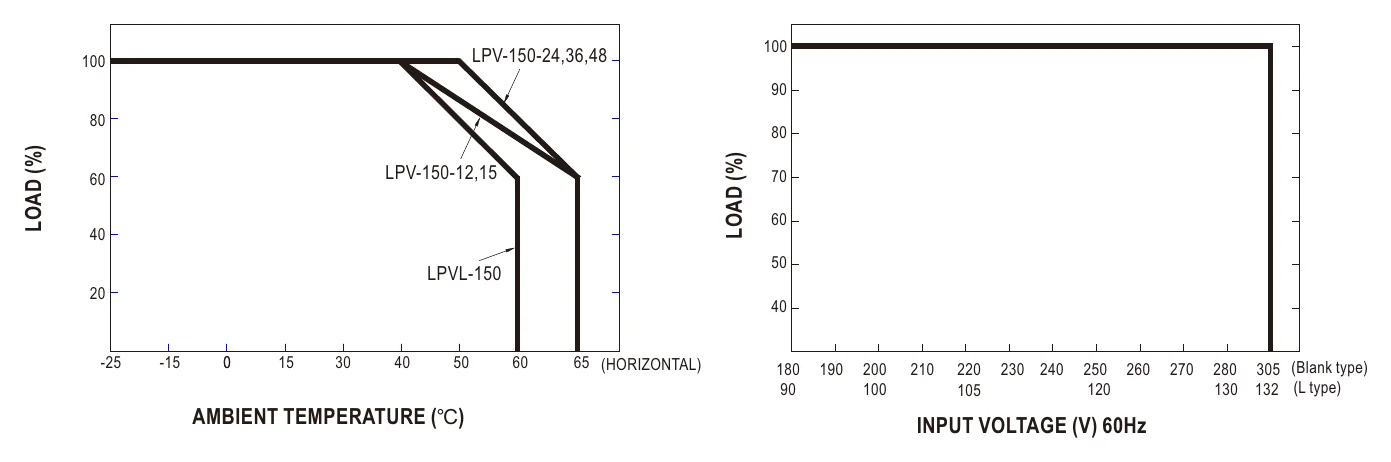

LPV-150-48 Derating Curve — Derating Curve

Typical applications

Display devices for decorative & advertising accessories (Note.10)
General purpose electronics operated in dusty or damp environments

Downloads

Certificates2

UL Certificate (LPV-150)(EN) PDF Download

EMC Certificate (LPV-150)(EN) PDF Download

Test reports1

Test Report (LPV-150-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What is the LPV-150-48 suitable for at 48V?

The LPV-150-48 delivers 48V DC at up to 3.2A (153.6W total), making it appropriate for 48V LED strip systems, high-voltage LED modules used in linear commercial luminaires, and architectural lighting that benefits from reduced current draw over longer cable runs. Confirm your load is rated for 48V input.

How much 48V LED strip can the LPV-150-48 drive?

The driver's maximum output is 153.6W at 48V. Divide that by your strip's rated watts per meter to find the length limit — for example, at 20W/m the result is 7.7 m. Always check your specific strip's rated power per meter and apply a derating margin for reliability.

Is the LPV-150-48 rated for outdoor or wet-environment use?

Yes. The IP67 rating provides complete dust protection and resistance to temporary water immersion up to 1 meter, making it suitable for covered outdoor fixtures, landscape lighting, and enclosed outdoor signage. The operating temperature range is -25°C to +65°C.

Why might someone choose 48V over 24V for LED strip runs?

At 48V, the LPV-150-48 delivers 153.6W at only 3.2A, compared with 151.2W at 6.3A for the LPV-150-24 at 24V. Lower current allows longer cable runs with less voltage drop, which can simplify large installations. The trade-off is that the LED strip itself must be rated for 48V operation.

What certifications does the LPV-150-48 hold?

The LPV-150-48 is approved to UL8750, CSA C22.2 No.250.13, UL879, EAC TP TC 004 and IEC/EN62368-1, with IP67, and its EMC complies with EN55032 Class B, EN55035 and EAC TP TC 020, covering North American safety listing, the Eurasian Economic Union and European EMC standards.
