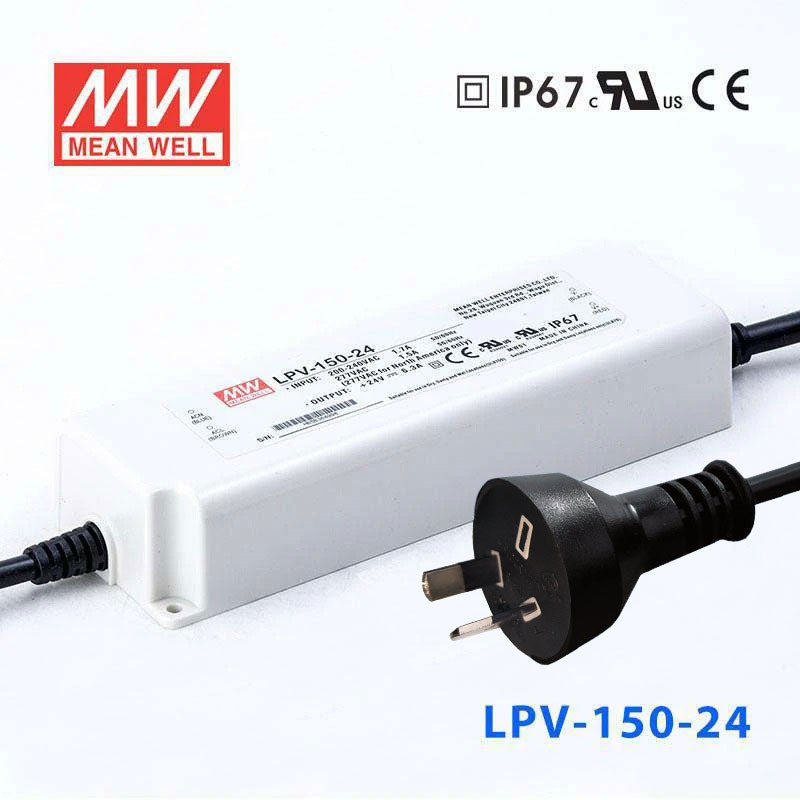

Mean Well S-LPV-150-24 Power Supply 150W 24V with AU/NZ plug 6.3A

slim plastic caseeconomicalIP67with AU/NZ plug

SKU S-LPV-150-24

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

S-LPV-150-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 89%. Type Blank: AC input range 180~305VAC.

LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for LED related fixture or applianc e. As a class II power unit, these two series are housed with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit the use at dry, damp and wet locations. Both series are constant voltage mode design that various models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are provided for LPVL-150.

Features

Constant voltage design
90~132VAC input for LPVL-150 180~305VAC input for LPV-150
Fully encapsulated with IP67 level (Note.7)
ClassⅡpower unit, no FG
Protections: Short circuit/Overload/Over voltage/ Over temperature
Fully isolated plastic case
Fanless design, cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Listed in UL Sign Component Manual (SAM)
Type "HL" for use in class I, Division 2 hazardous (Classified) location luminaires for LPVL-150
2 years warranty

Specifications

S-LPV-150-24Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 6.3A
CURRENT RANGE: 0 ~ 6.3A
RATED POWER: 151.2W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC
HOLD UP TIME (Typ.): LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT: LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC
INRUSH CURRENT (Typ.) Blank type: COLD START 60A(twidth=900μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER Blank type: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS Blank type: UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Blank type: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Blank type: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
EMC IMMUNITY L type: Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level

OTHERS

MTBF: 3361.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: LPV-150: 0.79Kg;20pcs/17Kg/0.98CUFT; LPVL-150: 0.79Kg;20pcs/17Kg/0.98CUFT

MODEL ENCODING

Blank (this model): AC input range 180~305VAC
L: AC input range 90~132VAC

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC(115VAC for LPVL) input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Suitable for indoor use or outdoor use without direct sunlight exposure.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

S-LPV-150-24 Mechanical Specification — Mechanical Specification

S-LPV-150-24 Recommend Mounting Direction — Recommend Mounting Direction

S-LPV-150-24 Block Diagram — Block Diagram

S-LPV-150-24 Derating Curve — Derating Curve

Typical applications

Display devices for decorative & advertising accessories (Note.10)
General purpose electronics operated in dusty or damp environments

Downloads

Datasheet1

S-LPV-150-24 datasheetLPV,LPVL-150-SPEC.pdf · 2026-09-07 edition PDF Download

Certificates2

UL Certificate (LPV-150)(EN) PDF Download

EMC Certificate (LPV-150)(EN) PDF Download

Test reports1

Test Report (LPV-150-24)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What is the output rating of the Mean Well S-LPV-150-24 power supply?

The Mean Well S-LPV-150-24 is a constant voltage power supply rated for 24V DC output. It delivers up to 6.3A with a power rating of 151.2W, making it suitable for 24V LED applications that need higher wattage capacity.

What types of applications is the S-LPV-150-24 designed for?

This model is intended for LED-based decorative and architectural lighting, LED stage and theater lighting, and LED electronic displays. Its constant voltage design makes it a practical choice for commercial and professional 24V LED systems.

Is the Mean Well S-LPV-150-24 suitable for outdoor or damp environments?

The unit is rated IP67, which helps protect it against dust and water ingress, and the datasheet allows indoor use or outdoor use without direct sunlight exposure. That makes it a strong option for applications where environmental protection is important, while still matching the overall requirements of the project.

What input range does the S-LPV-150-24 support?

This power supply is specified for 180 to 305VAC input at 47–63Hz, and the datasheet also lists a 254 to 431VDC input range. It does not cover 120VAC mains.

Does the Mean Well S-LPV-150-24 support dimming control?

No, this model does not include dimming control. If your project requires dimming, you would need to compare it with a different LED driver or power supply model designed for that feature.

What protection features are included in the S-LPV-150-24?

The S-LPV-150-24 includes overload protection (hiccup mode, auto-recovery), over voltage protection (27–35V, shuts down, re-power on to recover) and over temperature protection (shuts down, auto-recovery). These built-in safeguards help support dependable operation in commercial LED power applications.

What operating temperature range can this power supply handle?

The specified operating temperature range is from -25°C to 65°C. This gives the S-LPV-150-24 flexibility for use in both cold and warm environments, provided the rest of the system is designed within the same limits.
