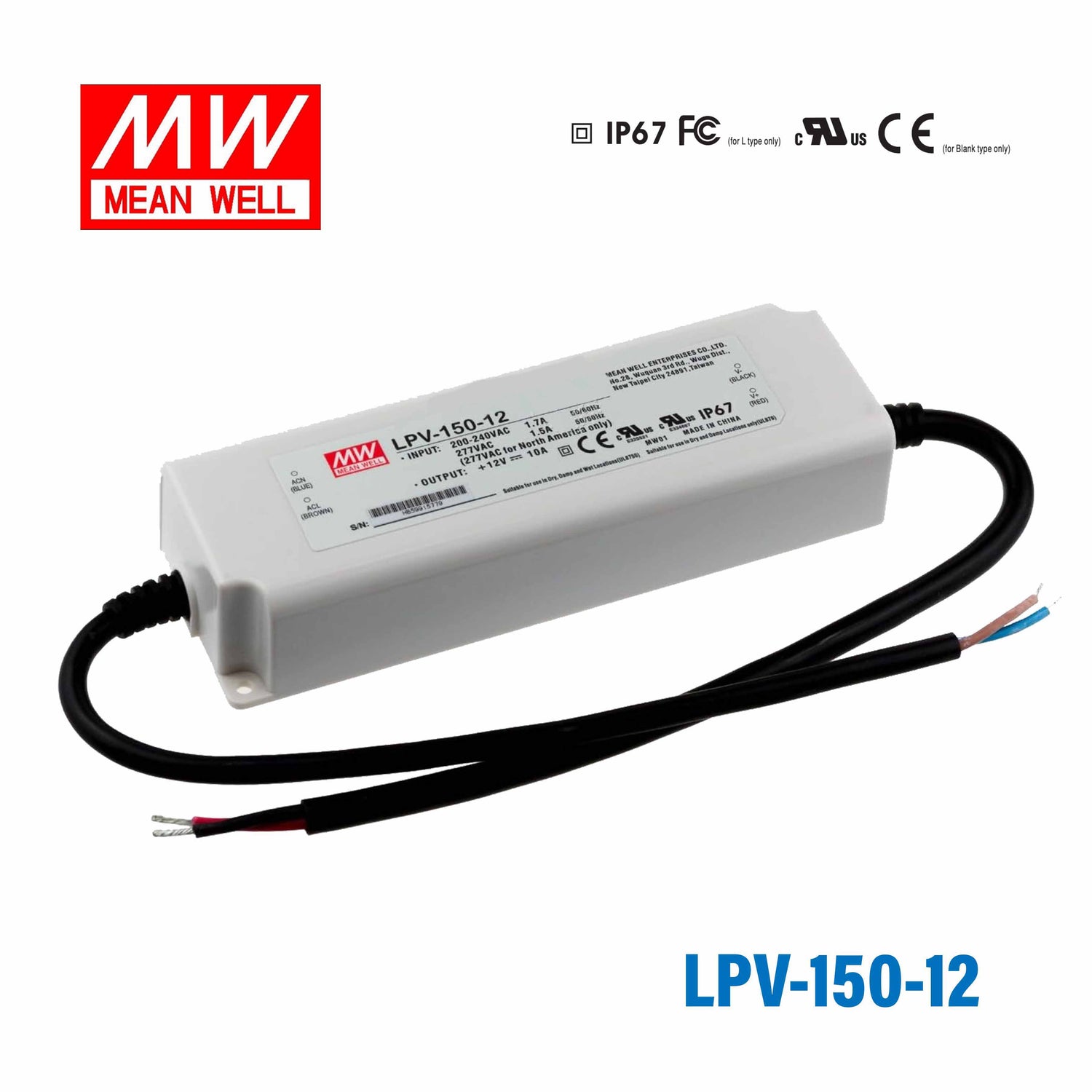

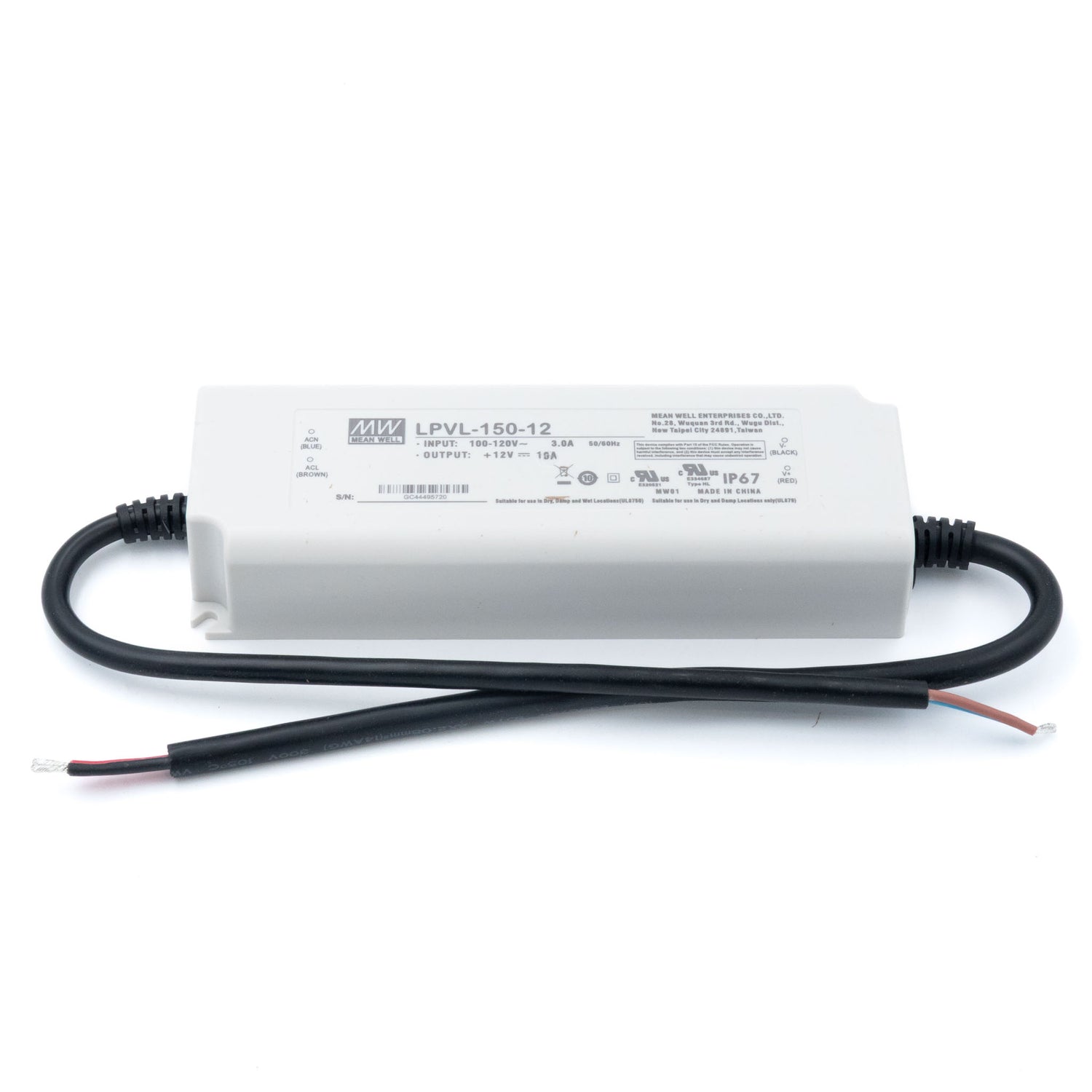

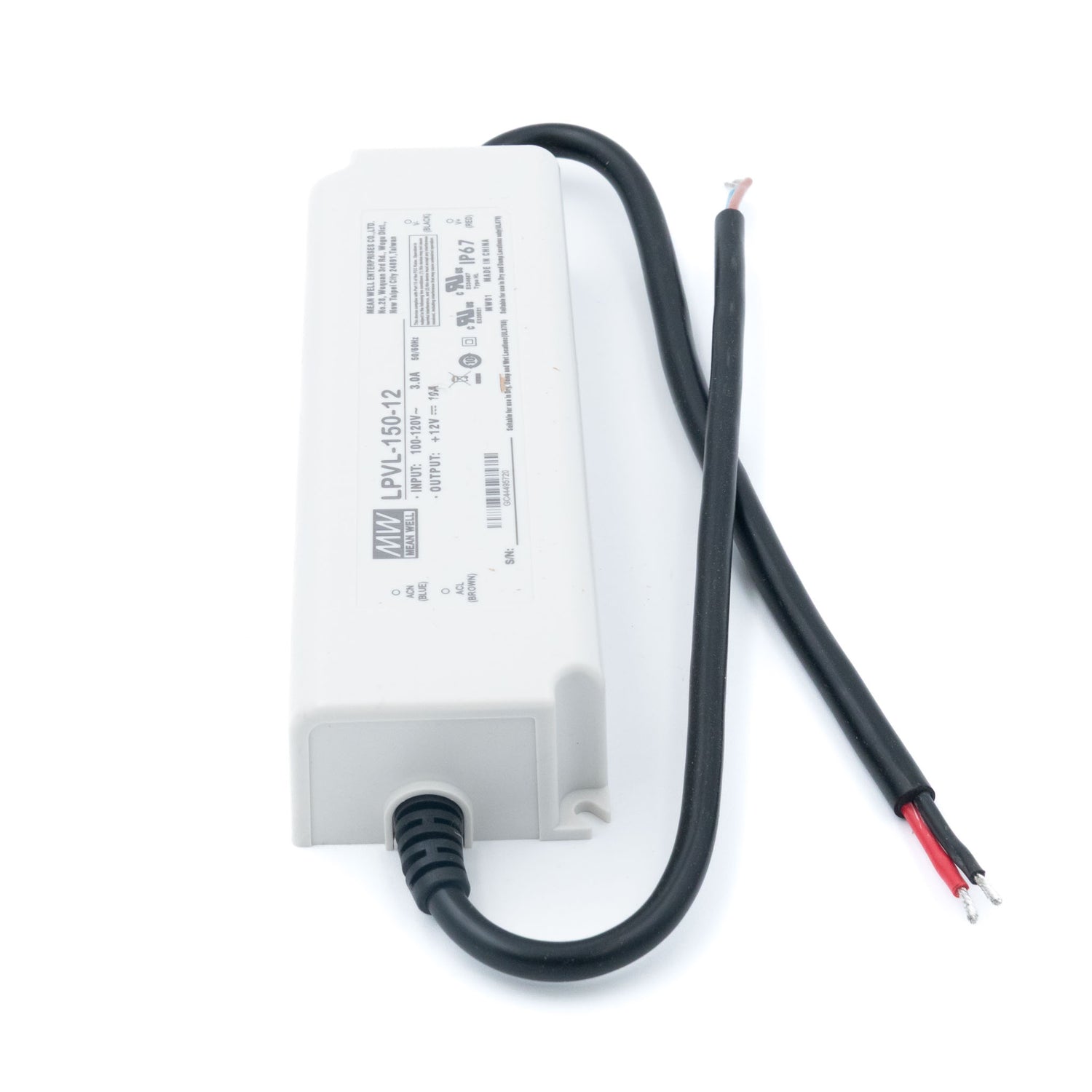

Mean Well LPV-150-12 LED Driver — 120W 12V 10A IP67 Waterproof

Constant VoltageCE/EAC/FCC/UL Certified180-305VAC Universal Input2-Year Warranty

SKU LPV-150-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well LPV-150-12 is a 120W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 10A and carries CE, EAC, FCC, UL certifications for global compliance.

Accepting 180-305VAC universal AC input, the LPV-150-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +65°C making it suitable for outdoor and harsh-environment installations.

Key Features

✓Constant voltage output: 12V DC at up to 10A (120W max)
✓IP67 waterproof and dustproof — suitable for outdoor installations
✓Universal AC input: 180-305VAC
✓Certifications: CE, EAC, FCC, UL
✓Wide operating temperature: -25°C to +65°C
✓Built-in protections: short circuit, overload, over-voltage
✓Compact, lightweight enclosure: 191.0 × 63.0 × 37.5 mm, 0.79 kg
✓2-year Mean Well warranty

Frequently Asked Questions

What input voltage does the LPV-150-12 require, and will it work on standard 120V mains?

The LPV-150-12 accepts 180–305 VAC, which covers 200V-class and 230V international mains but does not extend down to 120V North American supplies. If your installation uses 120V mains, the LPV-100-12 (90–264 VAC input) is the appropriate 12V alternative.

How many meters of 12V LED strip can the LPV-150-12 power?

The LPV-150-12 delivers 120W at 12V. Divide 120W by your strip's rated wattage per meter — a 10 W/m strip allows up to 12 meters, and a 14.4 W/m high-density strip allows roughly 8.3 meters. Always verify the rated wattage per meter for your specific strip before finalising the run.

Is the LPV-150-12 approved for outdoor or wet-location use?

Yes. The IP67 rating certifies full protection against dust ingress and temporary water immersion, making the LPV-150-12 suitable for outdoor landscape lighting, exterior architectural LED runs at 12V, and covered sign boxes exposed to moisture.

How does the LPV-150-12 differ from the LPV-100-12 for 12V lighting?

Both output 12V DC with an IP67 rating, but the LPV-150-12 provides more current (10A vs. 8.5A) and more total power (120W vs. 102W). The key trade-off is input range: the LPV-100-12 works on 90–264 VAC (including 120V), while the LPV-150-12 requires 180–305 VAC. The LPV-150-12 also carries an additional FCC certification and operates up to +65°C vs. +70°C for the LPV-100-12.

What certifications does the LPV-150-12 hold?

The LPV-150-12 is certified to CE, EAC, FCC, and UL standards, which covers European, Eurasian, and North American market requirements. This is one more certification (FCC) compared to the LPV-100 series models.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-LPV-150-24 Power Supply 150W 24V with AU/NZ plug 6.3A	151.2W	24V	6.3A	IP67	View
Mean Well LPV-150-24 LED Driver — 151.2W 24V 6.3A IP67 Waterproof	151.2W	24V	6.3A	IP67	View
Mean Well LPV-150-48 LED Driver — 153.6W 48V 3.2A IP67 Waterproof	153.6W	48V	3.2A	IP67	View
Mean Well S-LPV-150-12 Power Supply 120W 12V with AU/NZ plug 10A	120W	12V	10A	IP67	View
Mean Well LPV-150-36 LED Driver — 151.2W 36V 4.2A IP67 Waterproof	151.2W	36V	4.2A	IP67	View
Mean Well LPV-150-15 LED Driver — 120W 15V 8A IP67 Waterproof	120W	15V	8A	IP67	View
