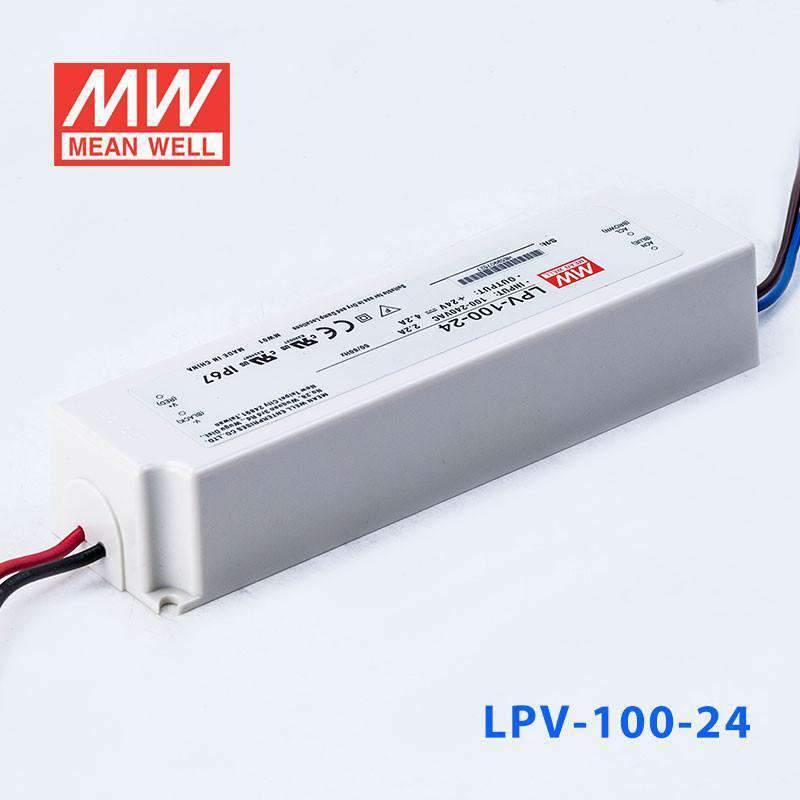

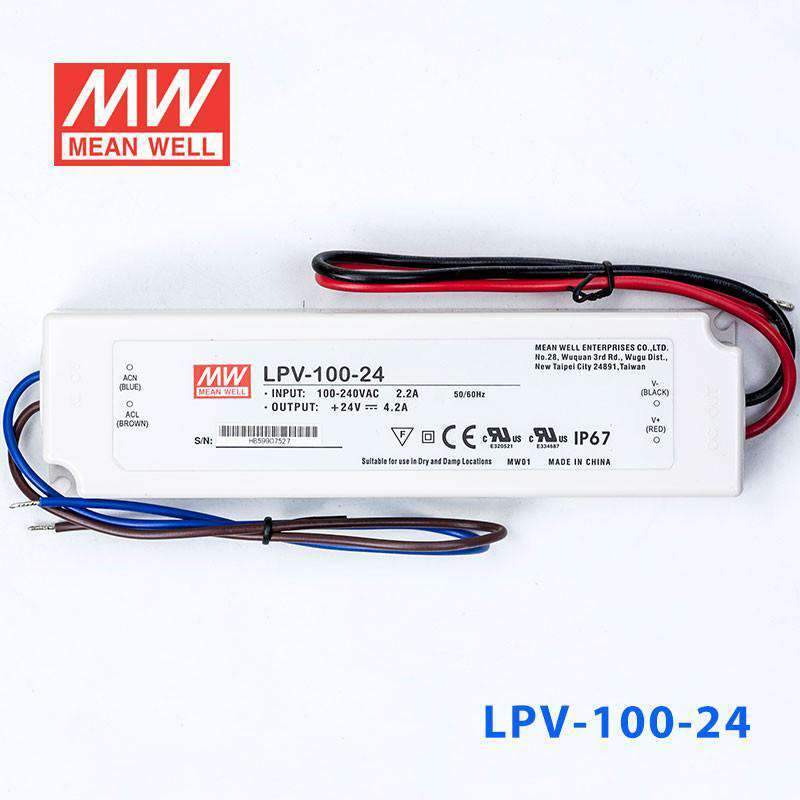

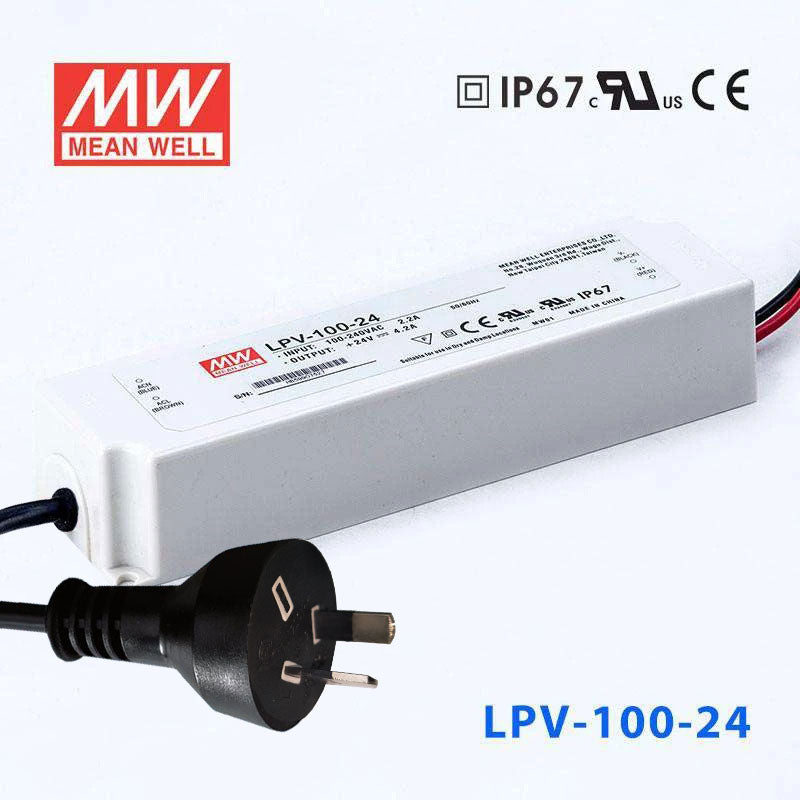

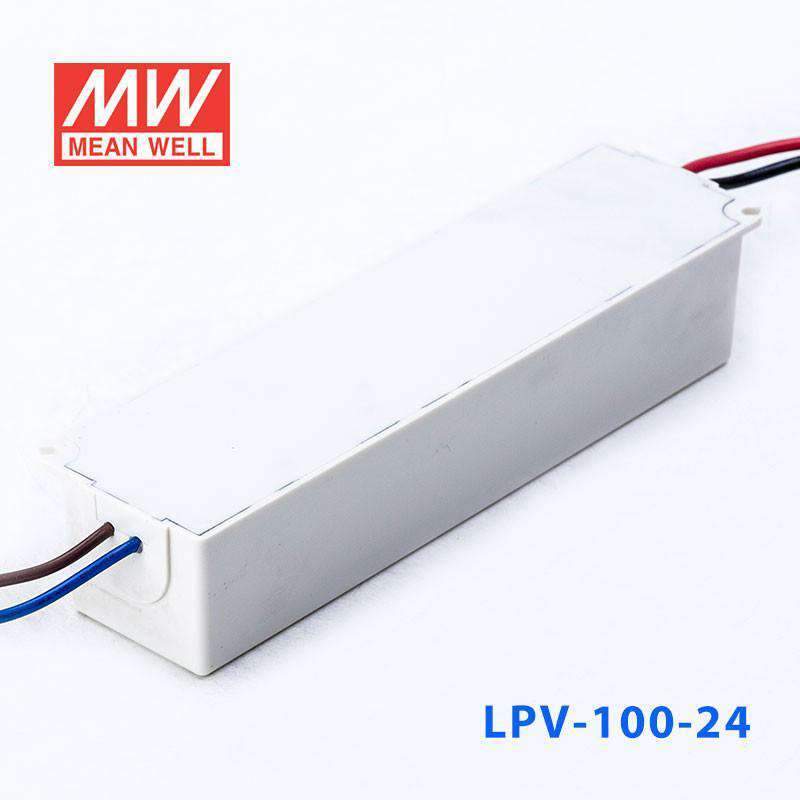

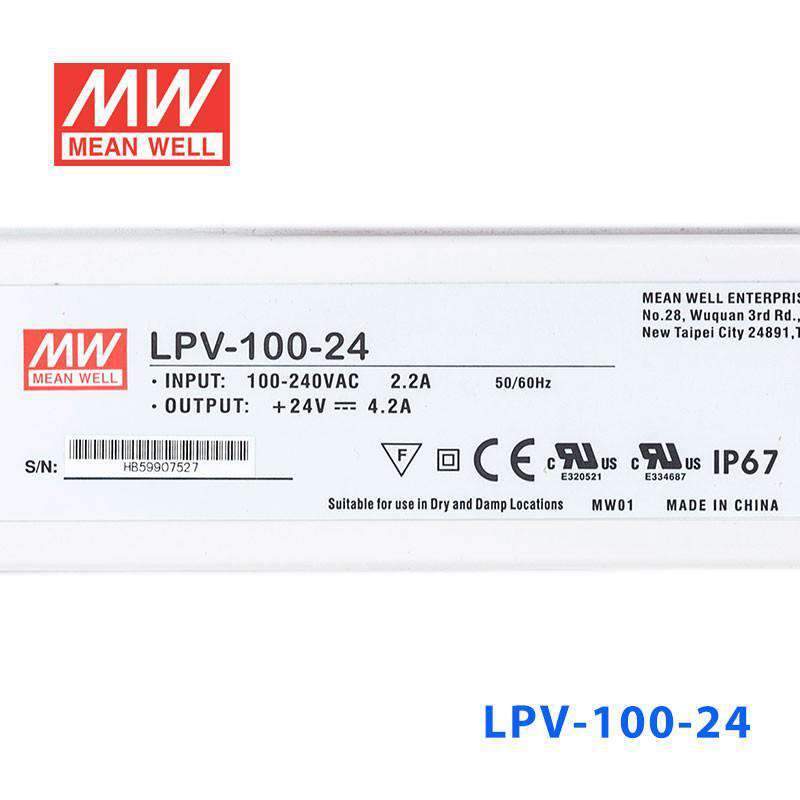

Mean Well S-LPV-100-24 Power Supply 100W 24V with AU/NZ plug 4.2A
Log in to see priceOverview
S-LPV-100-24 is the 24V output model of this series: rated current 4.2A, rated power 100.8W, typical efficiency 88%.
Features
- Constant voltage design
- Universal AC input / Full range
- Fully encapsulated with IP67 level (Note.7)
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Display devices for decorative & advertising accessories (Note.11)
- General-purpose electronics operated in dusty or damp environments
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 4.2A
- CURRENT RANGE
- 0 ~ 4.2A
- RATED POWER
- 100.8W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- ±5.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIMENote.6
- 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC
- HOLD UP TIME (Typ.)
- 50ms/230VAC 14ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT
- 2.2A/115VAC 1.2A/230VAC
- INRUSH CURRENT(Typ.)
- COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(Note12), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 4497.1K hrs min. Telcordia SR-332 (Bellcore) ; 681.6Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 190*52*37mm (L*W*H)
- PACKING
- 0.61Kg;20pcs/13.2Kg/0.57CUFT
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Suitable for indoor use or outdoor use without direct sunlight exposure.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 12. R-41027766 (GZ factory) only for 12V,24V / R-62002178 (ID factory) for 5V~48V
Technical drawings
Downloads
FAQ
What is the output rating of the Mean Well S-LPV-100-24 power supply?
This model is a constant voltage 24V power supply rated at 100.8W with a rated output current of 4.2A. It is intended for applications that require a stable 24V DC output within that power range.
What kinds of applications is the S-LPV-100-24 designed for?
Mean Well lists this series for display devices for decorative and advertising accessories and for general-purpose electronics operated in dusty or damp environments. Its constant voltage design makes it suitable for 24V applications that need a reliable enclosed power supply.
Is the Mean Well S-LPV-100-24 suitable for outdoor or damp environments?
This power supply is fully encapsulated and rated IP67, which supports use in demanding environments where dust and water resistance matter; Mean Well rates it for indoor use or outdoor use without direct sunlight exposure. Buyers should still confirm the overall enclosure and application requirements for the specific project environment.
What input range does the S-LPV-100-24 support?
The unit accepts a wide 90 to 264VAC input range, which supports use across common AC supply conditions. Mean Well also specifies that it can withstand a 300VAC surge input for 5 seconds.
Does this 24V power supply include dimming control?
No dimming function is specified for this model. It is designed as a constant voltage power supply rather than a dimmable LED driver.
What protection features does the Mean Well S-LPV-100-24 have?
The S-LPV-100-24 includes protection for short circuit, overload, and over voltage. These built-in protections help support reliability in commercial and LED power applications.
What operating temperature range is specified for this model?
This model is specified for operation from -25°C to 70°C, with output derating at higher ambient temperatures per the derating curve. That range makes it a practical option for a wide variety of indoor and sheltered industrial or lighting environments.
What warranty is provided for the S-LPV-100-24?
The listed warranty period for this model is 2 years. That gives buyers a defined coverage period for this specific Mean Well power supply.
