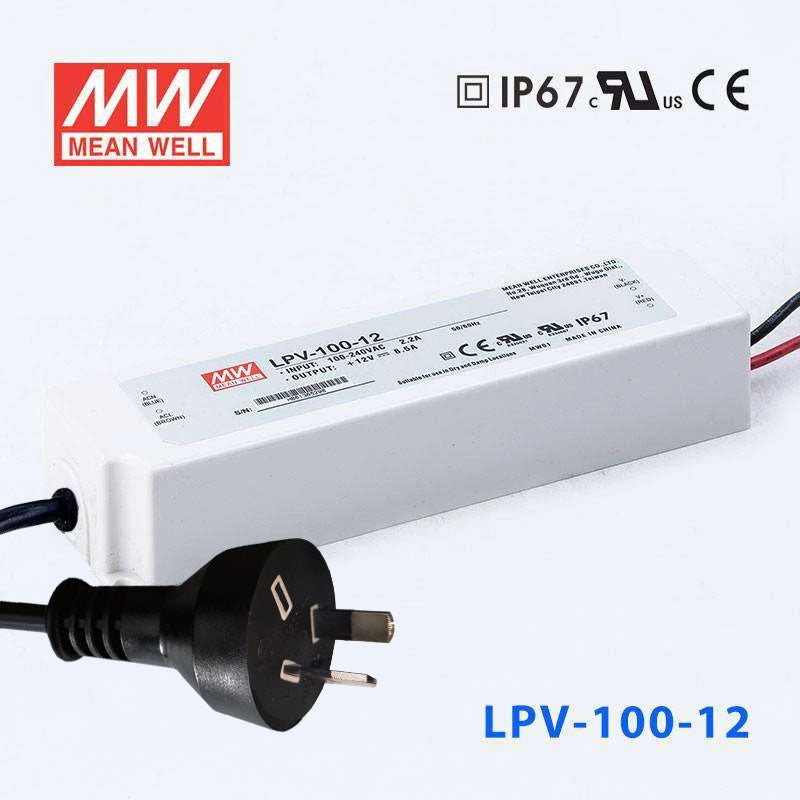

Mean Well S-LPV-100-12 Power Supply 100W 12V with AU/NZ plug

slim plastic case, economical, IP67, with AU/NZ plug

SKU:

S-LPV-100-12

Please for Pricing

Notify me when it's back in stock

Description

Features

90~264VAC input

Fully encapsulated with IP67 level

Protections: Short circuit / Overload / Over voltage

Constant voltage design (C.V. mode)

Class 2 power unit

Isolation class II, no F.G.

Withstand 300VAC surge input for 5 seconds

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	Cold start, 75A at 230VAC
Overload protection	110%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-25~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	Design refer to IEC60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (30cm)
Connection Output	UL rated, 14AWGx2C (30cm)
Dimension (LxWxH)(mm)	190x 52x 37

Specifications

Brand

Mean Well
Series

LP Series
Power Rating

102 Watt
Output Voltage

12 Volt
Rated Current

8.5 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

2 Year
Length

19 cm
Width

5.2 cm
Height

3.7 cm
Weight

0.61 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well S-LPV-100-12 designed for?

The S-LPV-100-12 is a constant-voltage 12V power supply intended for LED-based decorative and architectural lighting, stage and theater lighting, and LED electronic displays. Its 100W class output and IP67 encapsulated design make it suitable for commercial and industrial lighting applications where a reliable 12V supply is needed.

What are the key electrical specifications of this model?

This model is rated at 102W output with a 12V DC output and 8.5A rated current. It accepts a wide 90 to 264VAC input range, which supports use across standard AC mains conditions. It is a constant-voltage design and does not include dimming control.

Is the S-LPV-100-12 suitable for outdoor or damp environments?

The unit is fully encapsulated and rated IP67, which indicates strong protection against dust and water ingress. That makes it a practical option for demanding environments where extra enclosure protection is important. Actual suitability still depends on the overall equipment design and application conditions.

Does this power supply support dimming?

No, this specific model does not include dimming control. It is designed as a fixed 12V constant-voltage power supply for loads that require stable DC output rather than integrated dimming functionality.

How rugged is this power supply in terms of protection and operating conditions?

The S-LPV-100-12 includes short circuit, overload, and over voltage protections. It is rated for operation from -25°C to 70°C and can withstand a 300VAC surge input for 5 seconds. Mean Well also specifies 100% full load burn-in testing and a 2-year warranty for this model.

What distinguishes the S-LPV-100-12 from other LED power supplies?

This model combines a 12V, 8.5A constant-voltage output with IP67 encapsulation, Class 2 power unit classification, and isolation class II construction without F.G. It is positioned as a low-cost, high-reliability option for 12V LED applications, and this version is specifically supplied with an AU/NZ plug.
