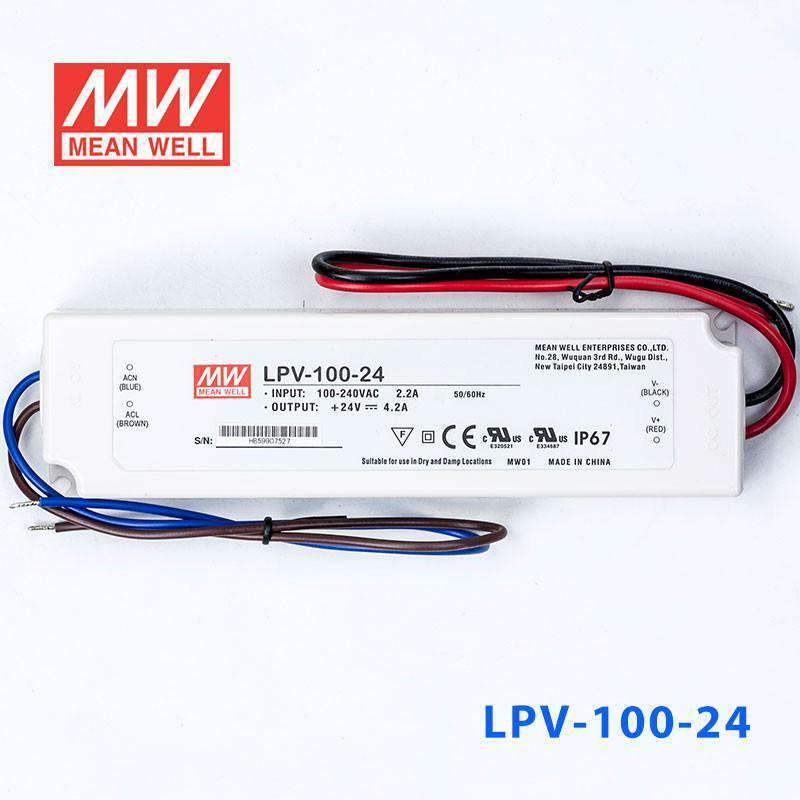

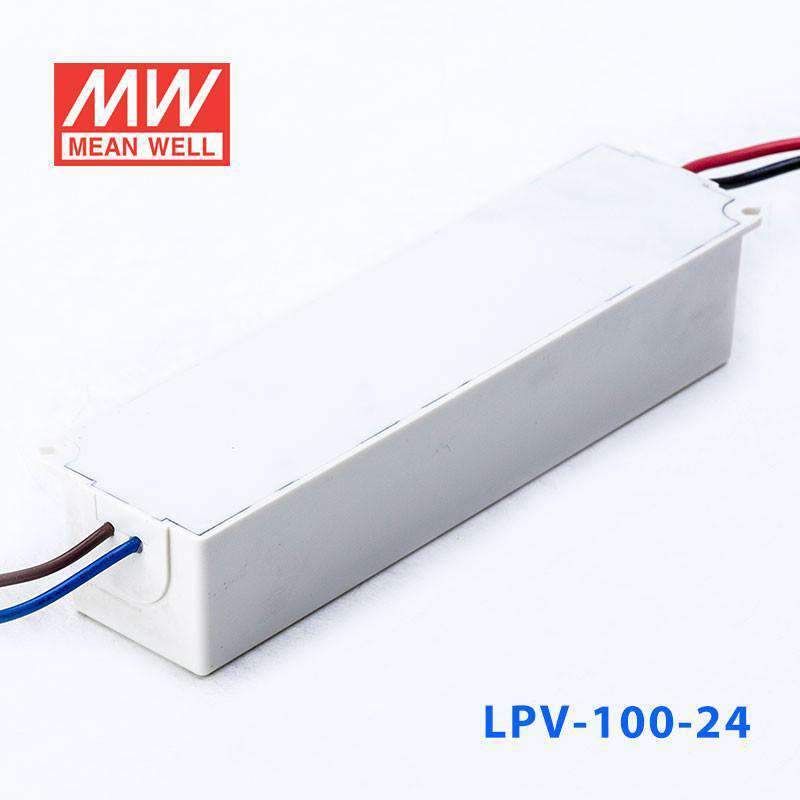

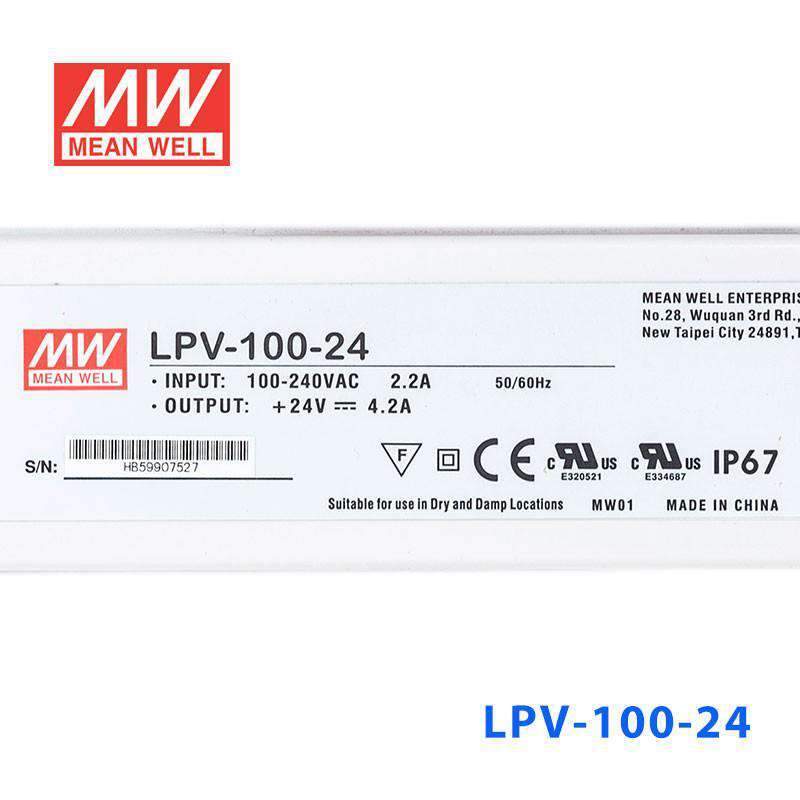

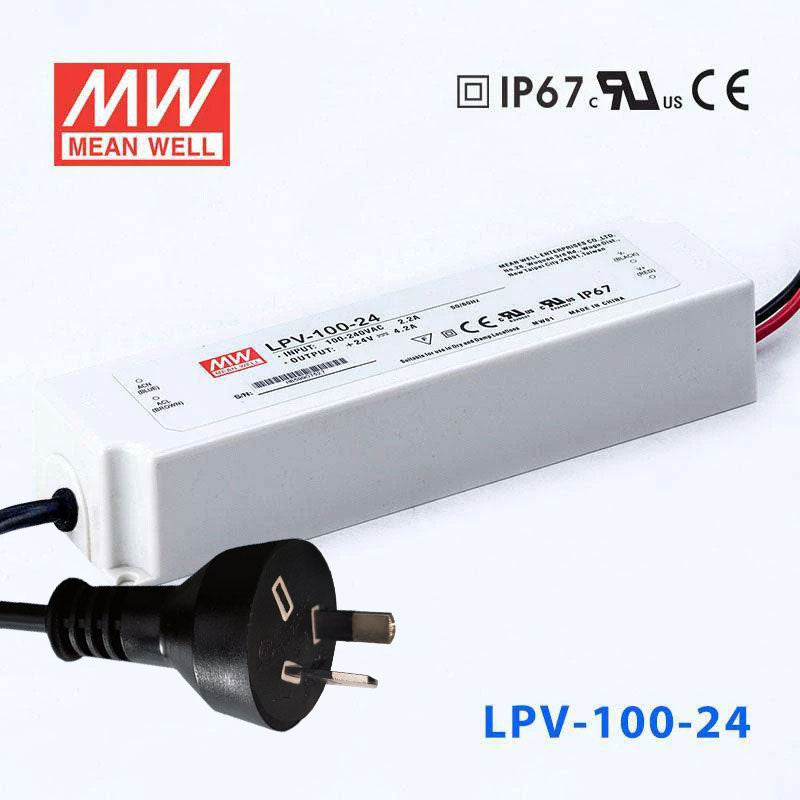

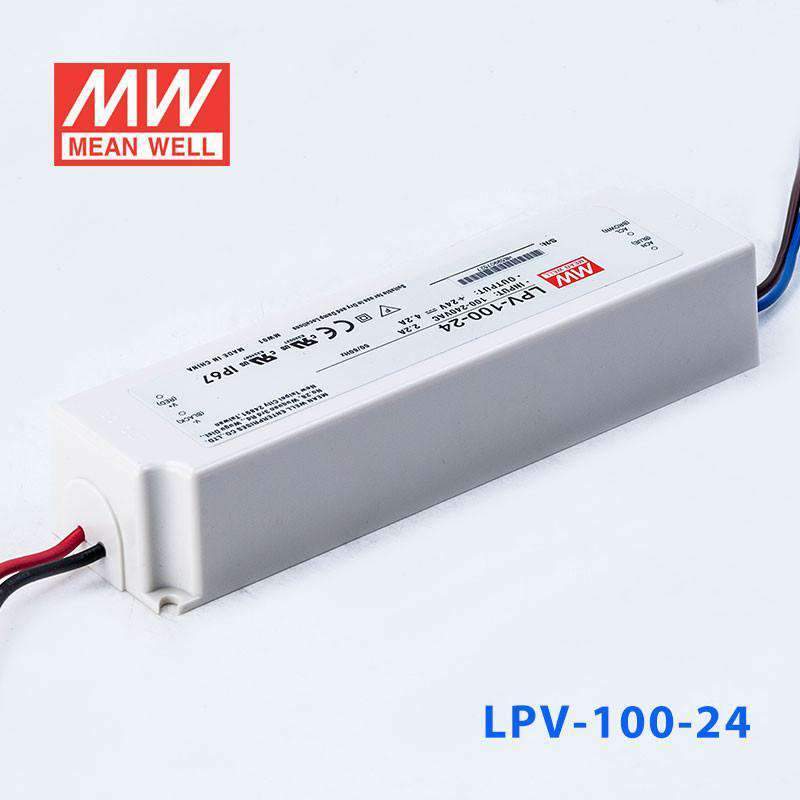

Mean Well S-LPV-100-24 Power Supply 100W 24V with AU/NZ plug

slim plastic case, economical, IP67, with AU/NZ plug

SKU:

S-LPV-100-24

Please for Pricing

Notify me when it's back in stock

Description

Features

90~264VAC input

Fully encapsulated with IP67 level

Protections: Short circuit / Overload / Over voltage

Constant voltage design (C.V. mode)

Class 2 power unit

Isolation class II, no F.G.

Withstand 300VAC surge input for 5 seconds

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	Cold start, 75A at 230VAC
Overload protection	110%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-25~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	Design refer to IEC60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (30cm)
Connection Output	UL rated, 14AWGx2C (30cm)
Dimension (LxWxH)(mm)	190x 52x 37

Specifications

Brand

Mean Well
Series

LP Series
Power Rating

100.8 Watt
Output Voltage

24 Volt
Rated Current

4.2 Ampere
Input Voltage

90V~264V
Standards Met

CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

2 Year
Length

19 cm
Width

5.2 cm
Height

3.7 cm
Weight

0.61 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the output rating of the Mean Well S-LPV-100-24 power supply?

This model is a constant voltage 24V power supply rated at 100.8W with a rated output current of 4.2A. It is intended for applications that require a stable 24V DC output within that power range.

What kinds of applications is the S-LPV-100-24 designed for?

Mean Well positions this model for LED-based decorative and architectural lighting, LED stage and theater lighting, and LED electronic displays. Its constant voltage design makes it suitable for 24V LED applications that need a reliable enclosed power supply.

Is the Mean Well S-LPV-100-24 suitable for outdoor or damp environments?

This power supply is fully encapsulated and rated IP67, which supports use in demanding environments where dust and water resistance matter. Buyers should still confirm the overall enclosure and application requirements for the specific project environment.

What input range does the S-LPV-100-24 support?

The unit accepts a wide 90 to 264VAC input range, which supports use across common AC supply conditions. Mean Well also specifies that it can withstand a 300VAC surge input for 5 seconds.

Does this 24V power supply include dimming control?

No, this model does not include dimming control. It is designed as a constant voltage power supply rather than a dimmable LED driver.

What protection features does the Mean Well S-LPV-100-24 have?

The S-LPV-100-24 includes protection for short circuit, overload, and over voltage. These built-in protections help support reliability in commercial and LED power applications.

What operating temperature range is specified for this model?

This model is specified for operation from -25°C to 70°C. That range makes it a practical option for a wide variety of indoor and sheltered industrial or lighting environments.

What warranty is provided for the S-LPV-100-24?

The listed warranty period for this model is 2 years. That gives buyers a defined coverage period for this specific Mean Well power supply.
