Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel
Log in to see priceOverview
T3-CV is the DC3V-DC46V output model of this series.
T3X is the 2.4GHZ RF wireless synchronization RGB controller which adopts our company multiple global initiate technology. The control system consists of two parts, the RF remote control and receiver, realize the signal synchronization on unlimited receivers within effective distance. a very good solution for the LED project needs sync control wirelessly. User-friendly full-color touch wheel for color selection, unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote control. Can RF remote the functions of switch, pause, mode, speed and LED brightness, more proudly, the T3X has the brand-new programmable function, only 10 seconds can DIY a new change effect easily. Programming never been so easy!
Specifications
T3X Remote Control
- Input Voltage
- DC5V Built-in Lithium Battery
- Battery Capacity
- 1000mAh
- Working Current
- <30mA
- Standby Tme
- 6 Months
- Working Frequency
- 2.4GHz
- Normal Using Time
- 30 Days
- RF Remote Distance
- 30m
- Dimension
- L145×W55×H22(mm)
- Remote Option
- sync control unlimited receivers
- Package Size
- L168×W102×H28(mm)
- Change mode
- 32 modes
- Weight (G.W.)
- 200g
T3-5A CV Receiving controller
- Input voltage
- DC12V-DC24V
- Working temperature
- -30℃～55℃
- Max current load
- 5A×3CH Max 15A
- Dimension
- L211×W40×H30mm
- Max output power
- 180W/360W(12V/24V)
- Package size
- L215×W42×H32mm
- Control button
- 8 touch buttons
- Weight (G.W.)
- 180g
- Compatible remote control
- workable with T3, T3M, T3X
T3-CV Receiving controller
- Input voltage
- DC5V-DC24V
- Max current load
- 6A×3CH Max 18A
- Max output power
- 90W/216W/432W(5V/12V/24V)
- Compatible remote control
- T1/T2/T2M/T3/T3M/T3X
- Working temperature
- -30℃~55℃
- Dimension
- L175×W44×H30(mm)
- Package size
- L178×W48×H33mm
- Weight (G.W.)
- 150g
T3-CC Receiving controller (current 3 in 1)
- Input voltage
- DC12V-DC48V
- Output voltage
- DC3V-DC46V
- Output current
- CC 350/700/1050mA ×3CH
- Output power
- 1.05W~48.3W ×3CH Max 144.9W
- Compatible remote control
- T1/T2/T2M/T3/T3M/T3X
- Working temperature
- -30℃~55℃
- Dimension
- L175×W44×H30(mm)
- Package size
- L178×W48×H33mm
- Weight (G.W.)
- 160g
Others
- Warranty
- A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement and covers manufacturing faults only.
Certifications & ratings
- Certification marks
- FCC, CE, RoHS, SGS, SAA

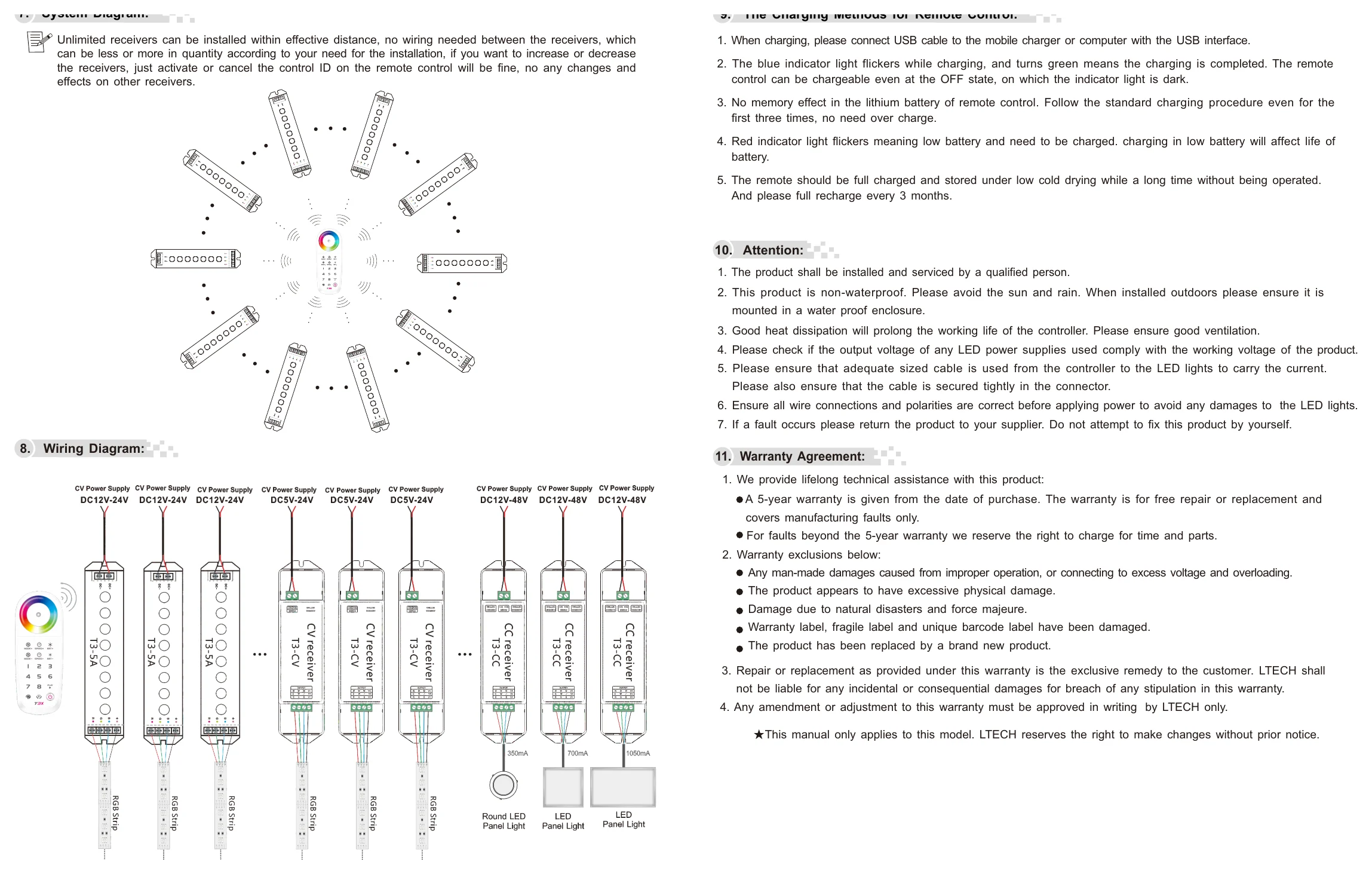

Technical drawings
Downloads
FAQ
What is the Ltech T3-CV used for?
The Ltech T3-CV is a wireless RF constant voltage controller for low voltage LED lighting circuits. It is designed to control single-colour, bi-colour, or RGB LED strip applications using three output channels.
Which controllers is the T3-CV compatible with?
The T3-CV is compatible with Ltech T1, T2, T2M, T3, T3M, and T3X series remote controls. It works as a wireless receiver that responds to RF control signals from these compatible controllers.
What are the main electrical ratings of the T3-CV?
The T3-CV supports input voltages from DC5V to DC24V. It provides a maximum current load of 6A per channel (18A total) and a maximum output power of 90W at 5V, 216W at 12V, or 432W at 24V.
Is the T3-CV suitable for RGB lighting control?
Yes. With three output channels, the T3-CV is suitable for RGB LED strip control, and it can also be used for single-colour or bi-colour applications. That makes it a flexible option for several low voltage lighting types.
Can the T3-CV be used in demanding temperature conditions?
This controller is rated for operation from -30 °C to 55 °C. That range makes it suitable for a variety of commercial and industrial indoor or protected-environment applications where temperature tolerance matters.
How does the T3-CV differ from a standard dimmer?
The T3-CV is specifically an RF constant voltage wireless receiver rather than a basic standalone dimmer. Its key distinction is compatibility with Ltech T1, T2, T2M, T3, T3M, and T3X series RF controllers while supporting three-channel LED control.
What warranty is offered for the Ltech T3-CV?
The published warranty period for this model is 5 years. That longer warranty can be useful for buyers evaluating products for professional or ongoing commercial use.
