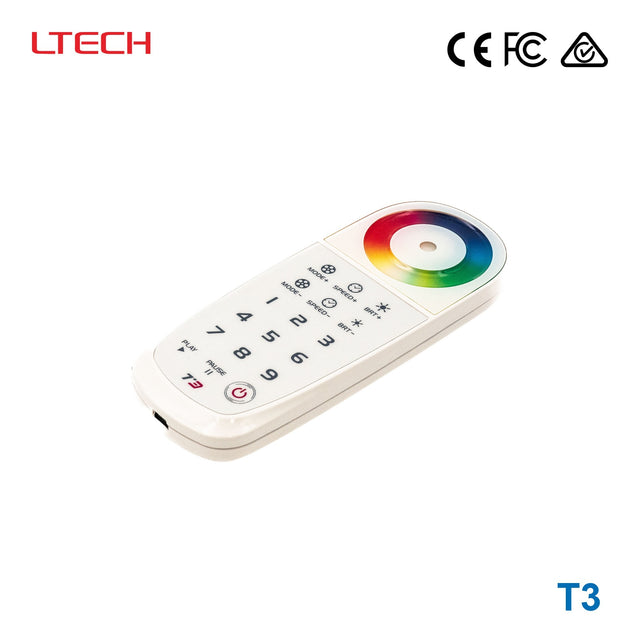

Ltech T3 Wireless RF Single-zone Remote - RGB
Log in to see priceOverview
T3 is the DC3V-DC46V output model of this series.
T3 is the 2.4GHZ RF wireless synchronization RGB controller which adopts LTECH multiple global initiate technology. The control system consists of two parts, the RF remote control and receiver; realize the signal synchronization on unlimited receivers within effective distance, a very good solution for the LED project needs sync control wirelessly. User-friendly full-color touch wheel for color selection, unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote control. Can RF remote control the functions of switch, pause, changing modes, changing speed and the brightness and so on. Built-in 32 changing modes, you can save the changing modes in the shortcut key as you like, which not only can call at any time, but also can combine into a program to play in loop.
Specifications
T3 Remote Control
- Input Voltage
- DC5V Built-in Lithium Battery
- Working Current
- ≤30mA
- Working Frequency
- 2.4GHZ
- RF Remote Distance
- 30m
- Remote Option
- Sync control unlimited receivers
- Change mode
- 32 Fantastic modes
- Scale levels
- 1024×1024×1024
- Battery Capacity
- 1000mAh
- Standby Time
- ≤6 Months
- Dimensions
- L145×W55×H22(mm)
- Package Size
- L168×W102×H28(mm)
- Weight (G.W.)
- 200g
T3-5A CV Receiving controller
- Input voltage
- DC12V-DC24V
- Max current load
- 5A×3CH Max 15A
- Max output power
- 180W/360W(12V/24V)
- Control button
- 8 touch button
- Compatible remote control
- workable with T3, T3M, T3X
- Working temperature
- -30℃～55℃
- Dimension
- L211×W40×H30mm
- Package size
- L215×W42×H32mm
- Weight (G.W.)
- 180g
T3-CV Receiving controller
- Input voltage
- DC5V-DC24V
- Max current load
- 6A×3CH Max 18A
- Max output power
- 90W/216W/432W(5V/12V/24V)
- Compatible remote control
- T1/T2/T2M/T3/T3M/T3X
- Working temperature
- -30℃~55℃
- Dimension
- L175×W44×H30(mm)
- Package size
- L178×W48×H33mm
- Weight (G.W.)
- 150g
T3-CC Receiving controller (current 3 in 1)
- Input voltage
- DC12V-DC48V
- Output voltage
- DC3V-DC46V
- Output current
- CC 350/700/1050mA ×3CH
- Output power
- 1.05W~48.3W ×3CH Max 144.9W
- Compatible remote control
- T1/T2/T2M/T3/T3M/T3X
- Working temperature
- -30℃~55℃
- Dimension
- L175×W44×H30(mm)
- Package size
- L178×W48×H33mm
- Weight (G.W.)
- 160g
Others
- Warranty Agreement
- A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement and covers manufacturing faults only.
Certifications & ratings
- Certification marks
- FCC, CE, RoHS, SGS, ISO9001:2008, UKAS
Technical drawings
Downloads
FAQ
What is the Ltech T3 Wireless RF Single-zone Remote used for?
The Ltech T3 is a single-zone RF remote designed for RGB LED lighting control. It is intended for buyers who want wireless control of one RGB lighting zone in commercial or residential applications.
Is the Ltech T3 a single-zone or multi-zone controller?
This model is a single-zone remote. It is best suited to applications where one lighting area or group is controlled together rather than managing multiple independent zones from the same remote.
What type of control signal does the Ltech T3 use?
The Ltech T3 uses RF wireless control. That makes it a fit for applications where a handheld wireless RGB remote is preferred over a fixed wall control or a wired interface.
Is the Ltech T3 intended for RGB or RGBW lighting?
This specific T3 model is positioned as an RGB remote. Buyers needing control for RGBW lighting should compare carefully with RGBW-specific controllers or remotes rather than assuming the same function set.
Can the Ltech T3 be used in demanding temperature conditions?
The receiving controllers included in the T3 system have a working temperature range of -30°C to 55°C. This range supports operation in various commercial and residential environments.
What warranty comes with the Ltech T3 Wireless RF Single-zone Remote?
The product includes a 5-year warranty period. For B2B buyers, that can be useful when evaluating lifecycle expectations and support coverage for repeat installations or stocked replacement units.
