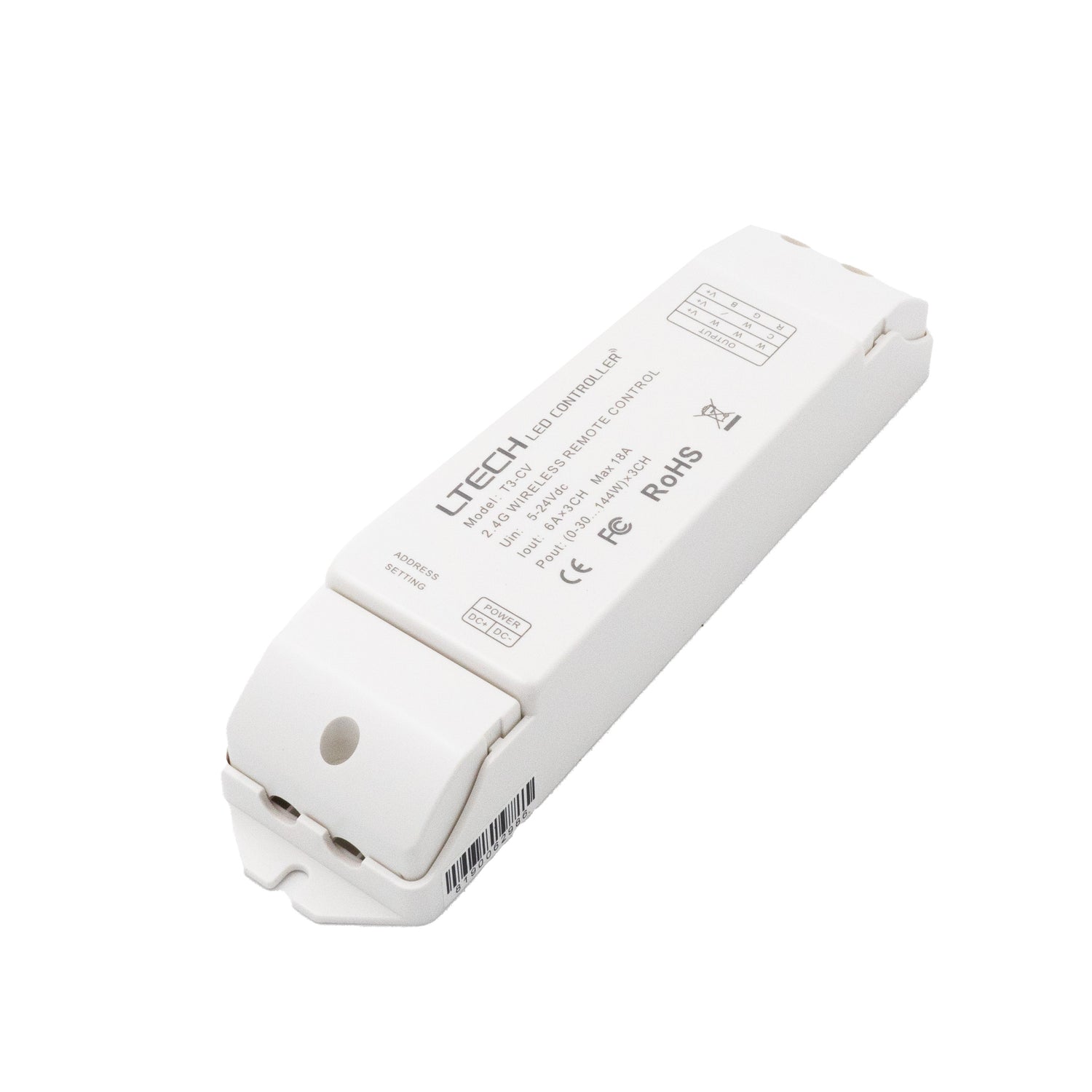

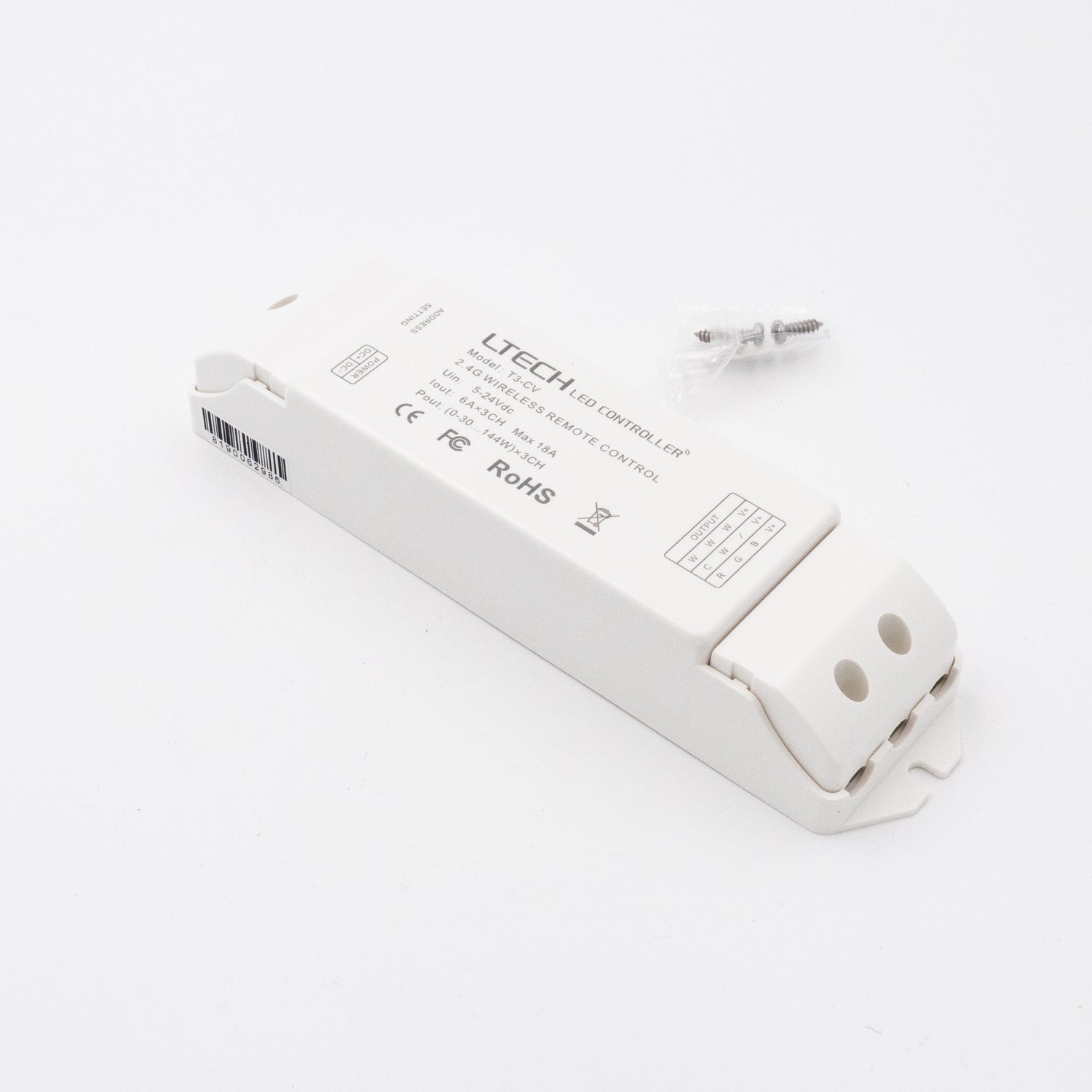

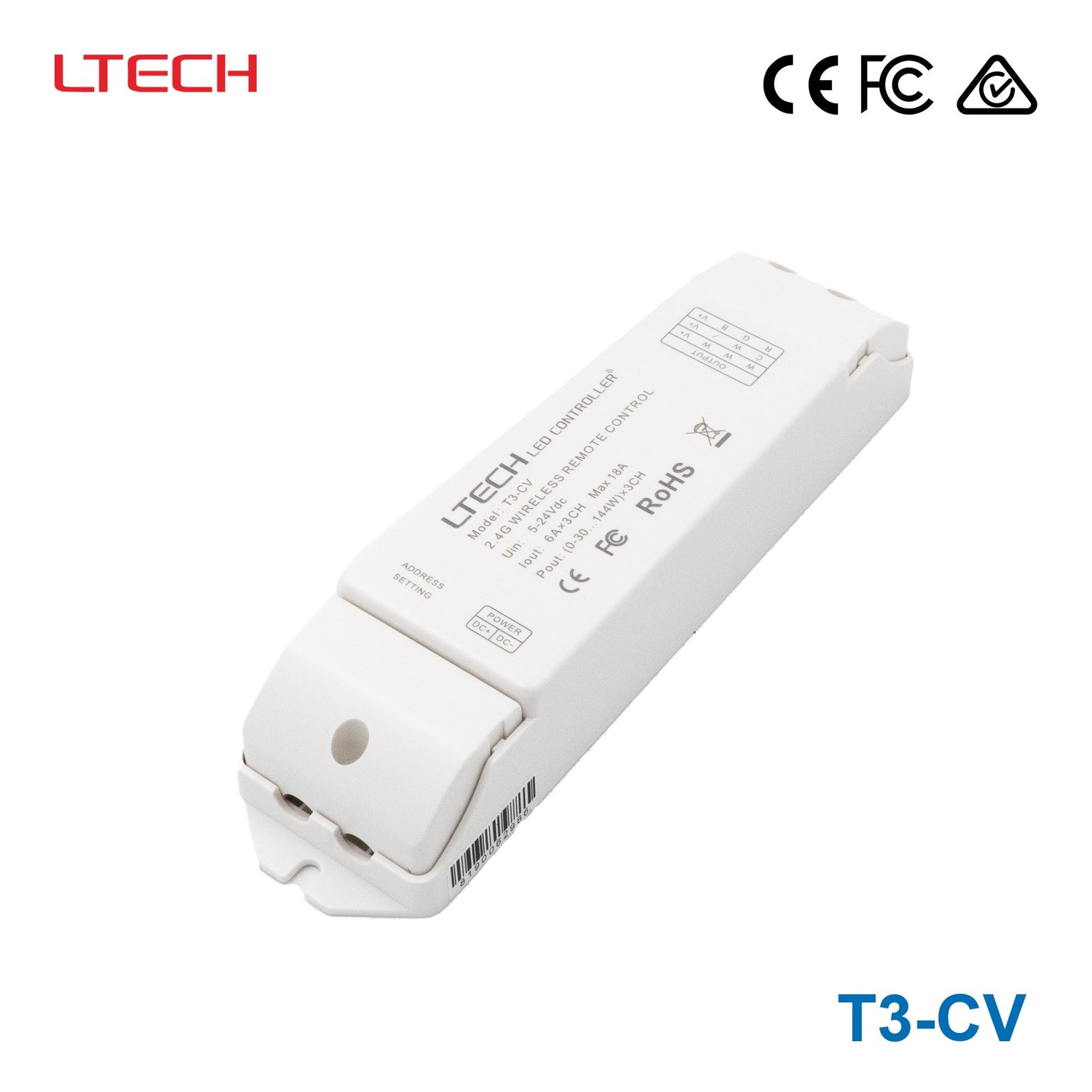

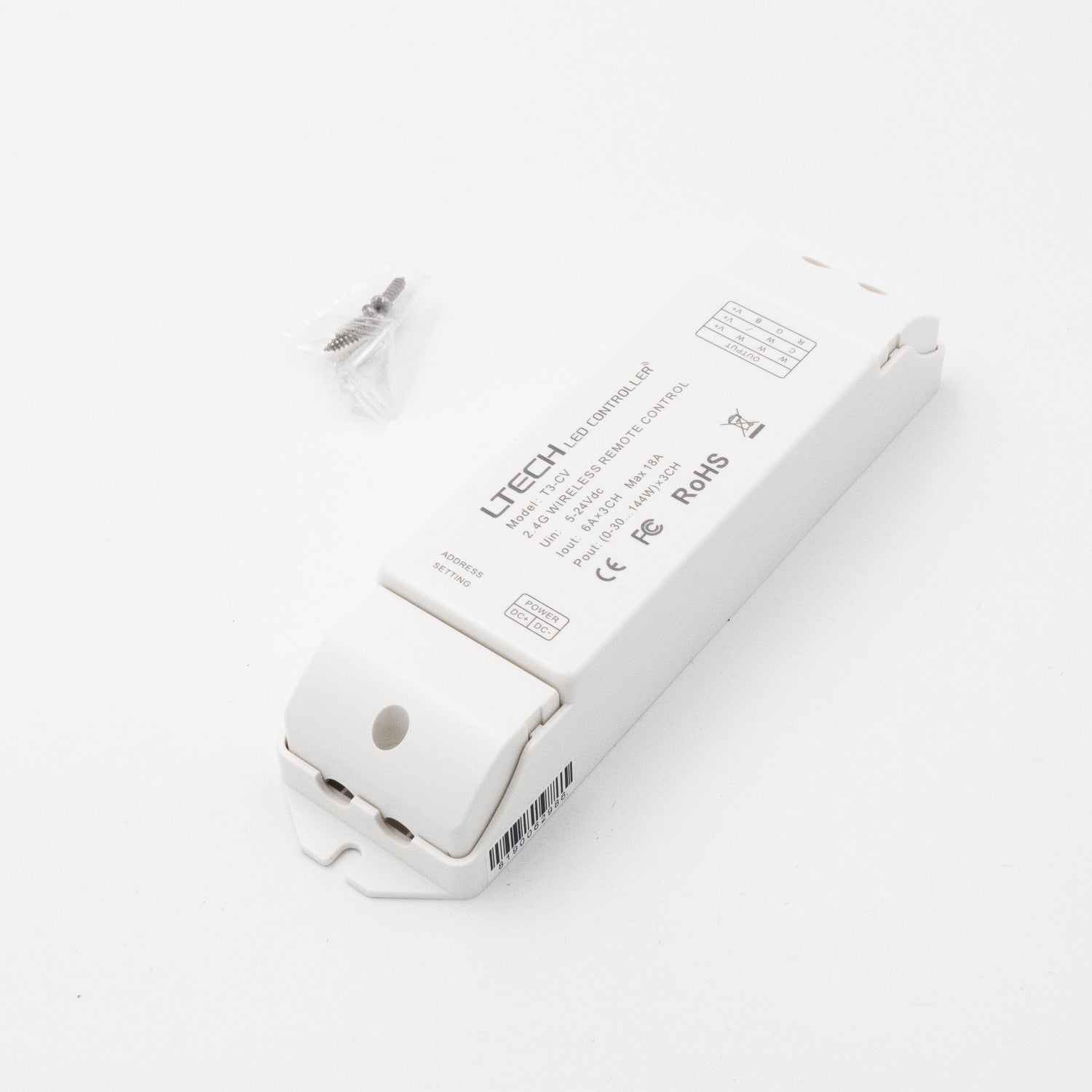

Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel
Please Login for Pricing
Description
Description
Wireless zone receiver for low voltage circuits. Designed for use with T1, T2 and T3 series controllers. With 3 output channels, this unit is ideal for controlling single colour, bi-colour or RGB LED Strip.

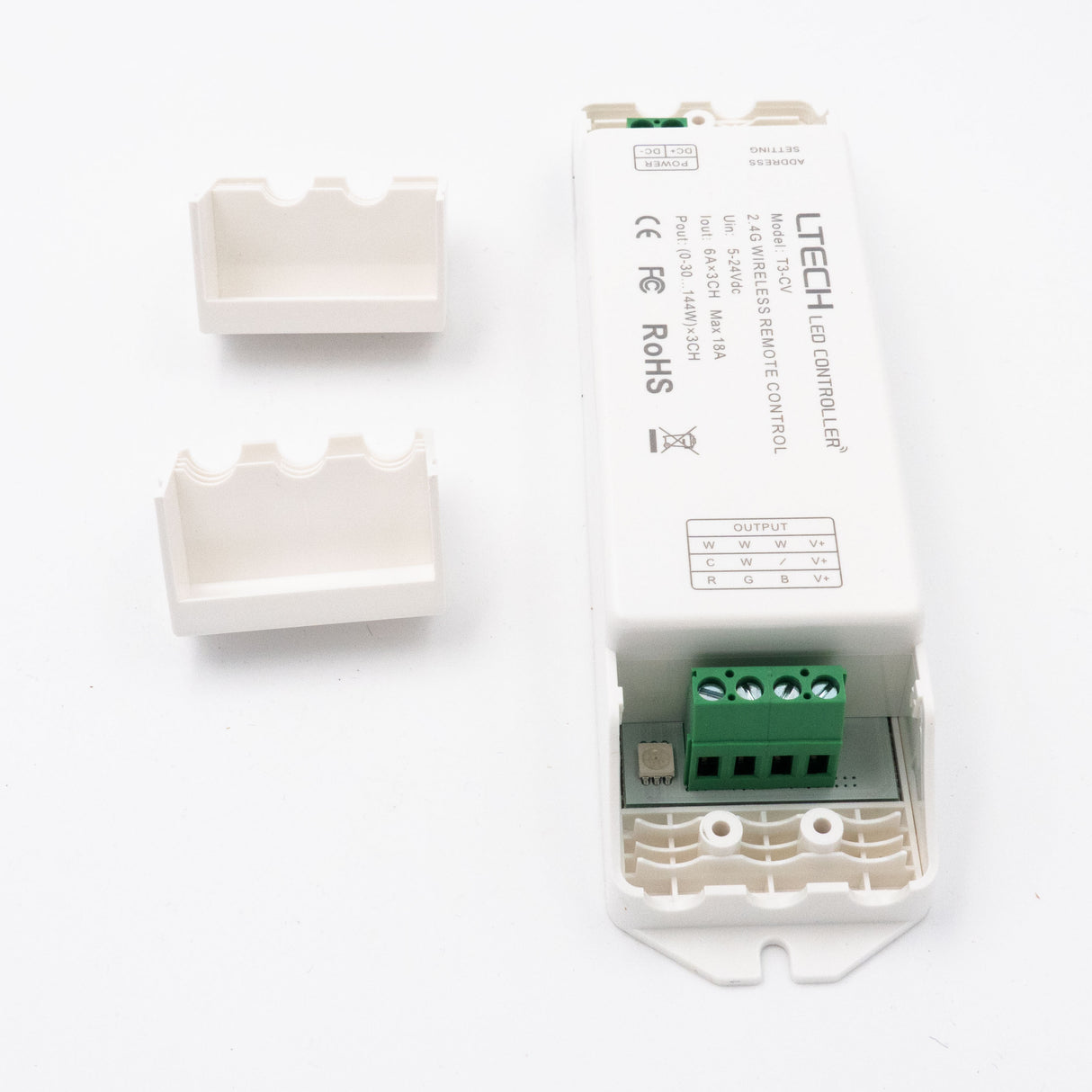

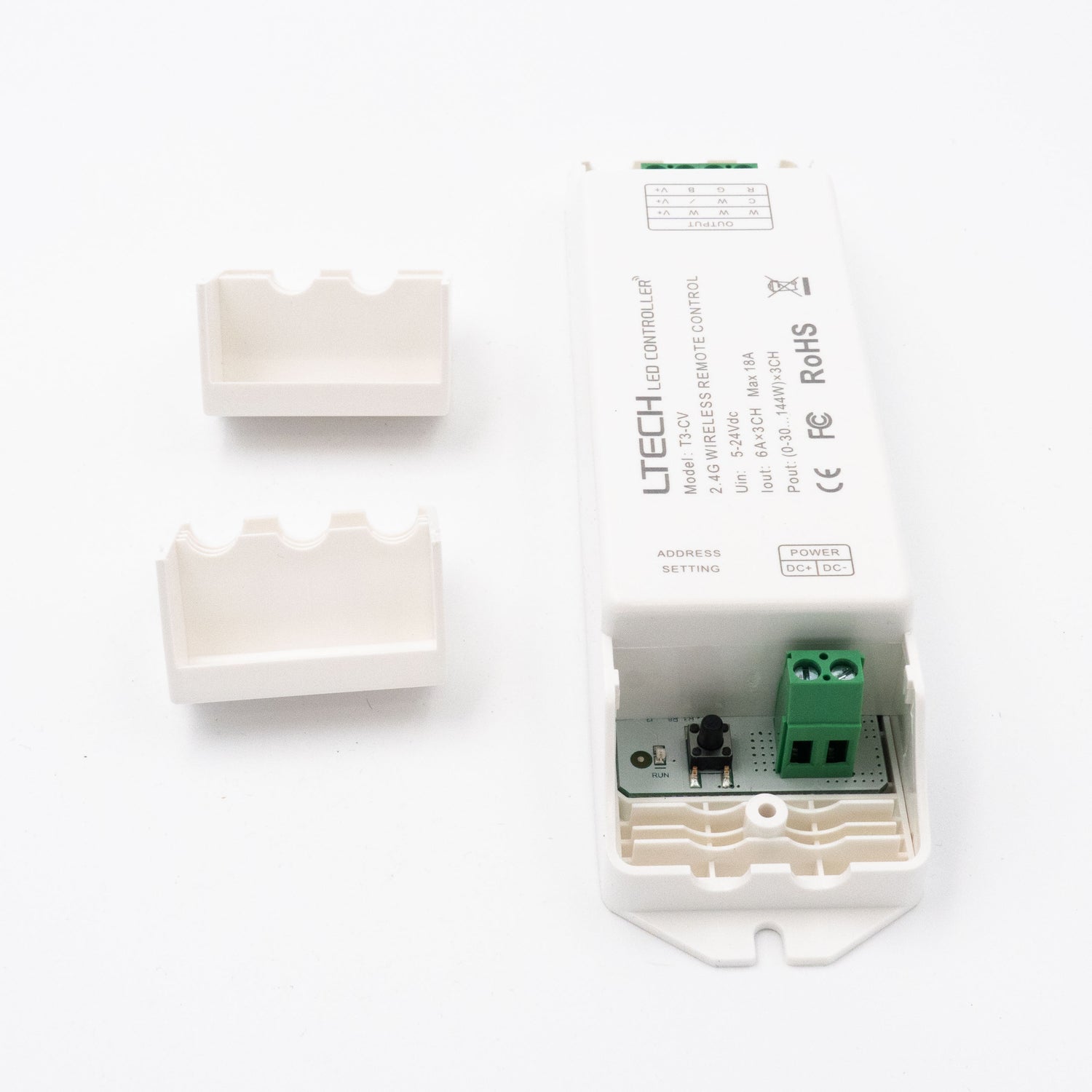

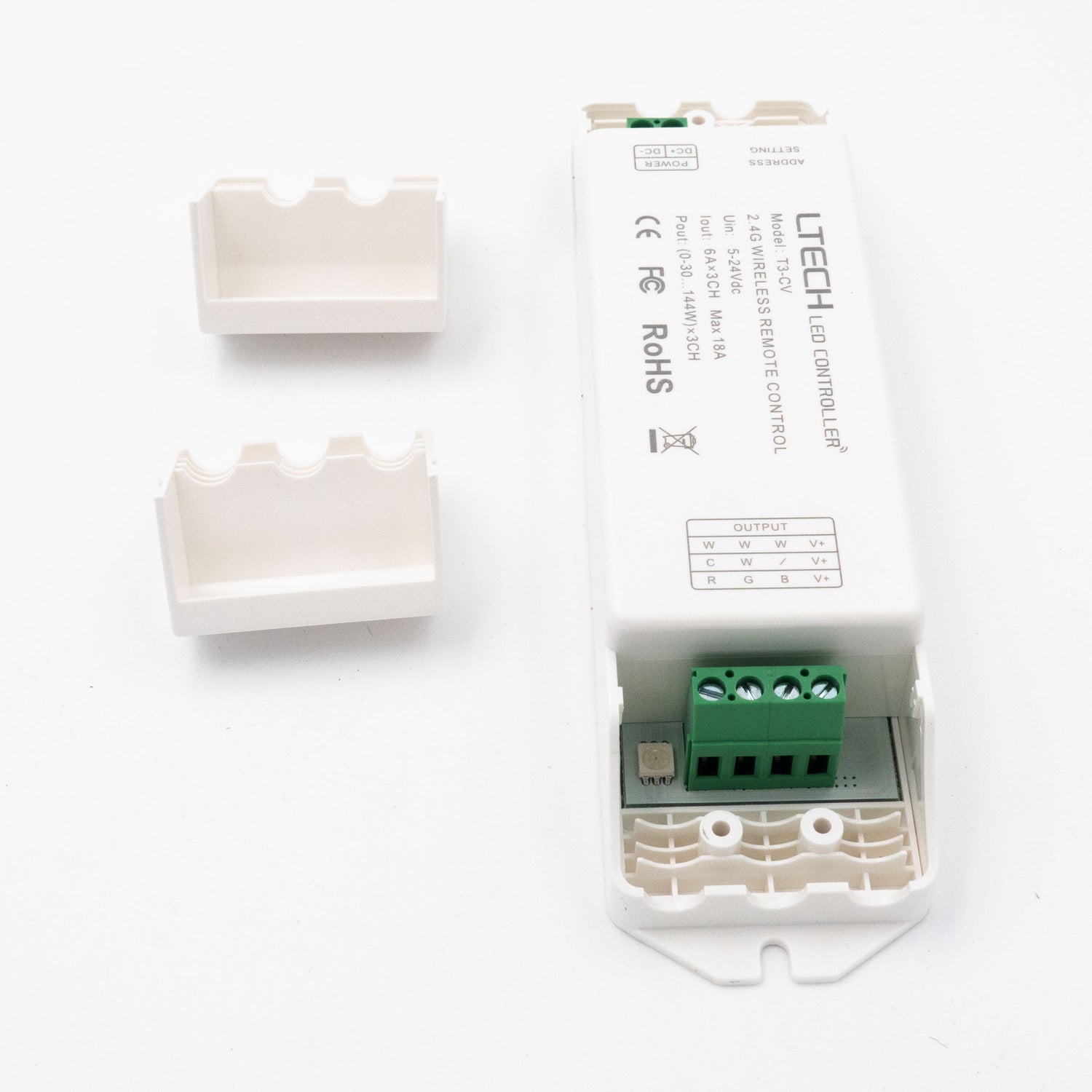

The receiver requires a low voltage input. It receives an RF control signal from a T1/2/3 controller in order to supply the correct dimming output across 3 channels. The input and output is via screw terminals on the sides of the unit.
The receiver operates on a low voltage 5~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech T Series
-
Power Rating432 Watt
-
Output Voltage24 Volt
-
Rated Current18 Ampere
-
Input Voltage5V~24V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.4 cm
-
Height3 cm
-
Weight0.14 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech T3-CV used for?
The Ltech T3-CV is a wireless RF constant voltage controller for low voltage LED lighting circuits. It is designed to control single-colour, bi-colour, or RGB LED strip applications using three output channels.
Which controllers is the T3-CV compatible with?
This model is designed for use with Ltech T1, T2, and T3 series controllers. It works as a wireless zone receiver that responds to RF control signals from those compatible controller series.
What are the main electrical ratings of the T3-CV?
The T3-CV is rated for 24 V output, 18 A current, and up to 432 W power. These published ratings make it suitable for constant voltage low voltage LED control within those limits.
Is the T3-CV suitable for RGB lighting control?
Yes. With three output channels, the T3-CV is suitable for RGB LED strip control, and it can also be used for single-colour or bi-colour applications. That makes it a flexible option for several low voltage lighting types.
Can the T3-CV be used in demanding temperature conditions?
This controller is rated for operation from -30 °C to 55 °C. That range makes it suitable for a variety of commercial and industrial indoor or protected-environment applications where temperature tolerance matters.
How does the T3-CV differ from a standard dimmer?
The T3-CV is specifically an RF constant voltage wireless receiver rather than a basic standalone dimmer. Its key distinction is compatibility with Ltech T1, T2, and T3 series RF controllers while supporting three-channel LED control.
What warranty is offered for the Ltech T3-CV?
The published warranty period for this model is 5 years. That longer warranty can be useful for buyers evaluating products for professional or ongoing commercial use.
