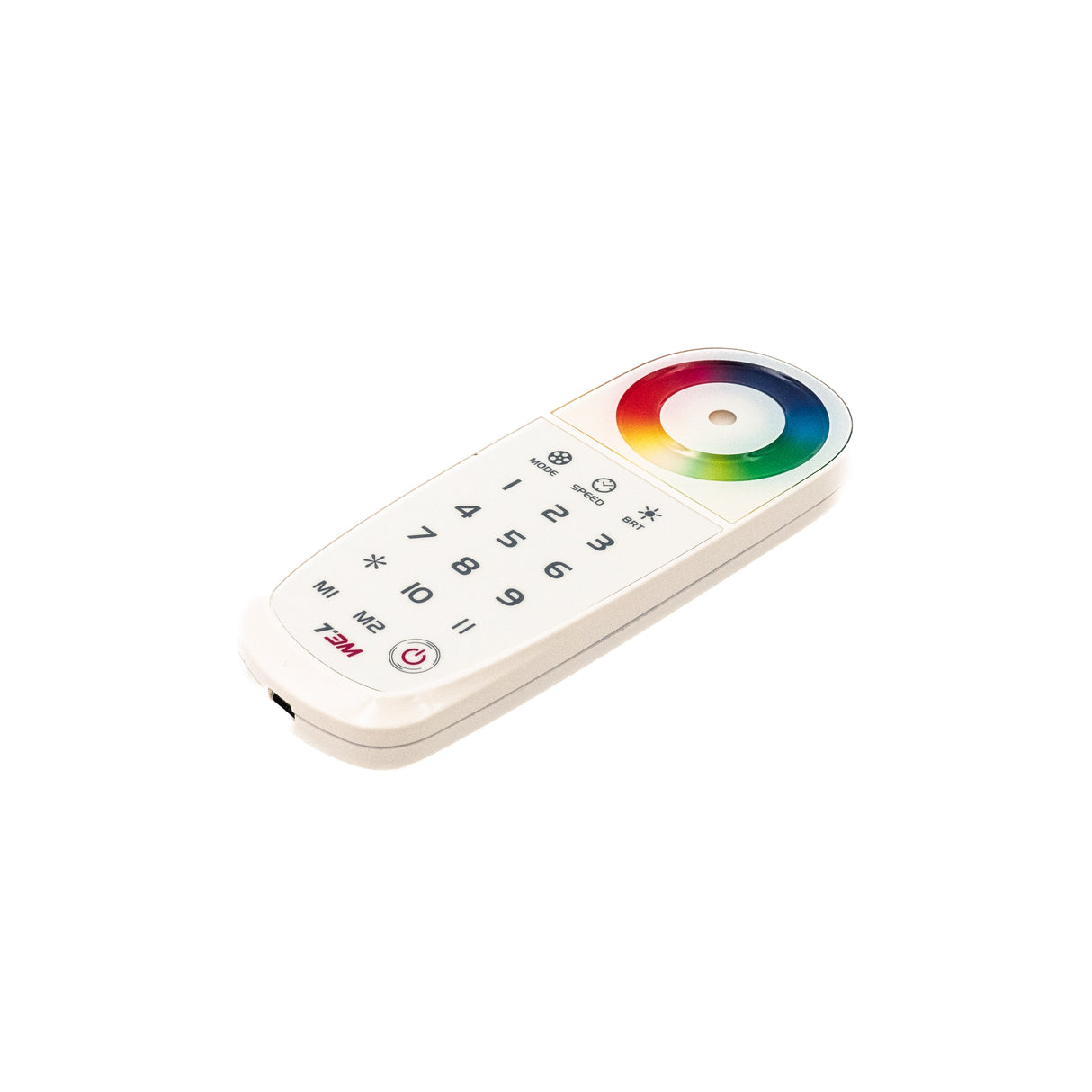

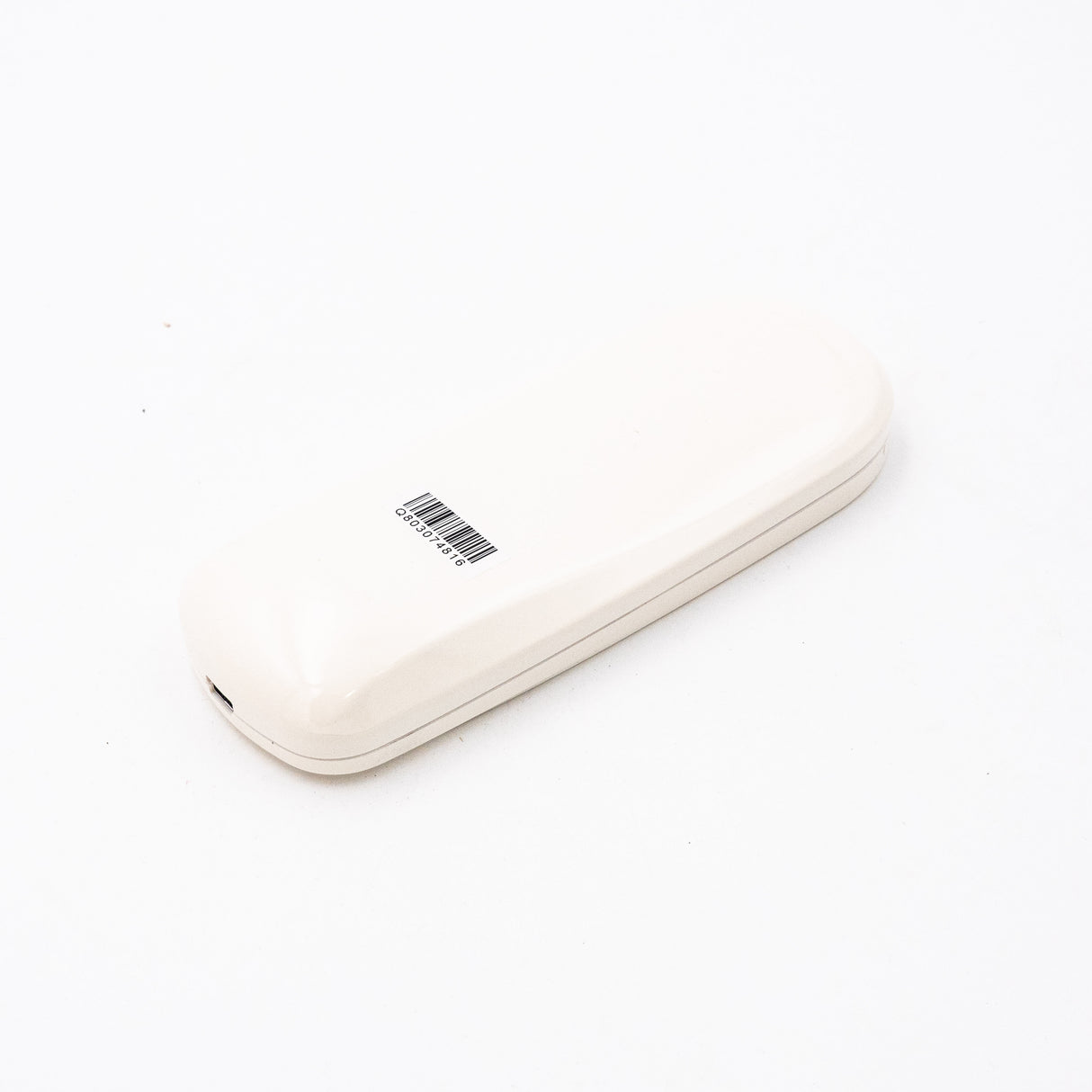

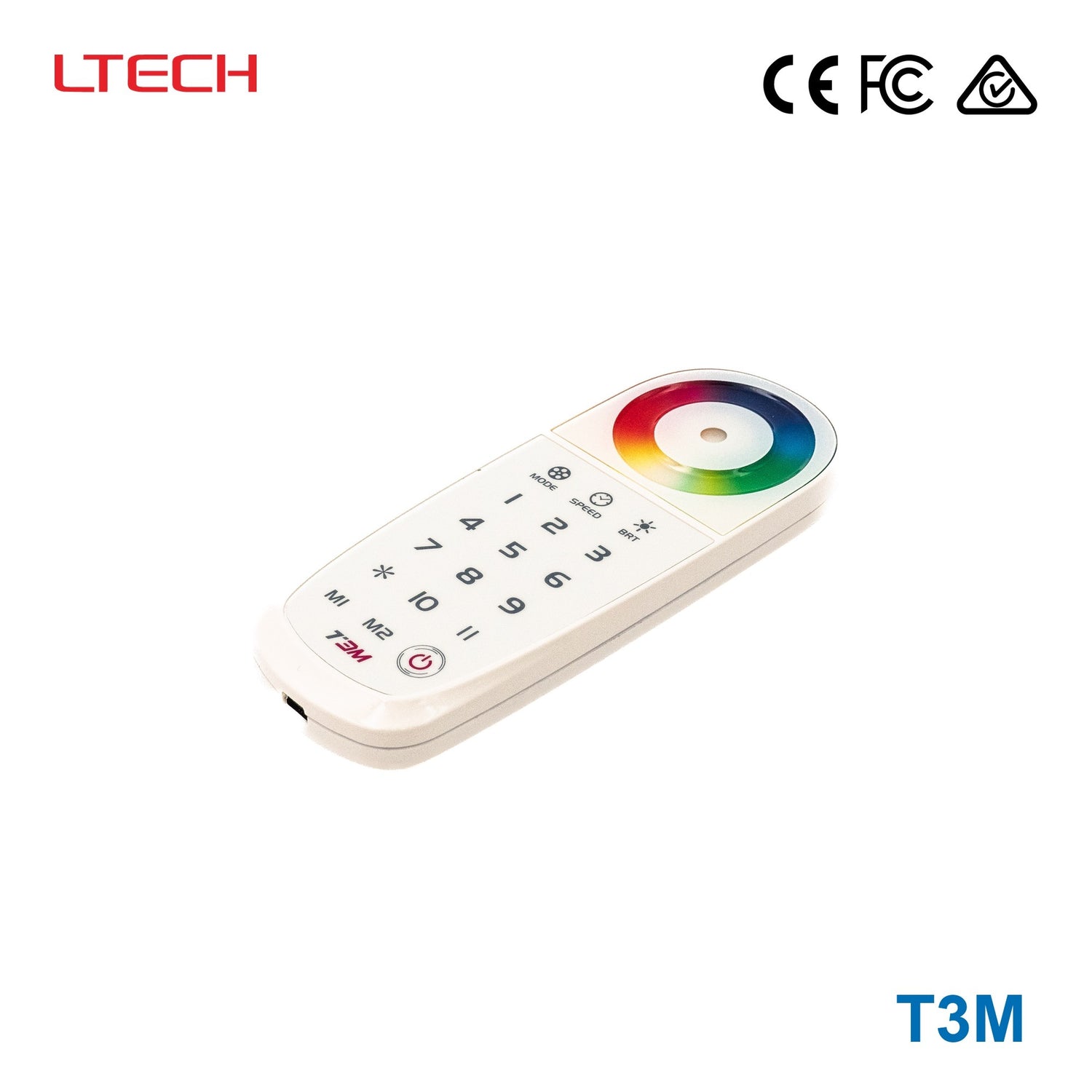

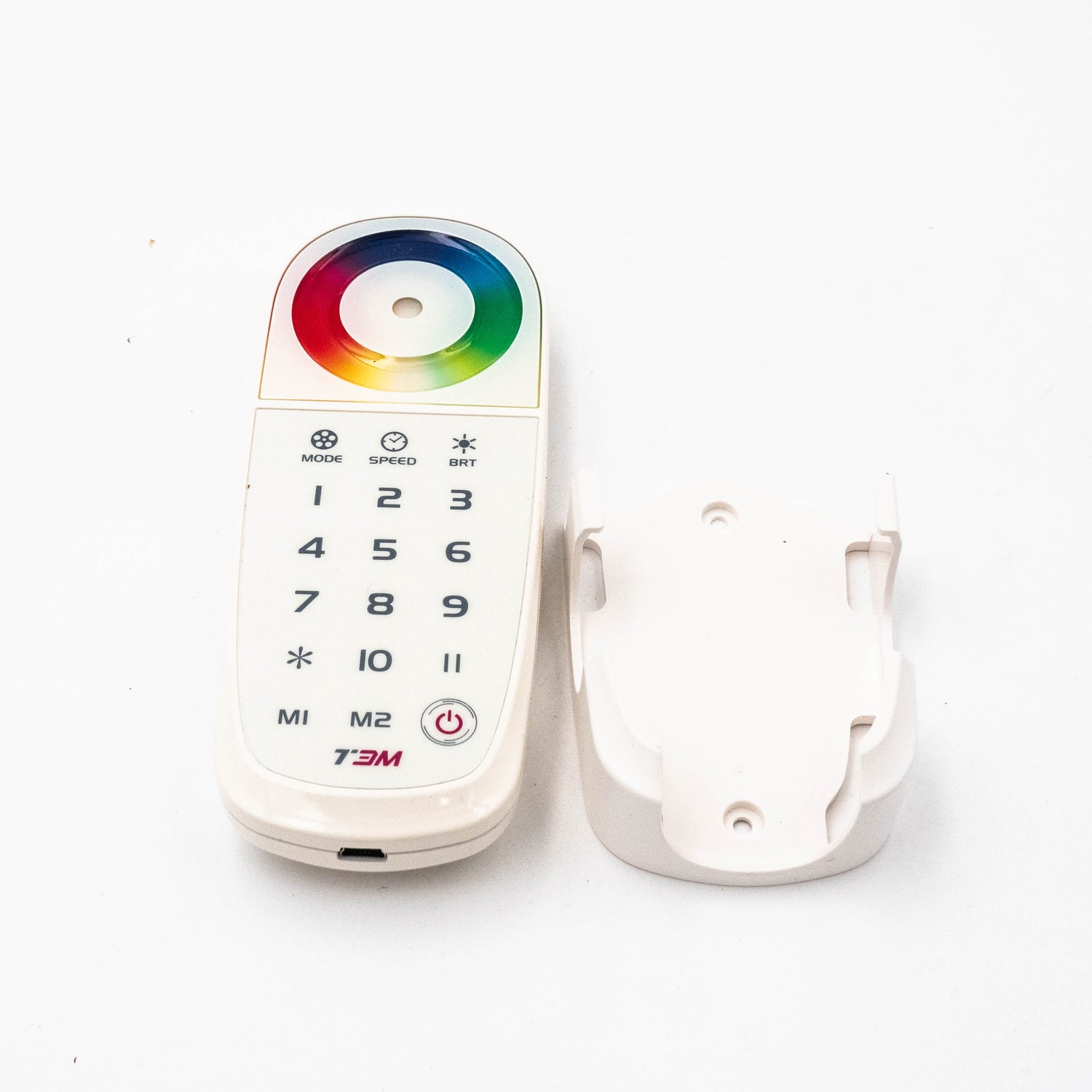

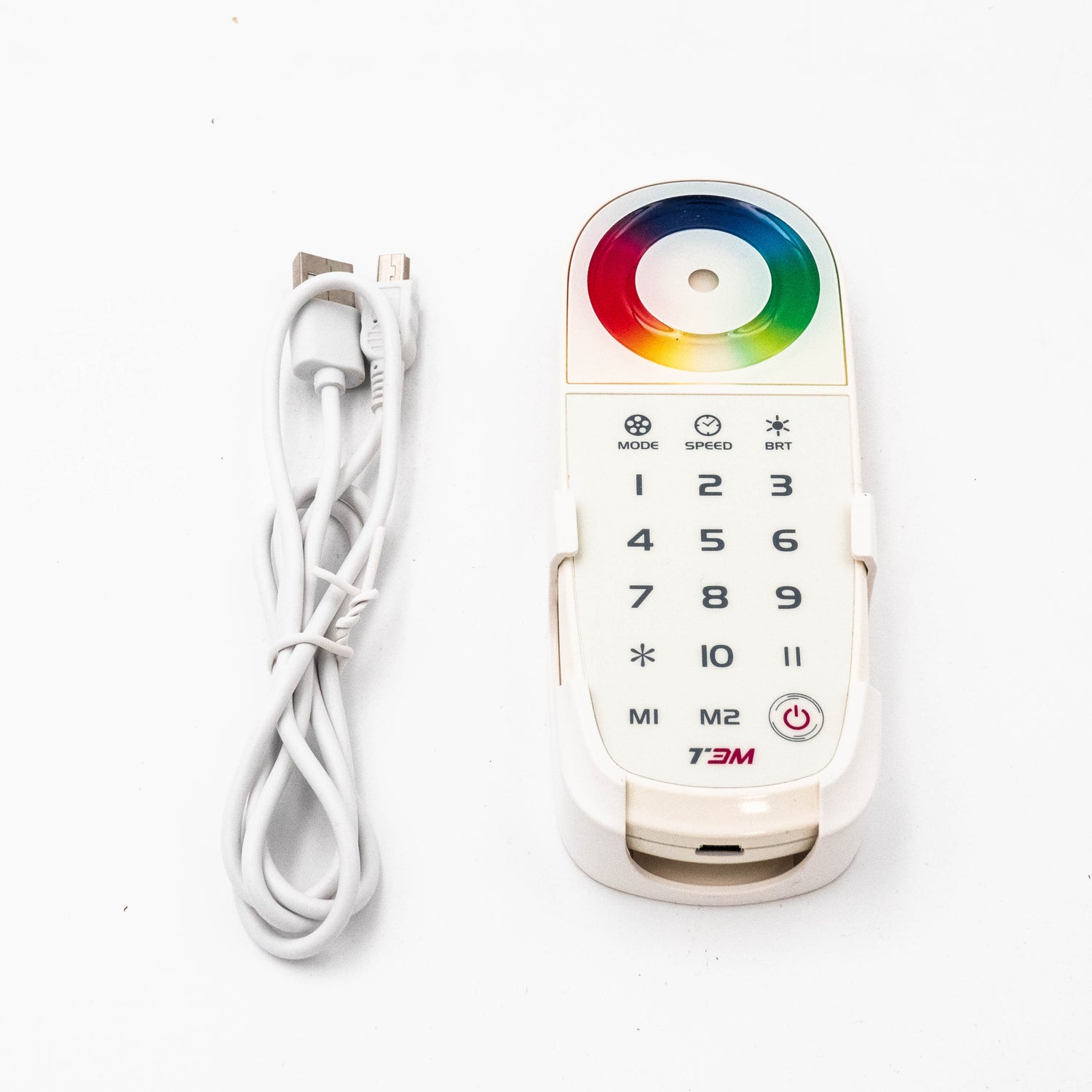

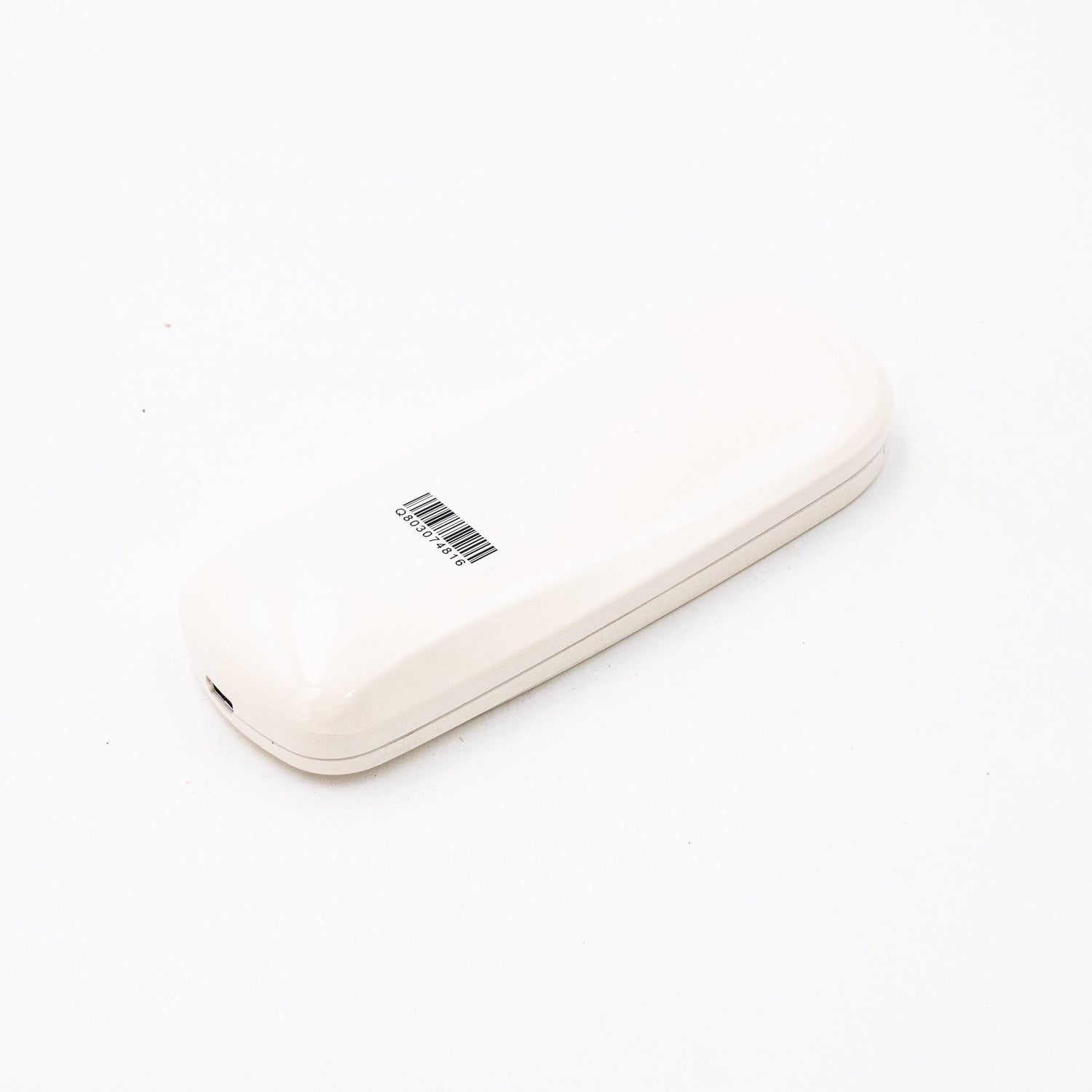

Ltech T3M Wireless RF Multi-zone Remote - RGB
Log in to see priceOverview
T3M is the DC3V-DC46V output model of this series.
T3M is the 2.4GHZ RF wireless synchronization/zone RGB controller which adopts LTECH multiple globalinitiate technology. The control system consists of two parts, the RF remote control and receiver, realize the signal synchronization on multiple receivers, zone controlled arbitrarily (no more than 10 zones) within effective distance, a very good solution for the LED project needs sync control wirelessly. User-friendly touch full-color wheel for color selection, unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote control. Can RF remote the functions of switch, pause, changing modes, changing speed and the brightness and so on. Satisfied with your requirement of sync control multiple zones, group control or control separately, which t is easy to use.
Specifications
T3M Remote Control
- Input Voltage
- DC5V Built-in Lithium Battery
- Battery Capacity
- 1000mAh
- Working Current
- <30mA
- Standby Time
- 6 months
- Working Frequency
- 2.4GHZ
- Normal Using Time
- 30 days
- RF Remote Distance
- 30m
- Dimension
- L145×W55×H22(mm)
- Remote Option
- Sync or Zone Control
- Package Size
- L168×W102×H28(mm)
- Change mode
- 18 Fantastic modes
- Weight (G.W.)
- 200g
T3-5A CV Receiving controller
- Input voltage
- DC12V-DC24V
- Working temperature
- -30℃～55℃
- Max current load
- 5A×3CH Max 15A
- Dimension
- L211×W40×H30mm
- Max output power
- 180W/360W(12V/24V)
- Package size
- L215×W42×H32mm
- Control button
- 8 touch button
- Weight (G.W.)
- 180g
- Compatible remote control
- workable with T3, T3M, T3X
T3-CV Receiving controller
- Input voltage
- DC5V-DC24V
- Max current load
- 6A×3CH Max 18A
- Max output power
- 90W/216W/432W(5V/12V/24V)
- Compatible remote control
- T1/T2/T2M/T3/T3M/T3X
- Working temperature
- -30℃~55℃
- Dimension
- L175×W44×H30(mm)
- Package size
- L178×W48×H33mm
- Weight (G.W.)
- 150g
T3-CC Receiving controller (current 3 in 1)
- Input voltage
- DC12V-DC48V
- Output voltage
- DC3V-DC46V
- Output current
- CC 350/700/1050mA ×3CH
- Output power
- 1.05W~48.3W ×3CH Max 144.9W
- Compatible remote control
- T1/T2/T2M/T3/T3M/T3X
- Working temperature
- -30℃~55℃
- Dimension
- L175×W44×H30(mm)
- Package size
- L178×W48×H33mm
- Weight (G.W.)
- 160g
Protection
- Protection
- non-waterproof
Certifications & ratings
- warranty
- 5 years
- Certification marks
- FCC, CE, RoHS, ISO9001
Technical drawings
Downloads
FAQ
What does the Ltech T3M control?
The Ltech T3M is a 2.4GHz RF wireless multi-zone remote designed for RGB lighting control. It is intended for use in an LTECH synchronization control system where a remote works with receiver units to control RGB LED lighting wirelessly.
How many zones can the T3M manage?
The T3M remote supports Sync or Zone Control modes. The specific number of zones is determined by the system configuration and the receiving controllers used, rather than a fixed limit on the remote itself.
Is the T3M meant for single-zone or synchronized multi-receiver projects?
The T3M is built for synchronized wireless control across multiple receivers, not just a single point of control. Its product description specifically highlights signal synchronization and zone-based control for LED projects that need coordinated RGB operation.
What kind of user interface does the T3M have for color control?
The T3M features 8 touch buttons for control. It is designed for RGB lighting control, allowing users to select colors and modes via the touch interface.
What operating temperature range is supported by the T3M?
The T3M remote itself is powered by a built-in DC5V lithium battery. The receiving controllers it pairs with have an operating temperature range of -30°C to 55°C.
Does the T3M include a warranty?
Yes. This model carries a 5-year warranty period, which is useful for commercial and project-based buyers who want longer-term coverage on control hardware.
Is the T3M a lightweight remote for project handling and stock planning?
Yes. The T3M remote has a gross weight of 200g, making it a lightweight control component for quoting, handling, and inventory planning.
