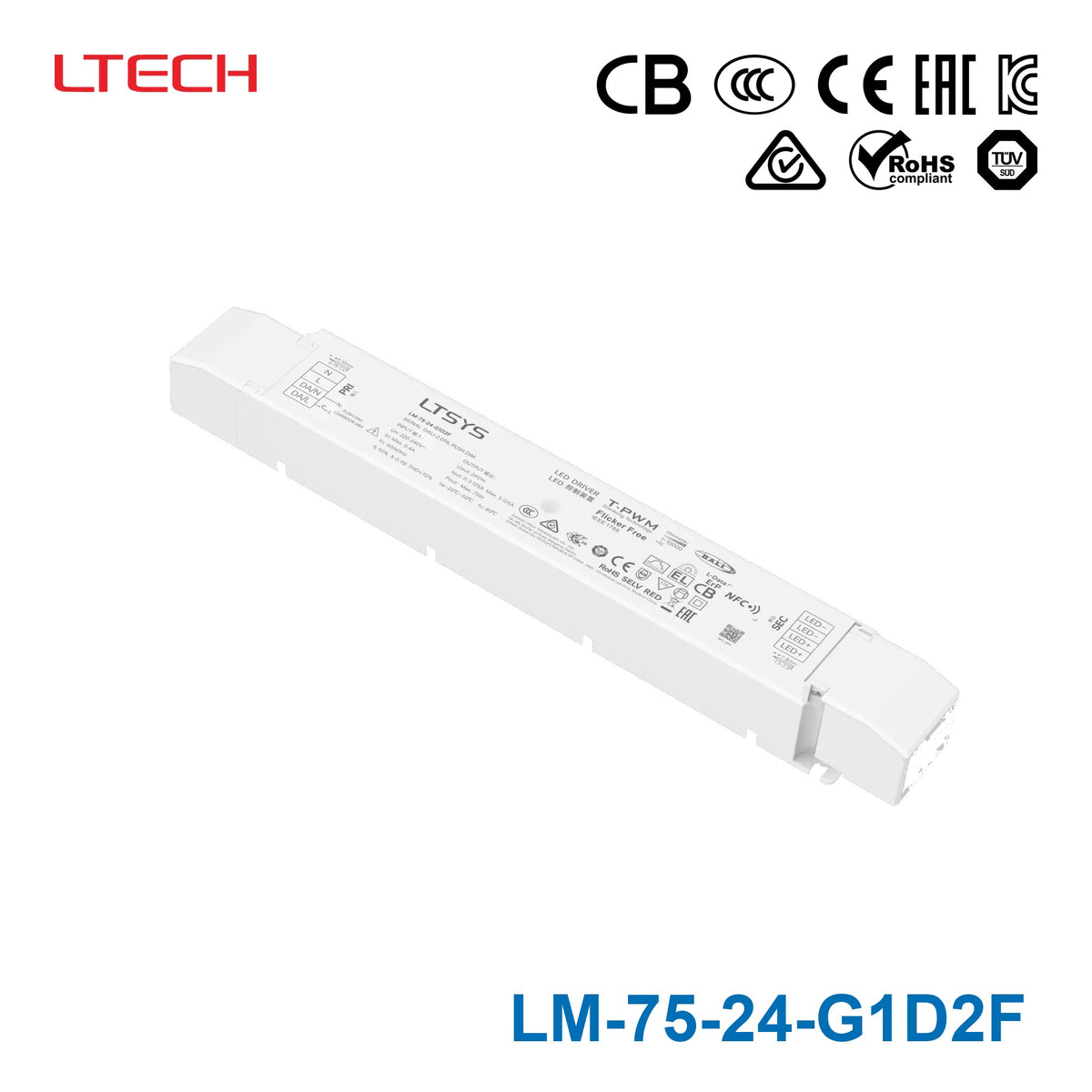

Ltech LM-75-24-G1D2F 75W 24V NFC CV DALI-2 LED Driver 3.125A

NFC programmableDALI-2 DT6Push DIMadjustable length housing5yr warranty

SKU LM-75-24-G1D2F

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LM-75-24-G1D2F is a 75W constant voltage LED driver with a 24Vdc output, so it is intended for 24V constant voltage LED lighting applications. It is suited to indoor luminaires that need DALI-2 DT6 or Push DIM control and benefit from deep dimming performance.

Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: DALI
✓Output voltage: 24V
✓Rated output current: 3.125A
✓Rated power: 75W
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, KC, RCM, ROHS, TUV
✓Dimensions: 293 x 43 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of LED lighting is the Ltech LM-75-24-G1D2F designed for?

This model is a 75W constant voltage LED driver with a 24Vdc output, so it is intended for 24V constant voltage LED lighting applications. It is suited to indoor luminaires that need DALI-2 DT6 or Push DIM control and benefit from deep dimming performance.

Does this LED driver support DALI-2 control?

Yes. The LM-75-24-G1D2F supports DALI-2 DT6 and also works with Push DIM and corridor light dimming modes. It is additionally listed as compatible with L-Data and DALI Parts 251, 252, and 253.

What are the main output specifications of this model?

The LM-75-24-G1D2F provides a 24Vdc output with a maximum output current of 3.125A and a power range of 0 to 75W. It also features two independent SELV constant voltage output channels.

How low can this driver dim?

This model supports dimming from 0 to 100%, with a minimum dimming level down to 0.01%. That makes it a strong option for projects that need very fine low-end dimming control rather than only basic on/off or limited dimming range.

Can this driver be programmed without dedicated hardware tools?

Yes. The LM-75-24-G1D2F supports full-command NFC fast programming via a mobile app, allowing supported parameters such as dimming mode, brightness range, and DALI templates to be modified. This can be useful for commercial projects that need model-specific configuration flexibility.

Is this LED driver suitable for indoor commercial environments?

Yes, it is designed for indoor use and carries an IP20 rating. Its operating temperature range is -20°C to +50°C, and it is suitable for Class I, II, and III indoor luminaires.

What efficiency and energy performance does this driver offer?

The LM-75-24-G1D2F has a typical efficiency of 92% and a power factor above 0.98 at 230V under full load. It is also EU ERP compliant, with no-load power consumption below 0.5W and network standby below 0.5W.

What protections and warranty are included with this model?

This driver includes overheat, over-voltage, overload, and short-circuit protection with automatic recovery. It is backed by a 5-year warranty and is rated for a service life of up to 100,000 hours.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech LM-75-24-G1D2 75W 24VDC CV DALI2 LED Driver 3.125A	75W	24V	3.12A	IP20	View
Ltech LM-75-24-G1T2 75W 24VDC CV Triac Driver 3.125A	75W	24V	3.12A	IP20	View
