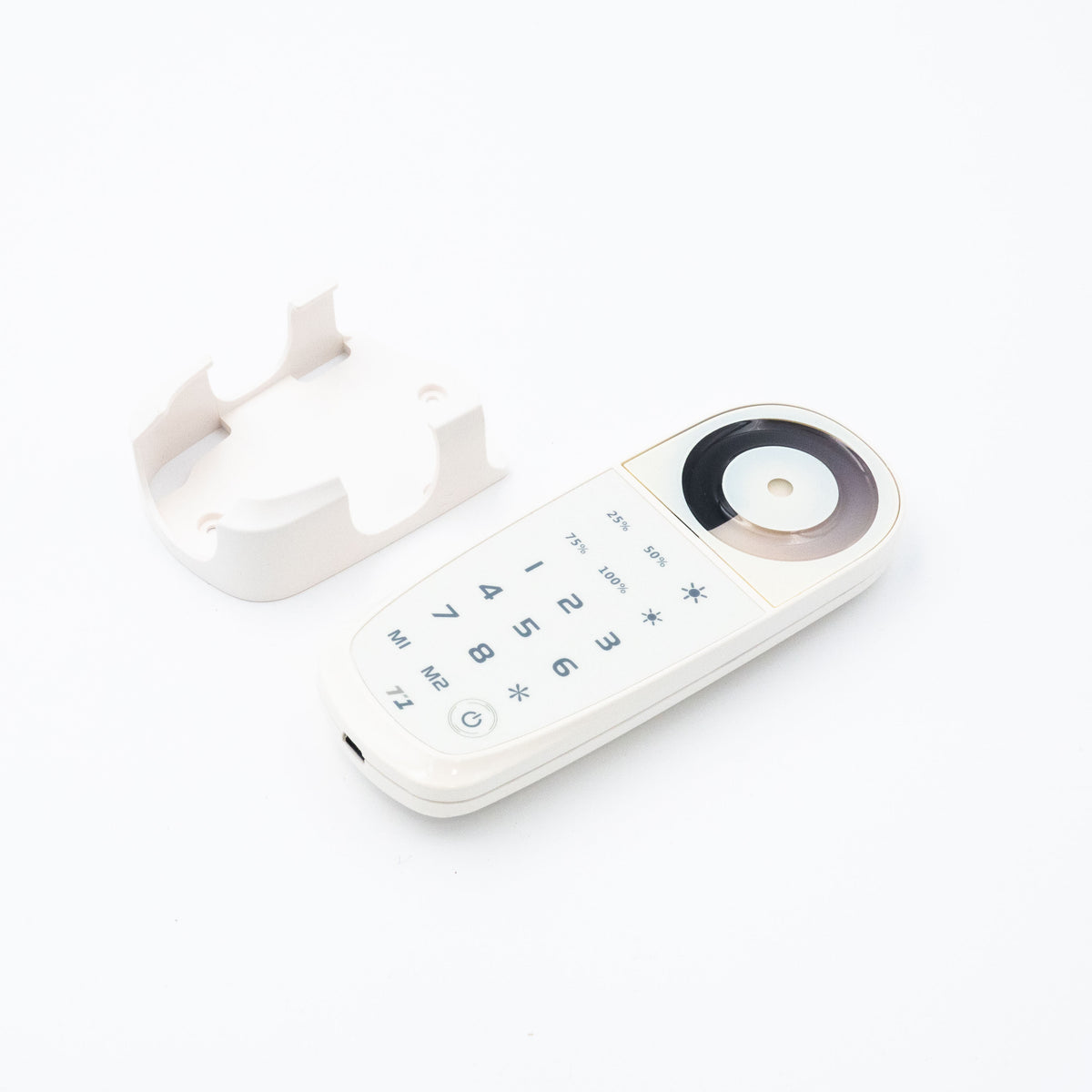

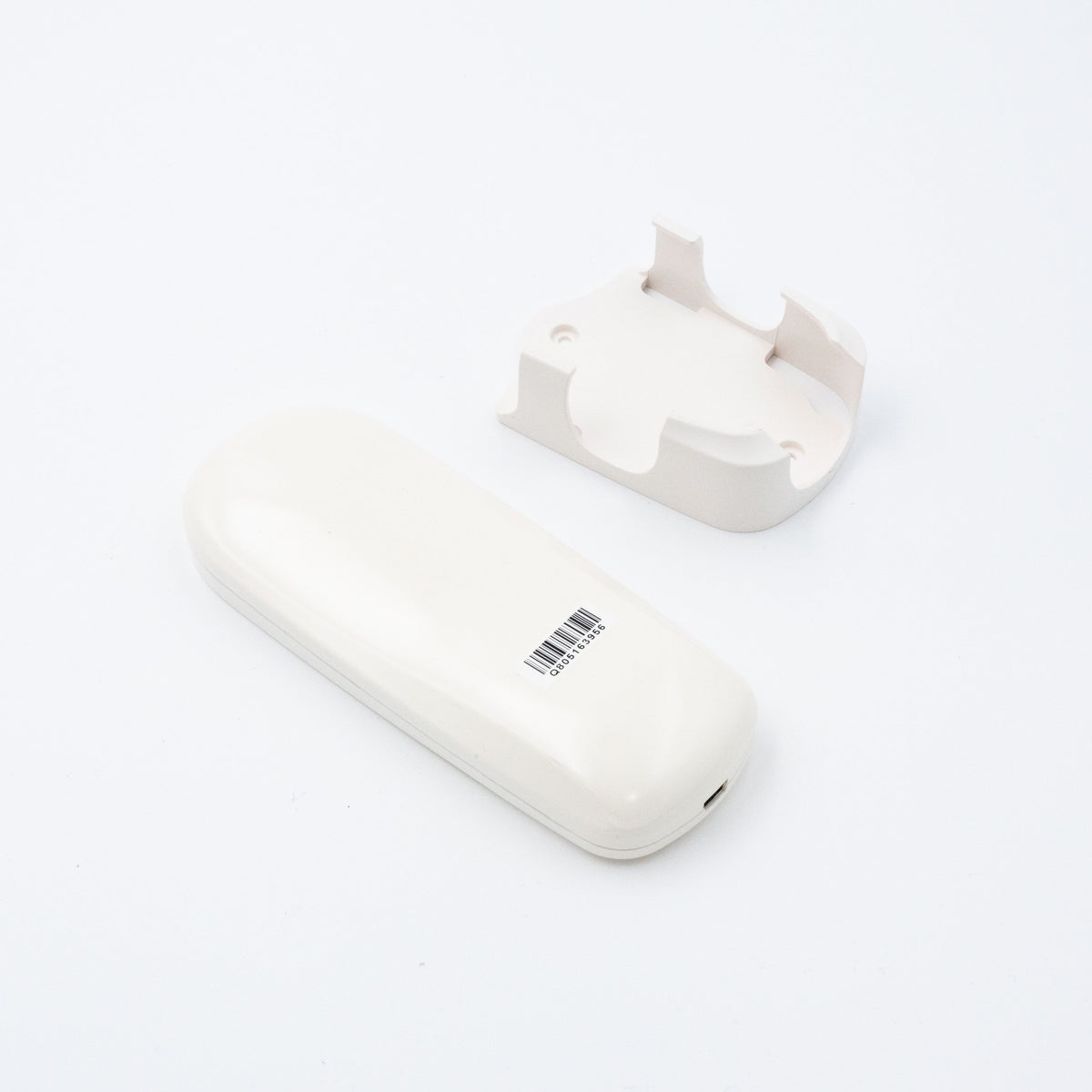

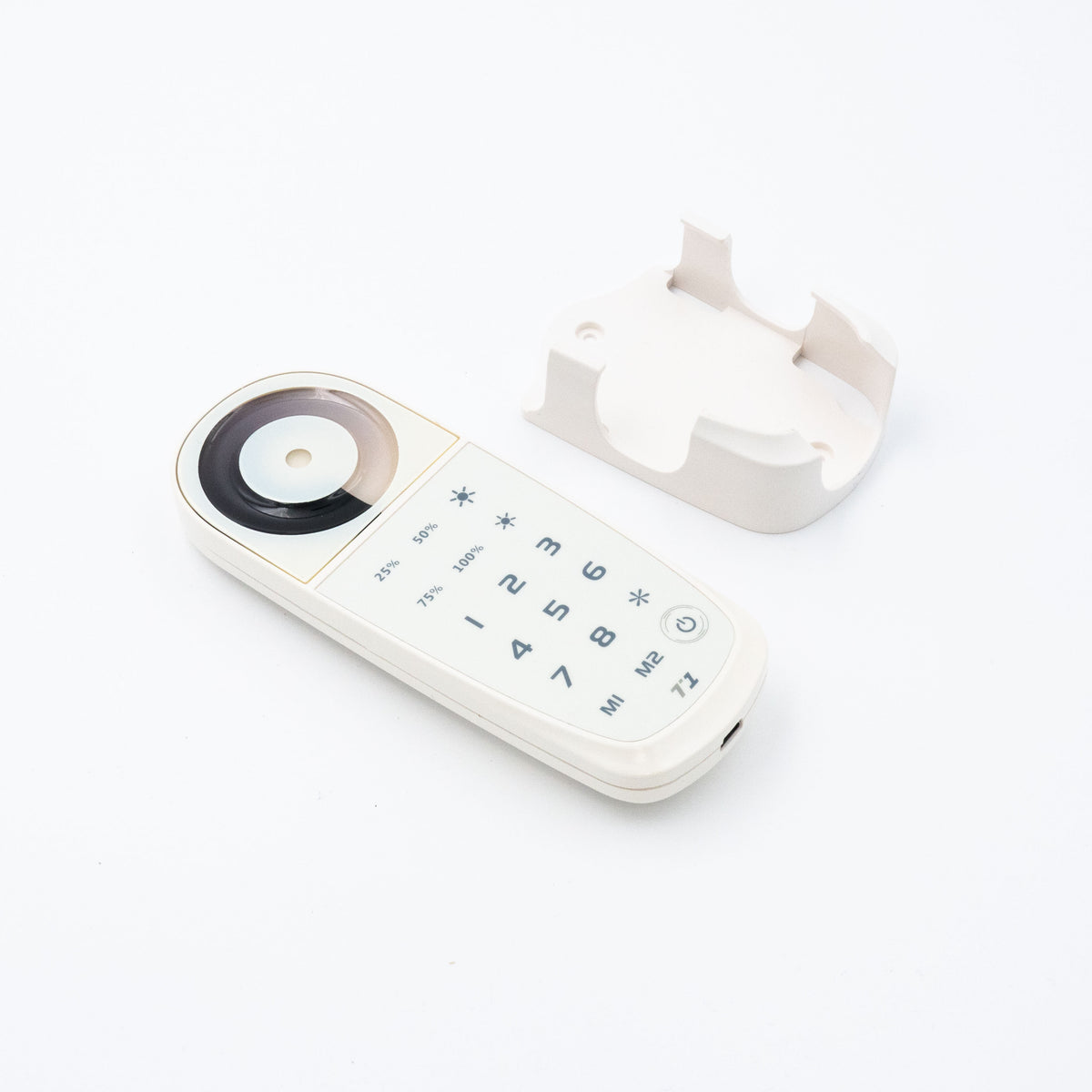

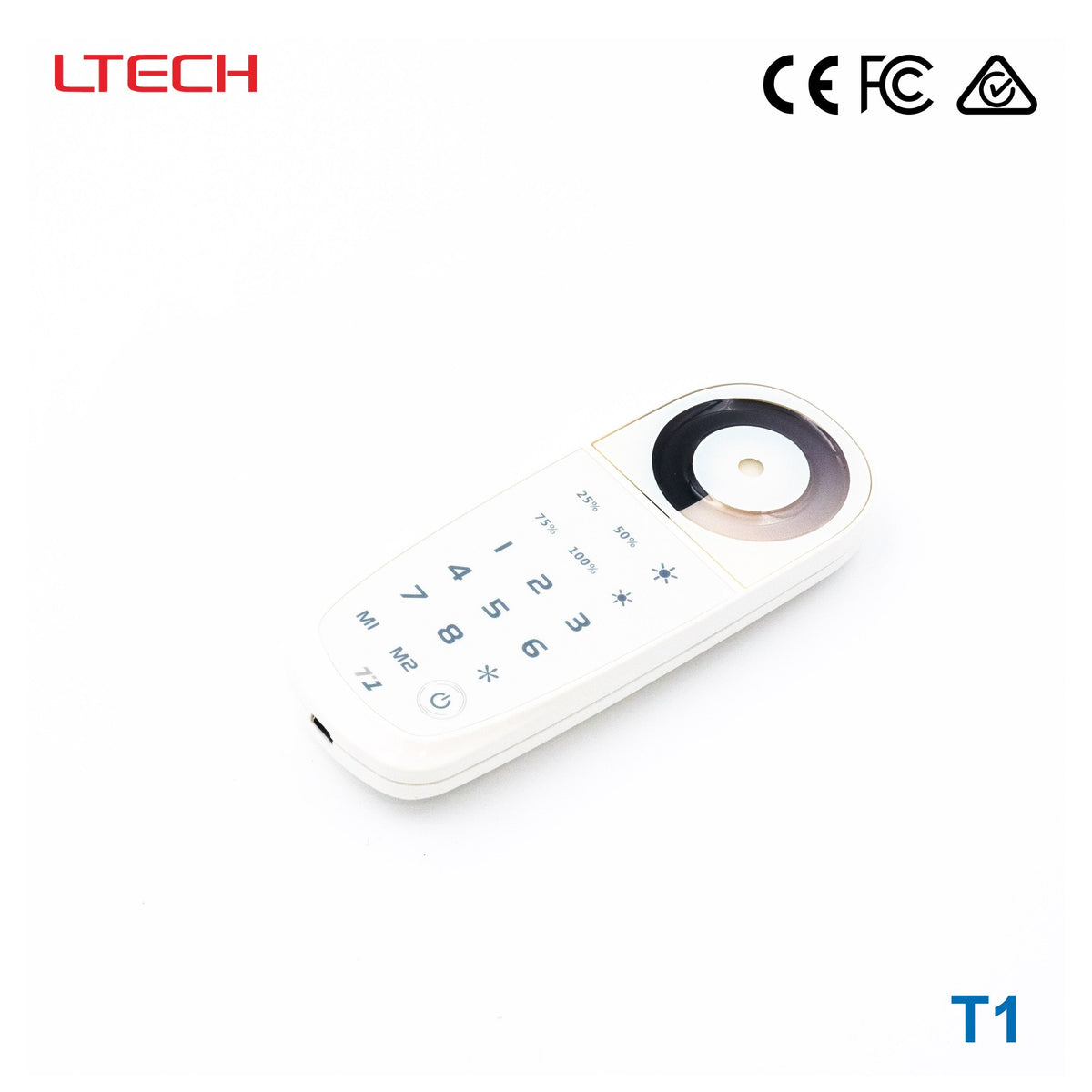

Ltech T1 Wireless RF Multi-zone Remote - Dimming
Log in to see priceThe Ltech T1 is designed for switching and dimming low voltage lighting across multiple zones. It is intended for use with T3-CV zone receivers, which are sold separately. This makes it suitable for buyers who want flexible multi-zone control from a handheld RF remote.
Input 5VDC. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5VDC
- ✓Control protocol: RF
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 145 x 55 x 22mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech T Series
-
Input Voltage5V~5V
-
Standards MetCE,FCC,RCM
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length14.5 cm
-
Width5.5 cm
-
Height2.2 cm
-
Weight0.23 kg
::specification::
Frequently Asked Questions
What is the Ltech T1 Wireless RF Multi-zone Remote used for?
The Ltech T1 is designed for switching and dimming low voltage lighting across multiple zones. It is intended for use with T3-CV zone receivers, which are sold separately. This makes it suitable for buyers who want flexible multi-zone control from a handheld RF remote.
How many lighting zones can the Ltech T1 control?
This remote can control up to eight lighting zones. Each zone can be adjusted individually or grouped together for combined control. That gives it more flexibility than a single-zone dimming remote.
Does the Ltech T1 support preset brightness levels?
Yes, the remote includes four preset brightness levels: 25%, 50%, 75%, and 100%. It also has M1 and M2 buttons for two custom scene selections. These options make it quicker to recall common lighting levels without manual readjustment.
What type of wireless control does the Ltech T1 use, and what is its range?
The Ltech T1 uses a 2.4GHz RF wireless signal for control. Its stated operating range is up to 30 meters. This makes it a practical choice where line-of-sight control is not ideal.
How does the Ltech T1 show the selected dimming level?
The remote is fitted with an LED indicator that shows the brightness level currently selected. This provides quick visual feedback during use. It helps users confirm the current dimming level without guesswork.
Is the Ltech T1 suitable for demanding temperature conditions?
This model is rated for operation from -30°C to 55°C. That gives it a relatively broad working temperature range for indoor or appropriate controlled-use environments. Buyers should still ensure the surrounding application stays within those published limits.
What products is the Ltech T1 compatible with?
The product description states that the T1 is used with T3-CV zone receivers. Those receivers are required for its intended multi-zone dimming application and are available separately. Compatibility beyond that is not specified in the provided product data.
