How many channels does the T4-CV support?

This model is a 4-channel controller. That makes it suitable for RGBW lighting setups that need separate control across four channels.

What control method does the T4-CV use?

The T4-CV uses RF dimming control and operates on 2.4GHz wireless synchronization technology. Its product description emphasizes wireless synchronization between receivers for coordinated lighting effects.

What are the electrical ratings for the Ltech T4-CV?

The rated output voltage is 24V, with a rated current of 20A. The listed power rating for this model is 480W.

Is the T4-CV a constant voltage controller?

Yes, the T4-CV is specifically a constant voltage controller. That makes it a fit for lighting systems and applications designed around constant voltage control rather than constant current operation.

What environments is the T4-CV rated for?

The specified operating temperature range is from -30°C to 55°C. This gives it a broad working range for projects that may face colder or warmer ambient conditions.

What warranty comes with the Ltech T4-CV?

This model includes a 5-year warranty. That can be valuable for commercial buyers who want longer-term coverage for lighting control components.

1 6

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Ltech

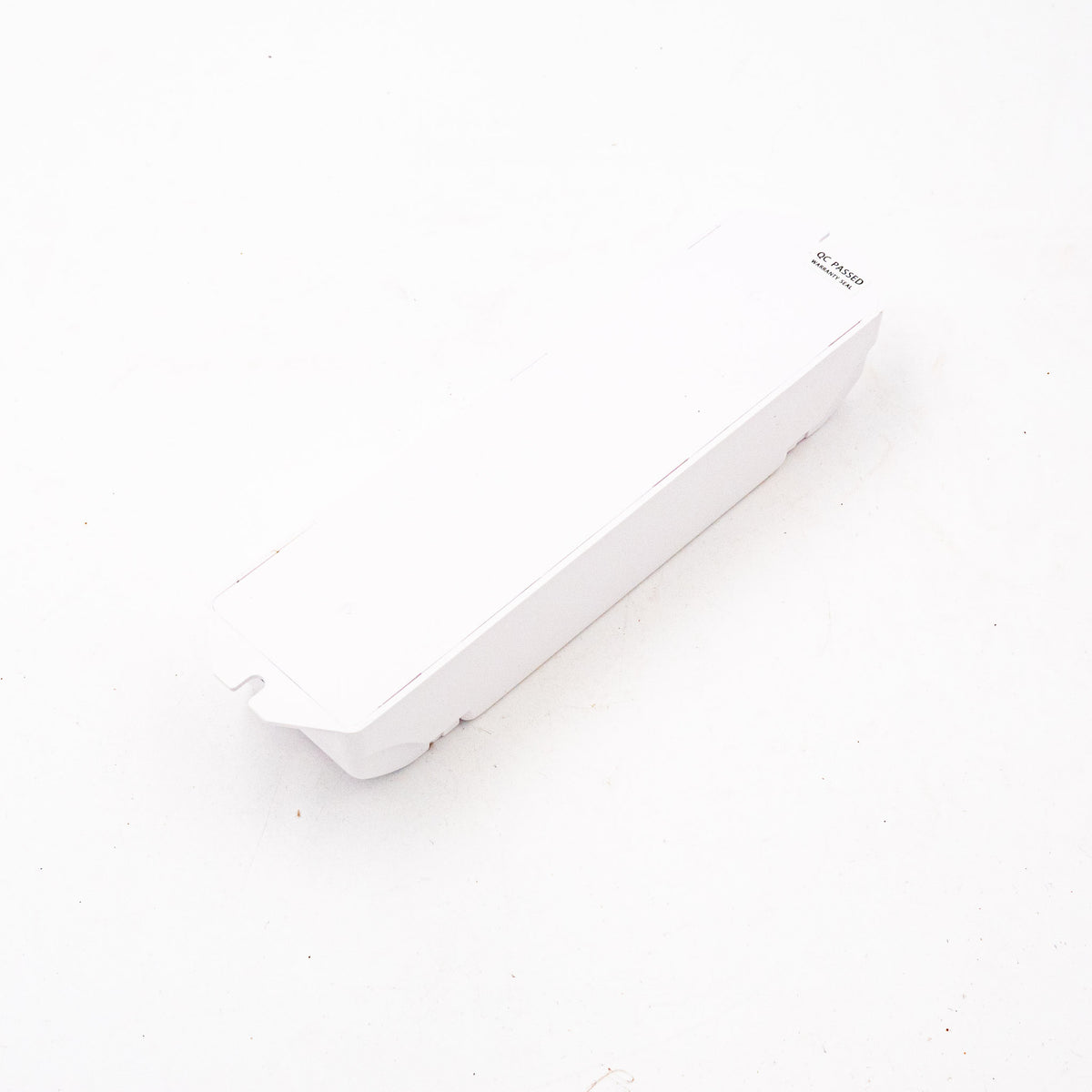

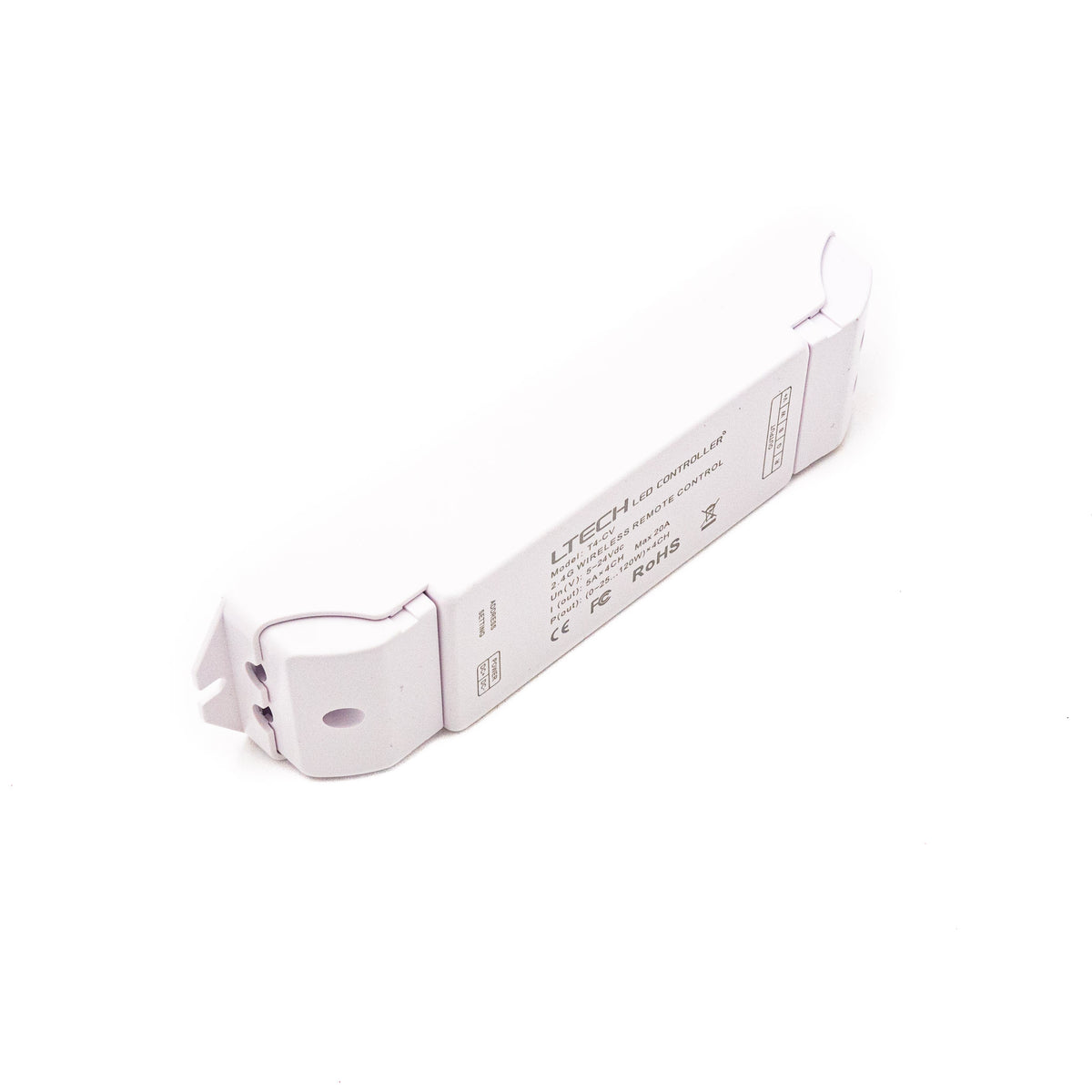

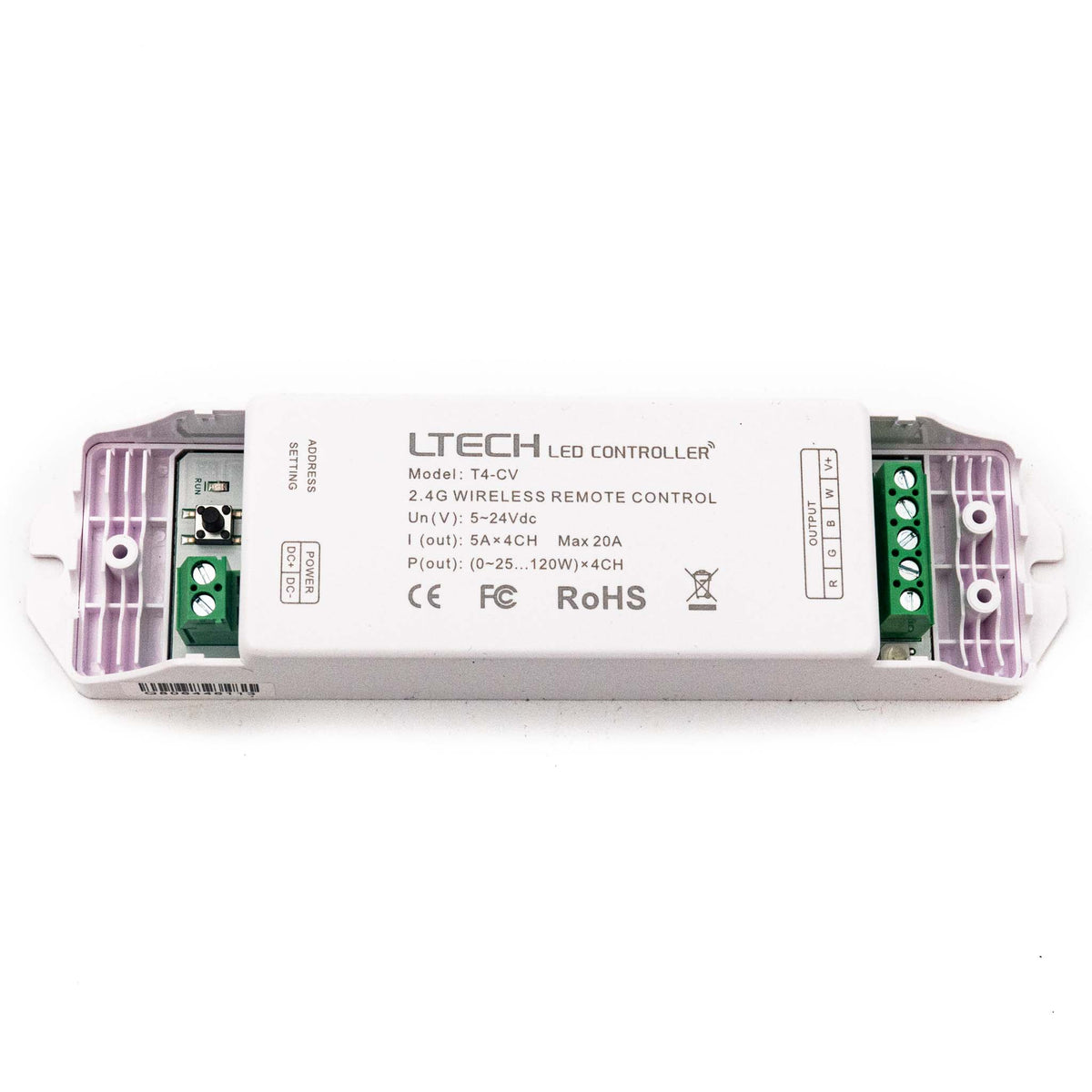

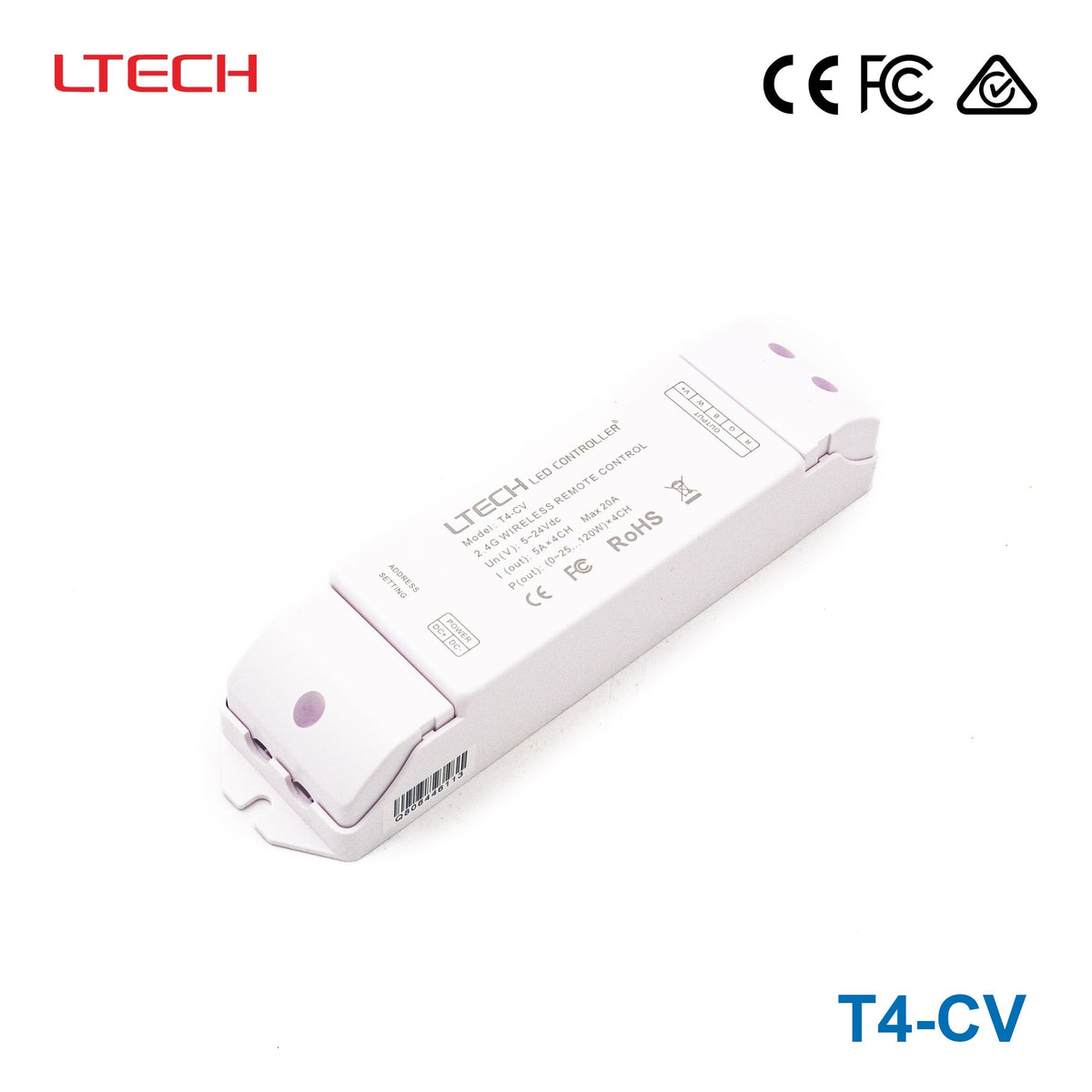

Ltech T4-CV Wireless RF Constant Voltage Controller - 4 Channel

SKU T4-CV

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech T4-CV is a wireless RF constant voltage controller designed for multi-channel LED lighting control. It is intended for RGBW lighting applications where synchronized wireless control and zone-based operation are important.

Input 5~24VDC. 4 channels at 5A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 5~24VDC
✓Control protocol: RF
✓Output channels: 5A - 4 Channel
✓Maximum load: 5A per channel
✓Maximum total load: 480W
✓Operating temperature: -30~+55°C
✓Certifications: CE, FCC, RCM
✓Dimensions: 175 x 44 x 30mm
✓5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Outputs	Output Type	Dimming
Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel	3	RF Signal	RF Signal	View
Ltech T3 Wireless RF Single-zone Remote - RGB	—	RF Signal	RF Signal	View
Ltech T1 Wireless RF Multi-zone Remote - Dimming	—	RF Signal	RF Signal	View
Ltech T4 Wireless RF Multi-zone Remote - RGBW	—	RF Signal	RF Signal	View
Ltech T3M Wireless RF Multi-zone Remote - RGB	—	RF Signal	RF Signal	View
Ltech T3-5A Wireless RF Constant Voltage Controller - 3 Channel	3	RF Signal	RF Signal	View
