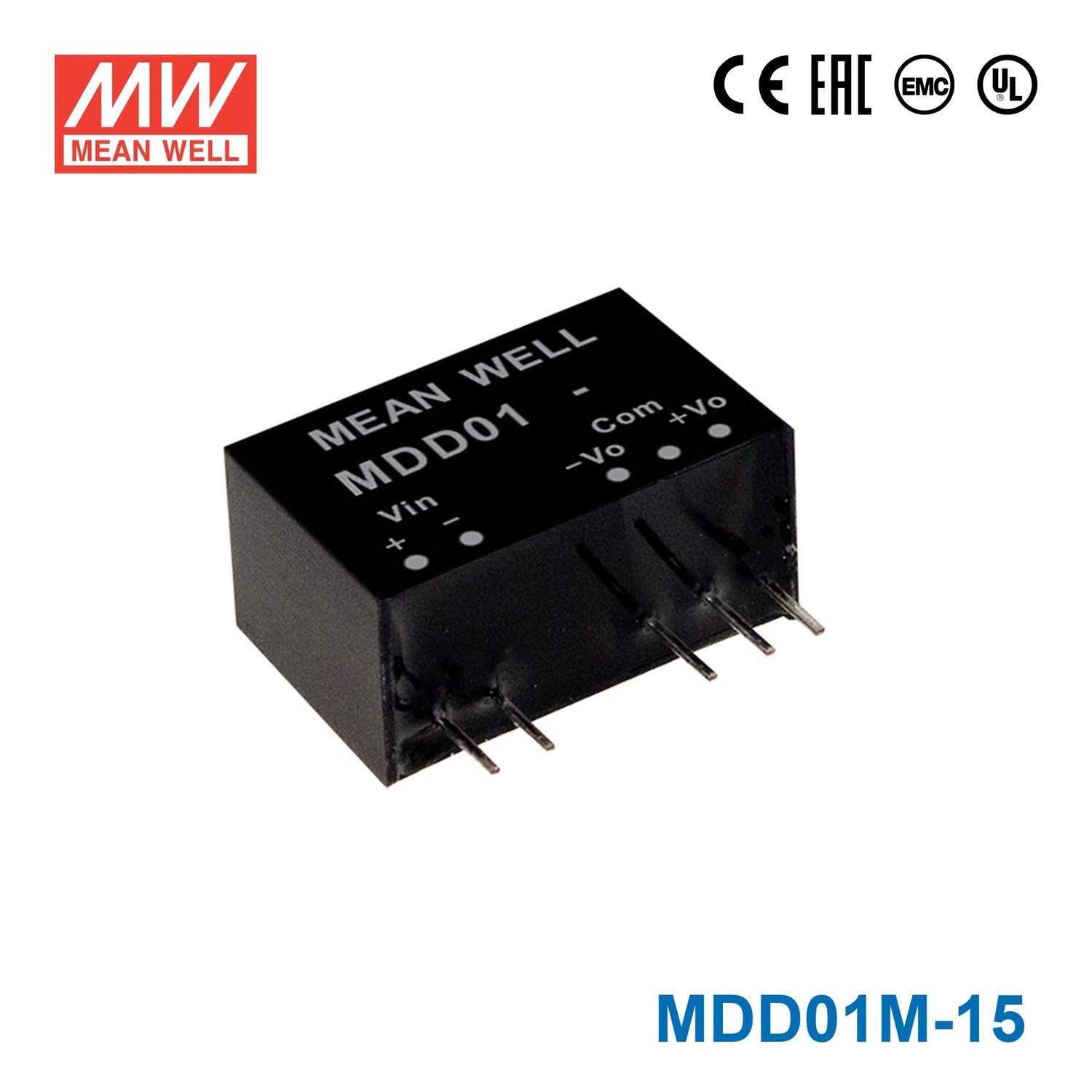

Mean Well MDD01M-15 DC-DC Converter - 1W - 10.8~13.2V in ±15V out 34mA
Log in to see priceThe MDD01M is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL60601-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.03 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.95 cm
-
Width1.25 cm
-
Height0.98 cm
-
Weight0 kg
::specification::
Frequently Asked Questions
Can I use the MDD01M-15 in a 12V control board that needs a small plus/minus supply for analog signal conditioning?
Yes, this model is suited to low-power analog sections that need a ±15V constant-voltage output from a 10.8~13.2V input source. Its 1W rating and 0.03A output current make it a fit for small signal-conditioning, measurement, or interface circuits rather than larger loads.
Is this DC-DC converter appropriate for embedded instrumentation that requires ±15V rails from a nominal 12V source?
It is a practical option when the available input stays within 10.8~13.2V and the downstream circuitry needs ±15V at up to 0.03A. The compact 19.5 × 12.5 × 9.8 mm size also helps where board space is limited.
Can this model power a small op-amp or interface stage inside industrial electronics?
For low-power op-amp, interface, or signal-processing sections, yes. The converter provides constant-voltage ±15V output with a total 1W rating, so it is intended for light auxiliary circuitry instead of higher-current devices.
How does the MDD01M-15 compare with the other MDD01M series options?
Within the listed MDD01M siblings, all are 1W models with different outputs: MDD01M-05 is 5V at 100A, MDD01M-05N is 5V at 16A, MDD01M-09 is 9V at 0.06A, MDD01M-12 is 12V at 0.04A, MDD01M-12N is 12V at 18A, and MDD01M-15N is 15V at 18A. The MDD01M-15 version provides 15V output at 0.03A.
Is the MDD01M-15 suitable for outdoor or harsh-temperature environments?
Its operating temperature range is -40°C to +85°C, which supports use across a wide temperature span. However, no IP rating is listed in the provided specs, so exposed outdoor or washdown suitability is not specified by this product data.
