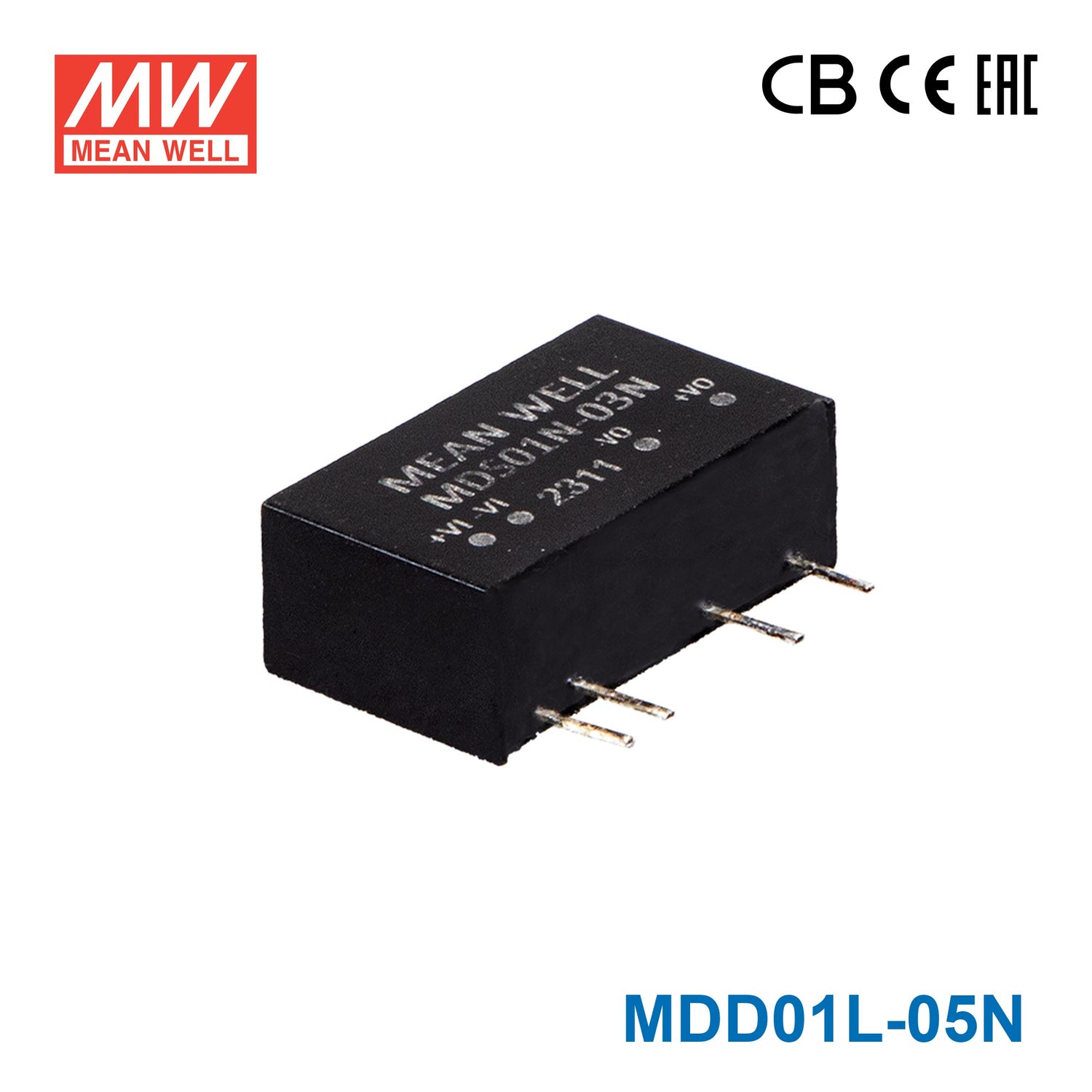

Mean Well MDD01L-05N SIP Package DC-DC Converter- 1W - ±5V out 30mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.03 Ampere
-
Input Voltage4.5V~5.5V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of product is the Mean Well MDD01L-05N?
The MDD01L-05N is a 1W SIP package DC-DC converter module from Mean Well. This specific model provides a ±5V output and is designed for compact embedded power applications where reinforced isolation and medical safety approvals are important.
What are the key electrical ratings of the MDD01L-05N?
This model is rated for 1W output power and provides a ±5V output. The product data also lists a rated current of 30 mA, and the MDD01L series includes a 5V input option with a 4.5 to 5.5V input range.
Is the MDD01L-05N suitable for medical or safety-sensitive equipment?
Yes, this series is described as medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP support. It also features 6KVDC input-to-output isolation and low patient leakage current below 2 microamps, which makes it relevant for applications with strict isolation and safety requirements.
What operating temperature range can the MDD01L-05N handle?
The MDD01L-05N is specified for operation from -40°C to +95°C. That wide range makes it a fit for industrial and embedded environments where ambient conditions may vary significantly.
What protection features does the MDD01L-05N include?
The module includes continuous short circuit protection for long-duration fault conditions. It also provides overload protection, with the output shutting down when rated power reaches 102% or more and then automatically recovering.
How compact is the Mean Well MDD01L-05N?
The listed dimensions are 19.7 x 7.1 x 11.5 mm, and the product weight is 2.8 g. Its SIP7 package format is intended for space-constrained designs that need a small isolated DC-DC converter.
What certifications and compliance marks are listed for the MDD01L-05N?
The product information lists CB, UL, EAC, CE, and UKCA certifications. It is identified as complying with 62368-1 and 60601-1 safety standards, which is useful for buyers evaluating regulatory fit for commercial or medical-related equipment.
