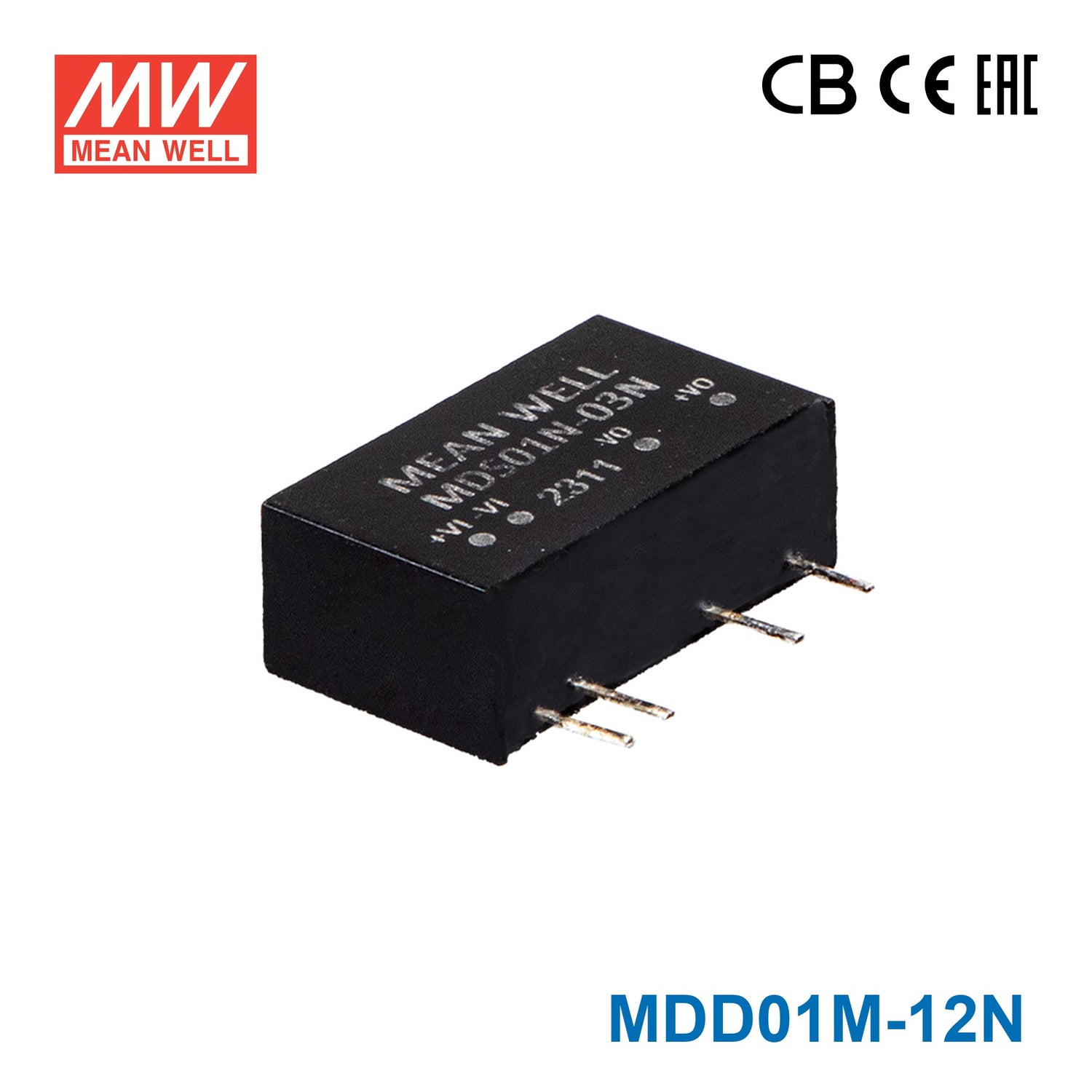

Mean Well MDD01M-12N SIP Package DC-DC Converter- 1W - ±12V Out 18mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of product is the Mean Well MDD01M-12N?
The Mean Well MDD01M-12N is a 1W SIP package DC-DC converter module. This specific model provides a ±12V output and is part of Mean Well's modular DC-DC converter range for compact embedded power applications.
What are the key electrical specifications of the MDD01M-12N?
This model is rated for 1W output power and ±12V output. The listed rated current for this product is 18 mA, and the series includes reinforced 6KVDC input-to-output isolation along with continuous short circuit protection.
Is the MDD01M-12N suitable for medical or safety-sensitive equipment?
Yes, the MDD01M-12N is medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP support. It also features low patient leakage current below 2 microamps and complies with IEC/UL62368-1 and LVD IEC60601-1 as listed for the series.
Can the MDD01M-12N be used in harsh temperature environments?
The MDD01M-12N is designed for wide-temperature operation from -40°C to +95°C. That makes it suitable for industrial and embedded applications where compact power modules need to perform across demanding ambient conditions.
What physical size should I expect for the MDD01M-12N?
The module measures 19.7 x 7.1 x 11.5 mm and weighs 2.8 g. Its compact SIP7 package helps it fit space-constrained designs that require an isolated DC-DC converter.
What protections and reliability features does the MDD01M-12N include?
The MDD01M-12N includes continuous short circuit protection and overload protection that shuts down the output when rated power reaches 102% or more, then auto-recovers. Mean Well also lists a 3-year warranty for this model.
