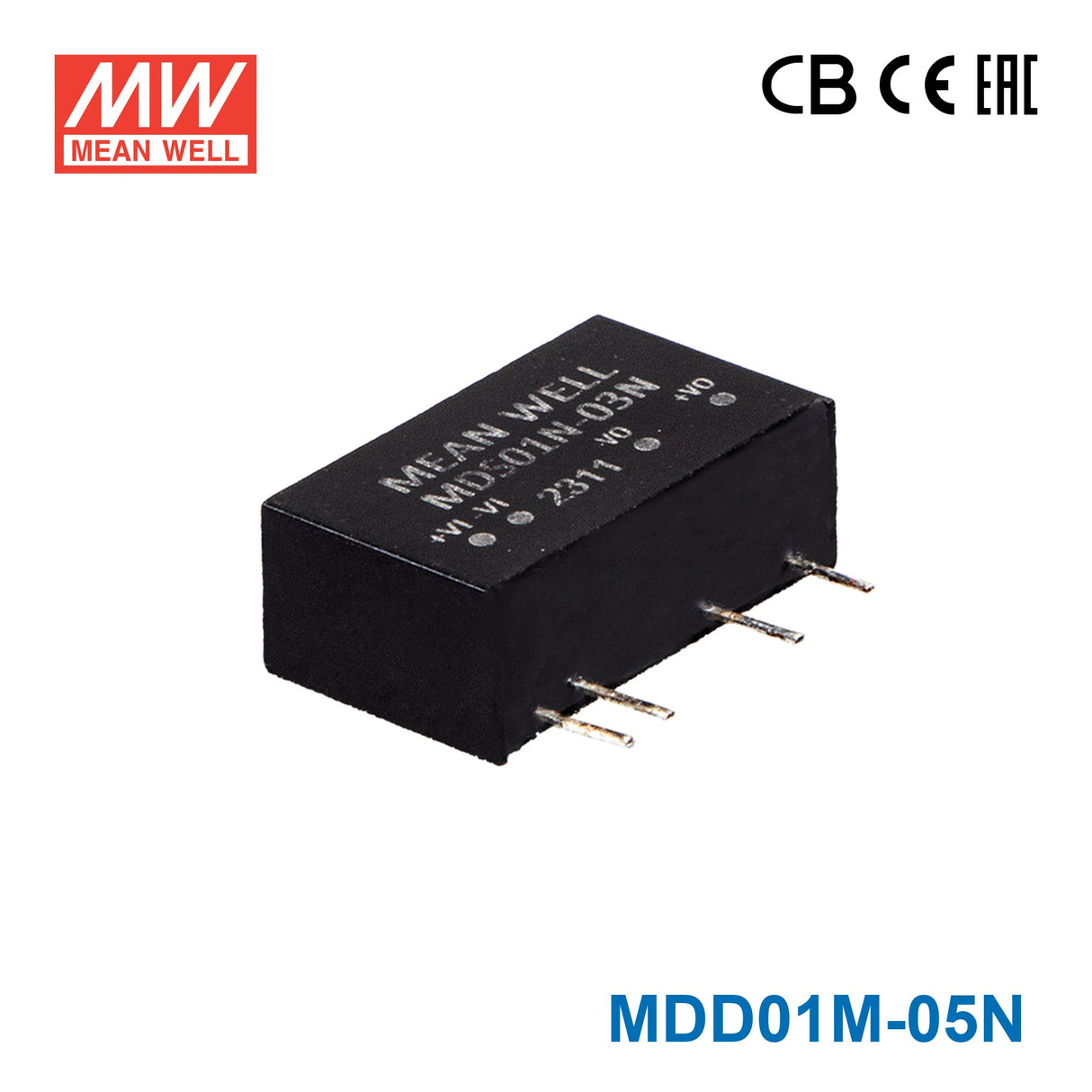

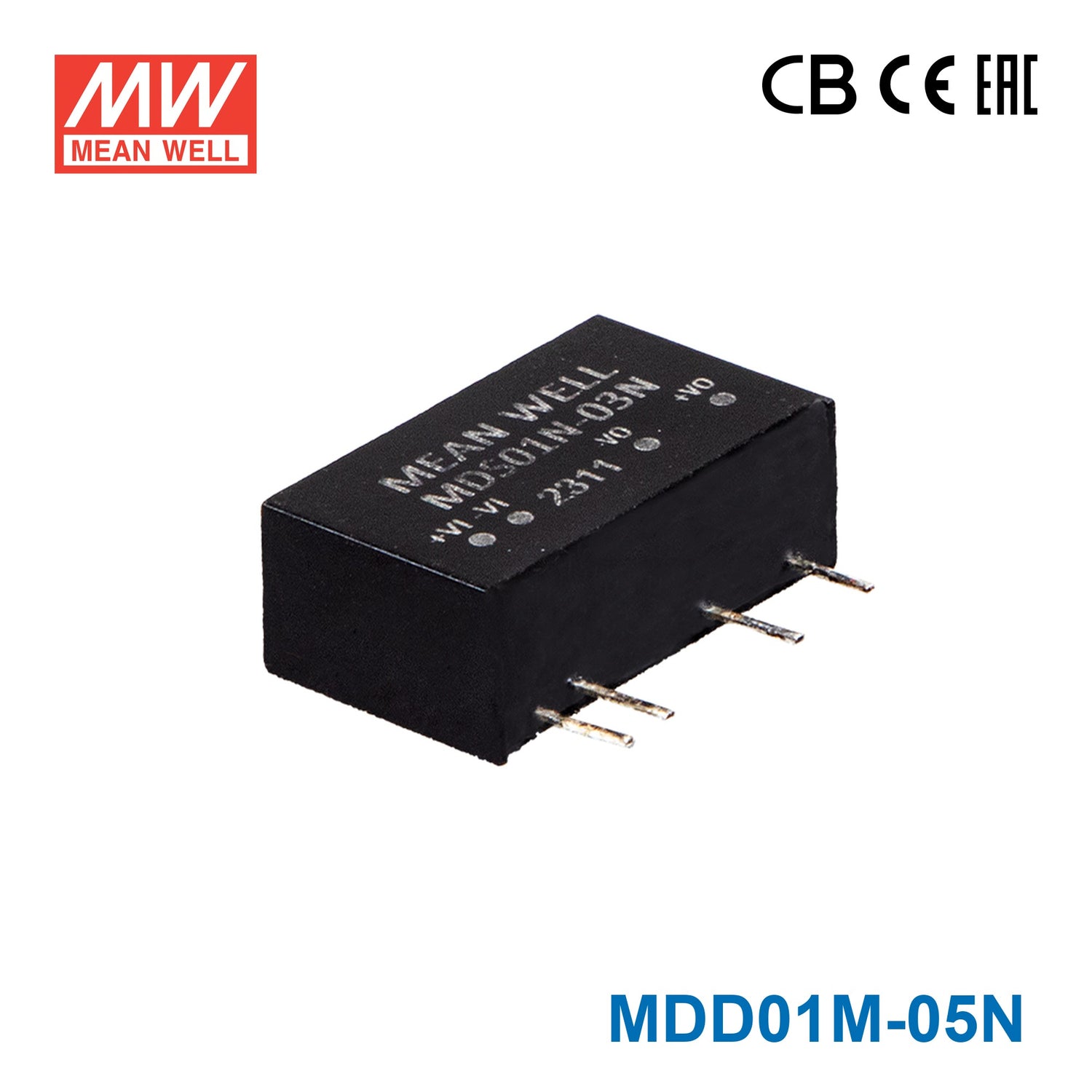

Mean Well MDD01M-05N SIP Package DC-DC Converter- 1W - ±5V out 16mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.01 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the main use case for the Mean Well MDD01M-05N?
The MDD01M-05N is a compact 1W SIP package DC-DC converter designed for low-power applications that need isolated DC conversion in a small footprint. It is a practical fit for space-constrained industrial or medical electronic designs where reinforced isolation and compact module size are important.
What output does the MDD01M-05N provide?
This model provides a ±5V DC output and is rated at 1W. It is intended for designs that require dual-output low-power conversion rather than a single-output DC rail.
Is the Mean Well MDD01M-05N suitable for medical or patient-adjacent equipment designs?
This converter includes medical safety approvals according to IEC60601-1 and is specified as 1xMOPP/2xMOOP. It also features low patient leakage current below 2uA, which makes it relevant for medical electronic applications where isolation performance is a key selection factor.
How does the MDD01M-05N help in harsh operating environments?
The MDD01M-05N is rated for operation from -40C to +95C, which supports use in demanding temperature conditions. Its 6KVDC input-to-output isolation and continuous short circuit protection also add resilience for industrial environments where electrical stress and reliability matter.
What makes the MDD01M-05N different from a larger board-level power converter?
This model is built in a SIP7 package with compact dimensions of 19.7 x 7.1 x 11.5 mm, so it is better suited to dense PCB layouts than larger converter formats. It is intended for low-power isolated conversion at 1W, not for higher-load applications that need substantially more output power.
What protection and compliance features are included with the MDD01M-05N?
The MDD01M-05N includes continuous short circuit protection and overload behavior that shuts down the output when rated power reaches 102% or more, then recovers automatically. It also carries CB, UL, EAC, CE, and UKCA safety certifications under 62368-1 and 60601-1 related standards.
