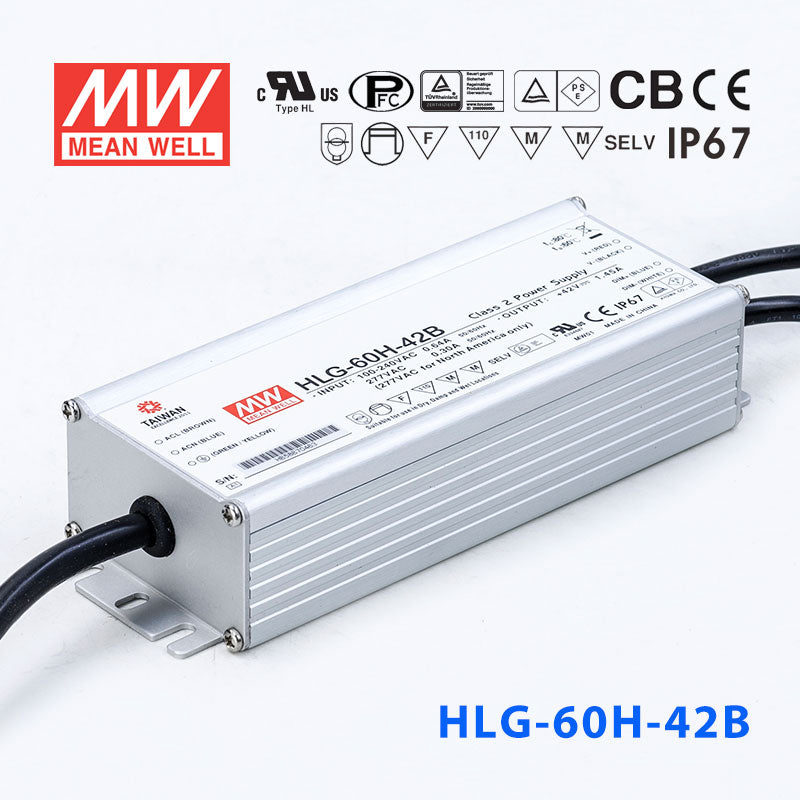

Mean Well HLG-60H-42AB Power Supply 60W 42V - Adjustable and Dimmable - HLG Series | Auckland NZ Distributor

The HLG-60H is a 60W Mean Well AC-DC LED driver (input: 90~305VAC, output: 42V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 42V
✓ Rated output current: 1.45A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-60H-42AB to power 42V LED panel lights with dimming?

Yes. The HLG-60H-42AB delivers 42V at up to 1.45A (60W) and includes both output voltage/current adjustment and a 1-10V/PWM dimming input. This makes it well suited for 42V LED panels in offices, retail displays, or studios where you need precise brightness control.

Is the HLG-60H-42AB suitable for powering a small 42V LED signage installation?

Yes, provided the total sign module load stays within 60W. The constant-current mode operates across a 25-42V range, accommodating modules that may run at slightly lower voltages. The built-in dimming input also allows you to reduce sign brightness for nighttime operation or energy savings.

Can the HLG-60H-42AB drive 42V LED grow lights for a small indoor garden?

Yes, as long as the total load does not exceed 60W. The adjustable output lets you fine-tune voltage and current to match your specific grow light modules, and the dimming function allows you to simulate different light intensity levels during growth cycles.

How many meters of 42V LED strip can the HLG-60H-42AB support?

Divide 60W by your strip's rated power per meter. For example, a 42V strip rated at 10W/m would allow up to 6 meters (60W / 10W per meter = 6m). A higher-density strip at 15W/m would allow 4 meters. Always check your strip's rated power per meter and keep the total load at or below 60W.

Can the HLG-60H-42AB be installed outdoors under a canopy or soffit?

Yes. The HLG-60H-42AB carries an IP65 water-resistant rating, meaning it is protected against low-pressure water jets and dust ingress. It is appropriate for sheltered outdoor locations like canopies, soffits, or covered patios. For fully exposed installations with standing water risk, consider the IP67-rated HLG-60H-42B instead.

What are the differences between the HLG-60H-42, 42A, 42AB, and 42B models?

All four share the same 60W / 42V / 1.45A core specs and a CC range of 25-42V. The base HLG-60H-42 has fixed output and IP67 waterproofing. The -42A adds output voltage/current adjustment via potentiometer (IP65). The -42AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -42B offers dimming input only and retains IP67 waterproofing.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-60H-24 Power Supply 60W 24V 2.5A	60W	24V	2.5A	IP67	View
Mean Well HLG-60H-24A Power Supply 60W 24V - Adjustable 2.5A	60W	24V	2.5A	IP65	View
Mean Well HLG-60H-48B Power Supply 60W 48V - Dimmable 1.3A	60W	48V	1.3A	IP67	View
Mean Well HLG-60H-48AB Power Supply 60W 48V - Adjustable and Dimmable 1.3A	60W	48V	1.3A	IP65	View
Mean Well HLG-60H-24B Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
