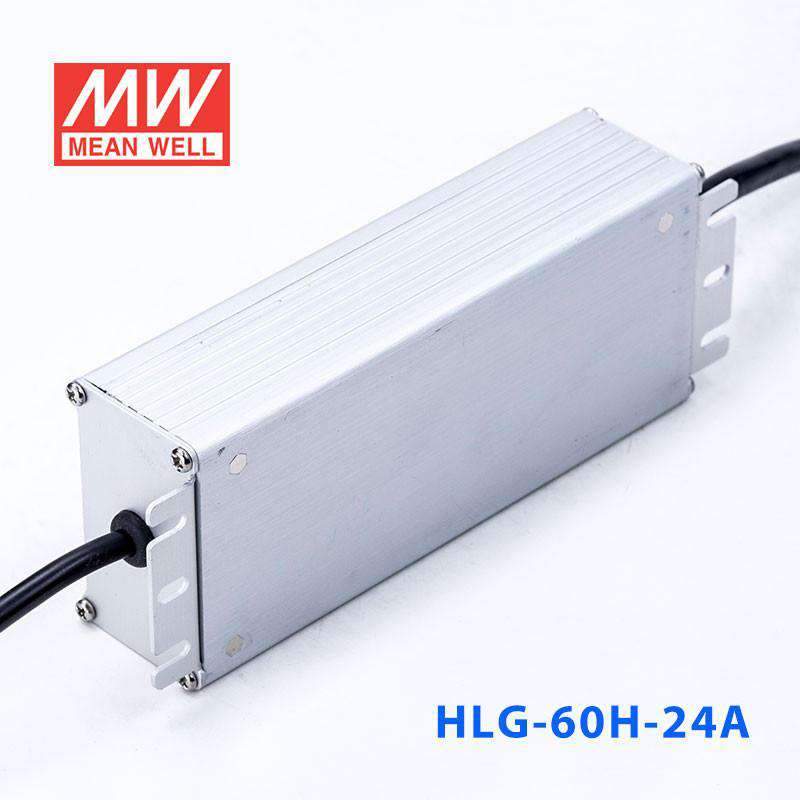

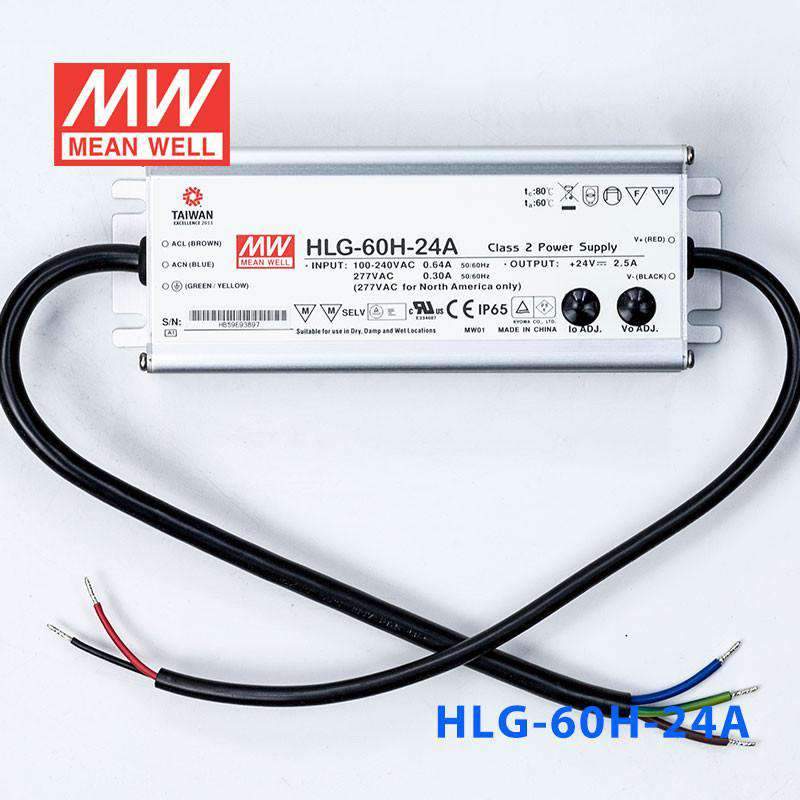

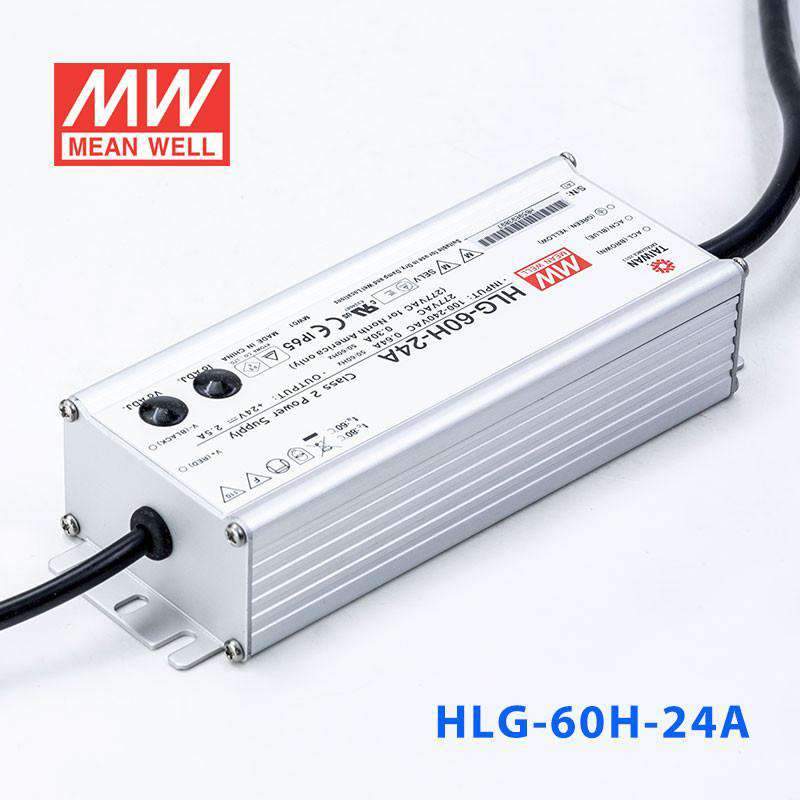

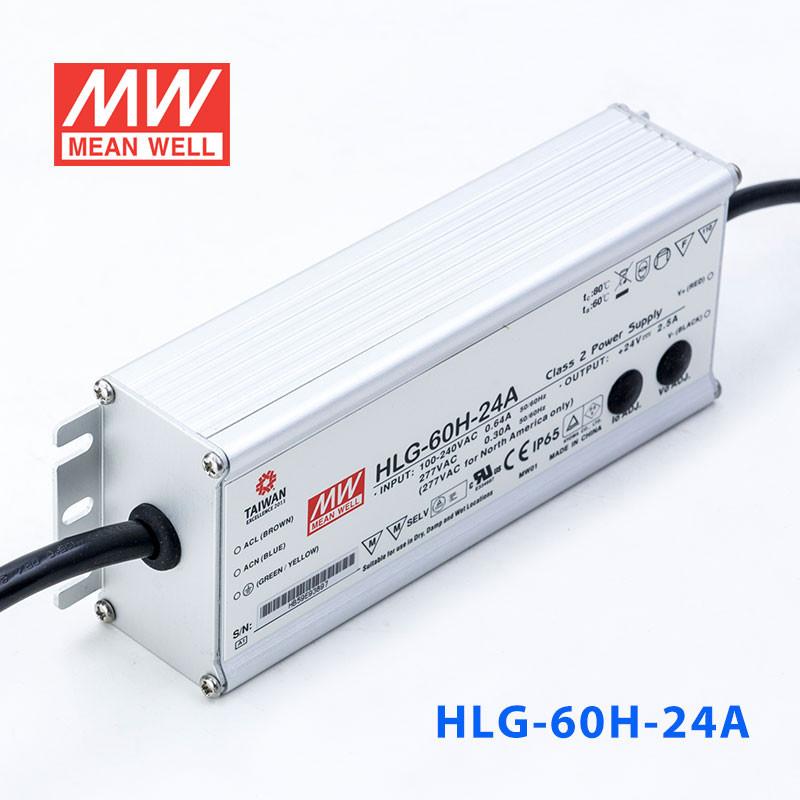

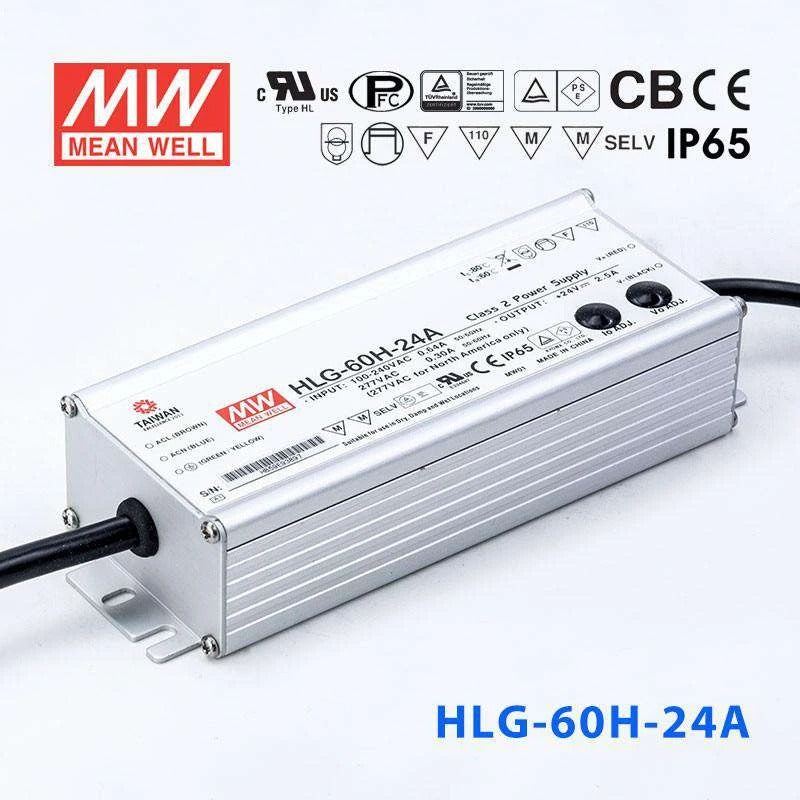

Mean Well HLG-60H-24A Power Supply 60W 24V - Adjustable
Please Login for Pricing
Description
Description
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length17.1 cm
-
Width6.15 cm
-
Height3.68 cm
-
Weight0.73 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the adjustable output on the HLG-60H-24A to fine-tune 24V LED strip brightness?
Yes. The built-in potentiometer lets you trim the output voltage and current within the CC range of 14-24V. This is useful when you want to slightly reduce brightness or match the driver output precisely to a specific 24V LED strip without needing an external dimmer.
Is the HLG-60H-24A a good choice for 24V LED retail display lighting?
Yes. At 60W and 24V with adjustable output, the HLG-60H-24A lets you set the exact brightness level for display cases, shelving, or showcase lighting. Its compact 171 x 61.5 x 36.8 mm size and IP65 rating make it easy to mount in tight retail environments.
Can the HLG-60H-24A drive 24V LED modules for a small lightbox sign?
Yes. With 60W at 24V, it can power 24V LED modules in small lightbox or menu board applications. The adjustable output is particularly helpful for matching the driver to the exact voltage requirement of your LED module string, ensuring optimal performance and longevity.
How many meters of 24V LED strip can the HLG-60H-24A handle?
Divide 60W by your strip's power draw per meter. For a strip rated at 10W/m, you could run up to 6 meters (60W / 10W per meter = 6m). For a higher-power strip at 20W/m, the maximum would be 3 meters. Always check your strip's rated power per meter and stay at or below 60W total.
Is the HLG-60H-24A suitable for a damp basement or garage workshop?
Yes. Its IP65 rating protects against dust ingress and low-pressure water jets, which is more than adequate for damp indoor environments like basements, garages, or utility rooms. For locations with standing water or direct rain exposure, the IP67-rated HLG-60H-24 would be a better fit.
Other HLG-60H Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HLG-60H-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | View |
| Mean Well HLG-60H-48B Power Supply 60W 48V - Dimmable | 60W | 48V | 1.3A | IP67 | View |
| Mean Well HLG-60H-48AB Power Supply 60W 48V - Adjustable and Dimmable | 60W | 48V | 1.3A | IP65 | View |
| Mean Well HLG-60H-24B Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | View |
