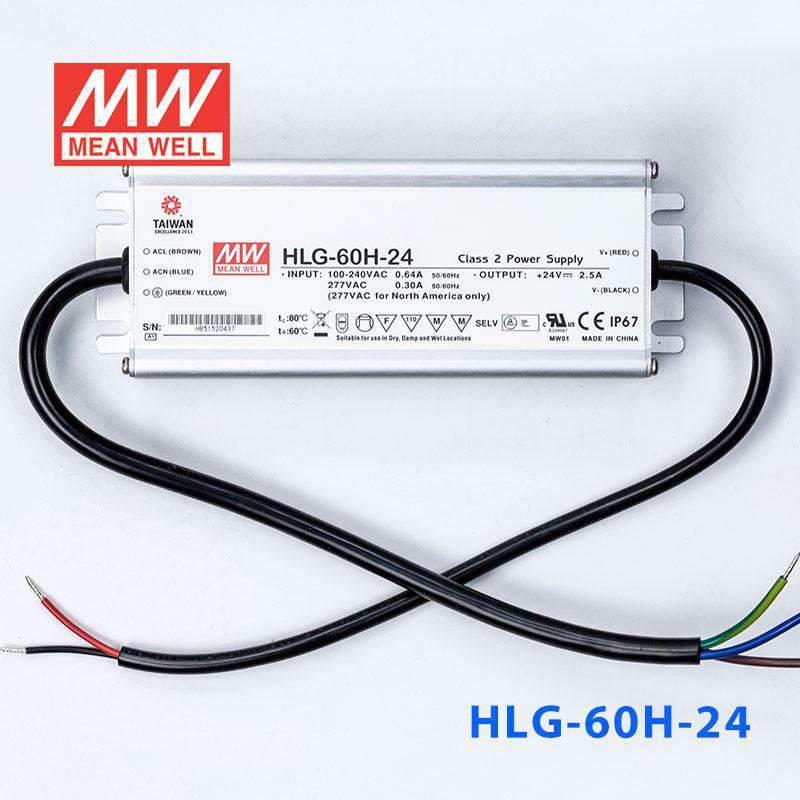

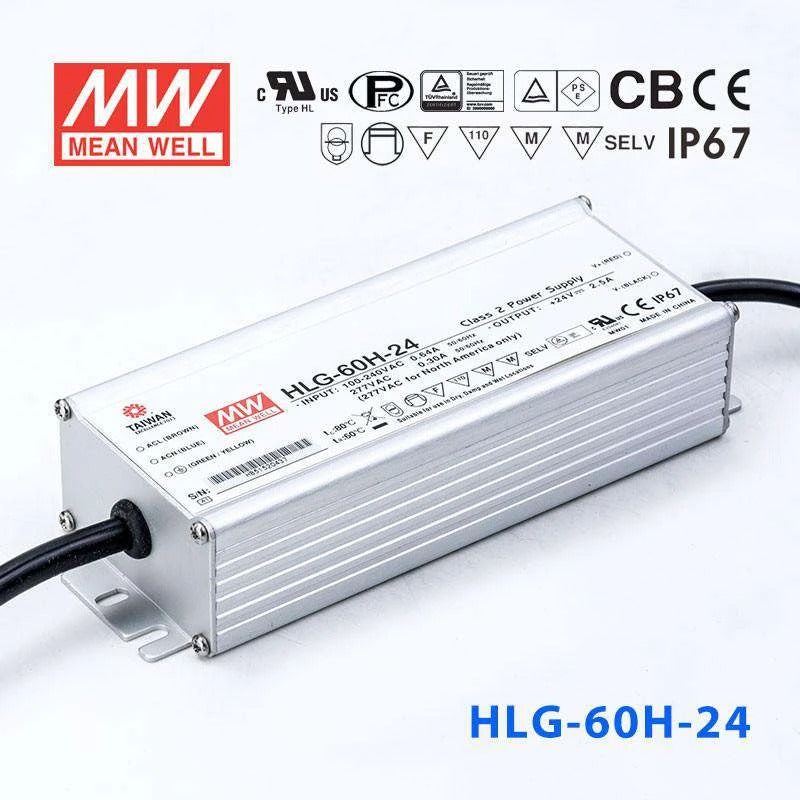

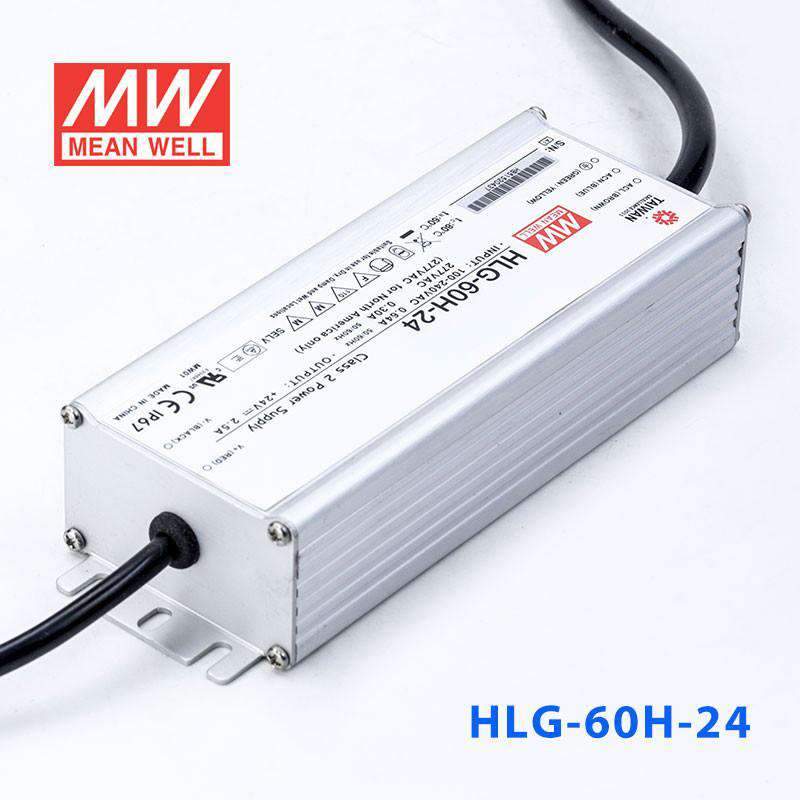

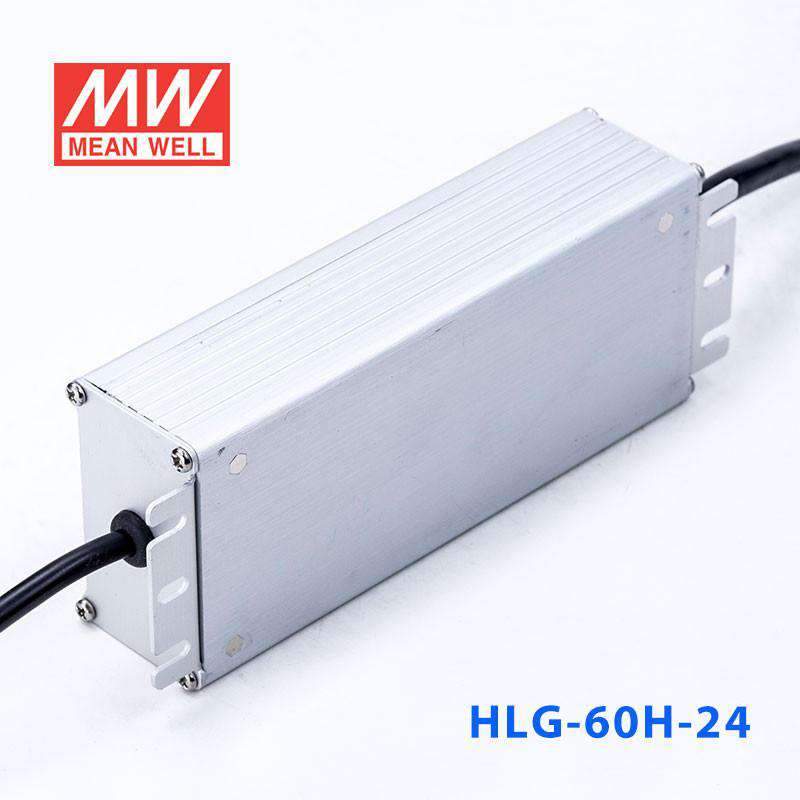

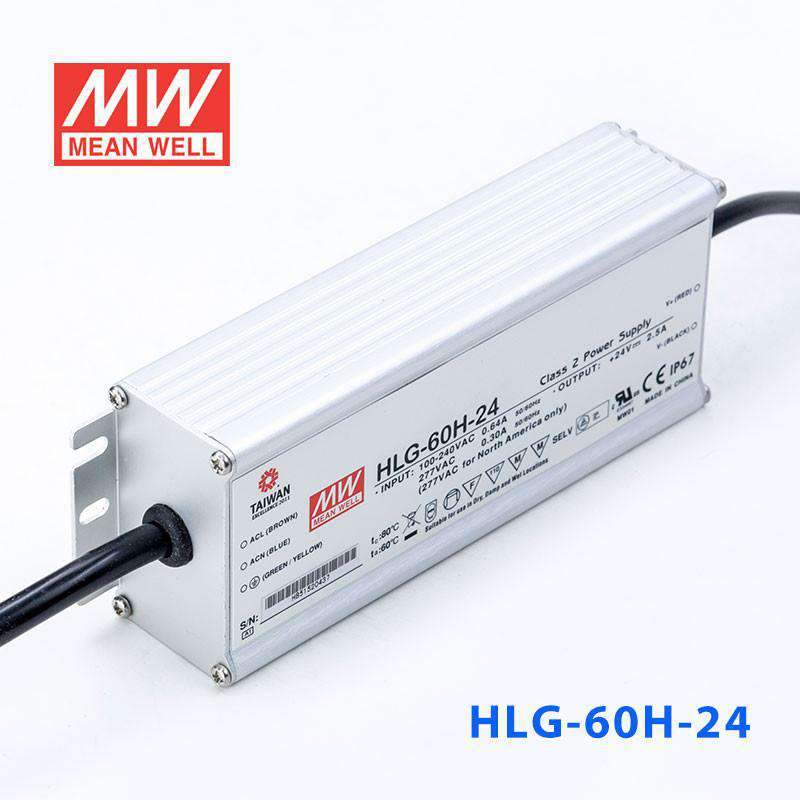

Mean Well HLG-60H-24 Power Supply 60W 24V
Please Login for Pricing
Description
Description
The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length17.1 cm
-
Width6.15 cm
-
Height3.68 cm
-
Weight0.73 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-60H-24 to power 24V LED strip lighting outdoors?
Yes. The HLG-60H-24 outputs 24V at up to 2.5A and carries an IP67 waterproof rating, so it handles direct rain, dust, and temporary submersion. It is well suited for outdoor 24V LED strip installations on facades, fences, or garden features.
Is the HLG-60H-24 suitable for powering 24V LED channel letter signs?
Yes. With 60W at 24V, the HLG-60H-24 can drive small to mid-size 24V channel letter or lightbox signage. Its IP67 rating and wide 90-305VAC input make it reliable for outdoor sign cabinets exposed to weather and varying mains voltages worldwide.
Can I run 24V LED under-cabinet or shelf lighting from the HLG-60H-24?
Yes, provided the total LED load stays within 60W. The HLG-60H-24 is a constant-current driver with a CC voltage range of 14-24V, so it can accommodate 24V LED strips or modules used in kitchen under-cabinet, display case, or retail shelf lighting applications.
How many meters of 24V LED strip can the HLG-60H-24 power?
That depends on the strip's rated power per meter. The HLG-60H-24 supplies up to 60W at 24V. For example, if your strip draws 14.4W/m, you could run about 4.1 meters (60W / 14.4W per meter). Always check your strip's rated power per meter and keep total load at or below 60W.
Can the HLG-60H-24 handle freezing winter temperatures in an outdoor installation?
Yes. Its operating temperature range is -40°C to +80°C, so it can run reliably in extreme cold climates. Combined with the IP67 waterproof rating and aluminium casing, it is designed for year-round outdoor use in harsh environments.
