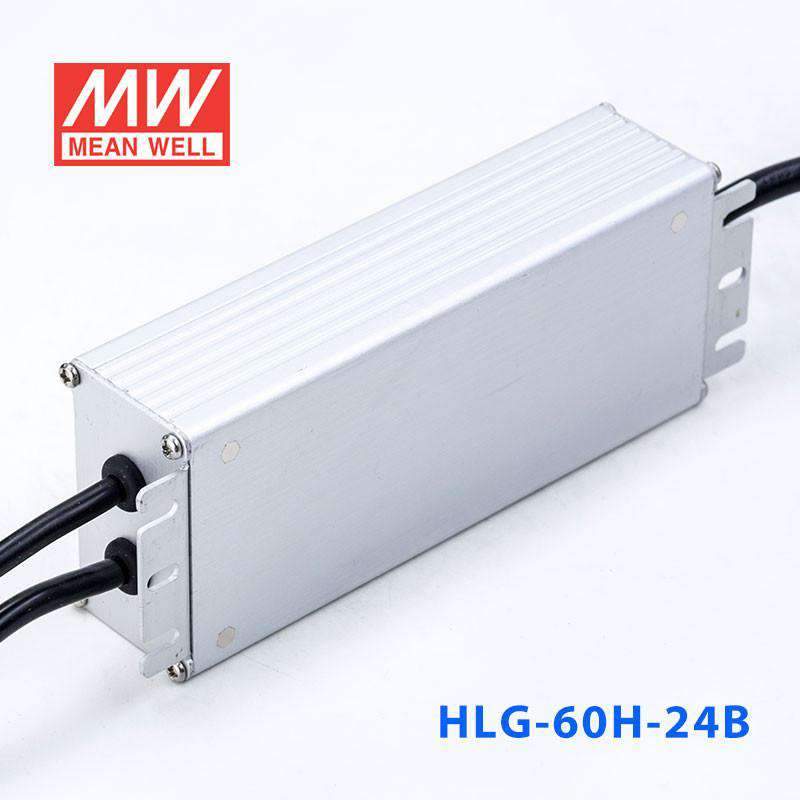

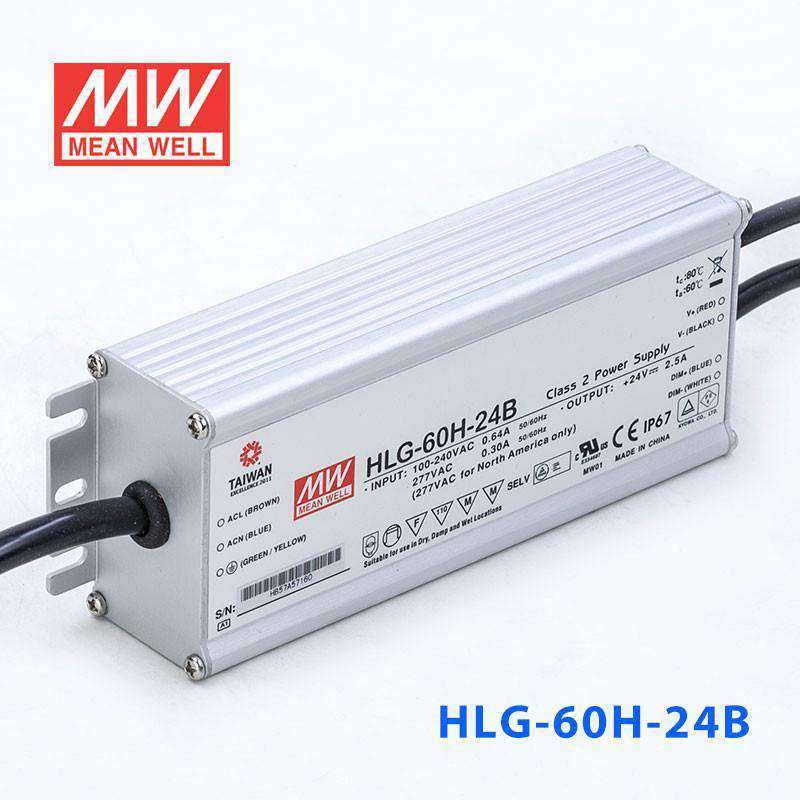

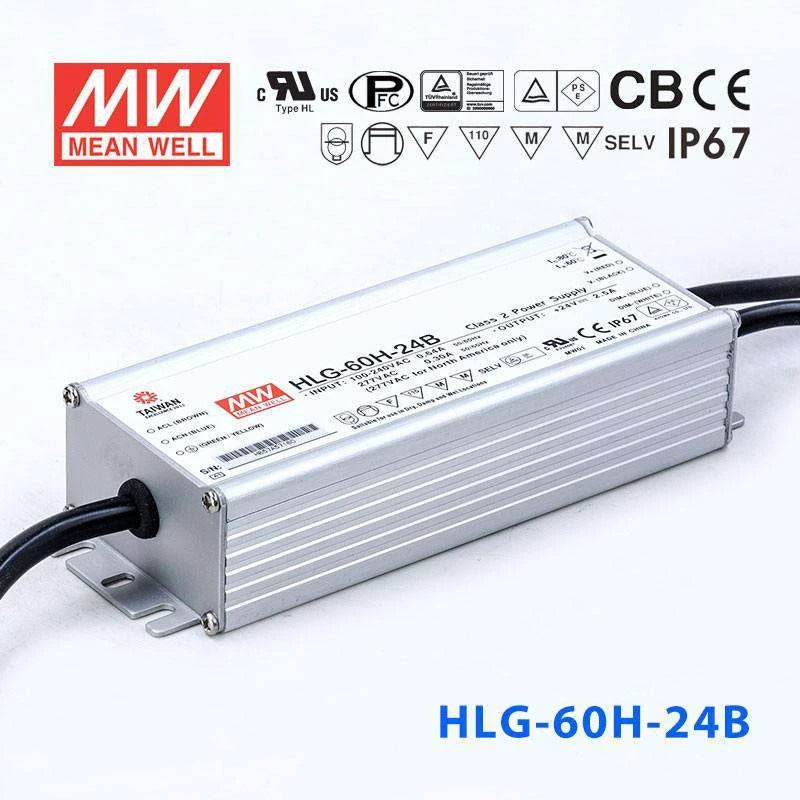

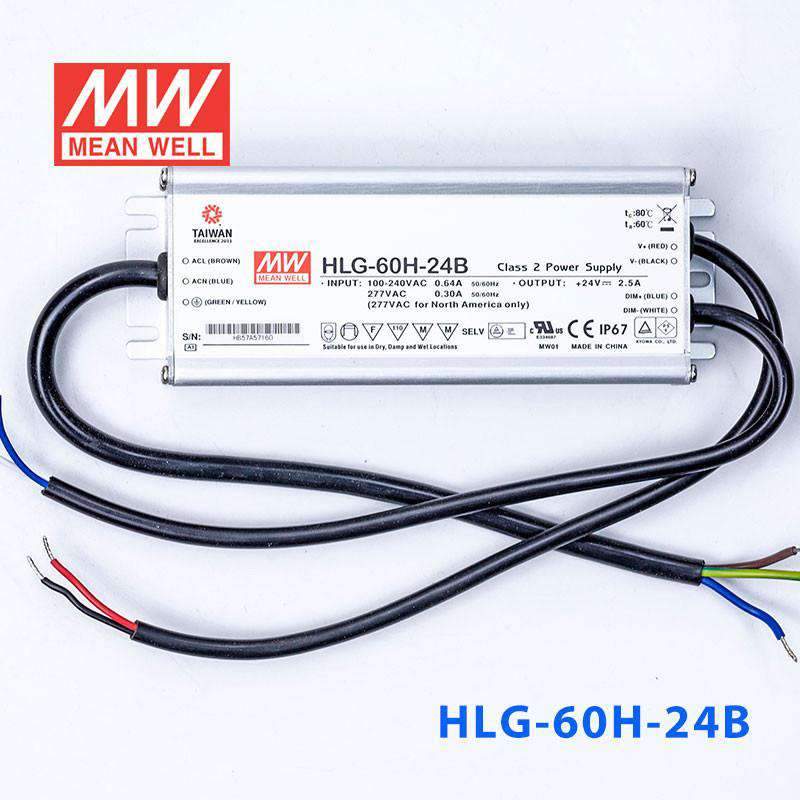

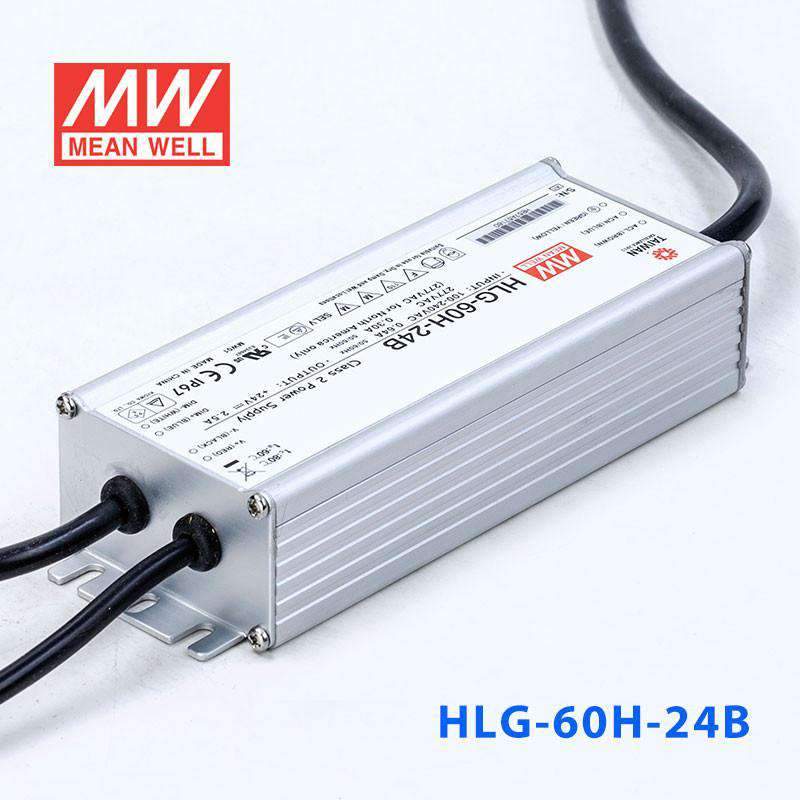

Mean Well HLG-60H-24B Power Supply 60W 24V - Dimmable

Overview

HLG-60H-24B is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 89.5%.

HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90～305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-60H-24BSpecifications from the official datasheet (2025-02-04 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.4: 14.4 ~ 24V
RATED CURRENT: 2.5A
RATED POWER: 60W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 22 ~ 27V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1.5 ~ 2.5A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 89.5%
AC CURRENT (Typ.): 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 35V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13 (except for AB-type), IP65 or IP67 approved ; J61347-1, J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF: 3396.9K hrs min. Telcordia SR-332 (Bellcore) ;345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-60H-24B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-60H-24B DIMMING OPERATION — DIMMING OPERATION

HLG-60H-24B Illustration (page 5) — Illustration (page 5)

HLG-60H-24B OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-60H-24B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-60H-24B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-60H-24B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-60H-24B Dimensions (mm) — Dimensions (mm)

HLG-60H-24B H L G - 6 0 H series — H L G - 6 0 H series

HLG-60H-24B H L G - 6 0 H series (2) — H L G - 6 0 H series (2)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (HLG-60H)(EN) PDF Download

TUV Certificate (HLG-60H)(EN) PDF Download

EMC Certificate (HLG-60H)(EN) PDF Download

PSE Certificate(HLG-60H)(EN) PDF Download

Test reports1

Test Report(HLG-60H-24)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-60H-24B with a 1-10V dimmer for outdoor 24V LED pathway lighting?

Yes. The HLG-60H-24B accepts 1-10V and PWM dimming signals and carries an IP67 waterproof rating, making it well suited for outdoor 24V pathway lights, step lights, or bollard fixtures where you want to dim at night while the driver remains exposed to weather.

Is the HLG-60H-24B a good choice for dimmable 24V LED facade or architectural lighting?

Yes. At 60W and 24V with dimming input and IP67 waterproofing, the HLG-60H-24B is designed for outdoor architectural lighting where both weather resistance and brightness scheduling are needed. Its -40°C to +80°C case temperature (Tcase) range ensures reliable operation year-round.

Can the HLG-60H-24B power dimmable 24V LED strips inside a waterproof outdoor enclosure?

Yes. The IP67 rating means you do not strictly need an enclosure for weather protection, but if your design uses one, the HLG-60H-24B can be mounted inside or outside it. The dimming input lets you pair with a timer or controller to schedule brightness changes for the 24V strip.

How many meters of 24V LED strip can the HLG-60H-24B power?

Divide 60W by the strip's rated power per meter. A 24V strip drawing 12W/m, for example, allows up to 5 meters (60W / 12W per meter = 5m). A lower-power strip at 7W/m would allow about 8.5 meters. Always verify your strip's rated wattage per meter before sizing.

Can the HLG-60H-24B withstand installation in a coastal environment with salt spray?

The IP67 rating provides dust and water protection, and the metal housing is durable. However, the datasheet makes no salt-spray or corrosion-resistance claim, so prolonged direct salt spray exposure may require an additional protective enclosure or periodic cleaning to preserve the housing and connectors.
