Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

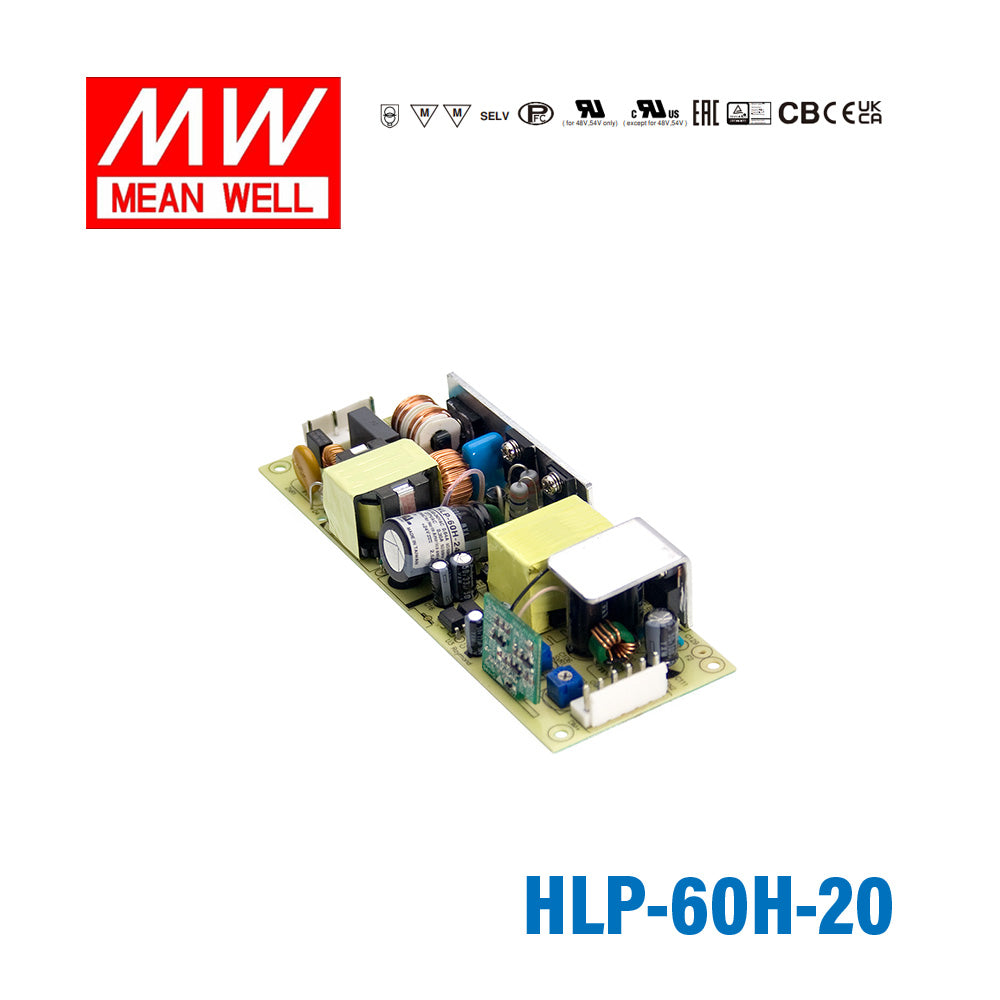

Mean Well HLP-60H-20 PCB Power Supply 60W 20V 3A

CV+CCoutput voltage/current level adjustable3-in-1 dimmingclass 2

SKU HLP-60H-20

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LPF-60-20

Notify me when it's back in stock

Key Features

✓Universal AC input / Full range (up to 305VAC)
✓Built-in active PFC function
✓Protections: Short circuit / Over current / Over voltage / Over temperature
✓Cooling by free air convection
✓Output constant current level adjustable
✓Class 2 power unit
✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
✓Suitable for built in LED lighting system
✓Suitable for dry / damp locations
✓100% full load burn-in test
✓3 years warrantyGeneral Specification

Frequently Asked Questions

What is the Mean Well HLP-60H-20 designed for?

The HLP-60H-20 is a 60W open-frame AC/DC power supply intended for built-in LED lighting systems. It provides a 20V output at 3A and is designed for PCB-based applications where a compact internal power solution is needed.

What are the key electrical specifications of the HLP-60H-20?

This model is rated for 60W total output power and delivers 20V DC at 3A. It accepts a universal 90-305VAC input range and includes active power factor correction, which is useful in commercial and industrial lighting applications.

Does the HLP-60H-20 support dimming control?

Yes. The HLP-60H-20 supports three-in-one dimming control: 1-10V DC, PWM signal, and resistance dimming. That makes it suitable for LED systems that need flexible brightness control without changing to a different power supply family.

Can this power supply be used in demanding temperature conditions?

The HLP-60H-20 has a working temperature range of -40 to +70 degrees C, subject to the manufacturer's derating guidance. That range makes it suitable for environments that may be much colder or hotter than normal indoor room conditions.

Is the HLP-60H-20 suitable for dry or damp locations?

Yes. Mean Well specifies this model as suitable for dry and damp locations. That makes it a fit for many indoor lighting environments where exposure is controlled but not strictly limited to dry-only spaces.

What protection features are included in the HLP-60H-20?

This model includes short circuit, over current, over voltage, and over temperature protection. The protection behavior includes automatic recovery for some fault conditions, helping protect both the power supply and the connected LED system.

What distinguishes the HLP-60H-20 from other LED power supplies?

The HLP-60H-20 combines a wide 90-305VAC input range, active PFC, Class 2 designation, and three-in-one dimming support in a compact open-frame format. For buyers who specifically need a 20V, 60W PCB-mount LED power solution, those features make it a targeted option rather than a general-purpose supply.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well HLP-60H-54 PCB Power Supply 60W 54V 1.15A	62.1W	54V	1.15A	View
Mean Well HLP-60H-48 PCB Power Supply 60W 48V 1.3A	62.4W	48V	1.3A	View
Mean Well HLP-60H-42 PCB Power Supply 60W 42V 1.45A	60.9W	48V	1.45A	View
Mean Well HLP-60H-36 PCB Power Supply 60W 36V 1.7A	61.2W	36V	1.7A	View
Mean Well HLP-60H-30 PCB Power Supply 60W 30V 2A	60W	30V	2A	View
Mean Well HLP-60H-24 PCB Power Supply 60W 24V 2.5A	60W	24V	2.5A	View
Mean Well HLP-60H-15 PCB Power Supply 60W 15V 4A	60W	15V	4A	View
