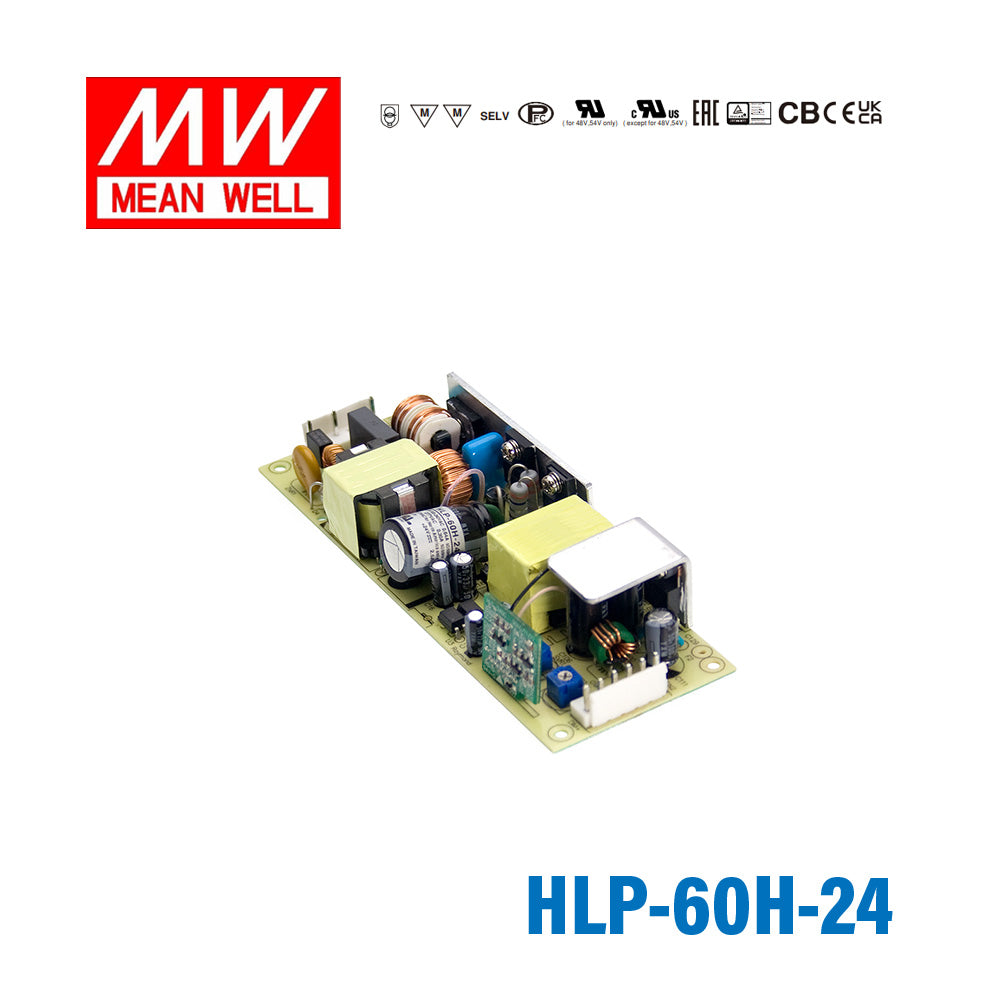

Mean Well HLP-60H-24 PCB Power Supply 60W 24V 2.5A

The HLP-60H-24 is a 60W open-frame PCB power supply with a 24V DC output. Its rated output current is 2.5A, which matches applications that need a regulated 24V supply within that power range.

Yes. Mean Well specifies this model as suitable for built-in LED lighting systems, and it includes three-in-one dimming support. It is designed for constant voltage output with adjustable constant current level support for lighting-related use cases.

This model supports three dimming methods: 1 to 10V DC, PWM signal, and resistance dimming. That gives more flexibility when selecting a compatible lighting control approach for a 24V LED system.

The HLP-60H-24 has a working temperature range of -40°C to +70°C, subject to the product's derating curve. Mean Well also rates it for dry and damp locations, which makes it more suitable for enclosed commercial and industrial environments than indoor-only power supplies.

This model includes short circuit, over current, over voltage, and over temperature protection. Short circuit and over current faults recover automatically after the fault is removed, while over-voltage and over-temperature protection require re-powering to recover.

Compared with a basic 24V PCB supply, the HLP-60H-24 adds active PFC, a wide 90 to 305VAC input range, built-in dimming control, and Class 2 rating. Those features make it better suited for LED lighting and broader AC input environments where a standard fixed-input supply may be too limited.
