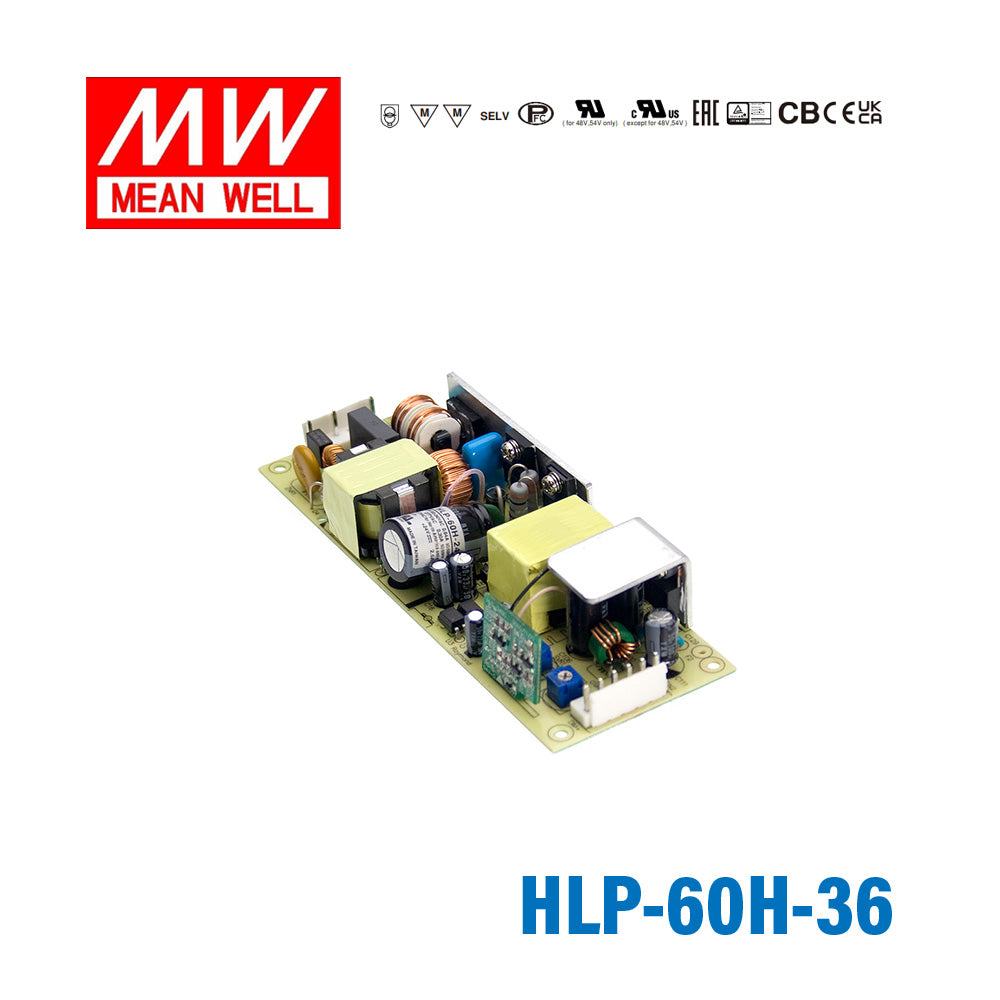

Mean Well HLP-60H-36 PCB Power Supply 60W 36V

Name: Mean Well HLP-60H-36 PCB Power Supply 60W 36V
Brand: Mean Well
SKU: HLP-60H-36
Price: 66.38 NZD
Availability: InStock

CV+CC, output voltage/current level adjustable, 3-in-1 dimming, class 2

SKU:

HLP-60H-36

Please for Pricing

Notify me when it's back in stock

Description

Features:

Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Output constant current level adjustable
Class 2 power unit
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for built in LED lighting system
Suitable for dry / damp locations
100% full load burn-in test
3 years warranty
General Specification

AC Input Voltage Range
90-305VAC 127-431VDC
AC Inrush Current (max.)
COLD START 70A(twidth=525μs measured at 50% Ipeak) at 230VAC
Over Current Protection
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed
Over-Voltage Protection
14 - 17V | 18 - 24V | 23 - 30V | 35 - 43V | 41 - 49V | 48 - 58V | 54 - 63V | 59 -68V |
Protection type : Shut down o/p voltage, re-power on to recover
Over Temperature Protection
Shut down o/p voltage, re-power on to recover
Withstand Voltage
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working Temperature
-40 ~ +70℃(Refer to "Derating Curve")
Safety Standards
UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved ; Design refer to UL60950-1
Dimension (LxWxH)
167x53x29.5mm

Specifications

Brand

Mean Well
Series

HLP Series
Power Rating

61.2 Watt
Output Voltage

36 Volt
Rated Current

1.7 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,SELV
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

16.7 cm
Width

5.3 cm
Height

2.95 cm
Weight

0.27 kg

File Downloads

::specification::
