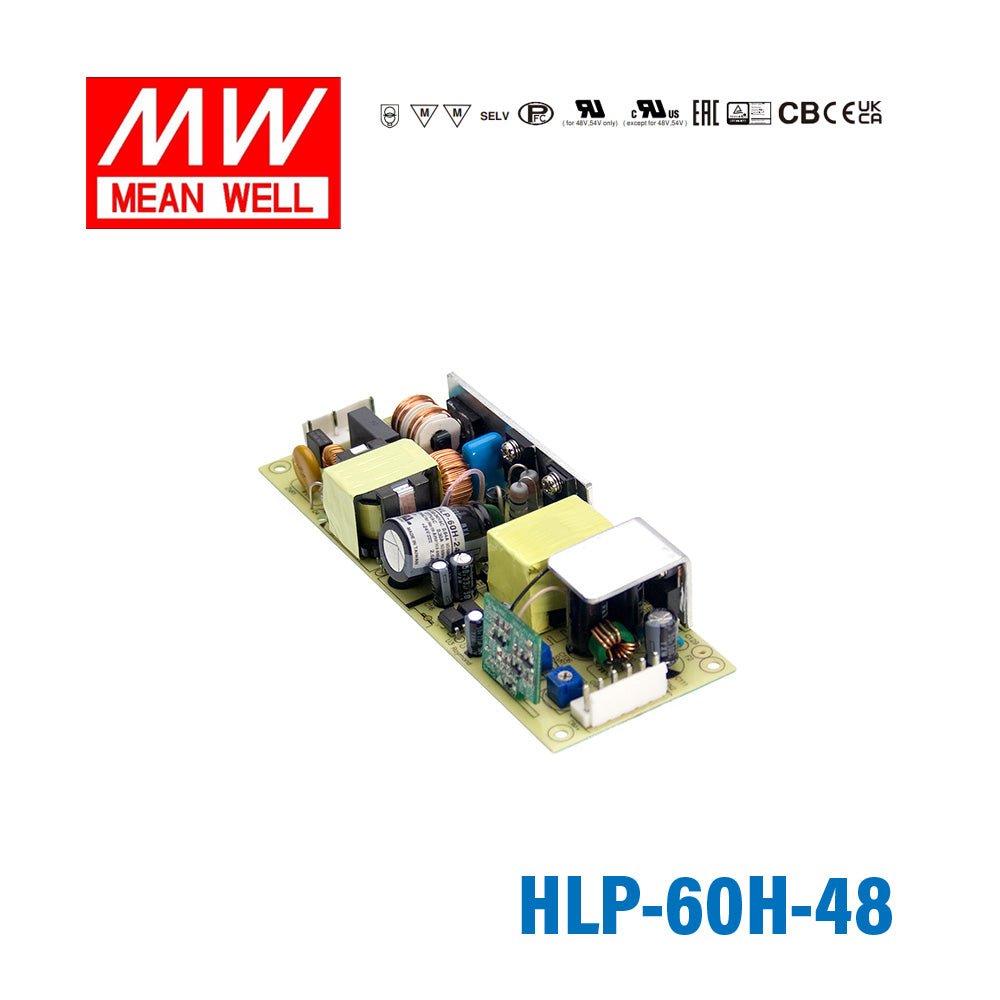

Mean Well HLP-60H-48 PCB Power Supply 60W 48V 1.3A

The HLP-60H-48 is designed for built-in LED lighting systems that need a 48V constant voltage power supply. It is an open-frame PCB power supply rated at 60W, making it suitable for OEM and industrial lighting applications where compact internal power conversion is needed.

This model provides a 48V DC output and is rated for 1.3A. Its listed power rating is 62.4W, and the product name identifies it as a 60W class power supply.

Yes, the HLP-60H-48 supports three-in-one dimming control. The supported dimming methods are 1 to 10V DC, PWM signal, and resistance-based dimming.

The HLP-60H-48 has a universal AC input range of 90 to 305VAC. It also supports 127 to 431VDC input, which gives it flexibility for a wide range of power environments.

This model is rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance. That makes it suitable for applications exposed to both low and elevated ambient temperatures.

Yes, the HLP-60H-48 is specified as suitable for dry and damp locations. That makes it a practical choice for indoor lighting environments where some moisture exposure may be present but full wet-location protection is not stated here.

The HLP-60H-48 includes short circuit, over current, over voltage, and over temperature protection. Depending on the fault type, it uses automatic recovery or shutdown with re-power-on recovery as described in the product specifications.

Compared with more basic PCB power supplies, the HLP-60H-48 combines active PFC, Class 2 designation, and three-in-one dimming support in one model. It is also built for LED lighting applications and supports free-air convection cooling without requiring forced-air cooling in the stated design context.
