Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

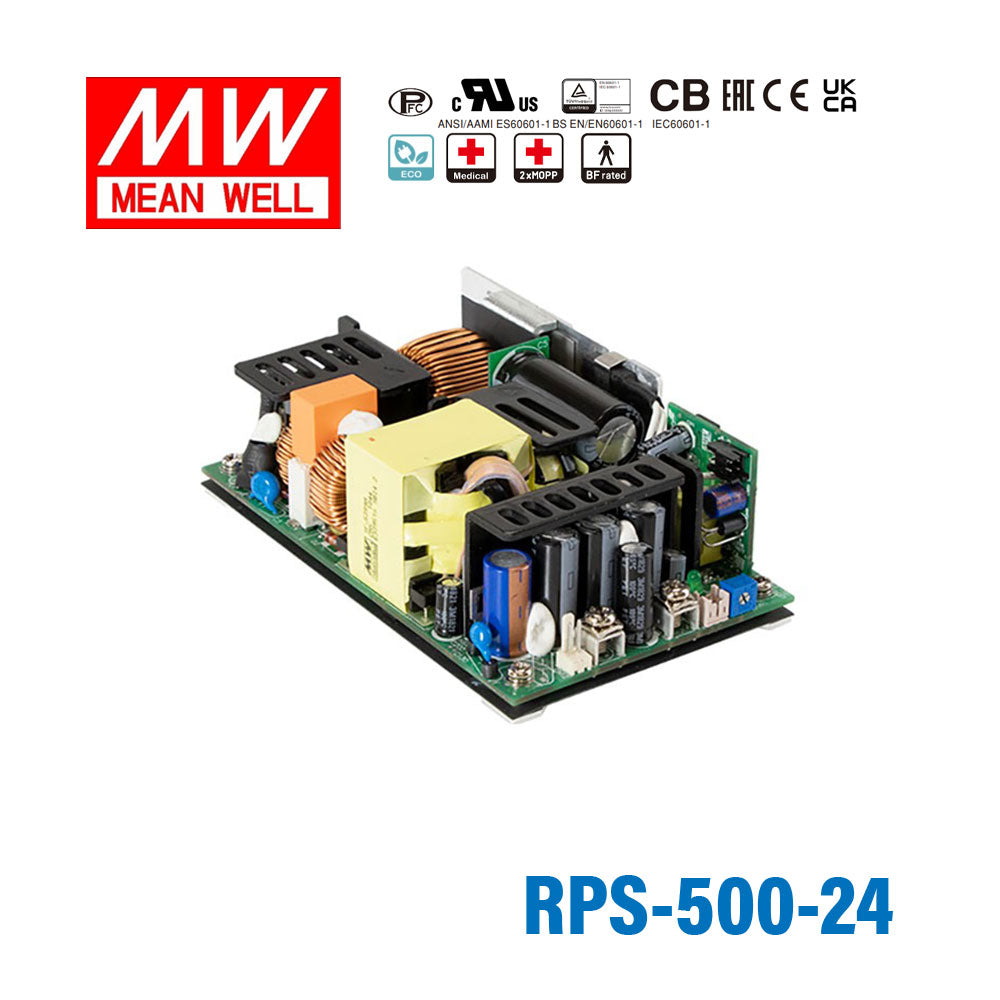

Mean Well RPS-500-24 Green Power Supply W 24V 13.4A - Medical Power Supply

5" x 3" compact sizemedical safety approvedextreme low leakage current

SKU RPS-500-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RPS-500 is a 321.6W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+70°C).

Key Features

✓ Input voltage: 80~264VAC
✓ Output voltage (max): 24V
✓ Rated output current: 13.4A
✓ Operating temperature: -30~+70°C
✓ Safety certifications: CB, CE, cUL, EAC, SHIDE
✓ 3 year warranty

Frequently Asked Questions

Can I use the RPS-500-24 for a 24V PLC or industrial automation panel?

Yes, it is a constant-voltage 24V supply rated for 13.4A and 321.6W. It suits 24V automation panels, PLC systems, and control assemblies whose total load stays within those output ratings.

Is the RPS-500-24 a good fit for 24V machine controls and sensors?

It can support 24V machine-control hardware, distributed sensors, and related industrial electronics when the full system current does not exceed 13.4A. The 321.6W capacity gives more headroom than lower-wattage 24V models in the same series.

Can this model be used in medical or diagnostic equipment that runs on 24V?

Yes, the unit is identified as a medical power supply and lists medical safety approval with extreme low leakage current. For equipment requiring a 24V constant-voltage source, it provides up to 13.4A and 321.6W.

Is the RPS-500-24 meant for indoor or outdoor conditions?

The specified operating temperature range is -30°C to +70°C, so it covers a wide temperature span. However, no IP rating is listed, so the specs do not confirm suitability for exposed outdoor, washdown, or weather-contact use.

What are the main 24V options around the RPS-500-24 in this series?

The listed 24V siblings include RPS-120-24 and RPS-120-24-C at 84W, 5A; RPS-120S-24 at 120W, 5A; RPS-160-24 at 113.4W, 4.6A; RPS-200-24 and RPS-200-24-C at 141.6W, 5.9A; RPS-300-24 and RPS-300-24-C at 200W, 8.33A; RPS-400-24, RPS-400-24-C, RPS-400-24-SF, and RPS-400-24-TF at 252W, 10.5A; RPS-500-24-C at 309.6W, 12.9A; and RPS-500-24-SF and RPS-500-24-TF at 499.2W, 20.8A. The RPS-500-24 sits between the 252W 10.5A 24V group and the 499.2W 20.8A 24V group.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RPS-500-48-TF Green Power Supply W 48V 10.4A - Medical Power Supply	499.2W	48V	10.4A	View
Mean Well RPS-500-48-SF Green Power Supply W 48V 10.4A - Medical Power Supply	499.2W	48V	10.4A	View
Mean Well RPS-500-48-C Green Power Supply W 48V 6.5A - Medical Power Supply	312W	48V	6.5A	View
Mean Well RPS-500-48 Green Power Supply W 48V 6.7A - Medical Power Supply	321.6W	48V	6.7A	View
Mean Well RPS-500-36-TF Green Power Supply W 36V 13.9A - Medical Power Supply	500.4W	36V	13.9A	View
Mean Well RPS-500-36-SF Green Power Supply W 36V 13.9A - Medical Power Supply	500.4W	36V	13.9A	View
Mean Well RPS-500-36-C Green Power Supply W 36V 8.6A - Medical Power Supply	309.6W	36V	8.6A	View
Mean Well RPS-500-36 Green Power Supply W 36V 8.9A - Medical Power Supply	320.4W	36V	8.9A	View
Mean Well RPS-500-27-TF Green Power Supply W 27V 18.5A - Medical Power Supply	499.5W	27V	18.5A	View
Mean Well RPS-500-27-SF Green Power Supply W 27V 18.5A - Medical Power Supply	499.5W	27V	18.5A	View
Mean Well RPS-500-27-C Green Power Supply W 27V 11.5A - Medical Power Supply	310.5W	27V	11.5A	View
Mean Well RPS-500-27 Green Power Supply W 27V 11.9A - Medical Power Supply	321.3W	27V	11.9A	View
Mean Well RPS-500-24-TF Green Power Supply W 24V 20.8A - Medical Power Supply	499.2W	24V	20.8A	View
Mean Well RPS-500-24-SF Green Power Supply W 24V 20.8A - Medical Power Supply	499.2W	24V	20.8A	View
Mean Well RPS-500-24-C Green Power Supply W 24V 12.9A - Medical Power Supply	309.6W	24V	12.9A	View
Mean Well RPS-500-18-TF Green Power Supply W 18V 27.8A - Medical Power Supply	500.4W	18V	27.8A	View
Mean Well RPS-500-18-SF Green Power Supply W 18V 27.8A - Medical Power Supply	500.4W	18V	27.8A	View
Mean Well RPS-500-18-C Green Power Supply W 18V 17.2A - Medical Power Supply	309.6W	18V	17.2A	View
Mean Well RPS-500-18 Green Power Supply W 18V 17.8A - Medical Power Supply	320.4W	18V	17.8A	View
Mean Well RPS-500-15-TF Green Power Supply W 15V 33.3A - Medical Power Supply	499.5W	15V	33.3A	View
Mean Well RPS-500-15-SF Green Power Supply W 15V 33.3A - Medical Power Supply	499.5W	15V	33.3A	View
Mean Well RPS-500-15-C Green Power Supply W 15V 20.7A - Medical Power Supply	310.5W	15V	20.7A	View
Mean Well RPS-500-15 Green Power Supply W 15V 21.3A - Medical Power Supply	319.5W	15V	21.3A	View
Mean Well RPS-500-12-TF Green Power Supply W 12V 41.6A - Medical Power Supply	499.2W	12V	41.6A	View
