Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

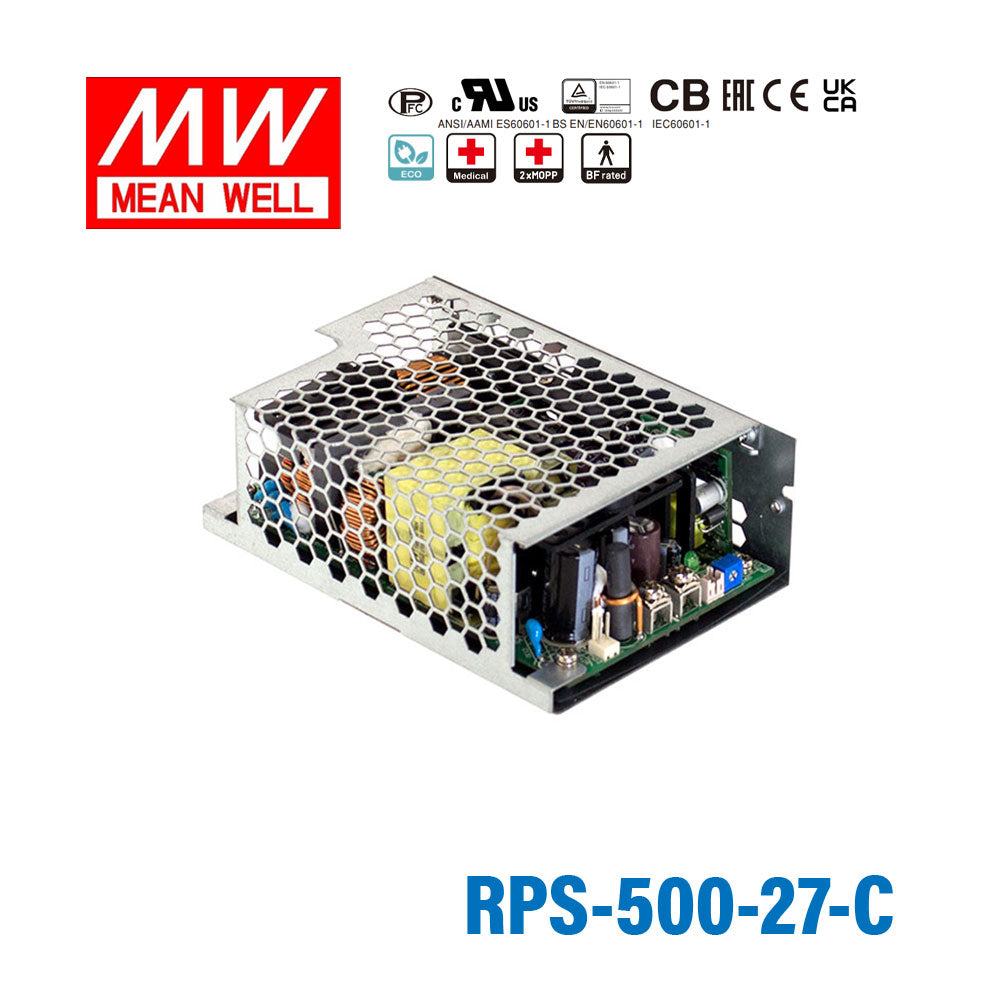

Mean Well RPS-500-27-C Green Power Supply W 27V 11.5A - Medical Pow...
Log in to see priceThe RPS-500-27 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating310.5 Watt
-
Output Voltage27 Volt
-
Rated Current11.5 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length13 cm
-
Width8.6 cm
-
Height4.3 cm
-
Weight0.54 kg
::specification::
Frequently Asked Questions
Can I use the RPS-500-27-C for a 27V medical monitor or therapy device?
Yes, if the device needs a constant 27V output and its load stays within 11.5A. This unit is rated for 310.5W and is listed as medical safety approved with extreme low leakage current.
Is the RPS-500-27-C suitable for 27V factory electronics or test equipment?
It can work well for 27V industrial electronics, test benches, or control assemblies that need a constant-voltage source. Its output limit is 11.5A, so the connected 27V load needs to remain within 310.5W.
Can this model support a 27V embedded controller with higher continuous power demand?
Yes, for embedded systems that require a steady 27V rail and do not exceed 11.5A continuous draw. The available 310.5W gives it more headroom than lower-output 27V models in the same family.
Is the RPS-500-27-C a fit for compact OEM equipment that still needs over 300W?
It is intended for higher-power compact equipment, with a 130.0 x 86.0 x 43.0 mm form factor and 0.54 kg weight. That makes it suitable where 27V output up to 310.5W is needed in a relatively contained package.
What is the difference between the RPS-500-27-C and the other 27V RPS-500 versions?
The RPS-500-27-C delivers 310.5W at 27V and 11.5A. The RPS-500-27 is 321.3W at 11.9A, while the RPS-500-27-SF and RPS-500-27-TF are both 499.5W at 18.5A; dimensions and weight also differ across the four versions.
Is the RPS-500-27-C intended for indoor or outdoor use?
Its operating temperature range is -30C to +70C, so the electrical platform is designed for broad ambient conditions. Since no IP rating is listed in the provided specs, it is best treated as a supply for protected indoor enclosures rather than exposed outdoor use.
