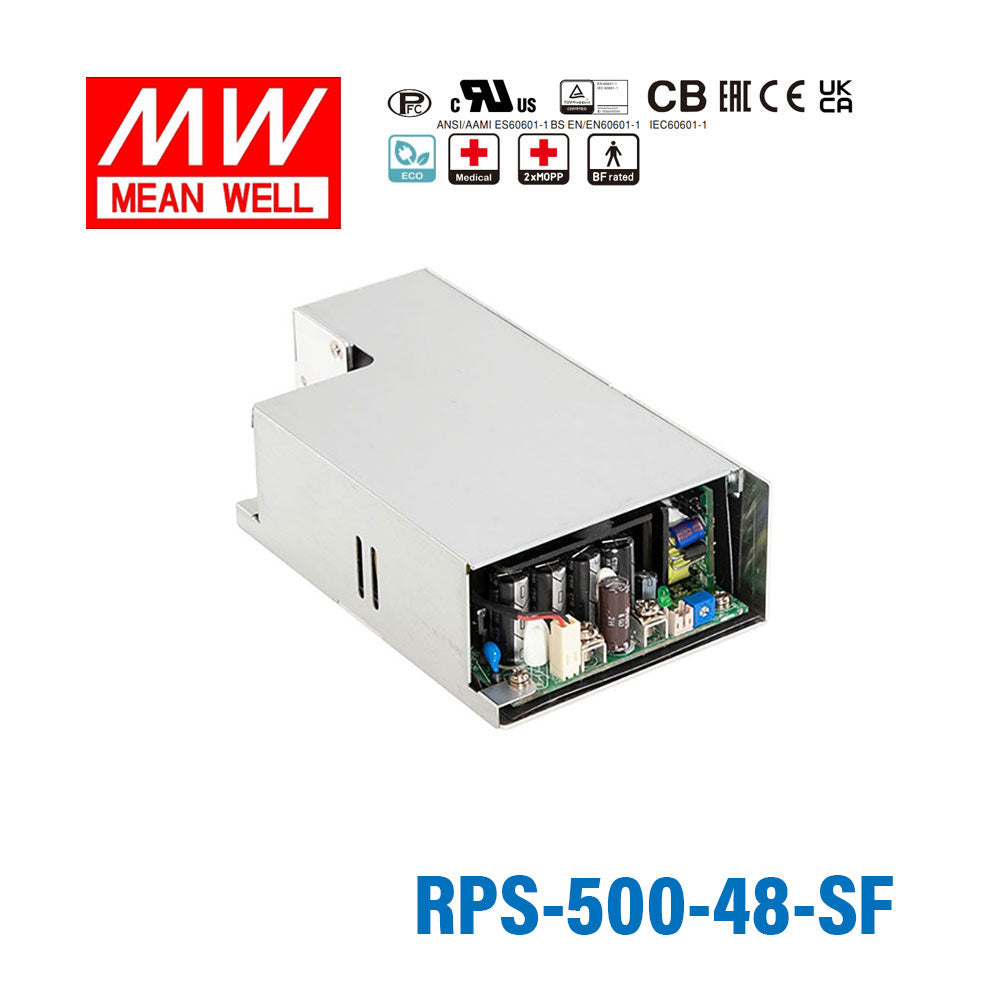

Mean Well RPS-500-48-SF Green Power Supply W 48V 10.4A - Medical Po...
Please Login for Pricing
Description
Description
Features
| 5"x3" compact size |
| 320W convection, 500W force air |
| 550W peak power (3 sec.)/td> |
| Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| MEMI for both Class I & Class II configuration |
| -30~+70°C wide range operating temperature |
| No load power consumption under 0.5W by PS-ON control |
| High efficiency up to 94% |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
| Operating altitude up to 4000 meters (Note.5) |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC 80A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
| Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.2 Watt
-
Output Voltage48 Volt
-
Rated Current10.4 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length16 cm
-
Width8.6 cm
-
Height4.3 cm
-
Weight0.64 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RPS-500-48-SF for a 48V industrial control cabinet with multiple loads?
It can fit a 48V control cabinet when the combined load stays within 10.4A and 499.2W. Because it is a constant voltage model, it is intended for 48V equipment rather than mixed-voltage loads.
Is this power supply suitable for 48V automation equipment or embedded systems that need higher power?
Yes, it is aimed at 48V applications that need more capacity than lower-power medical open-frame supplies. The output is 48V at up to 10.4A, which gives a maximum of 499.2W.
Can I use this for a 48V medical or laboratory device power stage?
This model is medical safety approved and is described as having extreme low leakage current. That makes it relevant for medical or lab equipment designs that need a 48V constant voltage supply up to 10.4A and 499.2W.
Is the RPS-500-48-SF appropriate for outdoor or washdown environments?
No IP rating is listed in the provided specs, so it is better suited to indoor equipment or use inside an enclosure than exposed outdoor or washdown locations. Its operating temperature range is -30°C to +70°C, so temperature tolerance is broad, but environmental sealing is not specified.
When does the compact size of the RPS-500-48-SF matter in equipment selection?
This version measures 160.0 × 86.0 × 43.0 mm and weighs 0.64 kg, so it is typically considered when a 499.2W 48V supply must fit into a relatively compact internal space. It also accepts 80-264VAC input, which helps in equipment designed for wide AC input ranges.
