Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

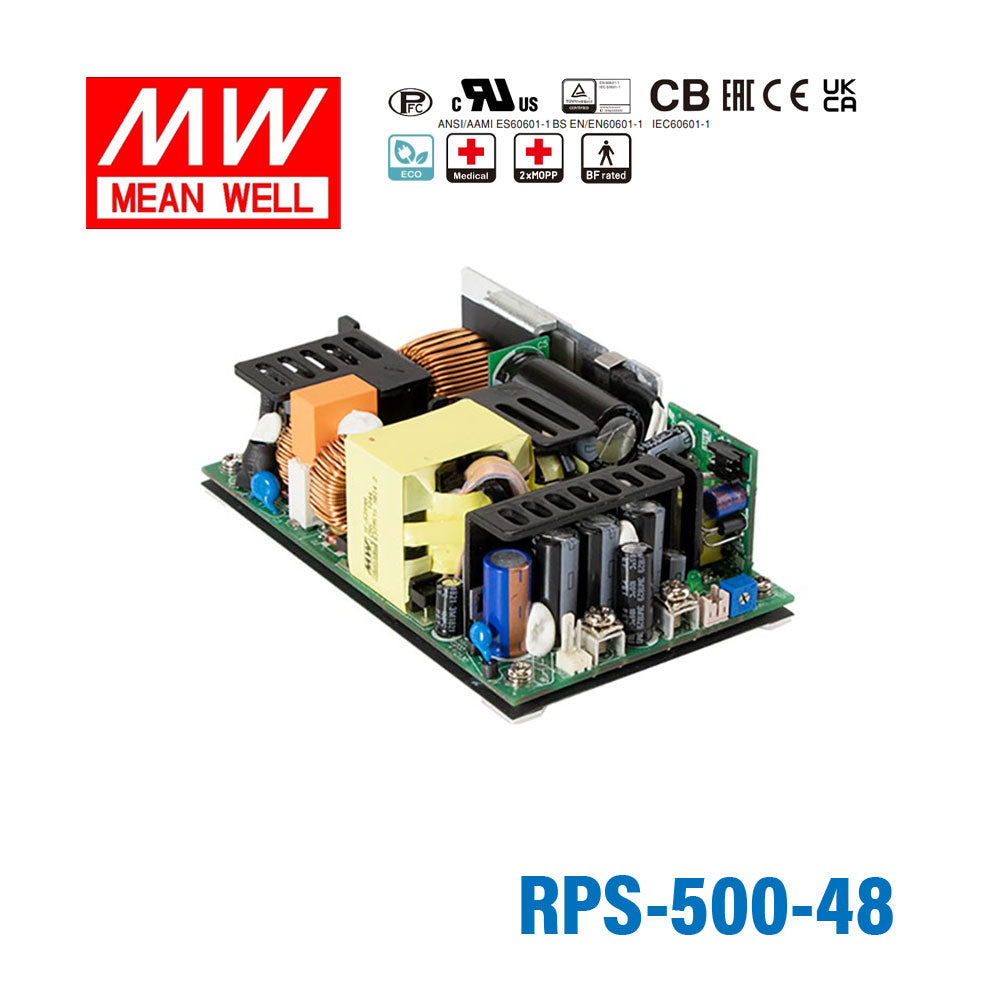

Mean Well RPS-500-48 Green Power Supply W 48V 6.7A - Medical Power Supply

5" x 3" compact sizemedical safety approvedextreme low leakage current

SKU:

RPS-500-48

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RPS-500 is a 500W Mean Well power converter (input range: 80~264VAC).

Key Features

✓ Input voltage range: 80~264VAC
✓ DC output voltage adjustable ±10%
✓ 4KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
✓ 3 years warranty

Frequently Asked Questions

Can I use the RPS-500-48 for a 48V industrial control or automation system?

Yes, this is a constant voltage 48V supply rated for 6.7A and 321.6W. It is suitable for 48V industrial, automation, or embedded systems that need a regulated 48V DC source within that load range.

Is the RPS-500-48 suitable for 48V telecom or network equipment?

It can be used where the equipment requires 48V DC and the load stays within 6.7A and 321.6W. The wide 80-264VAC input range is useful for deployment across sites with different AC supply conditions.

Can this power supply support a 48V medical or laboratory device?

Yes, if the device needs constant 48V output and does not exceed 6.7A or 321.6W. The product is listed as medical safety approved and includes extreme low leakage current among its features.

Would the RPS-500-48 work in a compact OEM or embedded enclosure?

Yes, for 48V systems that fit within its 321.6W and 6.7A rating. Its compact dimensions of 127.0 x 76.2 x 41.0 mm and weight of 0.46 kg help where space and weight are constrained.

How does the RPS-500-48 compare with the other 48V versions in the same family?

The RPS-500-48 is rated at 321.6W and 6.7A, the RPS-500-48-C is 312W and 6.5A, and the RPS-500-48-SF and RPS-500-48-TF are 499.2W and 10.4A. This model measures 127.0 x 76.2 x 41.0 mm, while the C version is 130.0 x 86.0 x 43.0 mm.

Can the RPS-500-48 be used in outdoor or washdown environments?

Its operating temperature range is -30°C to +70°C, so it can handle broad indoor ambient conditions. No IP rating is listed, so it is better suited to protected indoor enclosures than exposed outdoor or washdown locations.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RPS-500-48-TF Green Power Supply W 48V 10.4A - Medical Power Supply	499.2W	48V	10.4A	View
Mean Well RPS-500-48-SF Green Power Supply W 48V 10.4A - Medical Power Supply	499.2W	48V	10.4A	View
Mean Well RPS-500-48-C Green Power Supply W 48V 6.5A - Medical Power Supply	312W	48V	6.5A	View
Mean Well RPS-500-36-TF Green Power Supply W 36V 13.9A - Medical Power Supply	500.4W	36V	13.9A	View
Mean Well RPS-500-36-SF Green Power Supply W 36V 13.9A - Medical Power Supply	500.4W	36V	13.9A	View
Mean Well RPS-500-36-C Green Power Supply W 36V 8.6A - Medical Power Supply	309.6W	36V	8.6A	View
Mean Well RPS-500-36 Green Power Supply W 36V 8.9A - Medical Power Supply	320.4W	36V	8.9A	View
Mean Well RPS-500-27-TF Green Power Supply W 27V 18.5A - Medical Power Supply	499.5W	27V	18.5A	View
Mean Well RPS-500-27-SF Green Power Supply W 27V 18.5A - Medical Power Supply	499.5W	27V	18.5A	View
Mean Well RPS-500-27-C Green Power Supply W 27V 11.5A - Medical Power Supply	310.5W	27V	11.5A	View
Mean Well RPS-500-27 Green Power Supply W 27V 11.9A - Medical Power Supply	321.3W	27V	11.9A	View
Mean Well RPS-500-24-TF Green Power Supply W 24V 20.8A - Medical Power Supply	499.2W	24V	20.8A	View
Mean Well RPS-500-24-SF Green Power Supply W 24V 20.8A - Medical Power Supply	499.2W	24V	20.8A	View
Mean Well RPS-500-24-C Green Power Supply W 24V 12.9A - Medical Power Supply	309.6W	24V	12.9A	View
Mean Well RPS-500-24 Green Power Supply W 24V 13.4A - Medical Power Supply	321.6W	24V	13.4A	View
Mean Well RPS-500-18-TF Green Power Supply W 18V 27.8A - Medical Power Supply	500.4W	18V	27.8A	View
Mean Well RPS-500-18-SF Green Power Supply W 18V 27.8A - Medical Power Supply	500.4W	18V	27.8A	View
Mean Well RPS-500-18-C Green Power Supply W 18V 17.2A - Medical Power Supply	309.6W	18V	17.2A	View
Mean Well RPS-500-18 Green Power Supply W 18V 17.8A - Medical Power Supply	320.4W	18V	17.8A	View
Mean Well RPS-500-15-TF Green Power Supply W 15V 33.3A - Medical Power Supply	499.5W	15V	33.3A	View
Mean Well RPS-500-15-SF Green Power Supply W 15V 33.3A - Medical Power Supply	499.5W	15V	33.3A	View
Mean Well RPS-500-15-C Green Power Supply W 15V 20.7A - Medical Power Supply	310.5W	15V	20.7A	View
Mean Well RPS-500-15 Green Power Supply W 15V 21.3A - Medical Power Supply	319.5W	15V	21.3A	View
Mean Well RPS-500-12-TF Green Power Supply W 12V 41.6A - Medical Power Supply	499.2W	12V	41.6A	View
