Mean Well NID65-5 DC-DC Converter - 32.5W - 10.5~53V in 5V out 6.5A

SKU NID65-5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NID65-5 is the 5V output model of this series: rated power 32.5W, typical efficiency 93% (12/24VDC).

Features

Economical open frame design
Wide input range
High efficiency up to 97%
Remote ON / OFF control
Compact size 2.0"×1.024"× 0.433"(SIP package)
Protections: Short circuit / Overload / Over voltage
-30~+85℃ wide working temperature
Cooling by free air convection
Comply to BS EN/EN55032 ClassA without additional components
Trimming output (optional)
3 years warranty

Specifications

NID65-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 5V
CURRENT RANGE: 0 ~ 6.5A
RATED POWER: 32.5W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
VOLTAGE TOLERANCE: ±2.0%
SWITCHING FREQUENCY (Typ.): 200KHz
EXTERNAL CAPACITANCE LOAD (max.): 100uF / 16V low ESR

INPUT

VOLTAGE RANGE: 10.5 ~ 53VDC
NORMAL VOLTAGE: 24VDC (or 12VDC or 48VDC)
EFFICIENCY (Typ.) 24Vin: 93% (12/24VDC)
EFFICIENCY (Typ.) 48Vin: 92%
DC CURRENT Full load: 3200mA/12VDC
DC CURRENT No load: 20mA

PROTECTION

PROTECTION: Fuse recommended (5A)
OVERLOAD (Typ.): 120 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 6.4 ~ 7.5V Protection type : Shut off o/p voltage, clamp by TVS diode
SHORT CIRCUIT: All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power on : 1.2VDC < R.C ~ com < 12VDC or open circuit ; power off : R.C ~ com < 0.4VDC or short circuit (PIN5,6 & PIN11)

ENVIRONMENT

SAFETY STANDARDS: EAC TP TC 004 approved

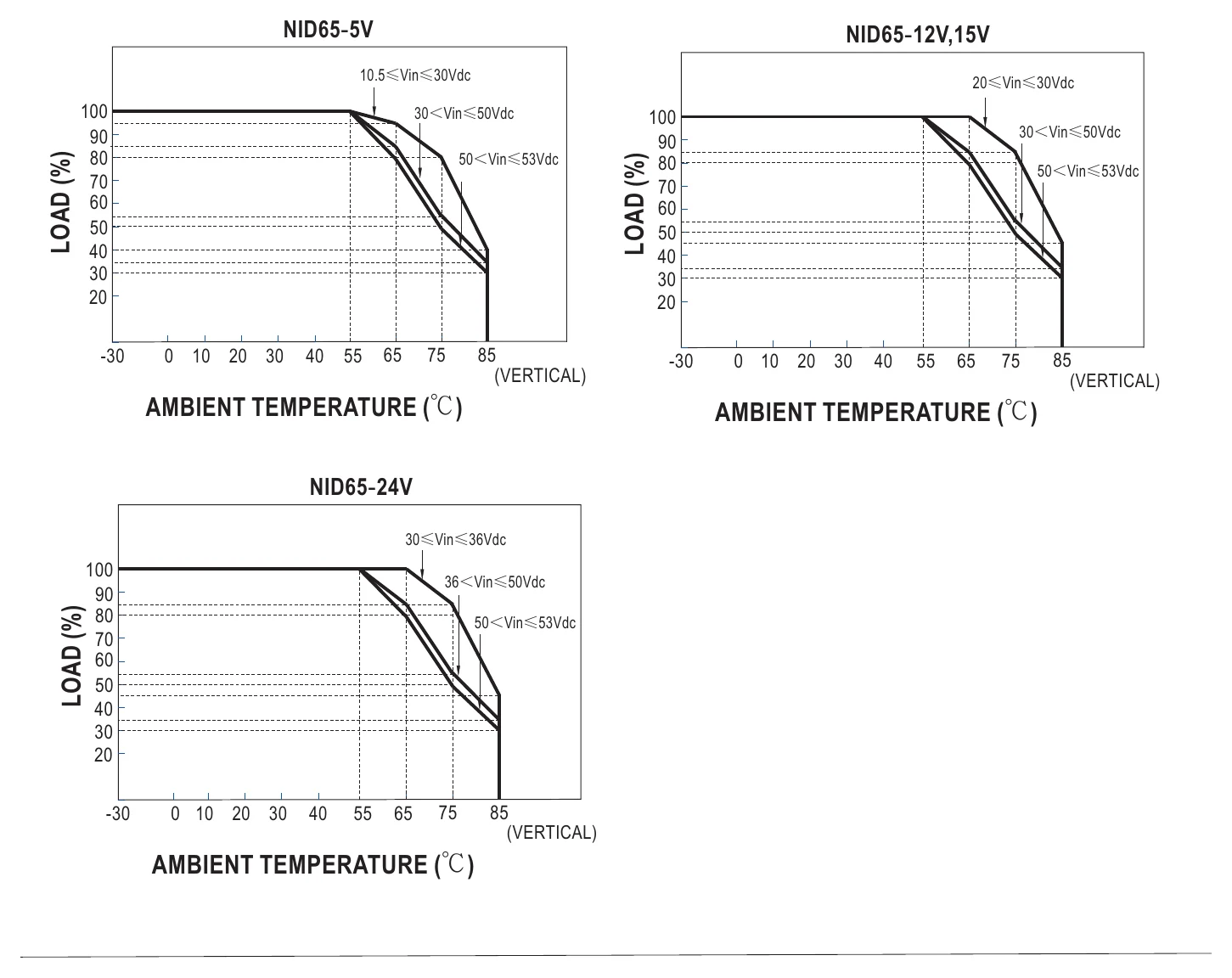

WORKING TEMP.: -30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 85% RH non-condensing
STORAGE TEMP.: -30 ~ +105℃
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 55℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARD: BS EN/EN62368-1(LVD)
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A without external components,Class B with external components
Radiated BS EN/EN55032 Class A without external components,Class B with external components
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

Radiated BS EN/EN61000-4-3 Level 2, 3V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV; criteria A
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,criteria A
Conducted BS EN/EN61000-4-6 Level 2, 3V; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A without external components,Class B with external components
Radiated	BS EN/EN55032	Class A without external components,Class B with external components

Parameter	Standard	Test Level
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV; criteria A
Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,criteria A
Conducted	BS EN/EN61000-4-6	Level 2, 3V; criteria A

OTHERS

MTBF: 16602.6K hrs min. Telcordia SR-332 (Bellcore) ; 890.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 50.8*26*11mm or 2.0"*1.024"*0.433" inch (L*W*H)
WEIGHT: 19g;280psc/6.32Kg/0.94CUFT

Test conditions and notes4

1.All parameters are specified at normal input, rated load, 25℃ 70% RH Ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.

Technical drawings

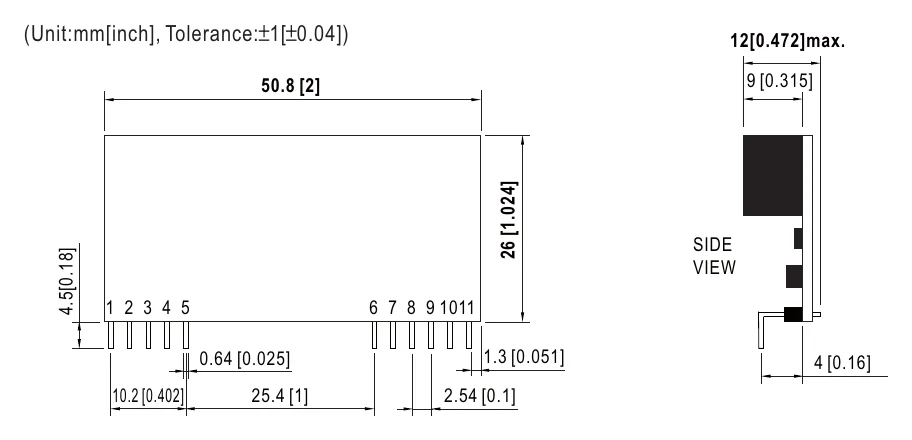

NID65-5 Mechanical Specification — Mechanical Specification

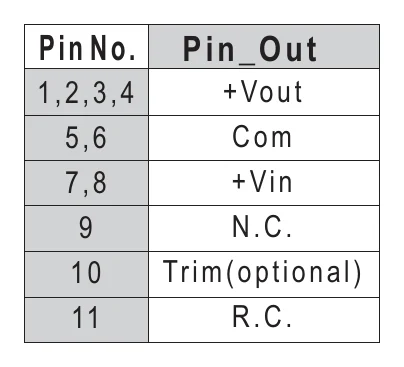

NID65-5 Pin Configuration — Pin Configuration

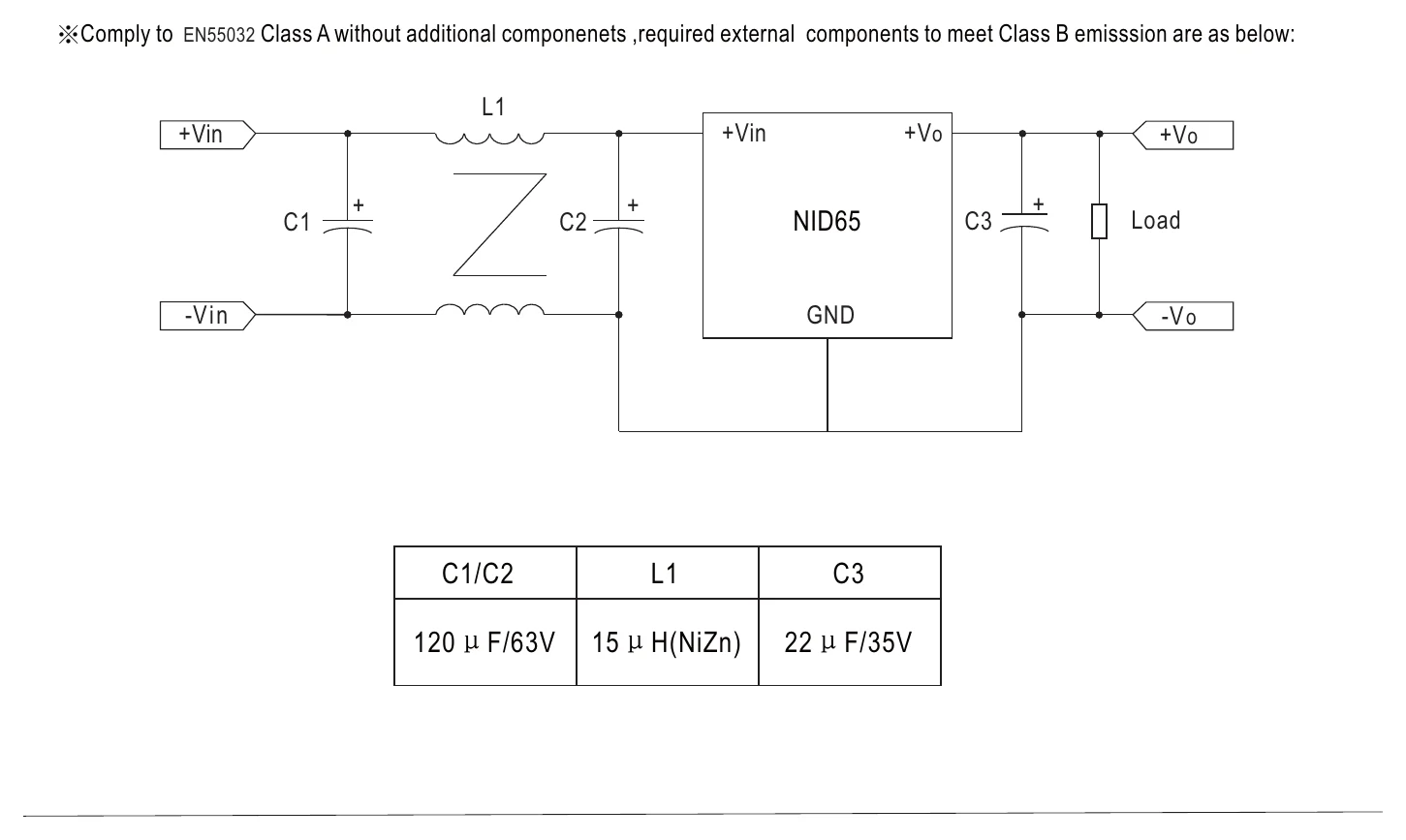

NID65-5 EMC Suggestion Circuit — EMC Suggestion Circuit

Downloads

Certificates3

Mean Well NID-35-65-100-EMC Certificate PDF Download

Mean Well NID-35-65-100-CE-dec Certificate PDF Download

Mean Well NID-35-65-100-UK-dec Certificate PDF Download

Test reports1

Mean Well NID65-05 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the NID65-5 for 5V embedded controllers or single-board computing hardware?

Yes, if the hardware requires a constant-voltage 5V supply and the total load stays within 6.5A or 32.5W. This model accepts 10.5-53VDC input, which gives it the widest input range in the series.

Is the NID65-5 suitable for 5V industrial interface boards or logic devices?

It is a fit for regulated 5V loads that need constant-voltage output and remain at or below 6.5A. The total output capacity is 32.5W, so it is better suited to lower-power 5V electronics than heavier 5V loads.

Can this model power 5V automation sensors or compact HMI support electronics?

It can support 5V automation electronics when the combined requirement does not exceed 6.5A and 32.5W. The converter is intended for constant-voltage 5V applications with input from 10.5-53VDC.

Does the NID65-5 handle wide temperature conditions for control cabinets or protected field enclosures?

The rated operating temperature is -30°C to +85°C, so the thermal range is broad. No IP rating appears in the listed specs, so use in exposed outdoor conditions is not confirmed by this data.

What are the key differences between the NID65-5 and the other NID65 converters?

The NID65-5 outputs 5V at 6.5A for 32.5W and accepts 10.5-53VDC input. The other models are NID65-12 at 12V, 4.9A, 58.8W; NID65-15 at 15V, 4.3A, 64.5W; and NID65-24 at 24V, 2.7A, 64.8W.
