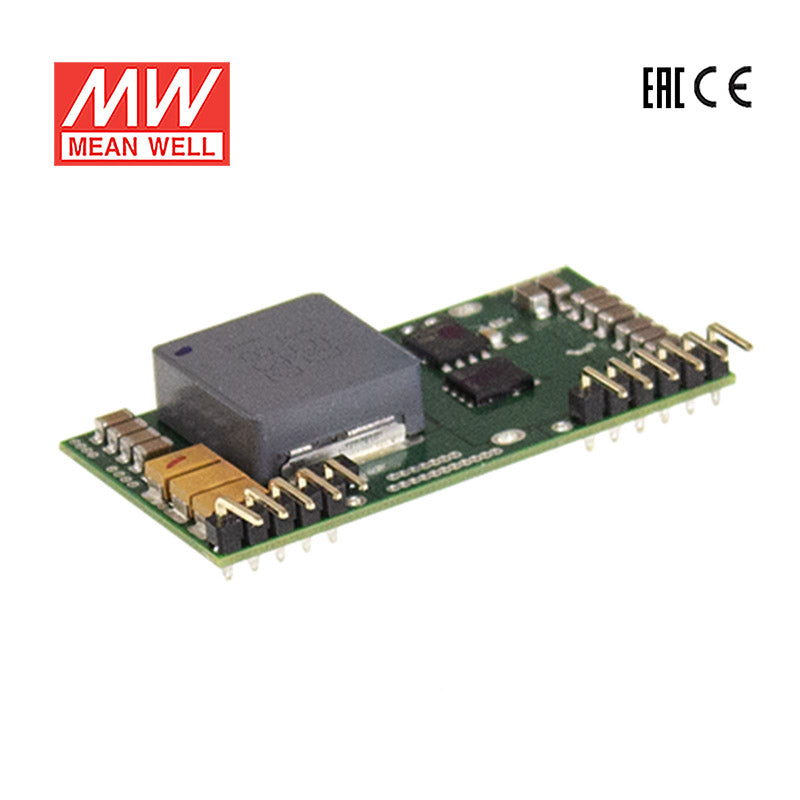

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well NID65-15 DC-DC Converter - 64.5W - 20~53V in 15V out 4.3A

SKU NID65-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NID65-15 is the 15V output model of this series: rated power 64.5W, typical efficiency 97%.

Features

Economical open frame design
Wide input range
High efficiency up to 97%
Remote ON / OFF control
Compact size 2.0"×1.024"× 0.433"(SIP package)
Protections: Short circuit / Overload / Over voltage
-30~+85℃ wide working temperature
Cooling by free air convection
Comply to BS EN/EN55032 ClassA without additional components
Trimming output (optional)
3 years warranty

Specifications

NID65-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 15V
CURRENT RANGE: 0 ~ 4.3A
RATED POWER: 64.5W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
VOLTAGE TOLERANCE: ±2.0%
SWITCHING FREQUENCY (Typ.): 200KHz
EXTERNAL CAPACITANCE LOAD (max.): 47uf/50V low ESR

INPUT

VOLTAGE RANGE: 20 ~ 53VDC
NORMAL VOLTAGE: 24VDC (or 48VDC)
EFFICIENCY (Typ.) 24Vin: 97%
EFFICIENCY (Typ.) 48Vin: 95%
DC CURRENT Full load: 3000mA/24VDC
DC CURRENT No load: 30mA

PROTECTION

PROTECTION: Fuse recommended (5A)
OVERLOAD (Typ.): 120 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.5~ 21V Protection type : Shut off o/p voltage, clamp by TVS diode
SHORT CIRCUIT: All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power on : 1.2VDC < R.C ~ com < 12VDC or open circuit ; power off : R.C ~ com < 0.4VDC or short circuit (PIN5,6 & PIN11)

ENVIRONMENT

SAFETY STANDARDS: EAC TP TC 004 approved
WORKING TEMP.: -30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 85% RH non-condensing
STORAGE TEMP.: -30 ~ +105℃
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 55℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARD: BS EN/EN62368-1(LVD)
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A without external components,Class B with external components
Radiated BS EN/EN55032 Class A without external components,Class B with external components
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

Radiated BS EN/EN61000-4-3 Level 2, 3V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV; criteria A
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,criteria A
Conducted BS EN/EN61000-4-6 Level 2, 3V; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A without external components,Class B with external components
Radiated	BS EN/EN55032	Class A without external components,Class B with external components

Parameter	Standard	Test Level
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV; criteria A
Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,criteria A
Conducted	BS EN/EN61000-4-6	Level 2, 3V; criteria A

OTHERS

MTBF: 16602.6K hrs min. Telcordia SR-332 (Bellcore) ; 890.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 50.8*26*11mm or 2.0"*1.024"*0.433" inch (L*W*H)
WEIGHT: 19g;280psc/6.32Kg/0.94CUFT

Test conditions and notes4

1.All parameters are specified at normal input, rated load, 25℃ 70% RH Ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.

Technical drawings

NID65-15 Derating Curve — Derating Curve

NID65-15 Mechanical Specification — Mechanical Specification

NID65-15 Pin Configuration — Pin Configuration

NID65-15 EMC Suggestion Circuit — EMC Suggestion Circuit

Downloads

Certificates3

Mean Well NID-35-65-100-EMC Certificate PDF Download

Mean Well NID-35-65-100-CE-dec Certificate PDF Download

Mean Well NID-35-65-100-UK-dec Certificate PDF Download

Test reports1

Mean Well NID65-15 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the NID65-15 with 15V industrial sensors or instrumentation modules?

Yes, if the load requires a constant-voltage 15V output and stays within 4.3A or 64.5W. This converter is designed for regulated 15V applications with a 20-53VDC input range.

Is the NID65-15 a fit for 15V automation electronics in a compact enclosure?

It can fit compact assemblies because the body is 50.8 × 26.0 × 11.0 mm and weighs 0.019 kg. Electrically, the load still needs to match a 15V constant-voltage output and remain at or below 4.3A and 64.5W.

Can this model support 15V embedded control boards from a variable input source?

It is suitable when the available source is within 20-53VDC and the board expects a regulated 15V output. The supported load envelope is up to 4.3A and 64.5W.

Will the NID65-15 work in indoor industrial areas with temperature swings?

The specified operating range is -30°C to +85°C, so the temperature tolerance is broad. No IP rating is provided in the specs, so exposed outdoor suitability cannot be confirmed from this product data alone.

What is the difference between the NID65-15 and the other NID65 versions?

The NID65-15 outputs 15V at 4.3A for 64.5W and accepts 20-53VDC input. Other versions are NID65-12 at 12V, 4.9A, 58.8W; NID65-24 at 24V, 2.7A, 64.8W; and NID65-5 at 5V, 6.5A, 32.5W.
